Complete Guide to 30 Amp Circuit Wiring Setup and Connections
Before connecting a 30-unit load circuit, verify the conductor gauge matches the breaker rating–10 AWG copper is the minimum for 30-unit protection. Smaller wires will overheat under sustained currents, risking insulation failure. Check local codes: NEC requires 10 AWG for single-phase circuits up to 30 units, while 8 AWG may be mandated for continuous loads. Label all splices and terminal connections with voltage ratings to prevent mismatches.

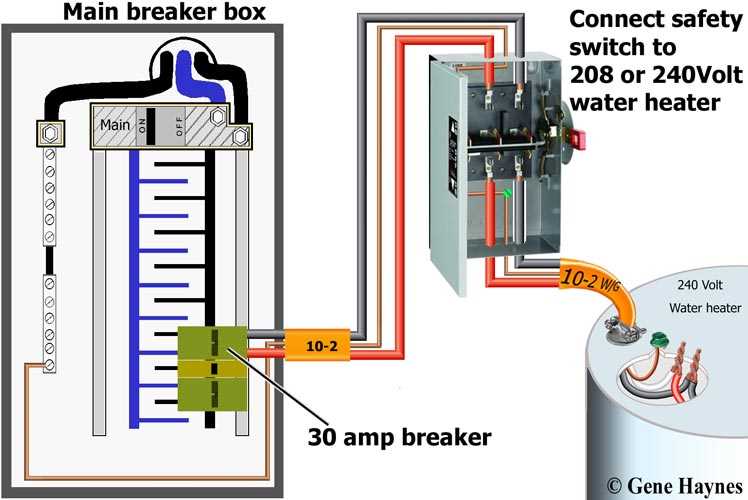

Use a double-pole breaker for 240-volt setups; torque terminal screws to manufacturer specifications–typically 20 lb-in for residential panels. Avoid backfeeding neutrals; dedicate a separate insulated conductor for each 120-volt leg to prevent ground faults. For subpanels, install a four-wire feed with an isolated grounding bar–bonding the neutral to ground in subpanels violates NEC 250.30 and creates parallel return paths.
Test continuity before energizing: verify zero ohms between hot and neutral, infinite resistance between hot and ground. For RV pedestals or temporary installations, add a ground-fault circuit interrupter (GFCI) rated for 30 units. Overcurrent devices must trip within 1 minute at 135% of the rated load; exceeding this duration risks conductor damage. If voltage drop exceeds 3% at full load, upsize conductors–30-unit circuits over 100 feet require 8 AWG to maintain efficiency.
Seal conduit entries with approved fittings to prevent moisture ingress; wet locations demand THWN-2 conductors. In metallic raceways, ensure all conductors are pulled together to minimize inductive heating. For heavy-duty equipment (e.g., welders, compressors), use a dedicated 30-unit circuit–sharing with other loads causes nuisance tripping. Document the configuration with a schematic showing wire colors, breaker locations, and load calculations for future reference.
30-Amp Circuit Installation: Step-by-Step Field Guide
Select a 10-gauge copper conductor for all hot, neutral, and ground lines–this meets NEC standards for 30-rated circuits while allowing a 20% safety margin below the breaker’s maximum capacity. Verify the panel’s busbar rating matches the new breaker’s specifications before cutting power.
Connect the breaker only after confirming voltage at the panel terminals with a multimeter (expect 240V between hots, 120V from either hot to neutral). Failing this check risks damaging appliances or creating fire hazards.
Use the following torque values for terminal connections to prevent loosening under load:
| Connection Point | Torque (in-lb) |
|---|---|
| Breaker to busbar | 20 |
| Device terminals (e.g., outlet, heater) | 25 |
| Ground screw (panel) | 15 |
Run conduit (minimum 1/2-inch EMT) if burying cables deeper than 18 inches–use schedule-40 PVC for underground runs. Never combine hot wires from separate circuits in the same conduit unless derating calculations confirm adequate capacity.
Label every junction box with the circuit’s purpose (e.g., “HVAC #3”), maximum current (30), and breaker location (e.g., “Panel B, slot 6”). Include date of installation; NEC requires this for future inspection clarity.
For subpanels, calculate voltage drop over distance–240V circuits feeding a 30-foot run lose ~3% efficiency if using 10-gauge wire. Compensate by upsizing to 8-gauge if the load draws continuously (e.g., welders, compressors).
Avoid backstab connections on outlets. Instead, loop wire clockwise around screws, securing each with a torque driver per manufacturer specs–plug-in terminals degrade faster under vibration or heat.
Test continuity on ground paths with a megohmmeter before energizing. Resistance between neutral and ground must read below 1 ohm; higher values indicate loose connections or corroded conductors–revisit all terminals immediately.
Choosing the Right Conductor Size for 30 Current Ratings
For a 30 current-rated circuit, select 10 AWG copper wire as the minimum safe size. This thickness supports continuous loads up to 24 actual power units (80% of 30) without exceeding permissible temperature rise. Aluminum conductors require an upgrade to 8 AWG to match conductivity and thermal performance.
Check local electrical codes before finalizing selection. Some jurisdictions mandate 8 AWG copper for 30 current installations, even when calculations suggest 10 AWG suffices. Always verify the specific requirements in the National Electrical Code (NEC) or equivalent local standard.
- 10 AWG copper: 30°C ambient, 90°C insulation (THHN)
- 8 AWG copper: extended runs beyond 50 feet or ambient >30°C
- 6 AWG copper: ambient >50°C or conduit fill exceeds 3 conductors
Voltage drop becomes critical on circuits exceeding 100 feet. For copper, recalculate required size using the formula:
- Volts lost = (circuit length × actual load × 2) ÷ 1000 × resistance per 1000 ft.
- If loss >3%, step up conductor size until loss ≤3%.
Environmental factors influence effective current capacity. Conductors in wet locations or buried underground need derating–consult NEC Table 310.15(B)(16) for adjustment multipliers. Insulation type (e.g., RHW-2 vs. THWN-2) also affects permissible continuous current.
Special Cases Demanding Thicker Conductors
Circuits powering inductive loads like motors demand thicker conductors to offset reactive power. A 1 HP motor on a 30 current circuit requires 8 AWG copper due to inrush spikes. Always size for 125% of motor full-load current.
Parallel conductors split load between two smaller gauge wires. For 30 current ratings, combining two 12 AWG conductors may suffice–but verify local approvals, as parallel wiring often needs 1/0 AWG or larger per branch.
Step-by-Step 30 Unit Receptacle Installation Guide
Shut off the circuit breaker controlling the targeted line before initiating installation. Verify absence of current using a non-contact voltage tester on both supply conductors. Exposed live terminals pose severe electrocution risk and mandate immediate correction if detected active.
Select a NEMA TT-30R outlet matching the 120-volt, single-phase configuration. Confirm the device’s rating accommodates the maximum continuous load–3,600 watts–or risk premature failure. Secure the receptacle to the electrical box using the integrated mounting screws, ensuring alignment prevents strain on attached conductors.
Strip 0.75 inches of insulation from the copper ends of the 10-gauge supply conductors. Twist the stranded wire tightly to prevent fraying before insertion. Connect the black (live) conductor to the brass terminal, white (neutral) to the silver terminal, and bare or green (ground) to the dedicated ground screw. Tighten terminal screws to 15 inch-pounds to ensure reliable contact without deforming the wire.
Fold conductors neatly into the box, avoiding sharp edges that could compromise insulation. Attach the faceplate with stainless-steel screws, ensuring flush mounting to prevent accidental contact with exposed wiring. Restore power at the breaker and test outlet functionality with a plug-in tester, verifying correct polarity, grounding, and absence of faults.
For applications exceeding 80% of the 3,600-watt threshold–such as RV hookups or high-draw appliances–install a separate dedicated circuit. Overloading leads to overheating, tripped breakers, or fire hazards. Never substitute undersized conductors; 10-gauge copper is non-negotiable for this rating.
Label the circuit at the panel to identify its purpose clearly. Periodically inspect connections for signs of corrosion or loosening, retightening as needed. Miswired or degraded outlets must be addressed immediately to maintain safety and compliance with NEC standards.
Common Mistakes When Installing a 30-Current Circuit Protector
Using undersized conductors tops the list of dangerous errors. A 10-gauge copper wire (rated for 30 thermal units) must carry the load–never substitute 12-gauge or thinner strands. Even short runs demand compliance; voltage drop compounds over distance, risking overheating. Verify wire diameters with a caliper if insulation obscures markings. Aluminum alternatives require one gauge larger (8-gauge) due to higher resistance and oxidation risks.
Ignoring Torque Specifications
Loose terminal connections create hotspots. Manufacturer torque values–typically 15 to 25 inch-pounds for breakers–must be followed precisely. A standard screwdriver lacks consistency; use a calibrated torque driver. Over-tightening strips threads, while under-tightening allows arcing. Confirm specs in the breaker’s datasheet, as values vary by brand (e.g., Square D vs. Eaton). Re-check connections after 24 hours of operation–thermal cycling loosens fasteners.
Reversing line and load wires may seem harmless but violates safety codes. The protector expects power input on the top lugs; swapping them disrupts internal arc-chute function. Label wires before disconnecting old systems. For subpanels, neutral and grounding conductors must terminate separately–bonding them downstream reduces fault detection sensitivity.
Neglecting GFCI integration in outdoor or wet zones invites ground faults. Install a 30-current GFCI breaker if circuits serve docks, pumps, or temporary power outlets. Confusing neutral and ground wires during GFCI installation trips the breaker immediately. Use a multimeter to confirm zero volts between neutral and ground at the receptacle–any reading above 5V indicates reverse wiring. Weatherproof in-use covers are mandatory for outdoor outlets, even if protected by GFCI.
