How to Wire a Hot Tub with a 50 Amp GFCI Breaker Step-by-Step Guide

Installing a 50-current ground-fault circuit interrupter (GFCI) is the only compliant method to safeguard your spa’s power supply. Standard non-GFCI protection lacks the sensitivity required by UL and NEC codes for wet environments, increasing shock risks tenfold. Begin with the interrupter mounted in a weather-resistant subpanel, preferably within 6 feet of the spa, but never inside wet zones. Verify the device’s trip threshold–between 4 and 6 milliamps–by testing with a listed GFCI analyzer before energizing the circuit.

Conduit selection directly impacts long-term reliability. Use schedule 40 PVC for underground runs, buried at least 18 inches deep, or liquid-tight flexible metal conduit (LFMC) for above-ground sections exposed to moisture. Secure all connections with stainless steel connectors rated for outdoor use; corrosion-resistant coatings extend service life by 3–5 years. Label both ends of the conduit with voltage warnings and fastener torque values (typically 12–15 inch-pounds for #8 copper conductors).

Wire gauge must match the interrupter’s 50-current rating: 6 AWG copper for runs under 50 feet, or 4 AWG for longer distances to prevent voltage drop exceeding 3%. Always use THHN/THWN-2 insulated wire, never Romex/NM-B, as NEC Article 680 forbids its use in spa circuits. Terminate neutral and ground separately at the interrupter; bonded neutrals elsewhere in the system will cause nuisance tripping. Confirm torque settings with a calibrated screwdriver–under-tightened connections overheat at just 10% below spec, while over-torque risks stripping threads.

Position the disconnect switch within sight of the spa (maximum 50 feet away) and 5 feet above grade. A lockable, pull-out handle meeting UL 987 standards prevents unauthorized access. Diagrams must include a load-side arc-fault protection bypass if the circuit serves auxiliary equipment like pumps or heaters–standard GFCIs may misinterpret motor startup currents as ground faults. Validate the entire system with a 30-second dwell test at full load before covering conduit.

Installing a 50-Current Protective Device for Spa Electrical Layout

Select a 50-current residual fault interrupter rated for outdoor or wet locations, compliant with UL 1449 and NEC Article 680. Verify the device’s trip threshold is set to 5 milliamperes–this ensures rapid disconnection during ground faults without nuisance tripping. Confirm the interrupter’s maximum load matches the spa’s manufacturer specifications; overloading voids safety certifications and risks equipment damage.

Run 6 AWG copper conductors from the main service panel to the spa disconnect, ensuring conductors are THHN/THWN-insulated for moisture resistance. Keep the neutral conductor ungrounded at the spa disconnect–grounding here creates parallel paths that interfere with fault detection. Terminate the live conductor (black or red) to the line-side terminal of the interrupter, while connecting the white neutral wire to the designated load-side terminal.

Ground the spa using an 8-foot copper-clad rod driven at least 6 feet from the equipment pad, bonded to the interrupter’s grounding bus with 6 AWG bare copper wire. Avoid attaching grounding conductors to metal plumbing or nearby structures–this violates NEC bonding requirements and compromises fault clarity. Test grounding resistance with a megohmmeter; readings above 25 ohms require adding a second rod spaced 6 feet apart.

Wire the spa’s pump and heater in series, not parallel, to maintain consistent current draw. Route 8 AWG copper conductors from the interrupter’s load terminals to the spa control box, securing connections with compression lugs rated for 75°C. Label all conductors at both ends with heat-shrink tubing marked “L1,” “L2,” “N,” and “GND”–mislabeling causes reversed polarity, tripping the interrupter when the spa activates.

Mount the interrupter in a NEMA 3R weatherproof enclosure if located outdoors, positioning it at least 5 feet from the spa edge to prevent moisture ingress into terminals. Seal conduit entries with silicone-based duct seal to block condensation; water infiltration corrodes contacts and alters trip sensitivity. Verify the enclosure’s hinge is corrosion-resistant brass–galvanized steel hinges fail within 18 months in humid climates.

Before energizing, test the interrupter with a calibrated fault simulator. Press the test button–the device should trip within 0.03 seconds. If it fails to trip, the neutral connection is likely reversed or the sensing coil is defective. Reject any device that trips erratically during this test; inconsistent performance indicates internal water damage or manufactured defects common in non-UL-listed models.

Document the installation with a detailed schematic, noting conductor lengths, terminal torque values (25 in-lbs for 6 AWG), and the interrupter’s model number. Submit this record to the local electrical inspector–failure to provide proof of compliance will delay occupancy permits and may void spa warranties. Store spare components (extra compression lugs, 6 AWG wire) onsite to expedite repairs after lightning storms, which account for 60% of post-installation interrupter failures.

Essential Equipment and Supplies for Spa Pool Power Setup

Select a 60°C-rated copper cable–minimum 6 AWG for circuits under 60 feet, 4 AWG beyond that distance–to handle continuous current demands without overheating.

• Weatherproof PVC conduit (schedule 40, 1-inch diameter)
• Two grounding rods (copper-clad, 8-foot length)
• Insulated lugs (compression-style, sized for chosen cable)
• Exterior-grade junction box (NEMA 3R rating)
• Torque screwdriver (inch-pound accuracy)
• Conduit bender (1-inch capacity)
• Fish tape (non-conductive, 25-foot length)
• Cable ripper (matching cable gauge)

Choose a disconnect switch rated for outdoor use–minimum 60-horsepower equivalent–placed 5 feet horizontally from the water’s edge. Verify the enclosure carries NEMA 4X protection against corrosion.

Gather a clamp meter capable of reading 0-200 milliohms for verifying bonding paths between metal components. Include stainless-steel bonding jumpers (minimum 8 AWG) for all non-current-carrying parts.

Opt for corrosion-resistant wire nuts (UL-listed for direct burial) when splicing within sealed junction boxes. Apply anti-oxidant compound on aluminum-to-copper connections to prevent galvanic corrosion.

1. Submersible circulation pump (220V, single-phase)
2. Heating element (thermostatically controlled, 5.5 kW capacity)
3. Control panel (digital interface, moisture-resistant membrane)
4. Chlorine generator (saltwater-compatible, titanium electrode)

Secure a hydraulic crimper set with hex die sizes matching lug specifications–commonly 6, 4, and 2 AWG. Include a conduit threader for rigid metal installations where flexibility is limited.

Stock ultraviolet-resistant cable ties (minimum 75 lb tensile strength) for bundling outdoor runs. Keep a moisture meter on hand to confirm dry conditions before energizing connections.

Step-by-Step Power Link Setup for a 240V Safety Switch

Shut off the main electrical panel before handling any conductors. Strip ¾ inch of insulation from the ends of the 6-gauge copper wires–two live feeds (black/red), one neutral (white), and one grounding (green). Insert the live terminals into the switch’s brass-colored screws, ensuring torque reaches 20 inch-pounds with a calibrated screwdriver. Attach the neutral to the silver screw and the grounding to the green screw, matching specifications from NEC Article 680.

Connection Verification Checklist

Step	Action	Confirmation
1	Secure live wires to brass screws	Tug test passes, no slippage
2	Neutral wire attached to silver screw	Wire flush with terminal, no exposed copper
3	Ground connected to green screw	Insulation intact, no fraying
4	Recheck torque values	20 inch-pounds confirmed with torque wrench

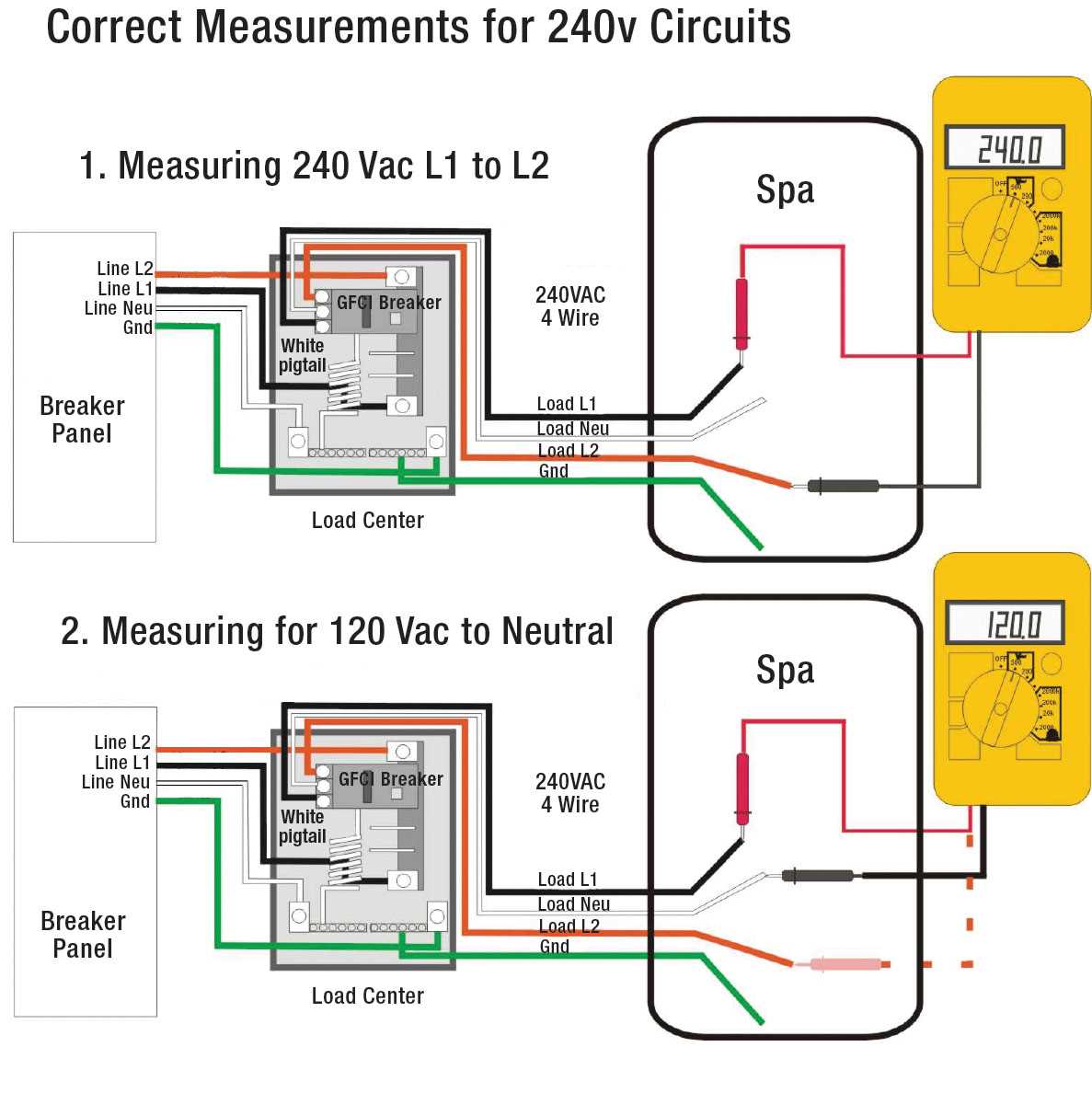

After securing all terminals, restore power at the main panel. Test the device with a multimeter: set to 250V AC, probe the live screws–readings must show 240V (±5V). Probe each live terminal against neutral; readings should stabilize at 120V. Ground continuity tests require probing each live terminal against grounding–no voltage should register. If discrepancies appear, re-examine connections before proceeding.

How to Properly Size and Install a Subpanel for Spa Equipment

Select a subpanel with a capacity exceeding the peak demand of your spa by at least 25%. Most residential units require a 60-service disconnect with 125% continuous load rating. Verify the manufacturer’s specifications–some high-end models may draw up to 50-60 peak currents during startup, necessitating a 70-rated box. Locate the panel within 10-15 feet of the spa but never directly above or within splash zones, adhering to NEC 680.22(A).

Conductors must match or exceed the insulation rating of the main feed. For a 50-rated circuit, use 6 AWG copper conductors with THHN/THWN-2 insulation for dry locations or XHHW-2 if running through conduit outdoors. Ensure all terminations are torqued to the manufacturer’s specifications–typically 20-30 lb-ft for 6 AWG–using a calibrated torque screwdriver. Label all wires clearly with heat-resistant tags at both ends to prevent misidentification during future servicing.

Critical Steps for Safe Installation

• Bury underground conduit at least 18 inches deep for rigid metal or 24 inches for PVC, per NEC Table 300.5. UseSchedule 80 PVC if passing under driveways or high-traffic areas.
• Install an insulated grounding busbar separate from the neutral bar in the subpanel. Connect a minimum 8 AWG solid copper grounding conductor from the main panel’s grounding system to this bar, ensuring no splices.
• Mount the disconnect switch no more than 5 feet horizontally from the spa but outside the 3-foot clearance zone. Verify the switch’s ratings match the subpanel’s capacity–misalignment can cause nuisance tripping.

Test all connections with a megohmmeter before energizing. Set the meter to 500V DC and probe each conductor against ground; readings below 100 megaohms indicate compromised insulation. After passing insulation tests, apply power and confirm voltage stability across L1, L2, and neutral with a true-RMS multimeter. Fluctuations exceeding ±5% warrant immediate re-inspection of terminations.

Document the installation with dated photographs and an as-built diagram. Include:

1. Exact conductor gauge and insulation type
2. Conduit size and burial depth
3. Subpanel model number and enclosure rating (NEMA 3R minimum)
4. Torque values for all connections
5. GFCI test results (pass/fail with test date)

Store this documentation in a weatherproof container near the spa for inspector or technician reference. Retest grounding resistance annually with a clamp-on tester–values above 25 ohms require correction per NEC 250.53(A).
