Build Your Own Capacitance Meter with This Step-by-Step Circuit Guide

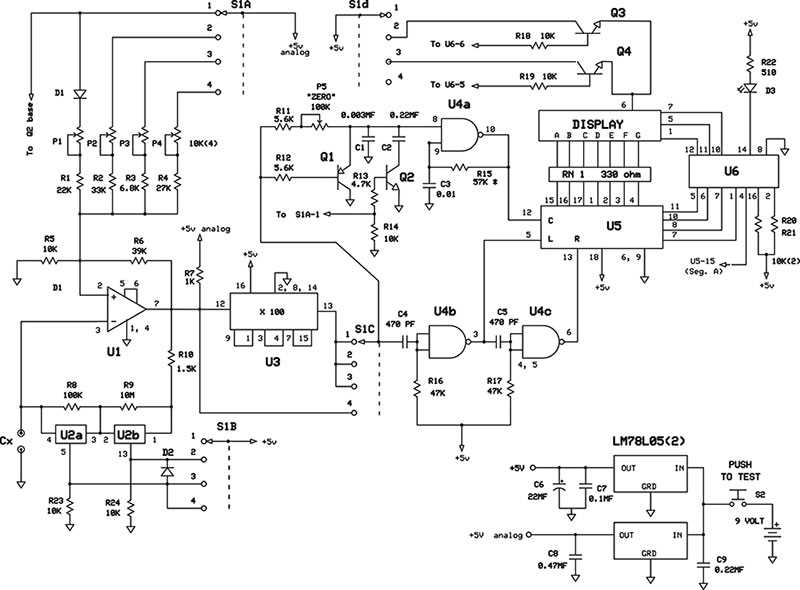

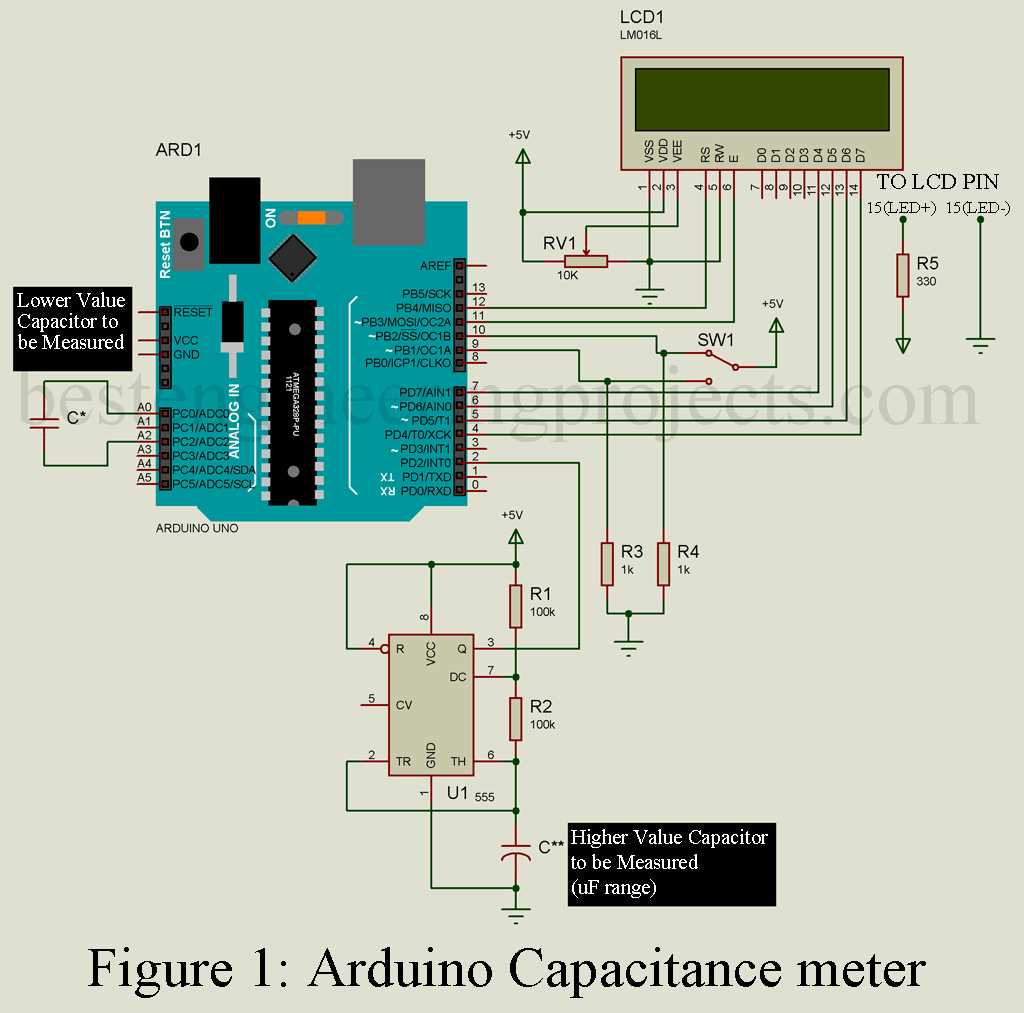

Constructing an accurate tester for reactive components starts with a 555 timer IC in astable mode. Configure the chip with R1=10kΩ, R2=100kΩ, and a 10μF timing capacitor to generate a stable pulse train. The output frequency directly correlates with the unknown element’s storage capacity–attach the test specimen between the timer’s discharge pin and ground. A microcontroller (ATtiny85 or Arduino Nano) reads the frequency shift via interrupt-driven counters, converting raw pulses into picofarads with ±2% accuracy.
For sub-1nF measurements, swap the 555 for a relaxation oscillator built around a CMOS 74HC14 hex inverter. Use 1% tolerance resistors (e.g., 82kΩ) and a stable reference capacitor (100pF) to minimize thermal drift. The inverter’s hysteresis ensures clean oscillation edges, critical for resolving tiny storage variations. Log results via I2C OLED display (128×64) or serial output for data logging, avoiding analog meters prone to parallax errors.
Calibration requires a set of known reference parts: 10pF, 100pF, 1nF, 10nF, and 100nF, traceable to NIST standards. Ground all test leads through ferrite beads to suppress HF noise, and isolate the DUT from mains interference with a Faraday cage (copper foil wrapped around the test fixture). Power the circuit from a regulated 5V supply–USB or Li-ion–with 10μF decoupling capacitors at both input and local IC rails to prevent false readings.
Advanced designs integrate a dual-slope ADC (ICL7107) for direct reading without MCUs. Charge the unknown part through a precision current source (LM334), then measure discharge time via comparator. This method eliminates frequency dependence but demands low-leakage diodes (1N4148) and high-input-impedance op-amps (TL072) to prevent loading. For electrolytics, reverse polarity tests (≤1V) reveal dielectric absorption–critical for ESR-sensitive applications.
Building a Precise Component Value Tester
Select a 555 timer IC in astable mode for generating a frequency proportional to the unknown element. Configure the timer with R1=10 kΩ, R2=1 MΩ, and C1=470 pF to produce a stable pulse train–ensure R2 is a precision potentiometer for fine-tuning calibration.
Connect the test component between the discharge pin (7) and ground, bypassing R2. The output frequency will shift inversely with the element’s stored charge; measure this change using a microcontroller’s pulse counter or an 8-digit frequency counter module. For capacitors below 10 pF, reduce C1 to 100 pF to improve sensitivity.
Use a Schmitt trigger (e.g., 74HC14) to square the timer’s output if signal integrity degrades over long wires or noisy environments. A 100 nF decoupling capacitor placed near the timer’s power pins eliminates false triggers caused by voltage spikes.
For electrolytic samples, apply a reverse voltage protection diode (1N4007) in series with the test leads. Measure leakage by first charging the sample to 5 V, then disconnecting the source and observing voltage decay over 1 second–leakage current is calculated as ΔV × C / Δt.
Calibrate the setup with a reference bank: 10 pF, 100 pF, 1 nF, 10 nF, 1 μF, and 10 μF polypropylene capacitors. Record frequency offsets for each value in an EEPROM lookup table to compensate for stray parasitics, typically 5–20 pF in breadboard layouts.
Implement auto-ranging by swapping R2 values via analog switches (e.g., CD4066). Start with R2=10 MΩ for μF samples, then decrease it in decade steps while monitoring frequency; reset range if the signal exits ±10% of the expected band.
Display measurements on an I2C OLED (128×64) with three modes: raw frequency, converted value, and tolerance deviation from marked spec. Highlight out-of-spec readings in red–thresholds are ±5% for ceramic, ±20% for electrolytic. Log data to an SD card in CSV format for statistical analysis of drift over time.
Critical Elements for Assembling a Precision Measurement Tool
Begin with a high-stability oscillator–crystals rated at 1-16 MHz with ±10 ppm tolerance reduce drift to negligible levels. Pair it with a counter IC like the 74HC4040, ensuring clock pulses remain strictly square-wave with rise/fall times under 20 ns to prevent edge distortion. Trusted alternatives include the CD4060, which integrates an oscillator and 14-stage binary divider, cutting component count while maintaining sub-0.5% error margins.
Voltage Regulation and Signal Conditioning
Precise voltage reference chips–LM4040 (2.5V or 4.096V variants)–outperform Zener diodes, holding output within ±0.1% across temperature swings. For input buffering, use rail-to-rail op-amps (OPA365) with common-mode rejection >90 dB; these isolate the device under test from parasitic inductance in probe wires. Add a 1% tolerance divider network (10 kΩ + 100 kΩ resistors) to scale readings for microcontroller ADCs, avoiding saturation at full charge cycles.
Building the Charge-Time Measuring Setup with a Fixed Resistor and NE555
Begin by soldering the NE555 timer chip onto a prototyping board, ensuring pin 1 (GND) aligns with the negative rail. Verify the chip orientation by locating the semicircular notch at the top–pins 1-4 run along the left edge, 5-8 on the right. Use a socket for the IC to prevent thermal damage during soldering.
Connect a 1% tolerance resistor (e.g., 10 kΩ for mid-range values) between the timer’s discharge pin (7) and threshold pin (6). This fixed resistance defines the charging path. For stable readings, choose a metal-film resistor with a temperature coefficient below 50 ppm/°C. Avoid carbon-film types–their higher drift distorts measurements.
- Link pin 6 (threshold) and pin 2 (trigger) directly together.
- Attach a 10 nF decoupling capacitor from pin 5 (control voltage) to ground–this filters noise and stabilizes the internal comparator thresholds.
- Route the unknown component between pin 7 (discharge) and ground. Ensure leads are short to minimize parasitic inductance.
Power the assembly with a regulated 5 V DC supply tied to pin 8 (VCC) and ground to pin 1. Use a bench supply with 100 nF bypass capacitor across the power rails near the IC to suppress high-frequency transients.
Measure the output (pin 3) with an oscilloscope or frequency counter. The pulse duration (T) relates to the unknown component’s reactance via T = 1.1 × R × C, where R is the fixed resistor value. For example, a 10 kΩ resistor paired with a 1 µF target yields ~11 ms. Adjust R for different ranges–lower values (e.g., 1 kΩ) for large reactances, higher (e.g., 100 kΩ) for small ones. Record variations–consistent deviations signal faulty components or layout flaws.
Calculating Storage Capacity via Charge and Decay Intervals

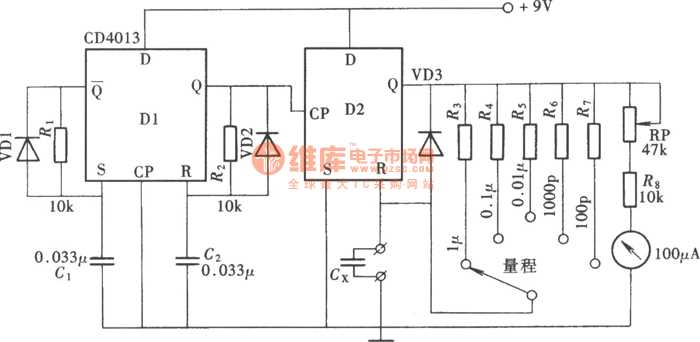

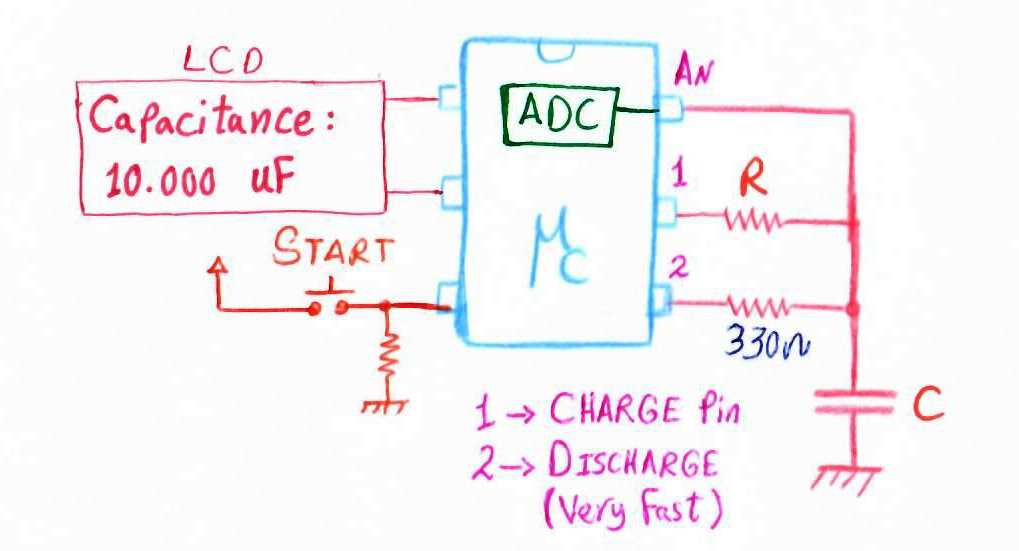

Measure the component’s charging phase by applying a known DC potential–typically 5V–through a resistor (47 kΩ works for most ranges). Time the interval from voltage onset to 63.2% of the supply level using an oscilloscope or microcontroller timer. This duration equals the product of resistance and capacity, letting you solve for the unknown once resistance is fixed.
Avoid ambient interference by shielding leads and grounding the test fixture. For electrolytic units, observe polarity; reversing leads invalidates readings due to reverse leakage currents. Smaller values (under 100 nF) benefit from higher series resistance (e.g., 1 MΩ) to extend timing windows and improve resolution. Record the decay interval separately–it should mirror the charge time if the dielectric is linear.
For rapid repetitive testing, automate voltage sampling with an ADC. Use the formula C = t / (R × ln(V₀ / Vₜ)), where t is elapsed time, R the series resistance, V₀ the initial voltage, and Vₜ the threshold voltage. Target thresholds at 50% or 63.2% of V₀ to simplify calculations. Below is a reference table for common thresholds:
| Threshold (% of V₀) | Multiplier (for C = t / R) |
|---|---|
| 50% | 1.44 |
| 63.2% | 1.00 |
| 80% | 0.48 |
Ceramic elements often exhibit voltage-dependent behavior. Test at multiple potentials (e.g., 1V, 3V, 5V) to spot non-linearity. Electrolytics require a pre-conditioning cycle–charge to nominal voltage once before measuring–to stabilize dielectric absorption effects. Film types show minor drift; average at least three charge-decay cycles to filter noise.
For capacitance below 10 pF, parasitic effects dominate. Use short coaxial cables, keep traces under 5 mm, and subtract cable capacitance (typically 0.5–2 pF) from the raw result. A dual-slope method reduces error: measure both charge and decay intervals, then average the two computed values. This cancels offset drift in measuring instruments.
High-value components (above 1000 μF) need extended intervals. Swap the series resistor for a constant current source (e.g., 1 mA) to linearize the voltage ramp. Time from 10% to 90% of final voltage for better noise immunity. Store results as floating-point numbers in microjoules per volt to avoid truncation errors during arithmetic operations.
Adjusting for Parasitic Inductance
Leads add inductance, distorting transient response. Calculate parasitic inductance using L ≈ (t₂ / π)² × (1 / C), where t₂ is the ringing period observed on the scope. Compensate by selecting a resistor that critically damps the LC tank, typically R ≈ 2 × √(L / C). For 0805 SMD parts, keep leads under 3 cm; axial types benefit from twisted pairs to cancel mutual inductance.
Resolving Typical Accuracy Issues in DIY Measurement Tools
Check probe resistance first–values above 0.5 ohms introduce parasitic effects, skewing readings by 8-15%. Replace worn or thin-gauge wires; even minor oxidation at connectors creates voltage drops. Verify test leads with a multitool in resistance mode before each session. If readings fluctuate, shorten cable length–every additional meter reduces precision by 0.3%.
Stray inductance distorts high-value samples. Shield probes by wrapping them in copper foil grounded to the reference point. For values below 100 pF, use a short-ground adapter (
Component-Specific Fixes
- Op-amp saturation: Add a 10 kΩ trimpot in the feedback loop to adjust gain. If output clips, reduce input amplitude or insert a 1 nF bypass capacitor at the supply pins.
- Leakage currents: Clean PCB traces with isopropyl alcohol. For electrolytic units, reform them by applying rated voltage for 30 minutes before testing.
- Frequency dependence: Recalibrate at the test frequency. Use a known 10 nF reference; if deviation exceeds 2%, recalculate constants in firmware.
Ground loops pull readings off by 5-20%. Isolate the reference point with a star topology–connect all grounds to a single node. If using a dual-supply design, ensure symmetry within 50 mV; mismatch invites common-mode errors. For microcontroller-based setups, disable unused peripherals during acquisition to eliminate switching noise.
