Complete Wiring Guide for 50 Amp Twist Lock Plug with Diagram
For a 250V heavy-duty connector, use 10 AWG copper wire rated for at least 60°C. Begin by stripping 0.5 inches of insulation from each conductor–L1 (black), L2 (red), neutral (white), and ground (green). Mismatched gauges risk overheating; verify your setup against NEC Table 310.16 before proceeding.
Align the stripped ends with the connector’s terminals: X (line 1), Y (line 2), W (neutral), and G (ground). Tighten each screw to 12 in-lbs–loose connections cause arcing. For 3-phase systems, replace neutral with a blue L3 wire; omit neutral entirely if the load is strictly 120/240V delta.
Verify polarity with a multimeter: 250V between X and Y, 125V between X/Y and neutral, 0V between neutral and ground. Recheck torque after 24 hours–thermal cycling can loosen terminals. Install a weatherproof cover if outdoors; UV exposure degrades insulation over time.
For generators or transfer switches, wire ground first to avoid floating neutral hazards. Reverse the connector’s male/female orientation only if the manufacturer’s datasheet explicitly permits it–reversing L1/L2 can damage motors. Never substitute aluminum wire; its thermal expansion coefficient differs too much from copper’s.
Connecting a 50-Strength Industrial Connector: Step-by-Step Breakdown
Begin by identifying the three primary conductors: black (hot/L1), red (hot/L2), and white (neutral). The green or bare copper wire serves as the ground. Confirm these colors match the markings on the device’s housing–most North American 14-50R outlets follow this standard, but verify against the manufacturer’s specs if deviations exist, especially in older installations.
Strip ¾ inch of insulation from each conductor using a precision wire stripper. Avoid nicking the copper strands, as this weakens the connection under load. For stranded wire, slightly twist the ends to prevent fraying before inserting them into the terminal screws. Solid-core wire requires no twisting but demands a firm clamp to prevent loosening over time.
Insert the black (L1) wire into the terminal marked X or L1, securing it with the terminal screw. Apply torque of 12–15 in-lbs (inch-pounds) using a calibrated screwdriver–over-tightening risks stripping the screw threads, while under-tightening causes arcing. Repeat for the red (L2) wire, attaching it to the Y or L2 terminal, ensuring no exposed copper extends beyond the screw clamp.
The white (neutral) wire connects to the W or N terminal. Some configurations omit this conductor for 240V-only appliances (e.g., welders), but if present, treat it with the same torque specifications as the hot wires. The ground wire (green/bare) must attach to the G or ground symbol terminal–this is non-negotiable for safety and code compliance (NEC 250.146).
Verify connections by gently tugging each wire–no movement should occur. Use a multimeter to test continuity between L1/L2 (should read ~240V) and between each hot and ground/neutral (should read ~120V). If readings deviate, recheck terminal tightness and wire integrity. Arcing or burning smells indicate immediate disconnection and re-inspection.
For aluminum wiring (common in older setups), apply an antioxidant compound to the stripped ends before securing them to terminals. Copper-aluminum alloys corrode rapidly, increasing resistance and fire risk. UL-listed connectors labeled CO/ALR (copper-aluminum rated) are mandatory in such cases.
Seal the connector housing after ensuring no stray strands or insulation are pinched. Most devices use a threaded collar–hand-tighten this securely, then snug with pliers (¼ turn max) to compress the internal gasket. Over-torquing cracks the housing; under-torquing allows moisture ingress, risking short circuits.
Final step: test the device under load. Power up a 50-strength-rated appliance (e.g., electric range, panel box) and monitor for voltage drop or abnormal heat. Detectable warmth at the terminals is normal, but anything above 60°C (140°F) warrants investigation–this usually signals loose connections or undersized conductors.

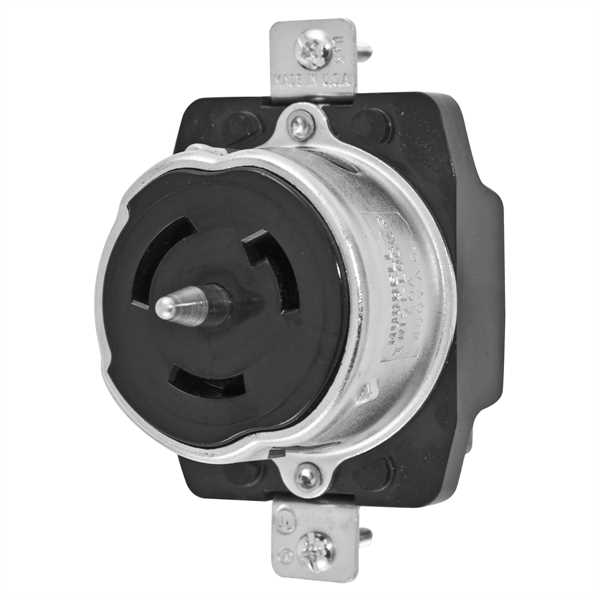

Understanding the NEMA L14-50 Connector Pin Layout
Always connect the live terminals (X and Y) to the outer slots of the L14-50 receptacle–identified by brass screws–with the neutral (W) assigned to the longer silver slot. The grounding post (G), marked green, must tie into the U-shaped prong at the bottom center; reversing these assignments risks tripping breakers or damaging equipment. Verify each conductor’s gauge meets 6 AWG minimum for the 50-series standard before energizing, and use a calibrated multimeter to confirm 120V across X–W and Y–W, with 240V between X–Y.
Safety Checks for Pin Alignment
After securing wires, torque all screws to 15–18 in-lbs using a torque screwdriver to prevent overheating; loose contacts generate heat that melts insulation. Snap the housing shut only after retesting continuity–ensure no stray strands bridge terminals. If polarization is inverted (detected via reversed 120V readings), swap the live leads at the source panel rather than the connector to maintain consistency across installations. Keep spare cover gaskets on hand; UV-degraded seals compromise ingress protection, exposing live parts to moisture.
Step-by-Step Guide to Safely Connecting a Heavy-Duty 50-Current Rotating Connector
Disconnect power at the circuit breaker immediately–no exceptions. Verify the absence of voltage using a non-contact tester on all terminals before handling the connector. A 50-current rotating connector has three prongs: one grounded (L-shaped), one neutral (silver, T-shaped), and one hot (brass, straight). Label each wire with masking tape to prevent confusion during reassembly. Strip insulation back precisely 0.75 inches (19 mm) to expose copper strands without nicking them; frayed conductors cause resistance buildup.
Match wires to terminals strictly per the chart below. Torque screws to 12 in-lbs (1.36 Nm) using a calibrated screwdriver–under-tightening risks arcing, over-tightening strips threads. Wrap each terminal with electrical tape after securing wires to block moisture ingress. Pull gently on wires to confirm engagement; they should not budge. If проводник insulation feels warm to the touch post-installation, disconnect and re-check connections–excess heat signals loose contact or reverse polarity.
| Terminal | Wire Color | Function |
|---|---|---|
| L-Shaped (Ground) | Green or bare | Earth reference |
| T-Shaped (Neutral) | White | Return path |
| Straight (Hot) | Black or red | Live conductor |
Seal the connector housing with a silicone gasket rated for outdoor use even if installed indoors–temperature cycling expands and contracts gaps. Reattach the cover plate using corrosion-resistant screws; stainless steel fasteners prevent rust seepage. Re-energize the breaker only after a final continuity test: probe hot to neutral should read ~120V, hot to ground ~120V, neutral to ground 0V. Wait 60 minutes under load before declaring completion; hidden faults surface as components warm.
Mount the connector no closer than 18 inches (45 cm) to standing water sources or combustible walls. Use a weatherproof enclosure if installed outdoors; NEMA 3R enclosures withstand driving rain but not submersion. Keep spare fuses (typically 50A time-delay) on-site for immediate replacement; blown fuses often trace back to improper initial hookup. Annually inspect for conductor oxidation or melted insulation terminals–grease build-up masks early failure signs.
Color Coding Standards for 50-A Connection Conductors
Use the following color assignments for 50-A rotational-interlock connectors to prevent misconfiguration:
- Black (L1, Phase 1) – Carries the primary hot lead. Connect to the clockwise terminal slot marked “X” or “1.”
- Red (L2, Phase 2) – Second hot conductor. Attach to the counter-clockwise slot labeled “Y” or “2.” Avoid swapping with black.
- Blue (L3, Phase 3) – Optional for three-phase variants. Terminate at the bottom slot “Z” or “3” when present.
- White (Neutral) – Must be insulated with a ridge or groove to distinguish from ground. Fasten to the dedicated neutral post, typically labeled “W” or “N.”
- Green (Ground) – Exclusively for safety earth. Secure to the U-shaped or round post, never interchange with neutral.
A 50-A rotational connector’s internal design enforces a specific blade orientation: hot terminals are angled, neutral is straight, and ground is circular. Verify terminal mapping with the connector’s female socket before termination–some manufacturers invert L1/L2 positioning. Cross-referencing the male plug’s slot angles (e.g., 30°, 60°, 90°) ensures proper alignment.
For stranded conductors, tin the wire ends with 60/40 solder to prevent fraying; solid-core variants may skip this. Strip insulation precisely to 11 mm (±1 mm)–excess length risks shorting, insufficient exposes bare wire. Use crimp ferrules (red for 10 AWG, blue for 8 AWG) on all terminations to maintain clamping pressure under torque.
Voltage drop under load must not exceed 3% per NEC 210.19(A). For 10 AWG copper, limit circuit length to 23 m (75 ft) at full capacity; 8 AWG extends this to 37 m (120 ft). Measure at the farthest outlet with a true-RMS multimeter while energized–readings below 114 VAC (120 V nominal) indicate undersized conductors.
Label each conductor at both ends with heat-shrink tubing:
- Black: “L1 – 120V”
- Red: “L2 – 120V”
- White: “N – 0V”
- Green: “GND – REF”
Color codes must match junction boxes, subpanels, and equipment terminals to avoid phase mismatches in multi-source installations.
Non-compliant color deviations (e.g., brown/black for hot, gray for neutral) require immediate correction–use electrical tape wraps per NEC 210.5(C). Never use green, green/yellow, or bare for any non-ground purpose. For temporary setups, flag non-standard colors with legible placards at the disconnect.
Torque specifications for clamp screws follow UL 486E: 1.4–1.7 N·m (12–15 lb·in) for 10 AWG, 2.0–2.4 N·m (18–21 lb·in) for 8 AWG. Use a calibrated torque driver; under-tightened clamps oxidize, over-tightening cracks terminals. After tightening, tug-test each conductor–no movement indicates proper termination.
