How to Convert 6-Wire to 4-Wire Trailer Plug Wiring Guide

Replace a six-connector setup with a standard four-pin plug by identifying matching circuits. Start with the ground (typically white), tail lights (brown), and left/right turn signals (yellow and green). These four will align directly–no modifications needed beyond proper pin alignment. The remaining two leads (often blue for auxiliary functions like brakes or backup lights) can be safely omitted unless your vehicle or load specifically requires them.

Use a multimeter to verify each circuit’s voltage before connecting. Test at the vehicle’s harness first, then match readings at the adapter. Mismatched voltages (e.g., 12V on one side, 5V on the other) indicate a miswired connection–recheck color codes against your adapter’s documentation. For vehicles with separate brake and turn signals (three-wire systems), combine the brake feed with the turn signal using a diode or a three-to-two adapter to prevent feedback.

Install a color-coded adapter with clear labeling–avoid generic “universal” plugs that lack circuit specificity. Pre-made adapters for Ford, GM, and Toyota harnesses exist and eliminate guesswork. If splicing, use heat-shrink crimp connectors and waterproof the connections with dielectric grease. Avoid electrical tape alone; it degrades under vibration and moisture.

Post-installation, test all functions: activate brake lights, turn signals, hazard flashers, and running lights. If any signal fails, isolate the circuit by disconnecting the adapter and testing each pin individually. Reverse polarity (e.g., connecting a turn signal to brake output) can damage the vehicle’s lighting module–double-check polarities before finalizing.

For heavy-duty applications (e.g., trailers with independent brakes), retain the auxiliary lead (blue) if your tow vehicle supports electric brakes. In such cases, pair the adapter with a brake controller and ensure the controller’s output matches the trailer’s brake voltage requirements (typically 10–12V). If brakes aren’t needed, cap the blue wire with a non-conductive terminal to prevent short circuits.

Connecting Multi-Pin Vehicle Harnesses to Standard Four-Cable Setups

Use a color-coded adapter harness to bridge the extra leads without cutting or splicing. Most North American vehicles with seven terminals include an auxiliary power output (typically blue) and a backup illumination circuit (often purple). Map these colors to the adapter’s remaining female connectors–blue should route to a 12V power block for auxiliary accessories like winches or interior lamps, while purple connects to a separate reverse light module if your compact setup lacks this feature. Confirm polarity with a multimeter before finalizing connections; reversed circuits risk blowing fuses.

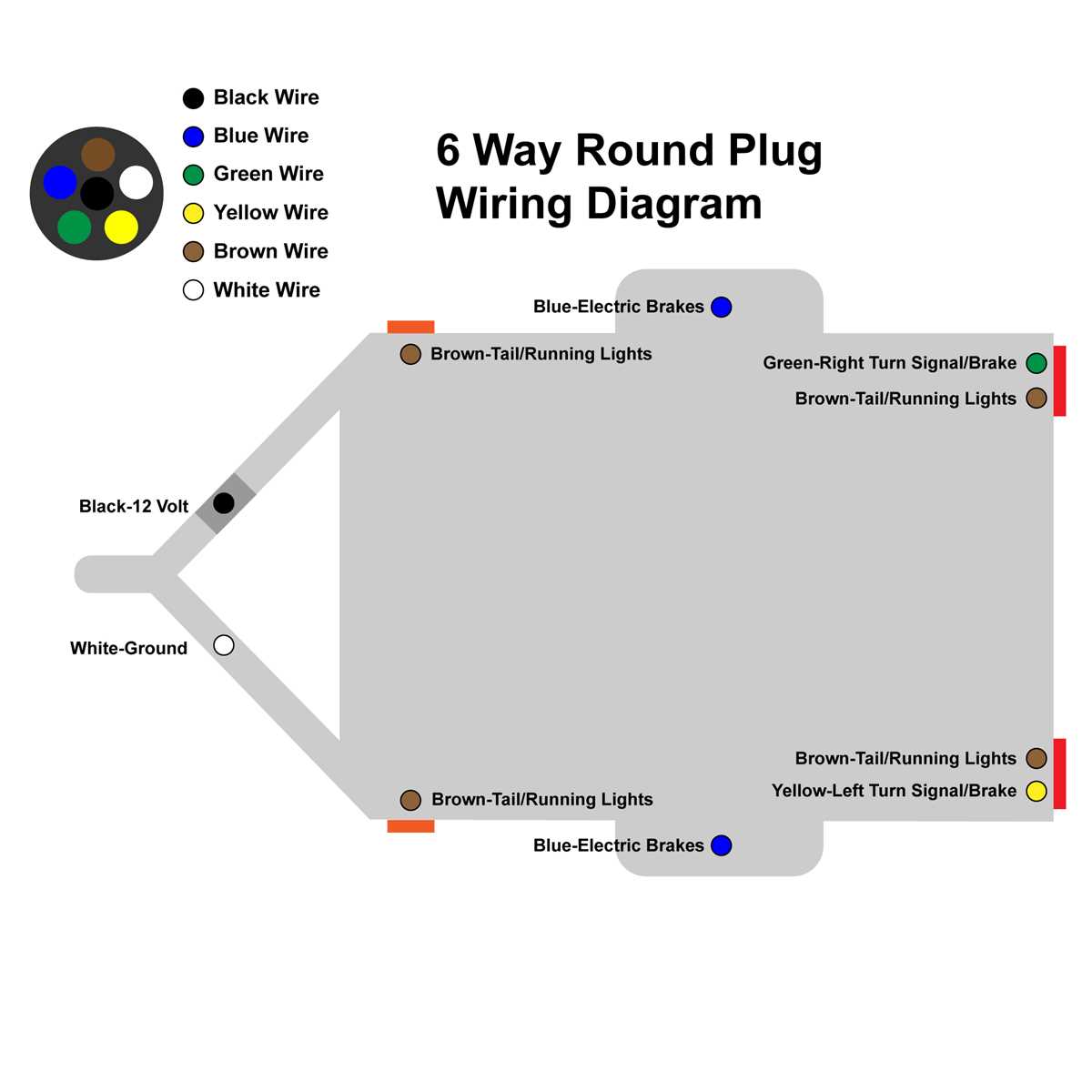

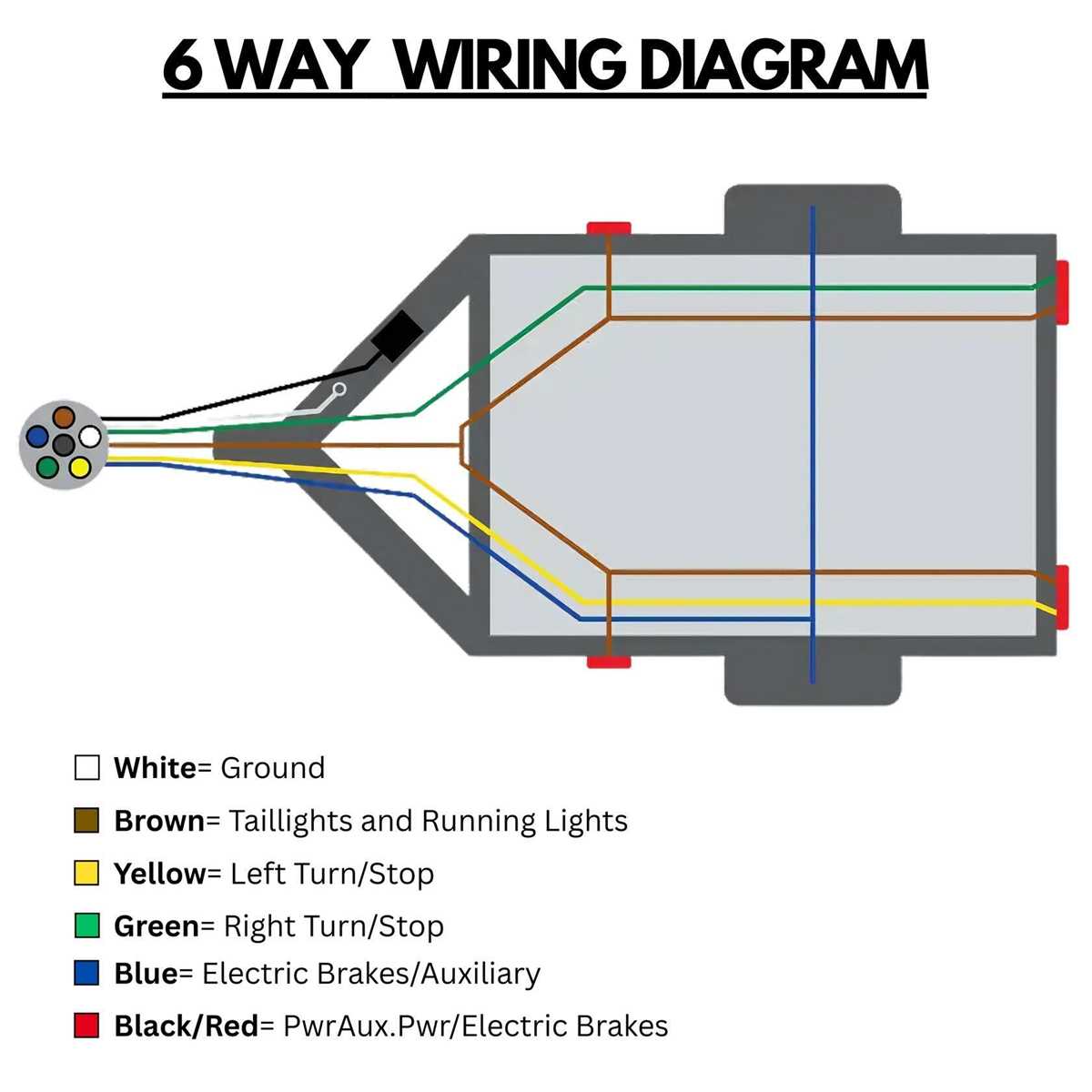

Fabricate or purchase a pigtail adapter matching SAE J2863 configurations. The six-circuit side follows a standard: brown (running lights), yellow (left turn/stop), green (right turn/stop), white (ground), blue (electric brake), and purple (auxiliary/reverse). Trim excess length on the four-strand side to 18 inches–longer runs introduce resistance, compromising signal integrity for high-draw components like surge brakes. Crimp terminals with insulated butt connectors rated for 20 AWG minimum; soldering risks heat damage to thin conductors.

Repurpose unused circuits for additional safety features. Tap the blue lead to a relay-controlled 12V outlet for tools or tire inflators, but install an inline fuse (15A) at the source to prevent overload. If reverse lights are unnecessary, splice the purple cable to a manual override switch for auxiliary lighting–ideal for off-road trailers lacking factory reverse detection. Label all splices with heat-shrink tubing imprinted with circuit details; faded markings cause misdiagnosis during repairs.

Test continuity under load. Activate each function individually and measure voltage drop across the adapter: acceptable limits are less than 0.5V for lighting circuits and 0.2V for brake controllers. Use a clamp-on ammeter to verify current draw–trailer brakes typically pull 8–12A per actuator. If voltage drop exceeds tolerance, upgrade to 14 AWG tinned copper wire for the affected runs; standard automotive wire has higher resistance due to thinner copper plating.

Secure the adapter harness to the towing vehicle’s frame with UV-resistant zip ties or adhesive-backed clips. Route cables away from moving parts and heat sources–exhaust pipes and suspension components degrade insulation over time. Apply dielectric grease to all connections to prevent corrosion, particularly in salt-water or humid climates. Document the final configuration with a quick-reference diagram affixed to the adapter’s strain relief; include wire gauge, circuit purpose, and fuse ratings to streamline future troubleshooting.

Identifying the Correct Conductors in an Auxiliary Vehicle Connector

Start by isolating the ground pin–it’s typically the largest terminal in the plug or the one connected to a white or bare conductor. Use a multimeter in continuity mode to verify: probe the vehicle’s chassis and this terminal should show near-zero resistance. If multiple candidates exist, prioritize the one linked to the primary harness bundle.

Locate the brake light circuit by tracing the red or yellow strand–it often splits into two paths (left and right indicators). Apply 12V directly to this conductor; both rear brake lights should illuminate simultaneously. If only one side activates, the connector likely carries a separate turn signal feed instead.

Differentiate the left and right turn signals by color-coding: green for the right (passenger side) and yellow for the left (driver side) in most configurations. Cross-reference with the vehicle’s factory manual–some European models swap these colors. Test with a 12V probe pulse; the corresponding lamp should flash at a standard 60–120 cycles per minute.

Pinpointing Auxiliary Circuits

Examine any remaining strands–blue typically denotes auxiliary power (for accessories like winches or interior lights), while brown usually handles tail/running lights. Ensure the blue line has no direct chassis connection; if resistance reads below 10 ohms, insulation may be compromised, risking parasitic drain.

For 12N/12S protocols, the auxiliary feed might double as a reverse light control–check for purple with a thin white stripe. Activate the reverse gear; voltage should spike to 12V momentarily. If absent, inspect the transmission control module fuse before assuming a wiring fault.

Verification Without Documentation

When color guides fail, methodically probe each terminal pair with a multimeter in DC voltage mode. With ignition on, depress the brake pedal–lights circuit should register 12V. Switch on marker lamps; running lights should mirror this voltage. Turn signals will show intermittent readings aligned with the flasher relay’s timing. Document every result to reconstruct the pinout accurately.

Step-by-Step Conversion from Multi-Pin to Standard Vehicle Connectivity

Identify the function of each pin in the original connector before disassembly. Most extended harnesses map as follows:

• Left turn/brake: Yellow or amber
• Right turn/brake: Green
• Running lights: Brown
• Ground: White
• Auxiliary power: Blue or red
• Backup lights: Purple (if present)

Verify these assignments with a multimeter; apply 12V to each circuit and observe vehicle response. Misidentification risks damaging the towing module or onboard computer.

Obtain a standard 4-way flat plug (SAE J1128 compliant) and matching color-coded jumper assembly. Trim excess length, leaving 6 inches of slack for strain relief. Strip 5mm of insulation from each conductor, twist strands tightly, and tin with rosin-core solder.

Connect the ground first–attach the white lead to the trailer frame or dedicated ground bolt. Ensure zero resistance (below 0.5 ohms) between the ground point and vehicle chassis. Corrosion here causes intermittent failures that are difficult to diagnose.

Splice the brown running light circuit directly into the existing brown sleeve. For combined brake/turn signals (common in North American setups), connect both yellow and green conductors to a single output via a 3-amp diode splitter. This prevents feedback into the lighting system while preserving functionality.

Remove any auxiliary circuits (blue/red/purple) unless the towing vehicle explicitly supports them. Isolate unused leads with heat-shrink tubing and secure them away from moving parts to prevent chafing. Ignoring this step can trigger false trailer detection errors in modern vehicles.

Use crimp connectors rated for at least 20% more current than the circuit’s fuse. For 10-amp lighting circuits, select 14-16 AWG terminals. Apply dielectric grease to each connection before final crimping to prevent moisture ingress.

Test each circuit individually before assembly. Activate left turn, right turn, brake, and running lights separately, checking for correct illumination and no parasitic draw on other circuits. Use a non-contact voltage tester to confirm no exposed conductors carry current under any condition.

Secure the new harness with UV-resistant zip ties at 12-inch intervals, avoiding sharp edges and heat sources. Route the harness above the tongue to prevent water pooling. Label both ends of the harness with a permanent marker indicating the date of conversion and vehicle model for future maintenance.
