Complete 6AL Ignition Control Wiring Guide for Classic Car Upgrades

Start by identifying the ignition control module–typically mounted on the firewall or within the engine bay–before tracing the six-pin harness. Label each wire with its corresponding function: battery positive (+12V), ignition input (IGN), tachometer signal (TACH), ground (GND), and two auxiliary outputs. Use a multimeter set to continuity mode to verify connections; probe the harness side of the connector while an assistant cycles the ignition. A 0.5V or lower reading confirms integrity, while higher resistance indicates corrosion or a broken strand.

Locate the fusible link between the battery and ignition module–a 10-14 AWG wire with a fusible segment–and bypass it only for testing. Replace it with a 30A fuse rated for continuous duty if diagnostics require extended operation. Route wires away from sharp edges and rotating components using NYLON spiral wrap (minimum 12mm diameter) secured with zip ties every 15cm. Avoid bundled high-current paths longer than 2 meters to prevent voltage drop exceeding 0.3V under load.

For the tachometer signal, tap into the coil’s negative (-) terminal using a split bolt connector–never solder directly–to preserve wire flexibility. Calibrate the gauge by adjusting the 1k ohm potentiometer on the module’s back panel; turn clockwise to increase sensitivity, counterclockwise to decrease. If the engine stalls on startup, swap the IGN and +12V wires–a common misconnection reversed during installation.

Ground the system through a dedicated M8 bolt attached to the chassis, scraping paint to bare metal for minimal resistance. Avoid using existing engine grounds; shared paths introduce interference. Terminate all connections with crimp-style butt connectors and heat-shrink tubing, applying dielectric grease to prevent oxidation. Test under real-world conditions: cold starts, extended idling, and 3000+ RPM–each scenario should maintain stable readings within ±100 RPM of the OEM specification.

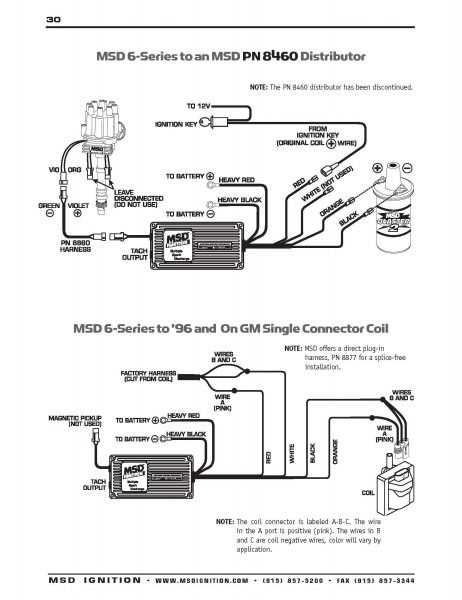

MSD Ignition 6420 Setup: Step-by-Step Connection Guide

Start with the main power lead–connect the thick red cable directly to the battery’s positive terminal, not the starter solenoid or any intermediate point. Voltage drop over long runs can cause misfires, especially under load. Use 10-gauge wire for this path, as anything thinner risks resistance buildup.

Ground the black wire to the engine block using a dedicated bolt, not a painted or coated surface. Scrape the metal clean until it shines, then secure with a star washer to prevent vibration loosening. A weak ground will introduce noise into the ignition signal, leading to erratic timing or stalling.

For the tachometer output, splice the green wire into the engine’s tach signal wire–typically found at the coil’s negative terminal on points-based systems or the ECU’s tach output if computer-controlled. Avoid tapping into alternator or accessory circuits; they produce false readings.

• White wire (if equipped): Connect to the distributor’s magnetic pickup for reluctor-based systems. For HEI distributors, omit this–MSD provides its own triggering.
• Purple wire: Leave unconnected unless using a dual-spark MSD box with CDI. Forced connection risks damaging the module.
• Gray wire: Only relevant when linking multiple MSD units in parallel. Route to another ignition’s gray wire with identical gauge.

When routing cables, keep them away from spark plug wires, alternators, and high-output coils. Use spiral wrap or loom to bundle them, securing every 8 inches with zip ties or adhesive mounts. Heat shrink all splices and solder joints–no crimp connectors, as they corrode under hood temperatures.

Common Pitfalls and Fixes

If the engine cranks but won’t start:

1. Verify the red wire has continuous 12V, even when cranking. Starter draw can pull battery voltage below 9V, causing the module to drop out.
2. Check for continuity on the black ground wire–no more than 0.5 ohms resistance to the battery’s negative terminal.
3. Inspect the distributor’s magnetic pickup (if used) for debris. Clean the reluctor wheel with a lint-free cloth and alcohol.

For forced-induction or high-compression engines, add a snubber capacitor (0.1µF, 200V) across the ignition coil’s primary terminals. This absorbs voltage spikes that can fry the MSD module during hard shifts or boost onset.

The orange wire controls rev limiting–program it via the MSD’s rotary switch, not external gauges. Each click on the dial represents 200 RPM increments, starting at 3,000 RPM. Verify settings with a tachometer, not dash readings–factory clusters often lag by 5-10%.

Locating Critical Parts in Your Ignition Control Schematic

Start by isolating the power feed lines–the thickest traces on the board. The main battery input (typically a red cable) connects directly to the control module’s “+” terminal, while the black ground line must attach to a solid chassis point or engine block. Verify these paths first; corrosion or loose connections here mimic ignition failure.

Trace the trigger signal path next. The ignition coil’s negative post should link to a labeled “TACH” or “COIL” output on the box via a thin purple or white wire. This line carries the low-voltage pulse that fires the coil–interruption here stops spark entirely. Use a multimeter to confirm continuity; resistance should read under 0.5 ohms.

Locate the magnetic pickup connector. A two-wire harness (often green and white) supplies the crankshaft position data. One lead carries voltage; the other returns the signal. Swap them if the engine cranks but won’t start–polarity matters. If voltage is absent, test the sensor’s resistance: 500–1500 ohms is normal for most units.

Check the rev limiter circuit. A yellow or orange wire feeds into a separate pin labeled “RPM LIMIT.” Factory settings default to 6,500rpm; any deviation suggests tampering. Soldered modifications here are common–inspect visually for bridged traces or added resistors.

Examine the ballast resistor bypass. Older setups include a pink wire that shunts current around the resistor during cranking. If this circuit fails, voltage drops too low to fire cylinders. Probe the wire with the key in “start” position; voltage should match battery level (12.6v).

Identify the tachometer output. A brown or gray wire feeds engine speed data to the gauge. If the gauge behaves erratically, this line is frequently shorted to chassis. Disconnect it at both ends to confirm; the engine should still run without it.

Finally, test auxiliary outputs. Some controllers feature extra pins for fuel pumps or shift lights. These default to open circuits–if you measure voltage, expect an aftermarket add-on. Label each wire as you trace it; mismatches between schematics and physical routing cause elusive no-start conditions.

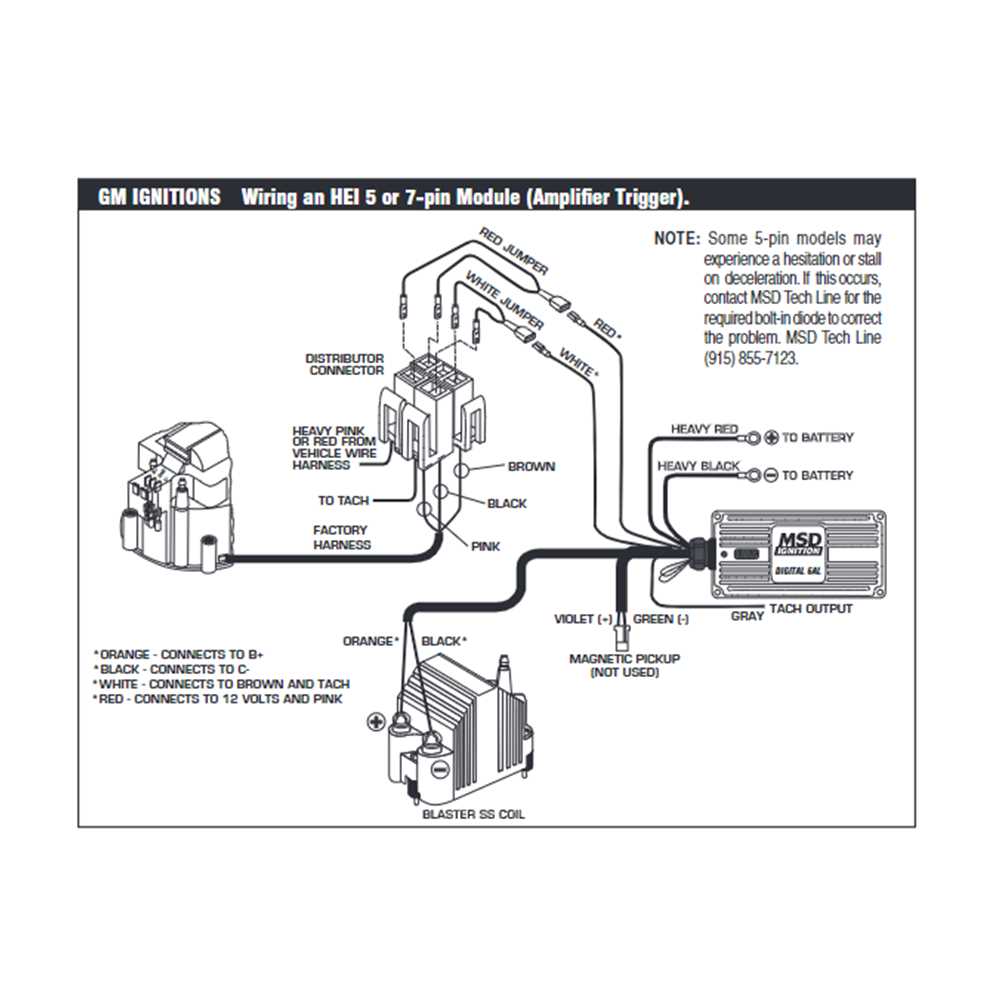

Installation Guide for MSD Digital Ignition Control Unit

Disconnect the battery before handling any electrical components. Locate a clean, dry area near the engine bay to mount the ignition module–avoid heat sources and moving parts. Use the supplied hardware or high-grade stainless steel screws to secure the box firmly. Ground the unit directly to the engine block or chassis with at least 10-gauge wire for optimal performance and noise reduction.

Identify the vehicle’s coil positive terminal–this wire typically carries 12 volts during ignition. Connect the module’s red output lead to this terminal, ensuring a solid connection with solder or a high-quality crimp connector. Route the black ground lead to the same point as the module’s ground for a unified return path. Verify no sharp edges or abrasive surfaces contact the wires to prevent chafing.

Trace the distributor’s signal wire, usually connected to the stock ignition control. Splice the module’s white trigger lead into this circuit–match polarity if required by your specific setup. For magnetic pickups, ensure the air gap between the reluctor and sensor remains within manufacturer specs (typically 0.030–0.040 inches). For optical or Hall-effect sensors, confirm the signal matches the module’s input requirements (0.5V minimum for Hall-effect, 1.5V for magnetic).

Link the module’s violet secondary output to the coil negative terminal, replacing the stock ignition wire if present. For multiple coil setups, distribute this output evenly across all coils. Use a multimeter to verify voltage at the coil positive terminal (12–14V key-on, engine off) and coil negative output (brief 0V pulses during cranking). Address any voltage drops immediately–resistance above 0.5 ohms in connections can cause misfires.

Reconnect the battery and test the system at idle first. Monitor for smooth operation, then gradually increase RPM while checking for erratic timing or ignition cutouts. Adjust the module’s rev limiter if installed, following the manufacturer’s rpm specifications for your engine’s peak power band. Fine-tune the timing with a strobe light, ensuring advance curves align with your fuel delivery system for maximum efficiency.

Avoiding Critical Errors During Ignition Control Module Installation

Connecting the power lead directly to the battery without a fusible link exposes the system to voltage spikes. Use a 10A fuse within 6 inches of the battery terminal and route the cable away from moving parts. Failure to do so risks shorts that can melt insulation or fry the control box.

Grounding through the engine block seems convenient but introduces resistance. Bolt the negative lead to a clean, bare metal surface on the chassis, not near painted or coated areas. Poor grounding causes misfires, erratic revving, or complete failure–symptoms often mistaken for coil issues.

Mixing up the tachometer signal wire with the ignition output causes erratic RPM readings. The signal wire (typically white) must connect to the coil’s negative terminal, not the distributor. Swapping these wires can damage the module or send false signals to the dashboard, skewing performance data.

Ignoring the ballast resistor requirement in points-based systems leads to premature coil failure. Modern electronic ignition modules bypass the resistor, but carbureted engines with points need a 1.5-ohm resistor wired in series. Ommitting it causes overheating and melted components within minutes.

Overlooking wire gauge selection invites voltage drop under load. Use 14 AWG for power leads and 18 AWG for signal wires, not thinner strands that can’t handle current spikes. Undersized wires create heat, degrade connections, and trigger limp mode in fuel-injected setups.

Common incorrect terminal pairings for coil and module connections:

Component	Correct Wire Color	Incorrect Wire Color	Effect of Error
Distributor Trigger	White	Green	No spark
Coil (-)	Black/Yellow Stripe	Red	Coil burnout
Ignition Power	Red	Blue	No power

Soldering connections without heat-shrink tubing leaves exposed joints vulnerable to corrosion and vibration. Crimp terminals with adhesive-lined shrink tubing or use military-grade connectors. Bare solder joints fail within months, especially in under-hood environments.

Skipping the diagnostic LED check wastes hours troubleshooting. The module’s built-in LED should flash once per second when powered. A solid light indicates a bad connection; no light means power isn’t reaching the box. Always verify this before assuming sensor or coil failure.
