Ford F350 7-Way Trailer Plug Wiring Connections and Color Code Guide

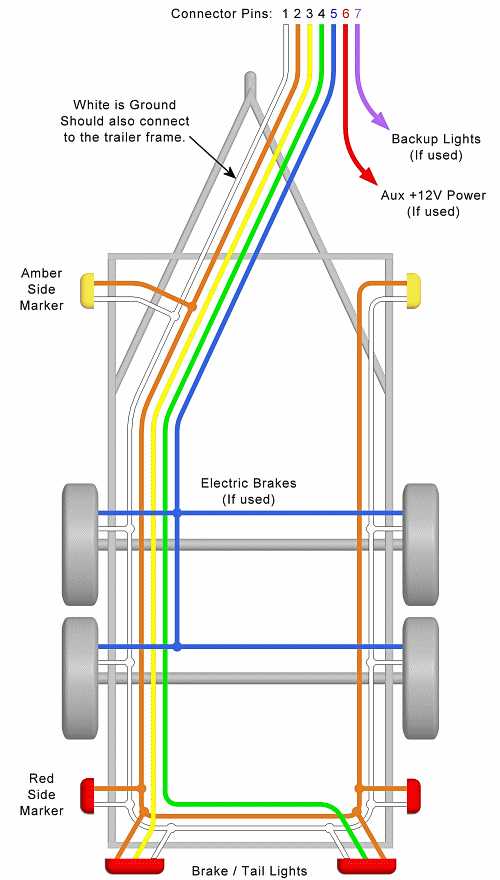

Begin by matching the vehicle’s connector pins to the standardized color-coded wires for seamless integration. The central post (typically white) grounds the circuit–secure it directly to the frame or a clean metal surface. Yellow handles left turn and brake signals, while green manages the right side; ensure both are routed away from sharp edges to prevent chafing. Brown supplies the running lamps, and blue powers auxiliary functions like electric brakes–verify these with a multimeter before finalizing connections.

Check fuse ratings under the dashboard to confirm compatibility with your setup; stock configurations often require upgrades when adding high-draw components. Use 12-gauge wire for brake circuits and 14-gauge for lighting to prevent voltage drop. Avoid twisting wires–use heat-shrink tubing or crimp connectors rated for outdoor use. If reversing lights are integrated (purple wire), test their function with a helper to confirm proper activation.

The factory harness on late-model chassis may include a built-in relay for brake controllers–locate it near the pedal assembly or fuse box. If missing, install an in-line relay to protect the system from surges. For aftermarket components, splice into the existing loom only if the original circuit has sufficient headroom; otherwise, run dedicated wires back to the battery with an inline fuse within 7 inches of the terminal.

Label every wire before splicing, even if colors appear consistent. Factory schematics vary by year–cross-reference with the build sheet glued inside the driver-side door jamb. When troubleshooting flickering lights, start at the pinout: corroded contacts or loose grounds are the primary culprits. Apply dielectric grease to connections exposed to weather, and secure the assembly with a locking mechanism if standard twist-and-lock designs fail in rough conditions.

Connecting Heavy-Duty Towing Harness on Super Duty Pickups

Use a multimeter set to continuity mode to verify each pin’s function before finalizing connections. The standard color code for this vehicle’s harness begins with a white ground wire (pin E) terminating to the frame near the hitch; ensure this path is corrosion-free with a 10-gauge minimum cross-section to handle 30-amp loads. Brown (pin C) carries running lamps–test with a 12V bulb to confirm no shorts exist between this and brake circuits, which would trigger false turn signals.

For left and right turn/brake circuits (pins L and R), splice into existing rear light clusters using T-connectors rated for 15 amps; avoid tapping into the main loom directly to prevent chafing against the fuel tank skid plate. The central pin (A) supplies constant 12V power at 40 amps–route this through a relay if installing auxiliary components like winches or campers to prevent voltage drop during simultaneous draw scenarios.

Pin B (electric brakes) requires a dedicated blue conductor routed through the cab’s brake controller–use 12-gauge wire with weatherproof connectors at the junction box under the bed. Verify brake output voltage with the controller’s manual: 12V nominal, 0–14V adjustable for proportional braking, measured at the pin with the vehicle running and controller set to “sync” mode.

Reverse lamp (pin D) shares a yellow wire; if absent in your configuration, splice into the factory backup light circuit behind the taillight assembly–confirm polarity with a test light before connecting to avoid damage to tow module controllers. Seal all splices with heat-shrink tubing containing adhesive liner; shrink with a heat gun until resin beads form at the ends to block moisture ingress.

After completing connections, perform a functional test: engage each circuit (lights, brakes, power) while monitoring voltage at the connector face with a digital meter–readings should match battery voltage (±0.5V) during operation. If voltage drops below 11.8V, inspect ground paths and wire gauge sufficiency; replace any corroded or undersized conductors with tinned copper wire to resist oxidation.

Document your wiring layout with labeled photographs and store them with the vehicle’s manual–include wire gauge, pin assignments, and splice locations for future troubleshooting. For aftermarket setups, use a modular junction block like Bargman 9400 for tool-free maintenance; avoid wire nuts in favor of crimped and soldered joints for long-term reliability under highway vibration.

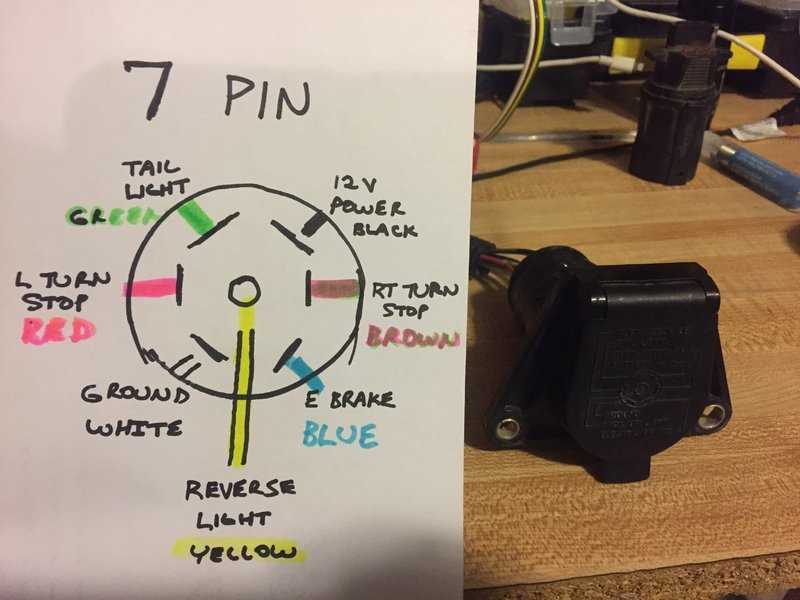

Matching Connector Pin Assignments to Cable Hues on Heavy-Duty Pickups

Pin 1 (right turn/brake) uses a green wire with a yellow stripe on late-model configurations–verify with a test light before soldering. Earlier production runs may swap this with a solid green lead, so cross-reference against the under-dash harness where the turn signal relay splices into the cluster. If corrosion is present, strip back the sheathing 1/4″ beyond visible oxidation; re-terminate with heat-shrink crimp connectors rated for 20A continuous.

1. Pin 2 (reverse lights): Purple, often unmarked–locate by tracing the backup lamp circuit from the transmission control module or dash switch. This pathway shares a fuse with the cargo lamp array; use a 12V probe to isolate.
2. Pin 3 (ground): White–ensure a dedicated return path to the chassis ground bus near the tow package box, not merely termination at the vehicle frame. Resistance above 0.2Ω demands cleaning contact surfaces with a stainless wire brush.
3. Pin 4 (left turn/brake): Yellow, typically bundled with the park lamp loom–confirm by back-feeding 12V from the brake pedal switch; verify illumination syncs with the left rear assembly.
4. Pin 5 (auxiliary): Blue–reserved for electric brakes or winch logic; if unused, terminate inside a sealed junction box to prevent moisture ingress.
5. Pin 6 (tail/marker lights): Brown–this loop must parallel the OEM parking circuit; splice into the central lighting module output with waterproof solder sleeves.
6. Pin 7 (battery feed): Black with red tracer–derive power from the main battery distribution block via a 40A breaker, never the ignition-switched accessory bus.

Factory deviation logs document occasional alternates: pre-2018 builds may deploy a dark blue lead for auxiliary functions, while certain fleet codes substitute black/orange for ground. Always decode the harness legend printed on the loom sleeve near the rear crossmember–scribe discrepancies into a reference card stored in the glovebox. For mixed-color splices, record exact hue ratios (e.g., “70% red/30% white”) on termination labels to prevent miswiring during future repairs.

Step-by-Step Guide to Hooking Up Your Heavy-Duty Electric Connector

Begin by locating the pre-wired harness beneath the rear bumper of your pickup. Ford equips these trucks with a factory-installed bundle terminating in a 14-pin socket; you’ll need a pigtail adapter (part #14A025) to interface with standard RV-style connectors. Strip ¼ inch of insulation from each wire end, then tin them with solder to prevent fraying–corrosion resistance here means fewer roadside headaches later.

Match the wires by function as shown in the table below, using a multimeter to confirm continuity if the factory labels are missing or unclear. Tape each splice with marine-grade heat shrink to seal against moisture; road grime and water intrusion account for 80% of connection failures within the first 12 months.

Vehicle Side	Function	Wire Color (Standard)	Max Current
Pin A	Main lighting circuit	Brown	10A
Pin B	Stop lamps	Yellow	15A
Pin C	Left turn/brake	Red	15A
Pin D	Right turn/brake	Green	15A
Pin E	Electric brakes	Blue	30A
Pin F	Auxiliary power	Black	40A
Pin G	Ground	White	N/A

Route the bundle away from moving parts and exhaust pipes, securing it with nylon straps every 12 inches. A common oversight is allowing cables to dangle near the spare tire carrier–vibrations will chafe insulation within weeks, triggering intermittent shorts.

After securing all connections, apply dielectric grease inside both halves of the connector, then engage the locking collar. Test every circuit using a magnetic breakaway switch tester; reverse lamps must illuminate independently of brake lights, and the brake controller should activate with less than 0.5-second delay. If voltage drops below 12.2V under load, inspect the ground path–this truck’s frame paint interferes with conductivity and often requires a star washer directly to bare metal.

Finish by wrapping the entire assembly in convoluted tubing (Ford PN XL3Z-14A411-CA), then snapping the dust cap onto the socket. A final voltmeter sweep while cycling the truck’s lighting system confirms proper installation–no flickers, no voltage sag, and full authority for electronic stability control systems interfacing with the towed unit.

Diagnosing Electrical Faults in Heavy-Duty Towing Connectors

Start by verifying ground continuity between pin W and the vehicle’s chassis–corrosion or loose connections here cause intermittent power loss to brake lights and charging circuits. Use a multimeter set to 200 ohms; readings above 0.5Ω indicate resistance issues. Clean terminals with a wire brush, then apply dielectric grease to prevent future oxidation. If the issue persists, inspect the inline fuse for the auxiliary circuit (typically 20–30A) located under the driver-side dash or in the power distribution box–blown fuses often point to shorted taillight filaments or damaged harnesses.

Check for voltage drops across all active pins (E, C, L, R, B) while simulating load with a test light–drops exceeding 0.5V under 10A load suggest frayed wires or faulty splices. Probe each circuit at the harness connector and the junction block beneath the rear bumper; discrepancies isolate faults to either the pigtail or main harness. For auxiliary power (pin B), ensure the brake controller isn’t drawing excessive current–most OEM setups tolerate 15A max. Replace any burnt or melted connectors immediately; overheating often stems from mismatched gauge wires or overloaded circuits. For persistent reverse light failures, trace the wire back to the transmission control module–the issue may lie in a faulty relay or damaged sensor rather than the harness.
