How to Build a Series Circuit with Key Components and Wiring Steps

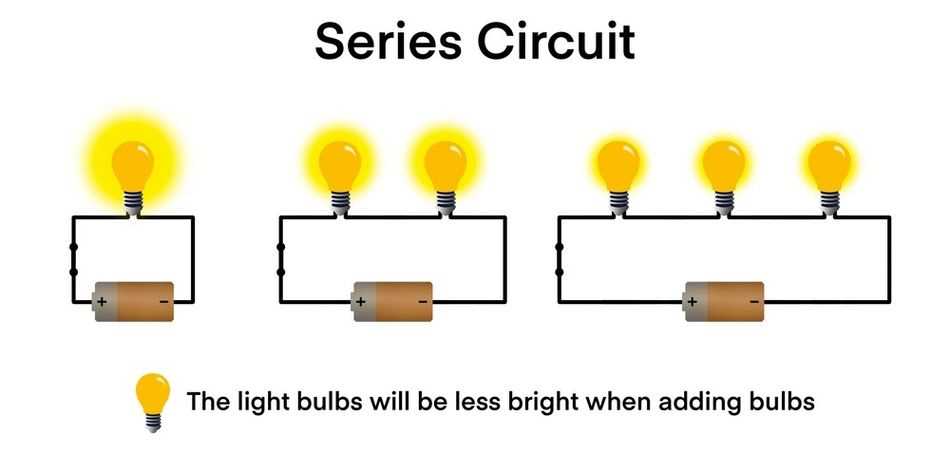

Connect components in a continuous loop where current flows through each element sequentially–this is the simplest way to structure a power path. A single interruption breaks the entire flow, making it ideal for scenarios requiring fail-safe operation. For example, holiday lights often use this configuration: if one bulb fails, the entire strand goes dark, instantly signaling a problem. Use thick-gauge wiring (14-16 AWG) for low-voltage applications to minimize resistance and prevent overheating.

Measure voltage drops across each component to verify uniform distribution. In a 12V setup, each resistor or load should drop a proportional fraction of the total voltage. If measurements show uneven drops, check for loose connections or mismatched resistance values. For precise calculations, apply Ohm’s Law: V = I × R. A 100Ω resistor in a 500mA path will drop exactly 5V–deviations beyond 5% warrant investigation.

Arrange components in ascending resistance order to stabilize current flow. A 10Ω resistor followed by a 100Ω resistor ensures smoother operation than reversing their positions. Use polarized components like diodes in the correct orientation; even a single backward element disrupts the entire path. For safety, fuse the entry point of the loop–2A for 24V systems and 5A for 12V setups–to prevent overload damage.

Optimize power efficiency by selecting components with tight tolerances (±1% for resistors). Cheaper 5% tolerance parts introduce unpredictability, risking voltage imbalances. For troubleshooting, a multimeter set to continuity mode quickly identifies broken links–probe each joint until the path breaks. Mark critical nodes during assembly to simplify future repairs.

In high-current applications (above 3A), replace standard solder joints with crimped connections or screw terminals. Heat buildup at weak points melts solder, creating intermittent failures. For prototypes, use breadboards with care–their internal resistance rises over time, skewing test results. Always validate designs with a physical model before finalizing.

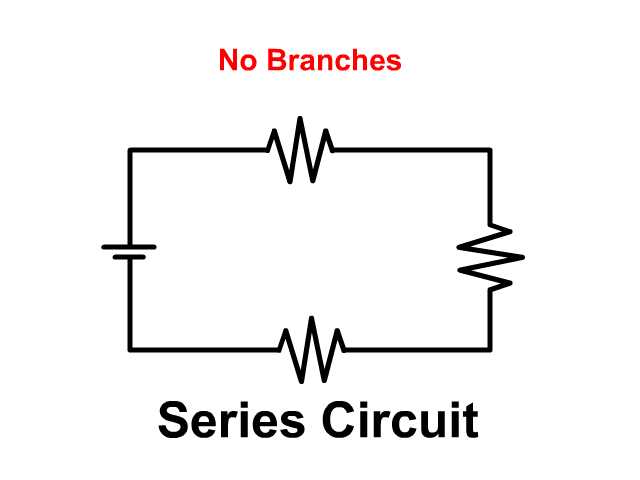

Understanding Sequential Electrical Paths

Begin by sketching the layout with a single continuous loop–each component must connect end-to-end without branching. Measure resistance values for resistors, capacitance for condensers, and inductance for coils before assembly; inaccuracies here cascade through calculations. Use a multimeter set to continuity mode to verify connections, ensuring no unintended gaps disrupt the chain.

Calculate total opposition to current flow using Ohm’s law: sum the values of all resistive elements. For example, three resistors of 220Ω, 330Ω, and 470Ω yield 1020Ω combined. Voltage divides proportionally across each element–record these figures in a table for quick reference during testing:

Component	Resistance (Ω)	Voltage Drop (V)	Current (mA)
R1	220	2.2	10
R2	330	3.3	10
R3	470	4.7	10

Power the arrangement from a stable DC source–fluctuating inputs distort readings. A 9V battery suffices for low-power setups; for higher demands, use a regulated supply with current-limiting features. Always wire the source’s positive terminal to the first element’s input and ground the final component’s output to complete the loop.

Observe polarity for diodes, capacitors, and batteries–reversed connections alter behavior or damage parts. LEDs require forward bias (typically 1.8V–3.3V drop); pair with a current-limiting resistor (e.g., 330Ω for a 5V source) to prevent burnout. Replace generic symbols in schematics with exact part numbers (e.g., 1N4007 for rectifiers) to avoid mismatches.

Trace the current path with a probe: identical amperage flows through every segment. Any deviation signals a fault–open junctions, shorts, or misaligned components. Probe at junctions between elements to isolate faults; a sudden drop in voltage indicates a high-resistance connection or faulty part.

For transient analysis, add a switch in line near the source. Toggle it while monitoring voltage across key points with an oscilloscope–inrush currents peak before stabilizing. Replace mechanical switches with solid-state relays for precision timing in timed applications.

Document every wire gauge, component value, and test reading. Store this data alongside the schematic–future modifications depend on it. Use color-coded wires (red for power, black for ground, yellow for signals) to maintain consistency across builds. Label each segment of the loop on the physical layout to streamline troubleshooting.

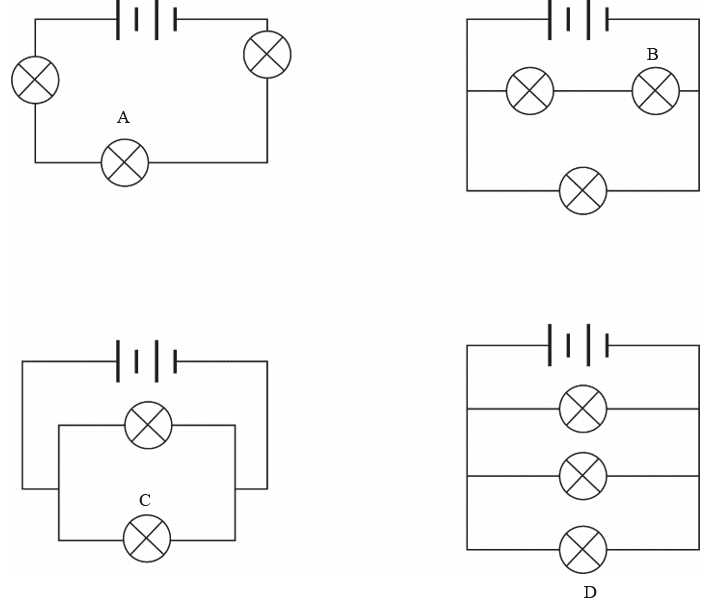

How to Trace Elements in a Single-Path Electrical Arrangement

Examine the interconnecting lines first–these conductive paths reveal how power flows sequentially through each part. Look for straight or gently curved traces linking one element to the next without branching. Any deviation into parallel branches indicates a different configuration.

Count each distinct symbol along the path. Typical symbols include:

• Resistors: zigzag lines or rectangular blocks with labeled resistance values (e.g., “R1 100Ω”).
• Batteries: two parallel lines of unequal length, where the longer line denotes the positive terminal.
• Switches: a break in the line with a diagonal slash or lever symbol.
• Lamps: a looped filament enclosed in a circle or teardrop shape.
• Fuses: a thin rectangle with a gap, often labeled with current ratings (e.g., “5A”).

Verify voltage drops across consecutive components using a multimeter if the schematic lacks annotations. Probe each connection point in sequence–total voltage should equal the sum of individual drops. Discrepancies suggest faulty parts or incorrect readings.

Identify color-coded wires if working with a physical setup. Standard codes apply:

• Black: ground or return path.
• Red: positive supply (commonly +5V, +12V, or +24V).
• Yellow/Blue: signal or secondary power lines (check legends).

Mismatched colors or missing labels demand tracing continuity with a probe.

Locate input and output terminals at the arrangement’s extremities. Inputs (power sources) sit upstream, outputs (loads or ground) downstream. High-power loads (motors, heaters) often include heat sinks or larger traces to dissipate energy.

Cross-reference component labels with a bill of materials or schematic notes. Numerical prefixes denote types:

1. R: resistors (e.g., R4).
2. C: capacitors (e.g., C2).
3. D: diodes (e.g., D1).
4. Q: transistors (e.g., Q3).
5. U: integrated modules (e.g., U5).

Missing or duplicate labels signal drafting errors–recheck connections.

How to Sketch a Single-Loop Electrical Path

Gather a ruler, a pencil, and graph paper with a 5mm grid to ensure precision. Begin by marking two horizontal parallel lines, each 6cm long, spaced 3cm apart–these represent the power source’s terminals. From the right endpoint of the upper line, draw a vertical connection downward 1.5cm, then extend horizontally 4cm to the first load symbol (a 3mm × 8mm rectangle with diagonal lines inside). Repeat this pattern for each component: add another identical load 2cm to the right, then a third 2cm further. Finally, connect the last load’s right endpoint vertically upward to meet the lower power terminal line, completing the loop. Label each rectangle with resistance values (e.g., R₁=10Ω, R₂=5Ω, R₃=15Ω) in 8pt font adjacent to the component.

Refine the layout: erase overlapping lines, darken final connections with a fine-tip pen, and add arrows along the path indicating current flow direction. Place voltage markers (V=) above the top terminal and ground symbol (⏚) below the bottom terminal. Double-check all connections–no gaps or unintended branches should exist; the entire current must follow one uninterrupted route through every element.

Calculating Combined Resistance in a Linear Electrical Path

Add resistor values directly to determine the overall opposition in a single-loop connection. For instance, if three components offer 470Ω, 1kΩ, and 2.2kΩ respectively, total resistance equals 470 + 1000 + 2200 = 3670Ω. Ensure measurements are uniform–convert all values to ohms before summing. This method applies regardless of component count, but verify each resistor’s tolerance; a 5% variance on a 1kΩ part means actual resistance ranges between 950–1050Ω, slightly altering the sum.

Key Factors Affecting Accuracy

• Temperature drift: Most resistors shift 0.1–0.5% per °C. A 10°C rise on a 1kΩ metal-film resistor can lower its value by 10–50Ω, skewing calculations.
• Parasitic elements: Trace inductance (µH/cm) and capacitance (pF/cm) in PCB layouts introduce minor reactance, negligible below 1MHz but measurable in high-precision designs.
• Contact resistance: Solder joints add ~0.1–0.5Ω per connection. For low-resistance paths (≤10Ω), crimp connectors may outperform solder.

Measure the actual path with a multimeter set to ohms mode rather than relying solely on theoretical sums if tolerance or environmental factors exceed 1%.

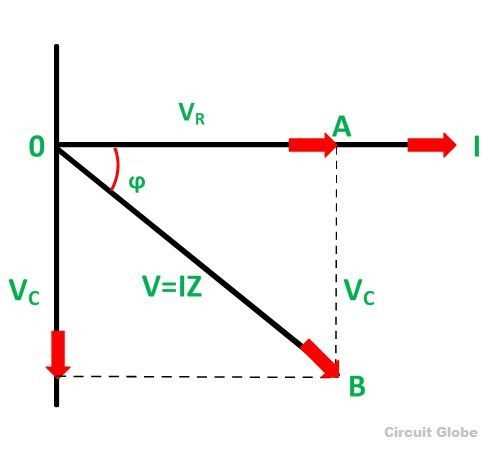

Calculating Potential Differences in Sequential Loops

Measure each resistive element’s voltage drop independently using a multimeter set to DC volts–polarity matters, so attach probes correctly to avoid erroneous readings. For Ohm’s law validation, confirm total drop equals supply voltage: sum individual measurements, then cross-check with the source’s nominal value. Deviations over 5% indicate measurement error, parasitic resistance, or incorrect component ratings; re-examine connections and recalibrate instruments.

Prioritize high-resistance parts first–they dominate energy conversion. A 10kΩ resistor in a chain with a 100Ω counterpart will take 99% of the supply’s potential, leaving negligible voltage for the latter. Use this insight to troubleshoot: if a downstream component behaves erratically, inspect preceding elements for unexpected impedance shifts–corrosion, thermal drift, or partial shorts can skew expected values without total failure.

For transient analysis, replace steady sources with pulse generators. Probe each node with an oscilloscope; rising/falling edges reveal phase shifts and ringing, which static measurements miss. Decoupling capacitors near components suppress noise–observe how their placement alters waveform integrity, especially in high-frequency chains. Log results with timestamps; temperature fluctuations of 10°C can shift readings by 3-7%, critical for precision applications.

Document voltage drop tolerances per component datasheet–manufacturers specify ±5% for resistors, ±10% for inductors. Exceeding limits signals degradation; replace parts if drops drift beyond thresholds after accounting for ambient conditions. In mixed-signal setups, isolate analog segments during tests to prevent digital noise coupling through shared ground paths.
