Step-by-Step Guide to Above Ground Pool Electrical Wiring Layout
Install a dedicated 20-amp circuit breaker for any outdoor aquatic containment system to prevent overloads. Use GFCI protection rated for wet locations–minimum IP67–to comply with NEC Section 680.22(A). Route UF-B cable (underground feeder) in conduit if burying, ensuring a depth of at least 18 inches to avoid accidental punctures. Keep all junction boxes above grade and sealed with silicone to block moisture ingress.
Connect the pump motor directly to the circuit, avoiding extension cords, which introduce fire and shock hazards. Use stranded copper wire (12 AWG for 20-amp circuits) for flexibility and corrosion resistance. Secure all fittings with listings from UL or ETL–generic components fail under prolonged exposure to chlorine and UV. Test continuity and ground integrity with a multimeter before energizing; resistance should read less than 1 ohm between the ground rod and the system’s metal parts.
Position the filter assembly and heating elements (if present) at least 5 feet from the edge of the structure to prevent splashes from reaching live terminals. Install a locking disconnect switch within sight of the equipment per NEC 680.12. Label all conductors at both ends–black (hot), white (neutral), green (ground)–to eliminate miswiring risks. Bond the ladder, rails, and any metal components with 8 AWG solid copper wire to a dedicated grounding electrode.
Use liquidtight flexible conduit for connections between the pump and filtration unit to absorb vibrations without cracking. Avoid solid conduit runs exceeding 6 feet between pull points to prevent cable strain. Seal all entry points with duct seal compound–not tape–to maintain weatherproofing. Schedule annual inspections to check for corrosion, brittle insulation, and loose connections, which degrade faster in outdoor, humid environments.
Safe Installation Guide for Elevated Water Basin Power Circuits
Begin by installing a dedicated 20-amp, 120-volt GFCI circuit breaker for pumps, filters, and heaters–never share this line with household outlets or lighting. Use 12-gauge copper THWN-2 wire for runs under 50 feet; increase to 10-gauge for distances up to 100 feet to prevent voltage drop. Bury conduit at least 18 inches deep, or 6 inches if encased in 2 inches of concrete. Rigid Schedule 40 PVC is required for underground sections; liquidtight flexible conduit may be used for above-surface connections.
Mount the disconnect switch within sight of the basin but no closer than 5 feet from the water’s edge, elevated at least 4 feet above grade. The switch must be rated for outdoor use and equipped with a lockable cover to prevent unauthorized access. For saltwater systems, ensure all metallic components–including conduit, junction boxes, and bonding grids–are corrosion-resistant, such as stainless steel or coated copper. Test GFCI protection monthly using the built-in test button; replace units that fail more than once per year.
Key Components Checklist
- Breaker panel: 2-pole, 30-amp for 240-volt heaters; single-pole, 20-amp for standard setups
- Conduit sizing: ½-inch for single pump runs; ¾-inch for combined pump/heater circuits
- Wire types: THWN-2 for wet locations; XHHW-2 for direct burial (check local codes)

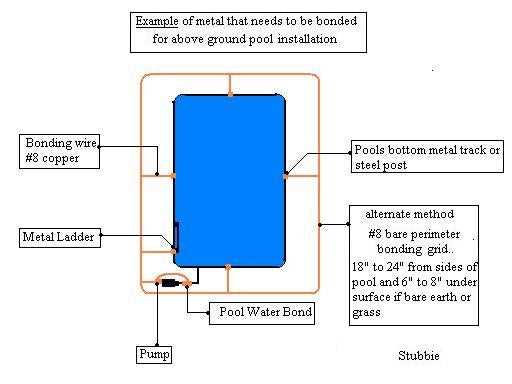

- Grounding: 8 AWG bare copper wire bonded to all metal parts and connected to a grounding rod
- Junction boxes: NEMA 3R (weatherproof) with silicone-sealed knockouts
Space all junctions at least 3 feet horizontally from the basin’s perimeter. Use waterproof wire nuts (e.g., 3M Scotchcast) and wrap connections with self-fusing silicone tape for secondary sealing. For variable-speed pumps, install a separate 15-amp circuit with a surge protector rated for a minimum 10kA clamping voltage. Label all circuits at both ends–panel and disconnect–with permanent, UV-resistant tags. Verify torque settings on all terminal screws (typically 12–15 in-lbs for 14–12 AWG wire) using a calibrated screwdriver.
Critical Compliance Measures
- Confirm local amendments to NEC Article 680 (typically adopted within 12–18 months of publication)
- Schedule an inspection before backfilling conduit trenches
- Photograph installed components from multiple angles as documentation
- Store spare GFCI breakers and conduit fittings on-site for quick repairs
- Maintain a 3-foot clearance around all electrical components for servicing
Saltwater systems demand annual inspections for stray current corrosion–test bonding continuity with a 500V megohmmeter and aim for readings below 0.5 ohms. Replace any bonding wire showing green patina or pitting immediately.
Choosing the Correct Cable Thickness for Equipment in Artificial Reservoirs
For a standard 1.5 HP motor operating at 230V, use 12 AWG copper conductors when the run length is under 60 feet. This gauge handles up to 20 amps continuously without exceeding a 3% voltage drop. Verify the nameplate amperage–some high-efficiency models draw as little as 8 amps, allowing 14 AWG wire for shorter distances (under 40 feet).
Thermal units require thicker cables due to startup surges. A heater rated at 100,000 BTU typically pulls 40–45 amps at 240V; 8 AWG is mandatory for runs up to 80 feet. For longer distances (100+ feet), switch to 6 AWG to maintain safe voltage levels. Check local codes–some jurisdictions mandate 6 AWG regardless of distance for heater circuits.
Aluminum wiring demands a size increase due to lower conductivity. For the same 40-amp heater, use 6 AWG aluminum instead of 8 AWG copper, but confirm compatibility with the breaker and terminal connections. Most inspectors require anti-oxidant paste at aluminum junctions to prevent corrosion.
Voltage drop calculations matter for performance. A 10-amp load on 12 AWG wire over 80 feet results in a 5% drop at 240V–enough to strain motor windings. Use a calculator or the formula: (Wire Length × Amps × 2) ÷ (Ohms per 1,000 ft × Circuit Voltage). For 12 AWG copper, ohms per 1,000 ft is 1.98.
Breaker sizing: match the wire gauge to the breaker’s trip rating. A 20-amp breaker pairs with 12 AWG copper, but if ambient temperatures exceed 104°F (40°C), derate the ampacity by 15% or upsize to 10 AWG. Underground conduits require further derating–check NEC Table 310.15(B)(16).
Submersible pumps add complexity. A 1 HP 230V unit may draw 10 amps, but startup current can spike to 50 amps briefly. Use 10 AWG copper for runs up to 100 feet even if the continuous load is low. Ensure the breaker is dual-element (time-delay) to handle inrush without tripping.
Common mistakes include mixing wire types in conduit or ignoring temperature ratings. THHN wire handles 90°C, while THWN is rated for 75°C–use the lower rating for calculations. Avoid solid wire in long runs; stranded (e.g., 12 AWG THHN stranded) flexes better and resists fatigue.
Code Compliance Quick Reference
- NEC Article 680: Covers all submerged and adjacent wiring.
- GFCI protection: Mandatory for all 120V or 240V circuits, including pumps and heaters.
- Conduit depth: Minimum 18 inches for direct burial, 6 inches if encased in concrete.
- Disconnect: Required within sight of all equipment, locked and readily accessible.
Double-check the manufacturer’s installation manual. Some heaters specify minimum wire gauges beyond NEC minimums–for example, a 150,000 BTU unit may require 6 AWG even for a 30-foot run. Non-compliance voids warranties and risks overheating connectors.
Step-by-Step Guide to Installing a Residual Current Device for Water Recreation Zones
Select a 20-amp RCD breaker rated for outdoor use with a trip threshold of 5 milliamps. Verify compatibility with your service panel–most modern units support both standard and slim breakers. Shut off the main power at the meter before proceeding; use a non-contact voltage tester to confirm de-energization of the panel.
Route the supply cable from the panel to the installation area, ensuring the conductor gauge matches the breaker’s specifications. For a 20-amp circuit, use 12 AWG copper wire with THWN-2 insulation. Secure cables with UV-resistant clips spaced no more than 18 inches apart to prevent sagging under environmental stress. Maintain a minimum 12-inch separation from any plumbing lines to avoid interference.
| Conductor Size (AWG) | Max Continuous Load (Amps) | Minimum Bend Radius (Inches) |
|---|---|---|
| 14 | 15 | 3.5 |
| 12 | 20 | 4.2 |
| 10 | 30 | 5.5 |
Land the hot wire (typically black or red) onto the breaker’s load terminal, torquing the screw to 18-22 inch-pounds. Connect the neutral (white) to the breaker’s dedicated neutral terminal–this is critical for correct differential current detection. Ground the device by attaching the bare copper wire to the panel’s ground bus bar. For subpanels, run a separate equipment grounding conductor back to the main panel.
Terminate the output side of the RCD breaker with a dedicated weatherproof junction box located within 6 feet of the aquatic feature. Use liquid-tight flexible conduit for the final run to accommodate movement from thermal expansion. Inside the box, splice the conductors using insulated wire nuts and apply a dual-layer sealant over all connections to prevent moisture ingress. Label each cable with its function and circuit number using permanent, UV-stable markers.
Energize the panel and perform a manual trip test on the RCD breaker. Press the “Test” button–the breaker should instantly disengage. Use a multimeter set to ohms to verify continuity between the neutral terminal and ground; the reading should show infinite resistance. If the test fails, recheck all terminations for loose connections or incorrect polarity. Reset the breaker only after confirming successful isolation of all downstream components.
Map the completed circuit on a schematic using indelible ink, noting breaker position, conductor routes, and splice locations. Store this record in a waterproof envelope adjacent to the service panel for future reference. Schedule annual RCD functionality tests, simulating a fault condition with a portable test device to ensure consistent performance under load.
