Building a Reliable AC to DC Converter Circuit From Scratch

For a stable 5V DC output from a 230V AC source, use a full-wave bridge rectifier paired with a 220µF smoothing capacitor. A 1N4007 diode bridge handles currents up to 1A, while a 1000µF capacitor reduces ripple to under 50mV. Add a 7805 voltage regulator downstream to clamp output at 5V with ±2% tolerance. Include a 0.1µF ceramic capacitor at the regulator’s input for transient absorption and a 10µF electrolytic at its output for load stabilization.

A half-wave topology cuts component count but doubles ripple–avoid this if noise-sensitive loads (e.g., microcontrollers) are present. For currents above 500mA, replace the 1N4007 with a KBPC2510 bridge rectifier (rated 25A, 1000V). Mount a varistor (MOV-470V) across AC input terminals to suppress voltage spikes; a 10A fuse on the live wire prevents overload damage. PCB traces carrying AC should be ≥35µm thick for heat dissipation, with 3mm clearance between high-voltage sections.

Test the setup under varying loads–attach a 10Ω, 10W resistor to simulate real-world draw. Measure DC output with an oscilloscope; a clean 5V line should show ≤20mV peak-to-peak ripple. If dropouts occur, increase capacitance (e.g., 470µF → 1000µF). For efficiency gains, replace the linear 7805 with a buck switching IC like the LM2596 (adjustable, 92% efficiency at 3A). Keep switching regulators away from analog components to minimize EMI.

Thermal management dictates long-term reliability–attach a 25×25×6mm aluminum heatsink to the 7805 if ambient temperatures exceed 40°C. For enclosed applications, add a 10kΩ NTC thermistor near the bridge rectifier to trigger shutdown at 85°C. Avoid paraxial component placement; route high-current traces first, then low-power signal paths. Ground loops can introduce noise–tie all ground returns to a single star point near the smoothing capacitor.

Building a Reliable Power Supply: Key Schematics for AC to DC Transformation

For low-power applications under 5W, use a half-wave rectifier with a single diode–1N4007 handles up to 1A and 1000V reverse voltage. Connect the diode in series with the AC input; pair it with a 1000μF smoothing capacitor for ripple reduction below 2%. This setup suits battery chargers or LED drivers where efficiency isn’t critical.

Full-wave bridges double output efficiency. Arrange four 1N5408 diodes in a Graetz configuration–each leg supports 3A continuous current. Add a 2200μF capacitor post-rectification for 12V outputs; ripple drops to 0.5V peak-to-peak. For 24V systems, increase capacitance to 4700μF. Ensure diode turn-on voltage (0.7V for silicon) is accounted for in load calculations.

Component Selection for Voltage Regulation:

Input Range (VAC)	Output (VDC)	IC Model	Filter Capacitor (μF)	Max Current (A)
12-24	5	LM7805	1000	1.5
18-32	12	LM7812	2200	1.5
25-40	24	LM7824	4700	1.5

Thermal considerations: Mount ICs on TO-220 heatsinks if current exceeds 0.8A. Use thermal paste with thermal resistance below 1°C/W. For 3A outputs, switch to LM350 adjustable regulators with external pass transistors–reduce junction temperature by 30% compared to fixed regulators.

Switched-mode designs shrink footprint by 70%. Start with a flyback topology using an UC3843 controller IC. Key components: EE20 ferrite core transformer (primary 10 turns, secondary 50 turns for 12Vout), 2A MOSFET (IRF840), and a Schottky diode (1N5822). Set switching frequency to 50kHz for optimal efficiency (85-90%). Include a snubber circuit (10Ω resistor + 1nF capacitor) across the MOSFET to suppress voltage spikes.

Isolation requirements? Opt for an offline flyback design with a 1:1 safety isolation transformer. Primary-to-secondary clearance must meet IEC 60950 (≥4mm for reinforced insulation). For medical applications, add a Y2 capacitor (2.2nF) between primary and secondary grounds to suppress EMI while maintaining patient safety standards.

Test each stage with a multimeter: measure AC input (verify ±10% of nominal), rectified DC (expect 1.41 × VAC – 1.4V for full-wave), and regulated output (tolerance ±2%). Use an oscilloscope to check ripple; adjust capacitor values if exceeding 50mV. For high-current loads (>3A), implement active PFC using an L6562 IC to comply with EN61000-3-2 standards.

Troubleshooting Common Failures

Symptom: Overheating diodes. Cause: Inadequate heat dissipation or excessive current. Solution: Replace with higher-rated diodes (e.g., 1N5819 Schottky) and add aluminum heatsinks. Symptom: High ripple (>1V). Cause: Insufficient capacitance. Solution: Parallel capacitors or switch to low-ESR types (Nichicon UHE series). Symptom: Regulator shutdown. Cause: Input-output differential exceeded. Solution: Add a 1W Zener diode (matching output voltage) across the IC to clamp transient spikes.

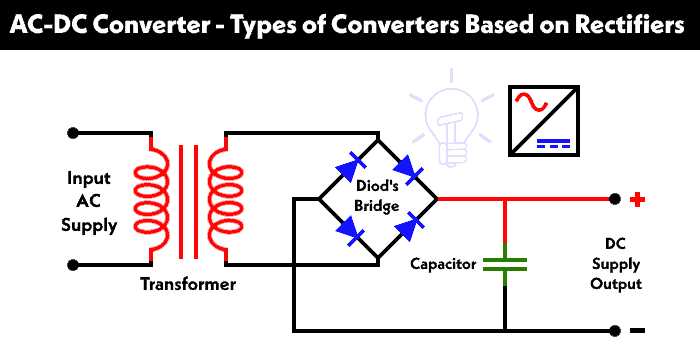

Basic Components Required for a Linear AC to DC Power Supply

Select a transformer with a secondary voltage rating 1.3–1.5 times higher than the desired DC output to compensate for diode drops and ripple. For example, a 12V DC output requires a transformer secondary winding of 15–18V AC. Verify the transformer’s current capacity matches or exceeds the load’s peak demand, accounting for inrush currents during startup.

Bridge rectifier: Use a full-wave bridge module rated for at least 1.5× the maximum load current and reverse voltage exceeding the transformer’s peak secondary voltage (V_peak = √2 × V_secondary). Schottky diodes reduce forward voltage drop to 0.2–0.3V but limit reverse voltage to 40–100V, making ultra-fast recovery PN diodes preferable for higher voltages.

Smoothing capacitors demand careful sizing: 1000μF per ampere of load current for 12V outputs is a starting point, but for precision applications, calculate based on acceptable ripple voltage (V_ripple = I_load / (2 × f × C)). Electrolytic capacitors must handle at least 1.5× the transformer’s peak voltage; low-ESR types improve transient response under dynamic loads.

• Voltage regulator selection hinges on dropout voltage: LD1117V33 (1.3V dropout) suits 5V rails from 6.3V inputs, while TLV757P outputs 3.3V from as low as 3.5V. Linear regulators require heatsinks if power dissipation (V_in – V_out) × I_load) exceeds 0.5W. Switching regulators replace linear types when efficiency above 80% is critical, though they introduce switching noise.
• Resistive or active bleeder circuits prevent floating outputs when disconnected: a 1kΩ resistor across the smoothing capacitor discharges it within 5 seconds, or an NPN transistor (e.g., BC547) with a base resistor (10kΩ) expedites discharge.
• Input fuse selection follows transformer primary current: 230V circuits use a fuse rated 1.5× transformer VA primary current; slow-blow types tolerate inrush currents.

Pre-regulator EMI filtering combines a 0.1μF X2-class capacitor across the transformer primary and a common-mode choke (e.g., 1mH per line) to suppress differential and common-mode noise. Optional varistors (MOVs) protect against line transients: 275VAC MOVs clamp spikes on 230V mains, while 130VAC ratings suit 120V systems.

Component Placement Guidelines

Mount the transformer at least 20mm from sensitive analog components to minimize magnetic coupling. Place smoothing capacitors within 3cm of the rectifier to minimize ESR-induced ripple. Position voltage regulators near output connectors, ensuring heatsinks have unobstructed airflow; TO-220 packages dissipate 1W per °C/K above ambient at 65°C.

1. Thermal considerations for linear regulators: A 7805 dissipating 1A at 12V input to 5V output generates (12–5) × 1 ≈ 7W. An aluminum heatsink with θ_SA ≤ 5°C/W keeps junction temperatures below 125°C (θ_JC ≈ 5°C/W).
2. Dissipative snubbers across rectifier diodes (e.g., 10Ω + 0.1μF) reduce ringing at turn-off, critical in high-frequency interference-sensitive designs.
3. PCB trace widths for high-current paths (≥1A) should exceed 1.5mm/mm² thickness, with multiple vias connecting top and bottom layers to reduce resistance.

Test the assembled power stage using an oscilloscope with 10× probes: ripple should stay below 50mV_pp at full load. Connect a dummy load (e.g., 10Ω, 10W) during bench validation to verify stability under transient conditions. Isolated bench supplies must float the oscilloscope’s ground reference to avoid ground loops.

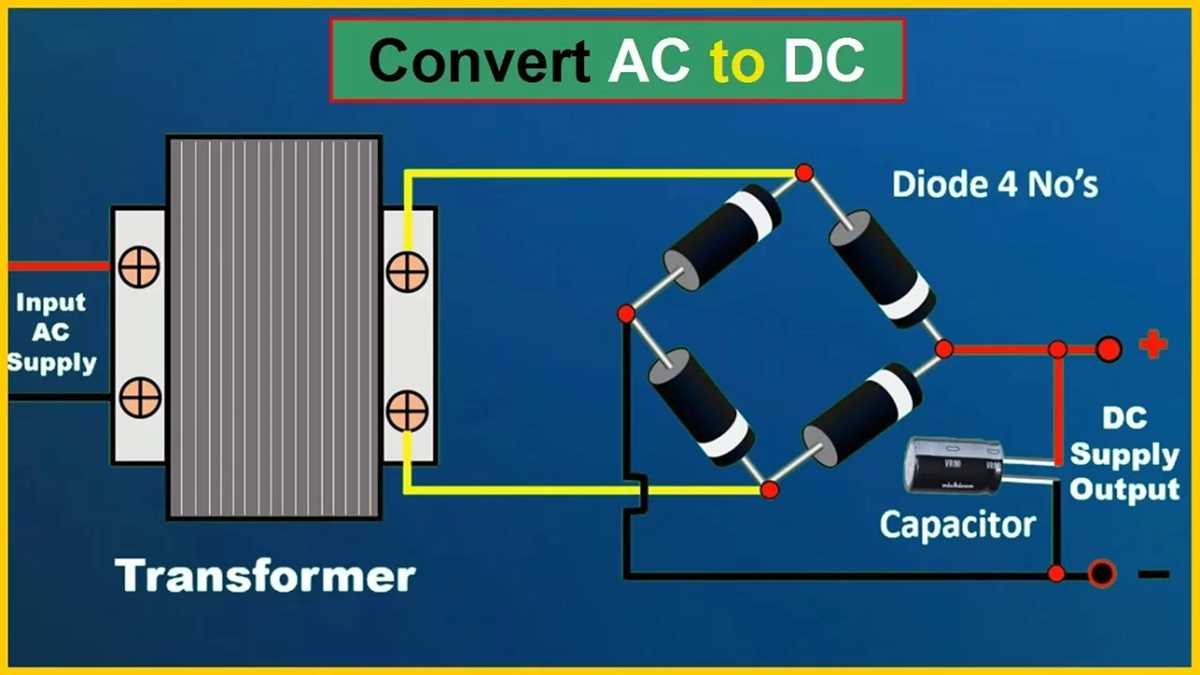

Step-by-Step Wiring of a Bridge Rectifier Assembly

Begin by securing a 1A fuse holder in series with the AC input leads to prevent overload. Strip 5mm of insulation from the transformer secondary wires, then twist them tightly to the bridge rectifier’s AC terminals–marked with a tilde (~). Use a 25W soldering iron at 350°C for no longer than 3 seconds per joint to avoid damaging the semiconductor dies. Verify polarity: the positive DC output connects to the terminal with a “+” symbol, while the negative lead attaches to the opposite side.

Insert a 1000µF, 25V electrolytic capacitor across the DC terminals, observing polarity–its negative stripe aligns with the rectifier’s “-” output. Add a 0.1µF ceramic capacitor in parallel to suppress high-frequency noise generated during commutation. For stable operation, solder a 1kΩ, 0.25W resistor between the positive output and ground to provide a minimal load, ensuring proper voltage regulation under open-circuit conditions.

Critical Inspection Points

After soldering, inspect each joint with a magnifying lens for cold solder bridges or insufficient wetting. Test continuity with a multimeter: AC input terminals should show infinite resistance to DC output terminals; any reading below 1MΩ indicates a faulty bridge. Apply 9V AC from a current-limited transformer and measure the DC output–expect 12.6V unloaded, dropping to ~8V under a 100mA load due to diode forward voltage drops (0.7V per junction).

Mount the assembly on a perforated phenolic board using 3mm standoffs to prevent heat buildup. Route wires away from the bridge’s metal tab, which may reach 60°C under full load. For long-term reliability, coat the solder joints with silicone conformal coating to resist moisture-induced corrosion, especially in high-humidity environments.
