Visual Guide to Acute Inflammation Stages and Biomarkers

Begin by mapping vascular changes as the first critical step in response modeling. Within minutes of tissue injury, arteriolar dilation increases local blood flow–quantified as a 10-100-fold rise in capillary perfusion. Pair this with endothelial cell activation: P-selectin mobilizes to the luminal surface in under 30 seconds, followed by ICAM-1 and VCAM-1 upregulation within 1-2 hours. Represent these temporally distinct events in separate, color-coded layers to prevent misinterpretation of sequence.

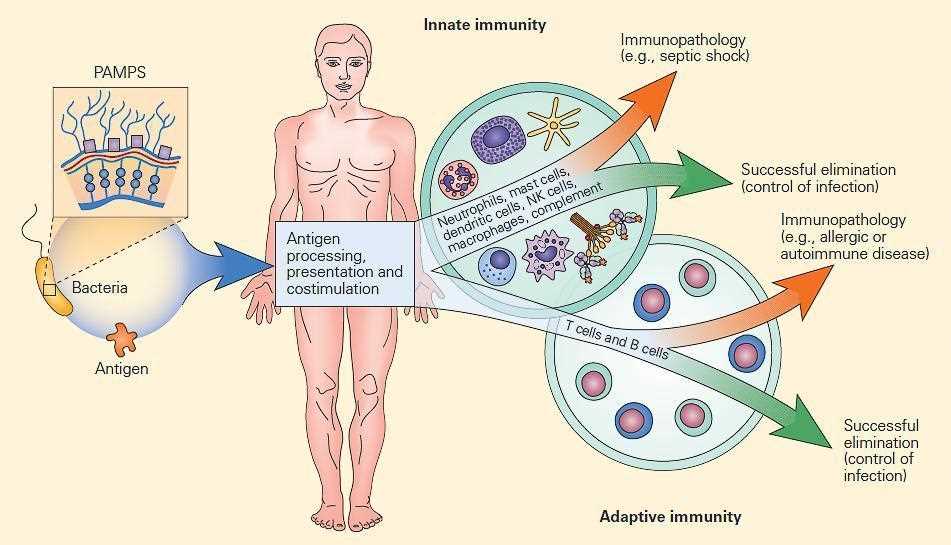

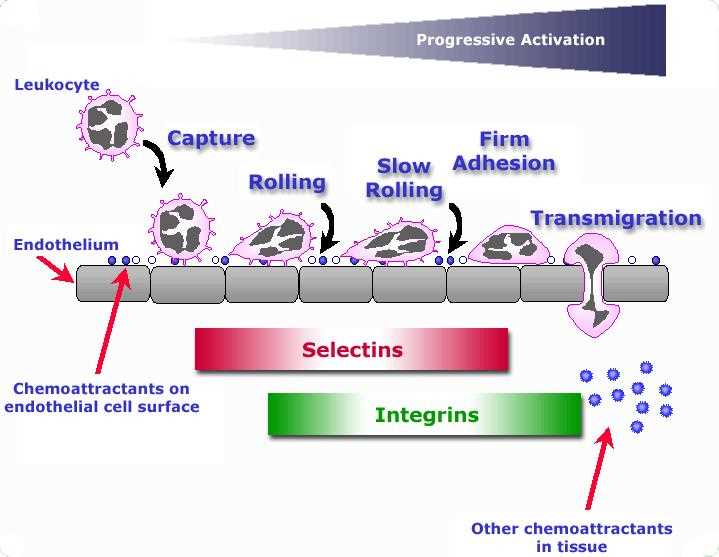

Focus on neutrophil recruitment as the dominant cellular actor. Designate three phases–rolling (mediated by selectins), firm adhesion (via integrins), and transendothelial migration (driven by chemokine gradients). Use directional arrows with numerical labels: “1” for rolling at 5–40 μm/s, “2” for arrest at

Highlight key mediators with precise molecular data. For histamine, note a 5-fold increase in tissue concentration within 5 minutes, peaking at 15–20 ng/g wet tissue. For prostaglandin E₂, show a rapid synthesis curve–threshold detectable at 30 seconds, plateauing at 10–15 ng/ml by 60 minutes. Add a small inset chart plotting TNF-α (pg/ml) and IL-1β kinetics, marking overlapping peaks at 3–4 hours post-stimulus.

Avoid oversimplification of resolution pathways. Delineate neutrophil apoptosis (40–60% clearance by macrophages at 24 hours) from pro-resolving lipid mediators–RvD1 at 10 pg/ml inducing phagocytosis, and maresin-1 at 5 pg/ml promoting efferocytosis. Use dashed lines for these late-stage processes to distinguish them from the initial cascade.

Validate visual hierarchy by testing readability at 50% scale. Critical elements–cell types, mediator concentrations, time stamps–must remain legible; non-essential details (e.g., minor enzymes) can be omitted or grouped. Ensure legend symbols use unambiguous shapes: circles for cytokines, hexagons for cells, triangles for enzymes. Assign consistent fill patterns to avoid color dependency for accessibility.

Visual Representation of Short-Term Immune Response Dynamics

Begin by mapping the five cardinal signs–heat, redness, swelling, pain, and loss of function–using distinct color gradients. Assign red (#FF6B6B) to vascular dilation zones, blue (#4D96FF) to fluid exudation pathways, and yellow (#FFD166) to neutrophil migration corridors. This color-coding accelerates pattern recognition during clinical case reviews.

Depict mast cells at the injury epicenter releasing preformed granules within 30–60 seconds. Include histamine, tryptase, and TNF-α concentrations in labeled vesicles. Adjacent arterioles must show a 50–70% diameter increase within 2 minutes post-stimulus, calculated from baseline vessel size.

Illustrate fluid shift kinetics: transudate (protein-poor) transitions to exudate (≥3.0 g/dl protein) within 15–30 minutes. Overlay Starling forces with numeric values–capillary hydrostatic (+32 mmHg) versus interstitial oncotic (−8 mmHg)–to quantify net filtration pressure driving edema.

Plot neutrophil adhesion cascades in sequential stages: E-selectin-mediated rolling (1–5 cells/100 µm²/min), ICAM-1-dependent firm adhesion (>50% endothelial surface coverage), and CD31-guided transmigration (12–24 minutes post-activation). Use directional arrows scaled to velocity (rolling: 5–40 µm/sec; transmigration: 1–2 µm/min).

Include a temporal axis marked in minutes (not hours) for monocyte recruitment–peaking at 4–6× baseline counts 6–12 hours post-injury. Label macrophage phenotypes: M1 (pro-inflammatory, iNOS⁺ TNF-α^high) and M2 (resolving, Arg1⁺ IL-10^high) with distinct morphological markers (ruffled vs. elongated).

Show complement activation pathways converging on C3 convertase: classical (antibody-dependent), lectin (mannose-binding), and alternative (spontaneous C3 hydrolysis). Indicate opsonization tags (C3b) and membrane attack complex (MAC) pores on pathogen membranes, with pore diameters measured (10–11 nm).

Represent resolution phase mediators: lipoxins (LXA₄ at 10–100 nM), resolvins (RvD1 50 nM), and protectins (PD1 at 1–10 nM). Overlay eosinophil-derived chitinase-like proteins (e.g., Ym1) degrading fibronectin fragments (2–4 days).

Validate the model by cross-referencing with quantitative data: neutrophil half-life (8–12 hours), plasma leakage rates (0.5–2.0 ml/min/100g tissue), and cytokine clearance (IL-1β T_1/2 = 6–10 minutes). Use dashed lines to demarcate hypoxic zones (PO₂ 20 mmHg) where HIF-1α stabilizes (> 90% nuclear translocation).

Critical Cellular Elements for Visual Representations of Rapid Tissue Response

Begin by positioning neutrophils as the primary responders, typically within the first 6–12 hours post-injury. Illustrate their segmentation into three functional zones: the vascular lumen (rolling and adhesion via selectins and integrins), the interstitial space (chemotaxis directed by C5a, LTB4, and IL-8 gradients), and the phagocytic front (engulfment of opsonized pathogens via Fc and complement receptors). Include a subplot showing NETosis–extracellular DNA traps with embedded histones and elastase–as a dual mechanism for pathogen sequestration and tissue damage.

Mononuclear Phagocytes and Resolution Pathways

Integrate monocytes into two distinct phases: early influx (classical Ly6C^high in mice, CD14⁺⁺CD16⁻ in humans)–depicting their differentiation into pro-inflammatory macrophages (M1-like) under IFN-γ and LPS stimulation–and the later reparative shift (M2-like) driven by IL-4 and IL-13. Showcase their cross-talk with endothelial cells via VCAM-1 and ICAM-1 for extravasation. Add annotations for efferocytosis (clearance of apoptotic neutrophils) and the secretion of resolvins (e.g., RvD1) and protectins (e.g., PD1), which actively terminate pro-inflammatory signals.

Depict mast cells at vascular junctions, pre-loaded with histamine and tryptase granules. Use color-coded arrows to differentiate immediate degranulation (IgE-mediated) from delayed cytokine production (TNF-α, IL-6). Highlight their role in amplifying vascular permeability via interactions with endothelial gap junctions (VE-cadherin phosphorylation) and their paradoxical anti-inflammatory effects in later stages through IL-10 release.

• Endothelial cells: Map the temporal sequence of activation–initial upregulation of P-selectin (Weibel-Palade bodies within 30 minutes), followed by E-selectin (3–6 hours, requiring de novo synthesis), and ICAM-1/VCAM-1 (peaking at 6–12 hours). Include downstream effects: cytoskeletal rearrangement (actin stress fibers) and NO-mediated vasodilation.
• Platelets: Position them at the injury site within 5–10 minutes, showing ADP/ATP release and P-selectin exposure to recruit leukocytes. Illustrate their interaction with fibrinogen via GPIIb/IIIa to stabilize thrombi and release pro-inflammatory mediators (e.g., HMGB1, CCL5).
• Dendritic cells: Place them at the periphery of the response, emphasizing their dual role–antigen uptake and presentation (via MHC II and co-stimulatory molecules CD80/CD86) while secreting IL-12 to polarize T-helper cells. Show their migration to lymph nodes via CCR7-CCL19/CCL21 gradients.

Include lymphocytes as secondary but critical modulators. For CD4⁺ T cells, illustrate Th1 (IFN-γ) and Th17 (IL-17) subsets driving neutrophil recruitment, while Tregs (FoxP3⁺) secrete TGF-β and IL-10 to suppress excessive responses. For B cells, show antibody production (IgM initially, followed by class-switching to IgG) and their role in forming immune complexes that activate complement.

Add fibroblasts to the interstitial matrix, illustrating their transition from quiescent to activated states under TGF-β and PDGF stimulation. Highlight their production of collagen (initially type III, later type I) and matrix metalloproteinases (MMP-1, MMP-9) for tissue remodeling, but annotate MMP’s role in perpetuating inflammation if unchecked by TIMPs. Depict their interaction with macrophages via integrins (α_vβ₃) to coordinate scar formation.

1. Complement system: Break down the cascade into three pathways–classical (C1q binding to IgG/M), lectin (MBL/ficolins binding pathogen surfaces), and alternative (spontaneous C3 hydrolysis). Use three parallel arrows converging at C3 convertase (C4b2a or C3bBb) and subsequent formation of the membrane attack complex (C5b-9). Annotate key split products: C3a/C5a (anaphylatoxins), C3b (opsonization), and C5b-9 (cell lysis).
2. Cytokine gradients: Overlay a heatmap-style gradient for key mediators: IL-1β and TNF-α (peak at 1–2 hours, driving endothelial activation), IL-6 (4–6 hours, inducing hepatic acute-phase proteins like CRP), and IL-8 (6–12 hours, neutrophil chemoattractant). Include inhibitory feedback loops (e.g., IL-1Ra, soluble TNF receptors) to show resolution mechanisms.

Resolve the visualization by depicting effector resolution cells. Show specialized pro-resolving mediators (SPMs) like lipoxins (LXA4, LXB4) derived from 15-LOX pathways in neutrophils and macrophages, and their binding to ALX/FPR2 receptors to halt further leukocyte influx. Add eosinophils releasing galectin-10 (forming Charcot-Leyden crystals) and IL-1 receptor antagonist (IL-1Ra) produced by hepatocytes to neutralize IL-1β. Conclude with arrows indicating tissue repair markers: epithelial regeneration (EGF, TGF-α), angiogenesis (VEGF), and collagen deposition (FGF-2).

Step-by-Step Vascular Response in Immediate Tissue Reaction

Initiate analysis by confirming transient vasoconstriction–lasting 5–30 seconds–via arteriolar smooth muscle contraction, reducing local blood flow. Immediately follow with sustained vasodilation triggered by histamine (H₁ receptors), prostaglandins (PGI₂, PGE₂), and nitric oxide (NO), increasing vessel diameter 2–3× baseline. Measure capillary hydrostatic pressure rise to 35–40 mmHg post-dilation, exceeding plasma oncotic pressure (25 mmHg), forcing exudate into interstitial space at 0.5–1 ml/min/cm².

Phase	Mediators	Vascular Effect	Duration	Fluid Dynamics
1. Vasoconstriction	Neurogenic reflex	Arteriolar narrowing	5–30 sec	Flow ↓ 60–80%
2. Vasodilation	Histamine, NO, PGI2	Precapillary sphincter relaxation	10–30 min	Blood volume ↑ 4–6×
3. Permeability Shift	Bradykinin, C3a/C5a	Endothelial cell retraction	2–8 hrs	Pore size ↑ 10–15 nm → macromolecule leakage
4. Stasis	Fibrinogen, IL-1β	Venular congestion	8+ hrs	RBC rouleaux formation

Prioritize targeting endothelial gap junctions (VE-cadherin disassembly) with leukocyte adhesion inhibitors (e.g., α_Lβ₂ antagonists) to limit edema in high-risk tissues (e.g., lung, brain) where hydrostatic pressure gradients exceed 15 mmHg. Assess fluid resuscitation needs using colloid osmotic pressure differentials–maintain ≥ 12 mmHg to prevent hypovolemic shock during prolonged leakage phases.
