Step-by-Step Air Compressor Electrical Wiring Guide with Diagram

Begin with a 240-volt circuit for industrial-grade pneumatic units–minimum 15-amp capacity for models under 3 HP, 20-amp for 3–5 HP variants. Use 10-gauge copper wire for runs up to 50 feet; increase to 8-gauge for longer distances to prevent voltage drop. Double-pole breakers with matching amperage are non-negotiable; undersized protection risks insulation failure and motor burnout.

Terminate the pressure generator’s thermal overload switch directly to the motor’s start capacitor–bypass any intermediate connections to ensure immediate cutoff during overload. For single-phase setups, connect the run capacitor between the main and auxiliary winding terminals (typically labeled M and A on the motor plate). Phase imbalance above 2% will degrade efficiency; verify with a multimeter before finalizing.

Grounding requires a bare 8-gauge conductor bonded to both the frame and the main terminal block’s ground screw. Omit this, and fault currents may follow unexpected paths–electrical cabinets, metal ducting, or even operator touchpoints become hazardous. For three-phase units, confirm rotation direction before energizing; reversed polarity destroys pumps within minutes.

Label every conductor at both ends with heat-shrink tubing: L1, L2, Neutral (if applicable), and Ground. Color-coding alone is insufficient–green for ground, black/red for hot legs, white for neutral. Post the schematic inside the control panel door with component ratings and torque specifications (typically 12–15 lb-in for terminal screws).

Test continuity between breaker terminals and motor leads before applying power; even a 0.5-ohm resistance indicates a faulty connection. Energize gradually, monitoring inrush current–spikes above 6× rated amperage signal a failing capacitor or misaligned compressor. Retighten all connections after 24 hours of operation; thermal cycling loosens fasteners.

Pneumatic Power Unit Circuit Connection Guide

Begin by verifying the motor’s horsepower rating against the voltage supply. Single-phase units up to 5 HP typically require 120/240V, while three-phase models demand 208/230/460V. Use a multimeter to confirm live voltage at the disconnect switch before proceeding–tolerance should not exceed ±5%. Mismatched voltage will reduce efficiency and risk overheating the windings.

Install a thermal overload protector sized to the motor’s full-load amps (FLA). Refer to the nameplate: a 3 HP, 230V single-phase motor draws ~17A; the protector must trip within 10–12 seconds at 125% FLA. Wire the protector in series with the motor starter coil. Bypass capacitors are unnecessary for standard reciprocating units unless harmonic distortion exceeds 3% at the point of connection.

Motor HP	Single-Phase FLA (120V)	Single-Phase FLA (240V)	Three-Phase FLA (230V)	Three-Phase FLA (460V)
1.5	20A	10A	5.6A	2.8A
3	N/A	17A	9.6A	4.8A
5	N/A	28A	15.2A	7.6A
7.5	N/A	N/A	22A	11A

Ground the enclosure and motor frame using 10 AWG copper wire, terminating at a dedicated ground rod with resistance ≤25Ω. For outdoor installations, apply anti-oxidation compound to aluminum-to-copper connections. The pressure switch must open at ≤145 psi for standard units–calibrate with a calibrated gauge before energizing. Adjusted settings outside 90–125 psi risk tank rupture or premature relay failure.

Run conduit from the disconnect to the starter, ensuring 90° bends do not exceed two per 10-foot section to prevent wire chafing. Use THHN wire sized per NEC Table 310.16: 12 AWG for 20A circuits, 10 AWG for 30A. Tighten terminals to 15–20 lb-in torque; overtightening cracks insulation, leading to intermittent faults. Label each conductor at both ends with heat-shrink tubing or permanent marker.

Test the circuit with a megohmmeter before motor connection. Minimum insulation resistance: 1 MΩ for 240V systems, 5 MΩ for 480V. Energize the starter and observe start-up–rotor should reach full speed within 3 seconds. If humming persists, check for single-phasing (voltage drop >10% across any two legs) or misaligned capacitors in dual-voltage configurations.

Seal conduit entries with UL-listed fittings to prevent moisture ingress. For variable-speed drives, add a line reactor to limit reflected harmonics–consult the drive manual for minimum inductance (typically 3–5%). Record all readings: voltage, amperage, pressure cut-in/cut-out, and start cycles per hour. Exceeding 10 starts per hour with a 5 HP unit reduces contactor life by 40%.

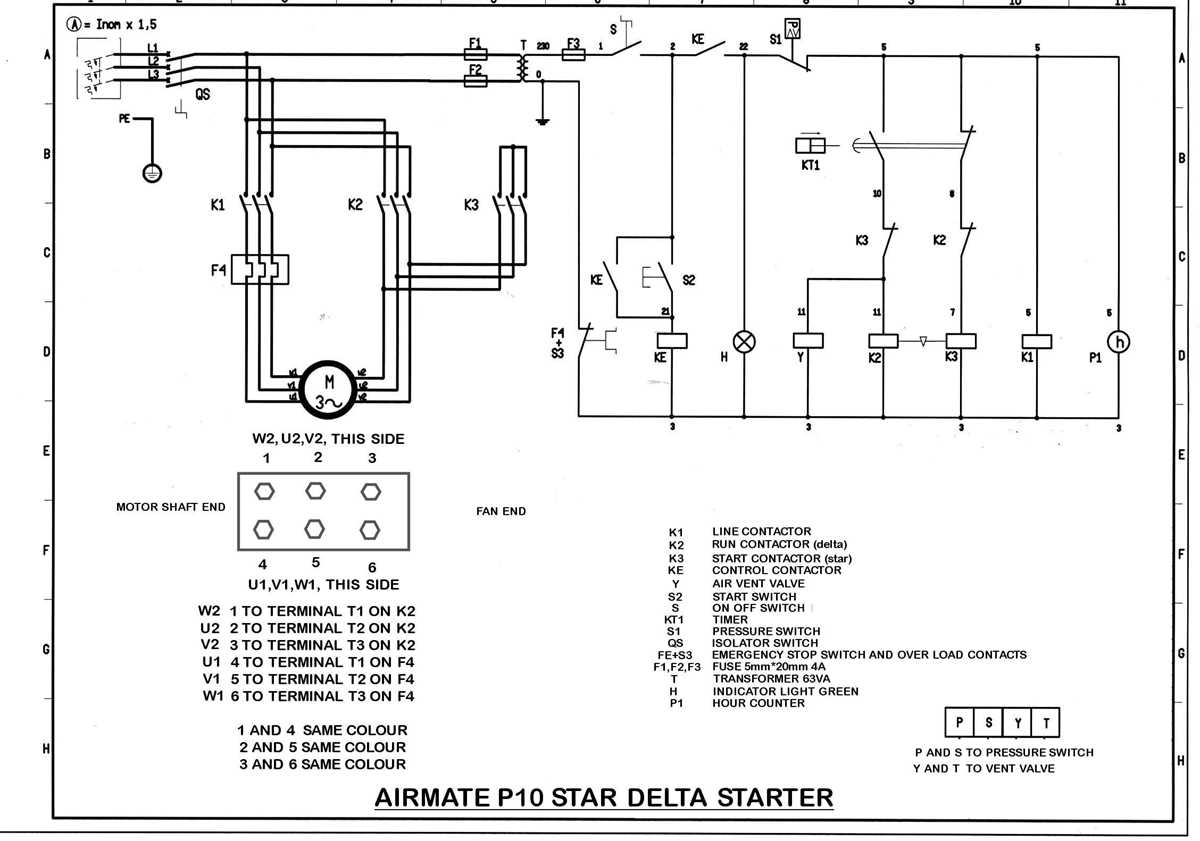

Pinpointing Critical Elements in Pneumatic System Schematics

Trace the primary power feed first–locate the incoming circuit breaker or disconnect switch rated for the motor’s full-load amps (FLA). On most setups, this will be marked with a bold line, often thicker than auxiliary branches, leading directly to the pressure switch. Verify the switch’s cut-in (start) and cut-out (stop) values against the nameplate data; mismatch here causes premature cycling or overload tripping. Next, isolate the motor starter; on single-phase units, expect a centrifugal switch or relay, while three-phase variants rely on contactors–check coil voltage (typically 110V or 230V) and ensure it matches the control circuit.

• Thermal overload protectors sit between the starter and motor–confirm their trip class aligns with FLA (Class 10 for general use, Class 20 for intermittent duty).
• Capacitors (start/run types) appear on single-phase drives–measure microfarads against specs; degraded units show bulging or leaks.
• Ground bond connections should terminate at a dedicated lug, never spliced into live conductors; use a multimeter to test continuity (below 0.1 ohms is ideal).
• Auxiliary components–timers, solenoids, drains–require 24V or 120V control circuits; map these back to the transformer’s secondary winding.
• Label each wire with its functional tag (e.g., “L1,” “T3,” “OL”) to avoid cross-wiring during reassembly.

For three-phase systems, confirm phase rotation using a phase sequence meter–reverse rotation risks mechanical damage. Single-phase configurations demand polarizing the start winding; swapping run/start leads will prevent engagement. Always test wire insulation resistance with a megohmmeter (minimum 1MΩ at 500V DC) before energizing; low readings indicate shorts or moisture ingress.

Step-by-Step Guide to Connecting Power Supply Cables

First, verify the voltage rating of your pneumatic machine matches the mains source. Check the nameplate for values like 110V, 220V, or 440V–mismatches risk damage. Use a multimeter to confirm live voltage at the outlet before proceeding. For machines with dual-voltage capability, adjust internal jumpers as specified in the manual.

Next, select cables of appropriate gauge based on current draw. Refer to these minimum wire sizes for common motor ratings:

• 1 HP (746W) at 110V: 14 AWG copper
• 2 HP (1.5kW) at 220V: 12 AWG copper
• 5 HP (3.7kW) at 220V: 10 AWG copper
• 10 HP (7.5kW) at 440V: 8 AWG copper

Always use stranded copper wire for flexibility and better conductivity. Ensure cables are rated for the installation environment–THHN for dry locations, THWN or XHHW for wet or outdoor use.

Disconnect all power sources before handling terminals. Strip 3/8″ of insulation from each conductor, twist strands tightly, and secure with ring or fork lugs crimped using a ratcheting tool. Connect the ground first–attach to the designated green or bare terminal, never to a phase or neutral. Tighten all connections to 25-30 lb-in torque using an insulated screwdriver. For three-phase setups, follow the correct phase sequence (L1, L2, L3) as marked on the motor housing to avoid reversed rotation.

After securing all connections, reinspect for proper routing–avoid sharp edges, moving parts, and heat sources. Route cables through conduits or cable trays if required by code. Apply a tension relief clamp at the entry point to prevent stress on terminals. Label each wire at both ends with its function (e.g., “L1,” “N,” “GND”). Install a dedicated circuit breaker sized at 125% of the machine’s full-load current. For example, a 15A motor requires a 20A breaker. Finally, test operation with a non-contact voltage detector before full loading.

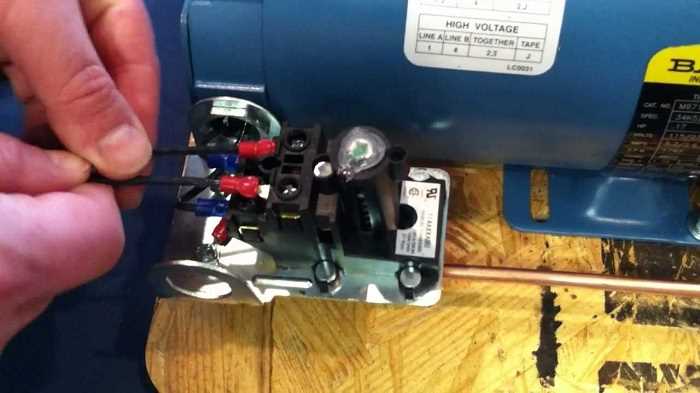

Proper Integration of the Pressure Regulator and Relief Mechanisms

Locate the pressure control device at the closest point to the tank’s output valve, ensuring minimal lag in response. Connect the live wire from the power source directly to the switch’s terminal marked “Line” or “L,” using 12-gauge copper cable for systems under 20 amperes. Ground the device by attaching a 10-gauge bare copper wire to the dedicated grounding screw on the switch’s housing, then route it to the main ground bus in the control panel.

Install the unloader valve parallel to the pressure regulator, with its discharge port aimed downward to prevent debris accumulation. Use a 3/8-inch brass fitting for the outlet to avoid corrosion, and apply thread sealant rated for 150 PSI or higher. Test the relief mechanism by manually lifting the lever after assembly–it should release a brief hiss if functional. If the valve fails to reseat, replace it immediately to prevent continuous depletion of stored energy.

Calibration Steps for Accurate Pressure Cut-Off

Set the cut-out pressure first by adjusting the larger spring on the regulator clockwise to increase the threshold. For most industrial setups, 125 PSI serves as an optimal upper limit–verify this with a calibrated gauge before finalizing. The differential (cut-in) should be set 20-30 PSI below the cut-out using the smaller spring, ensuring the motor restarts before tank pressure drops excessively. Over-tightening either spring can damage the diaphragm, so incrementally test adjustments with the system under load.

Integrate a thermal overload protector in series with the motor windings, mounting it near the motor housing for accurate temperature monitoring. Select a device with a trip rating matching the motor’s full-load current (e.g., 15 amperes for a 2 HP unit). Bypass capacitors or surge suppressors should never be connected across the switch contacts, as this can cause arcing and premature failure of the regulator.

Label all connections with heat-shrink tubing identifiers, including pressure settings and wire functions. After final assembly, pressurize the tank to the cut-out threshold and observe the regulator’s response–it must trip within 1 PSI of the set value. If fluctuations exceed ±2 PSI, recheck spring tension and contact cleanliness. Periodically inspect relief mechanisms every 500 operational hours for corrosion or seal degradation, replacing components if leakage exceeds 0.5 cubic feet per minute at maximum pressure.
