Beginner’s Guide to Building a Basic Amplifier Circuit
Begin with a two-transistor configuration for low-power audio gain stages. Use an NPN-PNP pair (e.g., 2N3904 and 2N3906) arranged in complementary symmetry. Bias the transistors at 0.7V between base and emitter for Class A operation, ensuring stable current flow. Power supply: 9–12VDC, with a 100μF coupling capacitor at input and output to block DC offset. Ground reference: 4.5V midpoint for single-supply setups. Measure quiescent current–target 5–10mA–to avoid crossover distortion.

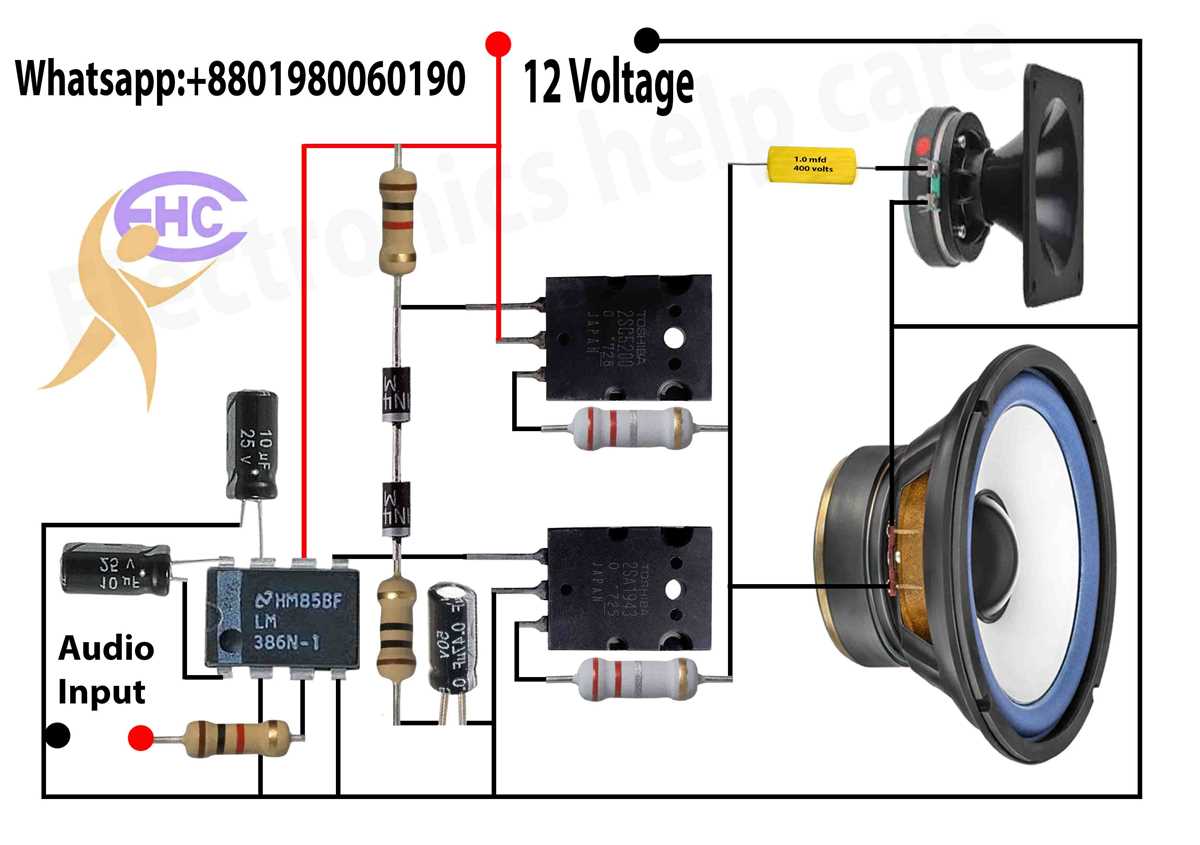

For higher drive levels, integrate an op-amp pre-stage (LM386 with 20x gain) feeding the discrete output section. Add a 10kΩ feedback resistor and 10μF bypass capacitor to set bandwidth–limit highs to 20kHz to prevent RF interference. Heat dissipation: attach a small TO-92 heatsink if ambient exceeds 40°C. Test with a 1kHz sine wave at 100mVpp; expect
Alternate topology: MOSFET final stage (IRF510/IRF9510) for higher current handling. Gate-source bias: 4V, adjusted via potentiometer to minimize deadband. Snubber network: 1kΩ + 10nF across output to suppress oscillations. Layout: keep power traces wide, ground star-point near capacitors, and separate analog/digital grounds. Validate with square-wave response–rise/fall time
Building a Basic Signal Booster: Key Schematic Steps
Begin with a single-transistor configuration using an NPN BJT like the 2N3904. Connect the emitter to ground via a 1kΩ resistor, the base to the input through a 10kΩ resistor, and the collector to a 9V power source with a 4.7kΩ resistor. This forms a common-emitter stage, offering voltage gain of ~50-100x while maintaining stability under 100kHz signals.
| Component | Value | Purpose |
|---|---|---|
| 2N3904 | N/A | Core amplification device |
| 1kΩ (emitter) | 1/4W | Bias stabilization |
| 10kΩ (base) | 1/4W | Input impedance matching |
| 4.7kΩ (collector) | 1/4W | Load/voltage divider |
Add a 10µF electrolytic capacitor between the base resistor and input to block DC offset–critical for audio applications. Ensure the capacitor’s negative terminal faces the base connection. For output coupling, use another 10µF capacitor with its positive terminal toward the collector; this isolates downstream stages while passing the amplified AC signal. Keep lead lengths under 2cm to minimize stray inductance above 50kHz.
Stabilize quiescent current by adding a 100kΩ feedback resistor between collector and base. This linearizes the stage’s response, reducing distortion below 0.5% THD for 20Hz-20kHz signals. For higher frequencies, swap the 2N3904 for a 2N2222–a lower capacitance (8pF vs. 2.5pF) improves bandwidth to 1MHz. Always decouple the power rail with a 100nF ceramic capacitor placed within 5mm of the transistor’s collector.
To expand to a two-stage design, cascade another identical stage but replace the collector resistor with a 10mH inductor for the second transistor. This creates a resonant peak at ~7kHz, boosting high-frequency response by 6dB. Ground both stages through a shared star point to avoid feedback loops–spurious oscillations emerge above 300kHz without this precaution. Test with a 1kHz sine wave at 10mVpp; output should measure ~500mVpp with
Key Elements for Building a Functional Signal Booster Setup
Start with a bipolar junction transistor (BJT) like the 2N3904 or 2N2222–these provide sufficient gain for low-power audio or radio frequency applications while remaining cost-effective. Select a unit with a current gain (hFE) between 100 and 300 for stable operation. Avoid components with excessive leakage currents, which introduce noise and distort output.
Power delivery requires a dual-voltage DC source. Use two 9V batteries wired in series (or a single 18V supply) to create a symmetrical ±9V configuration. This setup prevents signal clipping at zero-crossing points, common in single-supply designs. For lower voltage needs, a 12V or 6V center-tapped transformer with a bridge rectifier and smoothing capacitors (470µF electrolytic) works efficiently.
Passive Components Selection
- Resistors: A 1kΩ input resistor limits current flow into the transistor’s base, while a 10kΩ collector resistor sets the quiescent point. For biasing, use two 100kΩ resistors in a voltage divider configuration to match the transistor’s VBE (typically 0.6–0.7V). Metal film resistors reduce thermal noise compared to carbon types.
- Capacitors: Coupling capacitors (10µF electrolytic) block DC voltage while allowing AC signals to pass. Place a 100nF ceramic capacitor across the power rails to filter high-frequency noise. For audio, non-polarized film capacitors (1µF) improve signal fidelity in the feedback path.
- Potentiometer: A 10kΩ linear potentiometer adjusts input signal strength. Wire it as a variable resistor between the input source and the base resistor for real-time gain control without altering the bias network.
Grounding demands attention–use a star topology to minimize loops. Connect all ground returns to a single point near the power supply to reduce hum, especially in high-impedance stages. Avoid daisy-chaining grounds, which cause voltage drops and signal interference.
Additional Critical Parts
- Diode: A 1N4148 diode protects against reverse polarity during power connection. Install it in series with the positive rail for simple fail-safe operation.
- Heat Sink: For transistors handling currents above 100mA, attach a small aluminum heatsink (or improvise with a bent metal strip). Even low-power BJTs dissipate heat during prolonged use, altering performance characteristics.
- Inductor (Optional): A 1mH inductor in the output stage filters residual noise in RF applications. For audio, omit it to avoid phase shifts unless actively tuning bandwidth.
Input and output connectors should match impedance. Use a 1/4″ TS jack for guitars (high impedance) or an RCA connector for line-level signals. Ensure the input capacitor’s voltage rating exceeds the supply voltage (e.g., 25V for a 9V setup) to prevent breakdown. For RF, replace capacitors with NP0/COG types to maintain stability across temperatures.
Test continuity and voltage levels before applying signal. Probe the collector voltage–it should sit at roughly half the supply voltage under no-signal conditions. Adjust the bias resistors if it drifts outside ±20% of this midpoint. Use an oscilloscope to verify output waveform symmetry; asymmetry indicates improper biasing or load mismatches.
Enclosure choice impacts performance. Metal cases shield against electromagnetic interference but require insulated mounting for components. Plastic enclosures are cheaper and sufficient for low-frequency audio but lack shielding. Drill ventilation holes if the transistor runs hot, or add a small fan for active cooling in high-current designs.
Building a Basic Signal Booster with One Semiconductor
Select a general-purpose NPN transistor like the 2N3904–its low cost and reliable gain (hFE 100–300) simplify prototyping. Avoid Darlington pairs or high-power devices; they introduce unnecessary complexity for low-frequency audio tasks.
Gather components: a 10 kΩ base resistor (R₁), 1 kΩ collector resistor (R₂), 10 µF input/output coupling capacitors (C₁, C₂), a 100 µF electrolytic for DC biasing (C₃), and a 9V battery. Precision isn’t critical, but mismatch beyond ±20% degrades performance.
Solder the transistor first–emitter to ground, collector to R₂, and base to R₁. Keep leads short (
Attach C₃ between base and ground to stabilize the operating point. Without it, thermal drift shifts the bias, distorting weak signals. Polarized capacitors must align negative to ground; reverse voltage ruins them instantly.
Wiring Input/Output and Testing
Connect C₁ to the base via R₁, ensuring signal polarity matches the preceding stage. For outputs, link C₂ to R₂’s collector, then route to the load (8 Ω speaker or 1 kΩ test resistor). Omitting C₂ lets DC saturate the load.
Apply a 1 kHz sine wave (0.1V peak) to C₁ using a function generator. Probe the collector with an oscilloscope–clipped peaks indicate excess input or incorrect R₂/R₁ ratio (aim for 5:1 to 10:1). Adjust R₁ downward if gain is insufficient.
Measure current draw at idle: 2–5 mA is typical. Higher values suggest leakage in C₃ or incorrect transistor orientation. Replace C₃ if leakage persists; even 0.1 µA affects stability.
Enclose the setup in a metal box if HF noise emerges. Decouple the power rail with a 0.1 µF ceramic capacitor directly across the battery terminals–long leads act as antennas above 1 MHz.
How to Select Optimal Resistor and Capacitor Values for Your Design
Begin with the signal’s frequency range. For audio applications, resistors between 1 kΩ and 100 kΩ prevent excessive loading while maintaining stability. Lower values (470 Ω–10 kΩ) suit high-speed signals, reducing parasitic effects. Match impedance to source and load–mismatches cause reflections or distortion, especially above 1 MHz.
Calculate time constants for timing networks using τ = R × C. A 1 µF capacitor with a 1 kΩ resistor yields τ = 1 ms, ideal for smoothing pulses or debouncing switches. For filters, target cutoff frequencies with fc = 1/(2πRC). A 10 kΩ resistor paired with a 10 nF capacitor sets fc ≈ 1.6 kHz, blocking noise above this threshold.
Prioritize component tolerances based on precision needs. Carbon film resistors (±5%) suffice for general use, while metal film (±1%) or thin-film (±0.1%) resistors suit high-accuracy stages. Capacitors follow similar rules: ceramic (X7R, ±10%) for decoupling, film (±5%) for audio paths, and tantalum (±10–20%) where space limits size.
Factor in power dissipation. Resistors must handle P = I²R without overheating. A 1/4 W resistor tolerates 5 mA through 1 kΩ (P = 0.025 W) but fails at 50 mA (P = 2.5 W). Surface-mount components (0402–1206) dissipate less heat than through-hole; upgrade to higher-power variants if currents exceed 10 mA.
Account for voltage ratings. Ceramic capacitors often derate above 50 V; use polypropylene or mica for 200+ V applications. Resistors rarely fail from voltage alone, but high-Ohm values (>1 MΩ) may arc across gaps at >100 V–opt for physically larger packages to avoid this.
Minimize noise by selecting low-noise resistors (e.g., wirewound or metal-film) for the first gain stage. Capacitors with low dielectric absorption (e.g., polystyrene) reduce distortion in filters. Avoid electrolytics in signal paths–their leakage current (1–10 µA) degrades performance in high-impedance nodes.
Check temperature coefficients. Resistors drift 50–500 ppm/°C (carbon vs. wirewound); capacitors vary widely: NP0 ceramics drift
Verify availability and cost. Standard E24/E96 resistor values (1% tolerance) cover most needs; non-standard values require custom orders or parallel/series combinations. Capacitors follow similar schemes (E6–E24). Balance performance against budget–precision parts cost 10–100× generic alternatives.
