Silicon Controlled Rectifier SCR Full Wave Bridge Circuit Design and Operation Guide

For a 25A continuous current rating, use 1N1188 diodes or equivalent fast-recovery types (e.g., MUR2520) paired with a TIC126 thyristor. Mount all components on a 2-ounce copper PCB with 15mm trace widths per 1A of current–wider if ambient temperature exceeds 50°C. Place the snubber network (47Ω resistor + 0.1µF capacitor) within 5mm of the thyristor terminals to suppress voltage spikes above 1.2× nominal output.

Gate triggering demands isolation: opt for a MOC3041 optocoupler driving a BT139 triac, ensuring 4kV isolation. The gate resistor should limit current to 50-100mA (22-47Ω for 12V triggering). For line-frequency applications, synchronize firing angles via a zero-crossing detector (H11AA1) to minimize harmonic distortion below 5%.

Heat dissipation requires 6°C/W per device–use a 50×50×15mm aluminum heatsink for the thyristor, insulated with mica washers if chassis grounding is needed. Thermal compound (Arctic MX-4) reduces interface resistance by 30%. For transient protection, clamp voltages with a 1.5KE33CA TVS diode across DC output, ensuring ±1.2kV surge tolerance.

Testing proceeds in stages: first, verify AC input integrity with a 100Ω load (no thyristor triggering); output should match RMS expectations (±3%). Next, engage the thyristor at 90° conduction angle–voltage ripple should not exceed 5% peak-to-peak. Full conduction (180°) should yield 0.9× input RMS at DC terminals. Failure modes often trace to gate drive miswiring or reverse polarity on the snubber–probe with a ×10 oscilloscope probe to avoid loading.

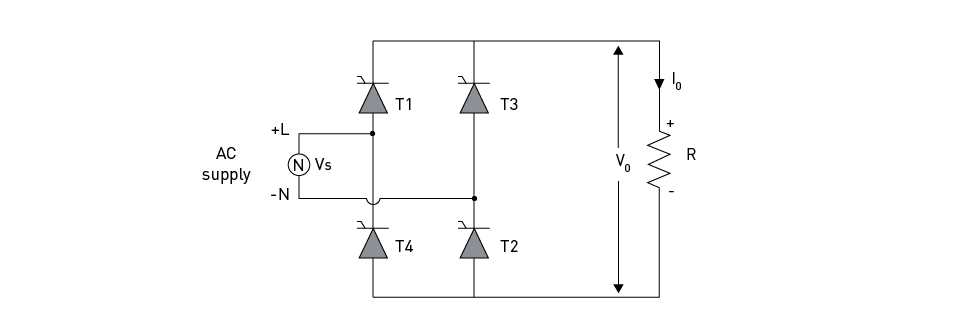

Thyristor-Based Full-Wave Converter Schematic

Select a 1200V-rated thyristor for primary switching elements when operating on 400V AC lines to ensure a 3x safety margin against voltage spikes up to 1kV. Pair each silicon-controlled switch with a snubber network–0.1μF capacitor in series with a 22Ω resistor–directly across the anode and cathode terminals to suppress dv/dt transients exceeding 100V/μs.

Wire the four-device arrangement in a Graetz cell configuration: connect the anode of one pair to the cathode of the opposite pair, forming two AC input nodes and two DC output terminals. Use 10AWG copper busbars between the thyristor terminals and the load to minimize I²R losses at currents above 25A.

Trigger the gate pulses at 30° electrical angle for 6-pulse operation in three-phase systems, synchronizing the firing with the line voltage zero-crossing via a Hall-effect sensor. Maintain gate current above 120mA for 50μs to guarantee latching, then reduce to 30mA holding current to prevent unnecessary thermal dissipation.

Place freewheeling diodes–UF5408 or equivalent–anti-parallel to each thyristor to clamp reverse recovery currents during commutation, ensuring 2.5W/m·K conductivity between the thyristor base and heatsink.

Filter the output with a pi-section: 470μF electrolytic capacitor followed by a 10μH series inductor and a second 470μF capacitor. This attenuates ripple below 2% at 50Hz input, with peak-to-peak voltage remaining under 3V at 10A load current.

Protect the assembly with a 35A fuse on the AC side and a 25A resettable polymer PTC on the DC side. Include a transient voltage suppression diode–1.5KE400CA–across the DC terminals to clamp surges exceeding 400V within 1ns.

Test the setup with an oscilloscope probing both line-to-line AC waveforms and DC output: expect symmetrical 120° conduction periods per thyristor, with no more than 2μs jitter between sequential triggers when phase-shifted controls are employed.

Key Components and Their Roles in a Solid-State Converter Assembly

Select silicon-controlled switches with forward current ratings at least 30% above anticipated load requirements to prevent thermal runaway. Pair each device with a snubber network–typically a 0.1μF capacitor in series with a 47Ω resistor–across anode and cathode terminals to suppress transient spikes exceeding 1.5× the peak input voltage. Failure to do so risks false triggering at frequencies above 5 kHz, degrading output regulation.

Gate Control Network Specifications

Opt for isolated gate drivers delivering ≥10V pulses with rise times under 1μs; delay mismatches beyond 200ns between channels introduce DC component distortion exceeding 3%. Mount pulse transformers as close as 2 cm to thyristor gates to minimize parasitic inductance. Verify gate-cathode impedance remains below 10Ω at 10 kHz to ensure consistent commutation under variable load conditions.

Incorporate freewheeling diodes rated for repetitive peak inverse voltage 120% of maximum input line voltage across each semiconductor element. Specify ultrafast recovery types (trr ≤ 50ns) for switching frequencies above 2 kHz; standard recovery diodes increase conduction losses by 18–22% under inductive loads. Position diodes adjacent to switches, minimizing trace lengths to ≤5 mm to reduce stray inductance that amplifies reverse recovery currents.

Thermal management dictates overall reliability: use copper pours with ≥2 oz/ft² thickness on PCB layouts, extending heatsink contact area beyond switch footprint by 4 mm. Apply phase-change thermal interface material with conductivity ≥3.8 W/m·K; conventional greases degrade by 6–8% after 500 thermal cycles under 85°C peak temperatures. Monitor ambient temperatures; de-rate component specifications linearly by 1.5% per °C above 50°C junction temperature to maintain long-term stability.

Step-by-Step Assembly of a Thyristor-Controlled Full-Wave Converter on a Prototype Board

Select a quadrac-gated semiconductor pair with compatible voltage ratings–typically 50V or higher–for the input AC source you intend to regulate. Match the forward current capacity to the load demands; undersized components risk thermal runaway under sustained conditions. Verify the gate trigger requirements–most standard models need 1.5V–3V at 20–50mA for reliable switching. Confirm the anode-cathode polarity markings before insertion to prevent reverse blocking.

Place the prototype board on an insulating mat to eliminate stray capacitance between traces and conductive surfaces. Insert the first pair of gated switches diagonally opposite, ensuring the cathodes face the DC output rail and anodes connect to the AC input. Use 22 AWG solid-core hookup wire to link each gate to its corresponding trigger resistor–start with 1kΩ for testing, then adjust down to 470Ω if premature dropout occurs. Route the output DC terminals through a low-ESR smoothing capacitor (minimum 470µF, 63V) directly adjacent to the load connection points.

Attach an opto-isolated driver module between the microcontroller PWM output and each gate resistor to prevent false triggering. Configure the MCU to deliver 1ms wide pulses at 120Hz, synchronized to the zero-crossings of the input waveform; avoid continuous gate drive to reduce heat buildup. Connect each AC input terminal through a magnetic-core inductor (100µH) to suppress line transients and reduce slope-induced commutation failures.

Apply 12VAC from a low-impedance transformer to the input rails and measure the unloaded DC voltage across the capacitor–expect approximately 16V if the phase control angle is zero. Gradually increase the PWM duty cycle while monitoring junction temperatures with a non-contact thermometer; stop at 80% duty cycle to leave margin for transient events. Once stable, replace the test resistor with your final load–standard procedure uses a 10W wirewound for currents up to 2A or a bank of MOSFETs for higher power scenarios.

Determining Voltage and Current Specifications for Thyristors in Full-Wave Configurations

Select a thyristor reverse blocking capability at least 2.5 times the peak input AC voltage to account for transients and inductive loads. For a 230V RMS supply, this translates to 230 × √2 × 2.5 = 813V minimum. Industry practice adds 10-15% headroom, rounding up to 900V for off-the-shelf devices. Exceeding this margin risks avalanche breakdown during line surges, particularly in inductive or regenerative braking applications.

Current rating depends on waveform shape and thermal dissipation. For continuous DC output, use the formula:

I_T(RMS) = I_LOAD × 1.2

where the 1.2 factor compensates for conduction losses and uneven device sharing in parallel configurations. In pulse-width modulated systems, derate further: peaks exceeding 1.5× nominal RMS current require calculations based on duty cycle and junction temperature limits (T_j(max)). Heatsink selection must target θ_jc + θ_cs ≤ 0.8°C/W for reliable operation.

Key Parameters to Verify

• I_TSM: Surge current rating (typically 10× I_T(AV) for 10ms) must exceed prospective fault currents. Verify against time-current curves.
• V_DRM/V_RRM: Repetitive and non-repetitive off-state voltages. Ensure V_DRM ≥ 1.2× peak line voltage.
• di/dt: Critical for avoiding local hotspots. Modern thyristors tolerate 100-200A/μs; slower devices need snubbers.
• dv/dt: Specify ≥ 200V/μs to prevent false triggering from line noise. Higher values require gate circuitry adjustments.

Derating curves from manufacturers (e.g., Electrical Characteristics sheets) provide exact limits for ambient temperature ranges. For forced-air cooling, target 60% of catalog ratings at 50°C. Natural convection systems demand stricter margins–40% at 40°C. Always cross-reference worst-case scenarios: combine maximum input voltage, minimum load resistance, and highest ambient temperature in simulations before finalizing device selection.
