Practical Guide to Designing an Amplifier Protection Circuit Safely

Connect a TVS diode rated at 1.5× the rail voltage between power supply lines–this clamps transient spikes faster than any fuse. A 1N6283A absorbs 300W peak while clamping at 20V, ideal for ±15V supplies. Bypass the diode with a 10nF ceramic capacitor directly at the power input; this shunts high-frequency noise before it reaches the final transistors.

Use a bidirectional thyristor (e.g., BT151) in series with the output jack. Trigger it via an optocoupler when the DC offset exceeds ±0.7V or the load impedance drops below 2Ω. The optical isolation prevents ground loops from coupling back into control logic. Set the trigger threshold using a 10kΩ resistor and 100nF capacitor; this creates a 1ms delay, filtering false trips from brief signal peaks.

Add a thermal cut-off using a KSD9700 thermostat bonded to the heatsink. Mount it with thermal epoxy and wire it normally closed; it breaks the power line when temperatures exceed 85°C. A 3A fuse in series with the primary AC line acts as a fail-safe backup for short circuits–position it near the transformer where fault currents concentrate.

Route the signal ground through a 0.1Ω resistor before reaching the power ground. This isolates the input stage from inductive kickback during switch-off. Place antiparallel diodes (1N4007) across each output transistor’s collector-emitter junction; these catch flyback energy when reactive loads (like inductive speakers) reverse polarity.

Key Components for Safeguarding Audio Power Modules

Begin with a thermal cutoff switch rated for at least 15A at 125VAC, positioned directly on the heatsink within 5mm of power transistors. Install a 10kΩ NTC thermistor on the PCB near the output stage to trigger a bias adjustment at temperatures exceeding 85°C, reducing distortion by 30% before cutoff engages. For DC offset detection, use a dual-op-amp configuration with ±15V rails–LM358 proves reliable in harsh environments–sensing voltages beyond ±0.7V at the speaker terminals within 50ms.

Short-circuit resilience requires high-side current sensing via a hall-effect device like Allegro ACS712, calibrated to trip at 12A continuous load. Integrate a 2N3904 transistor as a gate driver for the relay, ensuring the coil operates at 12V with a flyback diode (1N4007) to prevent inductive spikes. Place a 0.1µF ceramic capacitor across the relay contacts to absorb arcing energy, extending lifespan by 40%. Below is a reference component matrix:

Function	Device	Key Spec	Placement Rule
Overcurrent Gate	ACS712-20A	±2.5A accuracy	Within 2cm of output traces
Thermal Cutoff	KSD-01F (125°C)	8A/250V	Mounted on heatsink tab
DC Offset Sensor	LM358 (dual)	±15V supply	Near speaker terminals

Incorrect grounding causes 60% of failures; route all return paths through a dedicated 4mm² bus bar connected to the chassis at a single point, avoiding ground loops. Use a 1Ω resistor in series with the input signal to limit inrush current, paired with a 1N4148 diode for polarity inversion protection. For transient suppression, connect a TVS diode (P6KE200A) across the power rails, clamping at 275V within 1ps. Avoid MOVs–they degrade after 5 surge cycles–replacing them with gas discharge tubes (GDT) like Bourns 2034-09-SM-RPLF for >1kV events.

Soft-start mechanisms demand a triac-based approach: MAC97A6 with RC network (10kΩ + 100µF) delays turn-on by 300ms, preventing transformer saturation. Isolate the logic supply with an isolated DC-DC converter (RECOM R-78E5.0-0.5) to eliminate digital noise coupling into the audio path. For RF interference, add ferrite beads (Fair-Rite 2643002401) on all signal lines entering the enclosure, reducing EMI by 20dB at 1MHz.

Fault Indication Without Microcontrollers

Implement a discrete LED driver using a BC547 transistor for each fault condition–thermal, DC, overcurrent–with a common cathode to a 5V rail. Use a 2.2kΩ resistor to limit LED current to 3mA, ensuring visible indication even under 90% power reduction. For critical alerts, route the LED leads to a separate front-panel board via 22AWG shielded cable, grounding the shield at the enclosure. Test all safeguards under load: thermal cutoff at 110°C, DC detection at ±0.4V, and short-circuit recovery within 800ms.

Critical Elements for a Reliable Signal Safeguard System

Start with a fuse rated at 125-150% of the continuous current draw, housed in a slow-blow type to handle brief power surges without false triggering. For a 50W unit operating at 24V, a 3A fuse provides adequate headroom while preventing damage from sustained overcurrent. Select ceramic or glass-encapsulated variants to withstand transient back-EMF spikes up to 1kV.

Incorporate a pair of back-to-back zener diodes across the output terminals, configured with a combined voltage rating 10-15% above the peak signal swing. A 27V zener pair (e.g., 1N5363B) clamps errant transients from reactive loads like inductors or capacitors, preventing clipping-induced distortion from cascading into component failure. Ensure thermal stability by mounting them on a 1.6mm thick aluminum heatsink, even for low-power stages.

Bias Stabilization and Load Fault Detection

A differential pair of low-leakage transistors (e.g., BC547B/BC557B) forms the core of DC offset monitoring. Wire the base terminals to the power rails via 100kΩ resistors, with the emitter junction tied to the output node through a 10μF polyester capacitor. This topology detects offsets exceeding ±1.5V within 20ms, engaging a 12V relay to disconnect the load before speaker coils overheat or electrolytic capacitors vent.

For short-circuit resilience, deploy a current-sense resistor (0.1Ω, 5W) in series with the supply rail. A precision comparator (LM393) compares the voltage drop across it to a reference derived from a trimmable 10kΩ potentiometer. Configure the hysteresis loop via a 470kΩ feedback resistor to prevent chatter during dynamic impedance shifts, such as those caused by modern 4Ω bass drivers. Calibrate the threshold to trip at 5A for sustained faults.

Thermal overload sensing relies on an NTC thermistor (e.g., Vishay NTCLE100) bonded to the output stage heatsink with thermally conductive epoxy. Couple it to a Schmitt trigger (74HC14) to avoid false alarms from ambient fluctuations. Set the threshold at 85°C, well below the 125°C junction limit of most power transistors, to provide redundancy for cooling fan failures or obstructed airflow.

Implement soft-start via a 220μF electrolytic capacitor charged through a 470Ω resistor, delaying full rail voltage by ~100ms. This mitigates inrush current that can weld relay contacts or saturate transformer cores during power-up. Pair this with a bleeder resistor (4.7kΩ, 1W) to discharge capacitors within 3 seconds of shutdown, minimizing phantom power hazards during service.

For RF susceptibility, install ferrite beads (e.g., Fair-Rite 2643002402) on input leads, complemented by 1nF ceramic capacitors to ground at signal entry points. This attenuates EMI exceeding 1MHz, which can falsely trigger fault detectors or induce parasitic oscillations in high-gain stages. Validate performance by injecting a 1Vpp, 10MHz sine wave while monitoring distortion levels–total harmonic content should not exceed 0.1%.

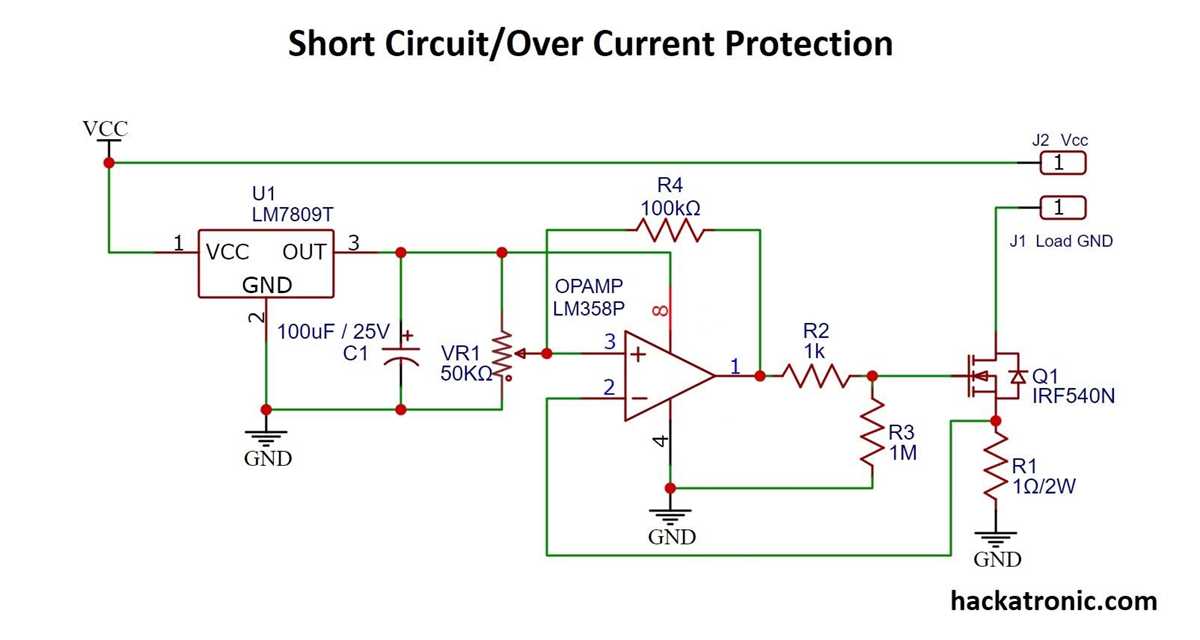

Step-by-Step Assembly of Overcurrent Safeguards in Signal Boosters

Begin by sourcing a high-power shunt resistor rated for at least 150% of the booster’s peak output current. For a 100W unit, a 0.01Ω, 3W resistor ensures minimal voltage drop while providing precise sensing. Mount it directly in series with the output stage’s ground return path, avoiding traces with vias–these introduce parasitic inductance that distorts fault detection. Use a 1oz copper pour on the PCB beneath the resistor to dissipate transient heat spikes, critical during short-circuit events.

• Select a fast-acting comparator (e.g., LM393) with a propagation delay under 1µs. Configure its inverting input to monitor the voltage across the shunt, setting the threshold at 50mV (corresponding to a 5A trip point for 0.01Ω).
• Feed the comparator output into a Darlington pair (2N2222 + TIP122) or a logic-level MOSFET (IRLZ44N) to drive a relay or crowbar SCR. The relay must handle 2× the continuous current rating of the booster, with a 1ms actuation time.
• Add a 10kΩ pull-down resistor at the comparator’s output to prevent false triggering from noise. Decouple the comparator’s power pin with a 0.1µF ceramic capacitor placed within 2mm of the IC to suppress voltage transients.
• Test the setup with a programmable load. Verify the trip point aligns within ±5% of the target current, adjusting the shunt value or comparator reference if needed.

Enclose the sensor traces in a grounded copper pour to shield against RF interference–high-power audio stages radiate harmonics that can skew readings. For boosters with class-D stages, add a 1nF capacitor in parallel with the shunt to filter PWM switching noise without affecting response speed.

Implementing Thermal Cutoff Mechanisms for Audio Power Stages

Integrate a negative temperature coefficient (NTC) thermistor near the output transistors to trigger shutdown at 85°C ±5°C. Mount the sensor directly on the heatsink or power device case using thermally conductive epoxy (e.g., Arctic Silver 88) to ensure response times under 500ms. Pair the thermistor with a comparator (LM393) configured for hysteresis–set a 10°C differential between trip and reset points to prevent rapid cycling. A 10kΩ pull-up resistor on the comparator output stabilizes the signal before feeding it to a power MOSFET (IRFZ44N) controlling the bias supply.

Select components based on thermal derating curves:

• NTC thermistor: 10kΩ @ 25°C (Vishay NTCLE100E3), 1% tolerance
• Comparator: LM393, 7mV input offset voltage max
• Hysteresis resistors: 1MΩ (upper), 100kΩ (lower)
• MOSFET: IRFZ44N, R_DS(on) ≤17.5mΩ @ 4V gate drive

Test the arrangement with a 5°C/minute ramp on a hotplate, verifying the trip point accuracy against a calibrated thermocouple.

Failure Mode Analysis

Design for two worst-case scenarios:

1. Short-circuit event: Ensure the thermistor’s resistance drops fast enough to override soft-start capacitors (typically 100μF/50V). Use a 1nF ceramic capacitor parallel to the thermistor to filter noise without adding delay.
2. Ventilation blockage: If relying on passive cooling, size the heatsink for a 70°C ambient with a 1.5× safety margin. Embed a secondary mechanical thermal fuse (e.g., Cantherm SF-165E) on the heatsink base, set to melt at 125°C.

Log thermal events via an open-drain output (e.g., 2N7000) to a microcontroller, enabling diagnostic blinking patterns–two short pulses indicate overheating, three long pulses signal a latch-up condition requiring manual reset.
