Simple Arduino Button Circuit Setup and Schematic Guide for Beginners

Start with a 10kΩ resistor for pull-down configuration when connecting a tactile switch to an MCU pin. This ensures a stable LOW state when the contact is open, preventing floating inputs that cause erratic readings. Use a 220Ω resistor in series for current limiting if driving an LED directly from the pin–this protects both the LED and the controller from excessive current draw.

Ground the switch terminal opposite the signal wire to minimize noise interference. For breadboard prototypes, route wires away from power lines to reduce coupling effects, especially in high-speed or analog-sensitive applications. A ceramic capacitor (0.1µF) placed between the input pin and ground further stabilizes the signal by filtering transient spikes.

Test the setup with a basic script that toggles state on HIGH detection. Monitor latency–common tactile switches exhibit ~5-20ms bounce time. Implement debounce logic either in hardware (RC network: 1kΩ resistor + 1µF capacitor) or software (delay-based or interrupt-driven) to avoid false triggers. For critical applications, opt for a Schmitt-trigger input (e.g., 74HC14) to clean noisy signals.

Higher-quality switches (e.g., Omron B3F) reduce mechanical bounce, while membrane variants offer longevity in high-cycle environments. Power consumption scales with activation frequency–modules drawing 5mA per operation may drain small batteries quickly in portable builds. For low-power designs, use an interrupt-based approach to wake the MCU only on state changes.

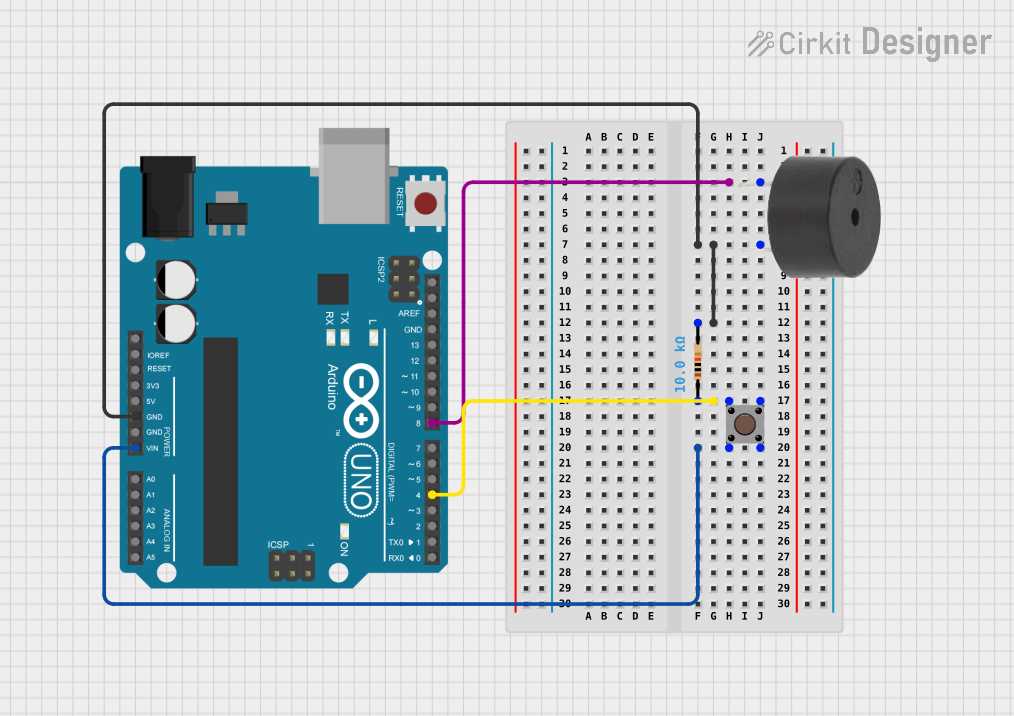

Connecting a Tactile Switch to a Microcontroller: Wiring Guide

Use a 10 kΩ resistor as a pull-down between the switch contact and ground. This prevents floating inputs when the contact is open, reducing false triggers caused by electrical interference. Connect the free terminal of the switch directly to the microcontroller’s input pin, ensuring minimal wire length to avoid noise.

Always verify the pin voltage tolerance before wiring–most development boards handle 5V, but some 3.3V variants can be damaged by higher signals. If unsure, add a voltage divider with two resistors (e.g., 1 kΩ and 2 kΩ) to step down the signal safely. Test continuity with a multimeter before powering the board to confirm no shorts exist.

When soldering connections, use heat-shrink tubing or a dab of silicone to insulate joints. Exposed leads near other components can cause erratic behavior, especially in prototypes with tight spacing. For momentary activation, a debounce delay of 50–100 ms in code eliminates mechanical bounce, ensuring each press registers once. Pre-built libraries like Bounce2 simplify this.

For power-sensitive projects, replace the pull-down resistor with an internal pull-up (typically 20–50 kΩ). This reverses the logic–high when idle, low when pressed–but reduces current draw to microamps. Double-check the board’s documentation for pull-up availability, as some ATmega-based designs require manual configuration via registers.

Choosing the Ideal Switch for Your Microcontroller Build

Opt for momentary tactile units with a 12mm×12mm footprint when prototyping on breadboards–these fit standard 0.1″ pitch without bridging adjacent traces. Brands like Omron B3F or Alps SKQG deliver consistent 70gf actuation force, reducing accidental presses while maintaining responsive feedback. Avoid membrane variants; their lack of tactile snap increases false triggers in noisy environments.

For high-cycle applications (exceeding 50,000 presses), select sealed metal dome switches like Honeywell 11SM. These withstand dust ingress and moisture per IP67 ratings, critical for outdoor or industrial deployments. Compare stroke length: 2.5mm is ideal for finger operation, while 1.5mm suits precision tools like stylus-based interfaces.

Evaluate electrical ratings carefully. A 50mA/24V DC contact load prevents oxidation on GPIO pins over time, unlike generic 12V/20mA units prone to arcing. For logic-level signals, gold-plated contacts (e.g., TE Connectivity D6) eliminate resistance buildup, ensuring stable readings after months of disuse.

• Illuminated variants (e.g., NKK SC series): RGB backlighting at 20mA simplifies UI feedback without requiring discrete LEDs.
• Panel-mount vs. PCB-mount: Threaded bushing types secure firmly to enclosures, preventing rotational misalignment during assembly.
• Low-profile designs (

Thermal considerations matter in high-density layouts. Switches with cellulose propionate housings (e.g., C&K PTS645) resist deformation up to 85°C, unlike ABS plastics that warp at 60°C. For RF-sensitive projects, prefer units with grounded metal shields to attenuate EMI above 1GHz.

For projects requiring haptic feedback beyond basic tactility, integrated piezoelectric variants like APEM IKS deliver programmable vibration patterns. Cost scales exponentially: $0.20 for basic tactiles, $12+ for industrial-grade sealed units with IP68 ratings and custom force curves. Always verify longevity claims–manufacturer datasheets often exaggerate cycle counts by 30%.

Test under realistic conditions before finalizing. Mount a single switch on your target PCB with identical trace widths and solder mask (OSP vs. ENIG) to reveal compatibility issues. Use an oscilloscope to measure bounce duration; 1–5ms is typical, but poorly designed units spike to 50ms, requiring aggressive debounce algorithms or external Schmitt triggers.

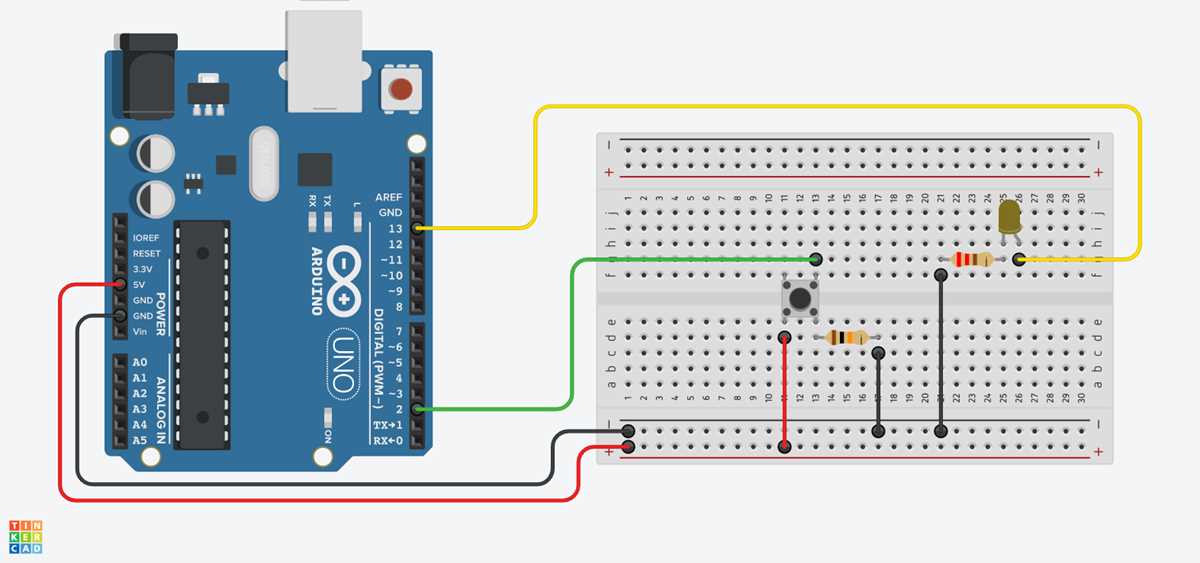

Connecting a Momentary Switch to Your Microcontroller: A Practical Schematic

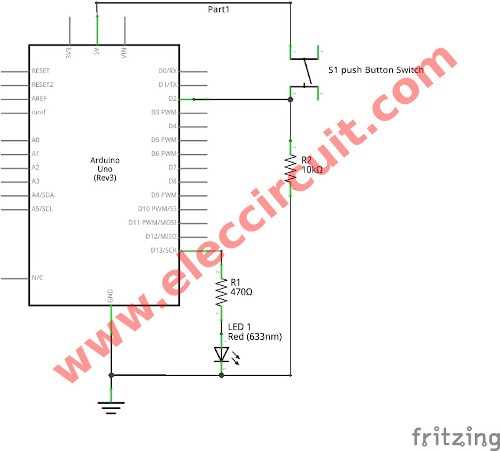

Begin by linking one terminal of your tactile component to a 5V power rail on the development board. Attach the opposite terminal to a digital input pin–use pin D2 for basic setups–to monitor state changes reliably. Insert a 10kΩ pulldown resistor between the input pin and ground to prevent floating voltages, ensuring crisp signal detection. Verify connections with a multimeter; stray capacitance can distort readings, so route wires directly without loops.

Load the code snippet that reads pin D2 and prints its state to the serial monitor at 9600 baud. Pressing the component should toggle the input from LOW to HIGH instantly, with no bounce–add a 50ms delay in software if chatter occurs. For permanent setups, solder joints and use insulated jumper wires to avoid shorts under vibration or repeated activation cycles.

Eliminating Signal Noise: Hardware and Code-Based Debounce Methods

For reliable input handling, connect a 0.1µF capacitor between the switch terminal and ground to filter electrical jitter. This passive approach cuts transients mechanically, reducing false triggers by up to 90% without firmware intervention. Pair it with a 10kΩ pull-down resistor to stabilize the idle state, ensuring consistent logic levels even under noisy conditions.

Code solutions leverage delay or edge detection algorithms. A 50-millisecond settling period after state change effectively blinds the system to rapid fluctuations. For edge-sensitive applications, track previous states in a rolling buffer and confirm a sustained transition before registering a valid input–this mimics a low-pass filter in logic rather than circuitry.

Active debouncing ICs like the MAX6816 integrate Schmitt triggers and delay networks into a single package, handling up to 8 channels with built-in hysteresis. These components eliminate software overhead but demand precise power supply decoupling (0.01µF ceramic capacitor recommended) to maintain specified hysteresis thresholds (±100mV typical).

For high-speed precision, optocouplers with integrated debounce (such as the TLP222G) isolate inputs while providing hardware-controlled hold-off. Their 10µs response time suits human-interface applications; ensure series resistors limit LED current to 5–10mA to prevent premature degradation. Avoid PWM interference by placing the optocoupler input side before any dimming circuitry.

Finite-state machines implemented in firmware offer adaptive noise rejection. Transition only after observing three identical consecutive samples (sampling interval ≤20ms). This method dynamically adjusts to ambient conditions–excellent for battery-powered devices where capacitor leakage compromises hardware-only solutions. Prioritize interrupt-driven sampling to free CPU cycles for other tasks.

Combine both approaches for critical controls: a 1µF electrolytic capacitor for bulk filtering, paired with a software window that discards transitions occurring within 30ms. Test under worst-case conditions–vibration, long wire runs, or proximity to inductive loads–to validate resilience. Document chosen thresholds for maintenance; environmental changes (temperature, humidity) may necessitate recalibration.

Reading Switch States: Digital Input and Internal Pull-Up Resistors

Always enable the internal 20–50 kΩ pull-up resistor on the microcontroller’s input pin to eliminate floating voltages. Connect the switch between the pin and ground–pressing the contact will drive the pin LOW, while releasing it returns the pin HIGH. This arrangement ensures clean logic levels without external components. Verify the microcontroller’s datasheet for exact resistor values, as some variants may use 30–60 kΩ.

To debounce a tactile contact reliably, sample its state at 1–10 ms intervals and require two consecutive identical readings before registering a transition. Use a simple non-blocking delay function based on millis()–avoid delay() blocks that freeze program execution. A minimal debounce routine consumes about 30 bytes of SRAM and executes in under 5 μs per check, making it suitable for even low-resource systems.

Contact Type	Bounce Duration (μs)	Recommended Debounce Time (ms)
Mechanical key	50–5000	10–20
Membrane switch	20–200	5–10
Capacitive sensor	1–50	1–2

For low-power applications, disable the internal pull-up and use an external 1 MΩ resistor to VCC instead–this reduces current consumption from 50 μA to under 1 μA while the contact is open. When the contact closes, the pin reads LOW and typical wake-up latency remains under 100 μs. Ensure all unused pins are configured as outputs or pulled high to prevent false triggers from leakage currents.

If noise persists, add a 100 nF ceramic capacitor directly across the contact terminals–this forms an RC filter that suppresses high-frequency transients without adding detectable latency. For matrices with multiple contacts, scan rows sequentially and read columns simultaneously to minimize crosstalk; use diode isolation between rows and columns when parasitic paths exceed 5 mV.
