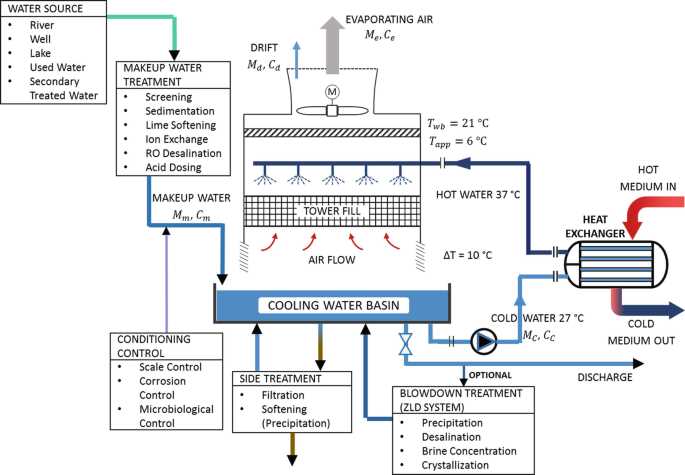

Step-by-Step Guide to Drawing a Water Treatment Cooling Tower Schematic

Start with a closed-loop configuration whenever possible. This design minimizes makeup requirements by isolating the circulating fluid from airborne contaminants and evaporative losses. Typical open-loop arrangements demand 2–5% blowdown rates; switching to a closed system slashes this to 0.1% or less, cutting chemical dosing costs by 90% and extending equipment lifespan by 3–4 years. Position the heat exchanger downstream of the recirculation pump–this prevents flash evaporation and scale buildup on exchanger plates, maintaining a ΔT of 5–7°C across the loop without sacrificing efficiency.

Integrate a side-stream filtration unit with a 50-micron automatic backwash screen. Place it on a bypass line that draws 3–5% of the total flow; this reduces suspended solids loading in the basin by 60–80%, eliminating the need for frequent manual cleaning. For towers handling high turbidity (above 50 NTU), pair the screen with a 10-micron bag filter–this combination drops particle counts below 10 parts per million, extending fill media service intervals from 12 to 36 months.

Use variable-frequency drives on all pumps. Matching pump speed to system demand cuts energy consumption by 25–35% compared to fixed-speed units. Install pressure sensors on both the supply and return lines of the heat exchanger loop; maintain a differential of 10–15 psi to prevent cavitation and ensure consistent flow distribution across all nozzles. For systems above 5,000 GPM, add flow meters on each circuit–this allows real-time detection of imbalances before they cause overheating or fouling.

Apply epoxy-coated or fiberglass-reinforced plastic components for corrosion resistance. In coastal environments (chloride levels above 500 ppm), specify duplex stainless steel (UNS S32205) for critical parts–this prevents pitting corrosion, which occurs within 6–12 months in standard carbon steel. For the basin, use a sloped design (minimum 1:12 gradient) paired with two low-point drains; this ensures complete sediment removal during monthly flushes, reducing biological growth by 70%.

Program the control system to trigger blowdown based on conductivity rather than time. Set the upper limit at 2,000–2,500 μS/cm for general industrial use; this strikes the balance between scale prevention and water conservation. For systems using makeup with hardness above 180 ppm, blend softened water at a 1:3 ratio–this lowers conductivity spikes and reduces required blowdown volume by 40%. Include a conductivity probe in the discharge line of the filter unit; if readings deviate by more than 10% from the loop average, initiate a backwash cycle immediately to prevent debris carryover.

Technical Layout of Industrial Recirculating Evaporation Systems

Begin by positioning the intake basin below the heat exchange unit to minimize pump strain–optimal vertical spacing is 3-5 meters. This reduces cavitation risks and maintains a steady 0.2-0.3 bar pressure differential at the inlet. Use schedule-80 PVC piping for all primary loops to handle 60-85°C flow temperatures without degradation.

Integrate a side-stream filtration unit with dual 200-micron polypropylene mesh screens, configured in parallel for continuous operation during backwashing. Backwash cycles should align with TDS levels–trigger at 1,200-1,500 ppm to prevent scale buildup on fill media. Ensure the blowdown line includes a needle valve for precise flow control, maintaining cycles of concentration between 3-5.

Place drift eliminators above the spray nozzles but below the fan assembly, angled at 30-45° to the vertical axis. Construct them from folded galvanized steel or corrugated PVC sheets–spacing should not exceed 40mm to capture 99.7% of droplets >20µm. Fans must be sized for 1.2-1.8 m/s face velocity at the fill media interface, with motor power calculated using:

• Airflow rate (m³/s)
• Static pressure drop across fills (typically 50-150 Pa)
• Fan efficiency (target 70-85%)

Chemical Injection and Monitoring Points

Install corrosion inhibitors upstream of the recirculation pump, dosing at 5-10 ppm for steel components. Scale inhibitors (e.g., HEDP) require injection points at both pump discharge and tower basin return lines, with separate metering pumps calibrated to 0.5-2 L/h. Use inline pH and ORP sensors at three locations:

1. Basin intake (baseline)
2. Post-heat exchanger (hot loop)
3. Pre-filtration (cold loop)

Automate dosing adjustments when pH deviates ±0.2 from target (7.2-7.8 for open loops).

Fill media selection determines thermal performance:

• Cross-corrugated PVC: 1.1-1.3 m²/m³ surface area, 25° slope
• Vertical film packs: 0.9-1.1 m²/m³, 90° orientation
• Splash bars: 0.4-0.6 m²/m³, staggered at 150mm intervals

Avoid wooden or aspen fills in loops exceeding 50°C–degradation accelerates above 45°C, increasing TSS loads by 20-30%.

Design blowdown discharge to comply with local effluent limits–incorporate a holding tank with 30-minute retention if treatment is required. For zero-liquid-discharge systems, pair with a high-pressure reverse osmosis unit (40-60 bar) or evaporative crystallizer. Calculate required tank volume using:

V = (Q_bd * t) / (1 - S)
V = tank volume (m³)
Q_bd = blowdown flow rate (m³/h)
t = detention time (h)
S = sludge accumulation factor (0.1-0.2)

Redundancy and Safety Protocols

Include dual pumps rated for 120% of maximum system flow, with staggered start sequences to prevent voltage spikes. Mount vibration sensors on pump bearings–alert at 4 mm/s (early warning) or 7 mm/s (shutdown threshold). Install fail-safe valves on makeup water lines with pneumatic actuators, configured to close if basin level drops 10% below normal operating range.

Wind load calculations must account for gust factors–use ASCE 7-16 for towers exceeding 10m height. Guy wires or structural cross-bracing reduce sway by 40-60% in hurricane-prone regions. Verify structural integrity annually using ultrasonic thickness gauging on metal components, particularly at welded joints below the waterline where pitting corrosion rates can reach 0.5mm/year in untreated loops.

Critical Elements in Industrial Evaporative System Purification Layouts

Install vertical multi-stage centrifugal pumps (e.g., ANSI B73.1-compliant models) rated for 80–120 psi discharge pressure before any chemical injection point. Position pumps on anti-vibration pads with flexible connectors to mitigate resonance in 400–800 Hz range, reducing structural fatigue in adjacent piping by up to 40%. Use duplex stainless steel impellers (UNS S32205) for chlorinated circuits; hard-faced NiCr coatings extend service life from 18 to 36 months in environments with 500–1,500 ppm total dissolved solids.

Specify the following distributed components within 3 meters of the basin’s hot-water inlet to prevent stratification and calcium sulfate scaling:

• Inline turbidity sensors (0–200 NTU range, ±2% accuracy) sampling at 0.5 Hz to trigger automated polymer dosing when turbidity exceeds 30 NTU;
• Dual-chamber corrosion coupon racks (ASTM G1-03) with bolted access ports, arranged perpendicular to flow at 0.3 m/s velocity;
• Secondary containment berms (HDPE geomembrane, 1.5 mm thickness) around sulfuric acid storage tanks sized at 1.2× spill volume;
• Flow-responsive pH probes (glass electrode, 0–14 pH range, ±0.1 pH accuracy) installed in by-pass loops with minimum 2.5 L/min sampling rate to maintain ±0.2 unit stability during transient loads;
• Vortex-type solids separators with 40-mesh screens and 150 mm hydrocyclones for particle removal ≥75 μm;
• Parallel ultraviolet reactors (185/254 nm dual-wavelength, 30 mJ/cm² minimum dose) downstream of granular media filters, sized for 5-second retention at peak demand.

Step-by-Step Operation of Industrial Evaporative Heat Exchangers

Begin installation with a thermostatic mixing valve set to 32–38°C to prevent thermal shock in circuit piping. Position the sump at a minimum 600 mm elevation below the fill basin to ensure proper gravitational drawdown without air entrapment. Use schedule-40 PVC for all return lines rated to 120% of peak flow velocity (typically 2.1–2.4 m/s) to avoid turbulence-induced scaling near pump inlets.

Integrate a dual-media filter (anthracite over garnet) with a 10-micron nominal rating upstream of the circulation pump. Configure backwash cycles at 2.5× design flow for 6 minutes every 48 hours, discharging to a dedicated containment tank lined with 40-mil HDPE to meet NPDES permit requirements. Monitor differential pressure across the filter; bypass the unit if ΔP exceeds 1.2 bar to prevent media channeling.

Critical Flow Path Parameters

Stage	Inlet Temp (°C)	Outlet Temp (°C)	ΔT (°C)	Residence Time (s)
Drift eliminator entry	49	39	10	4.2
Fill mid-span	45	36	9	3.8
Sump exit	34	32	2	12.5

Install conductivity controllers targeting 1,800–2,200 µS/cm to balance cycles of concentration–above 3× typically accelerates CaSO₄ fouling on polyethylene fill. Route blowdown directly to a clarifier with an anionic flocculant feed (polyacrylamide at 0.3 ppm) to achieve 95% TSS removal before discharge. Use a three-way solenoid valve on the makeup line to prevent overfeed when ambient humidity drops below 40%.

Calibrate fan pitch to maintain a wet-bulb depression of 6–8°C at full load; exceeding 10°C increases fan power consumption by 18% due to reduced evaporative efficiency. Position vibration sensors on the gearbox output shaft with a trip threshold of 0.45 mm/s RMS to detect misalignment before bearing degradation. Replace nozzle orifices every 1,200 operating hours if pressure drop across a single nozzle exceeds 0.7 bar, indicating calcium carbonate accumulation.

Safety Interlock Sequence

Hardwire a pressure switch on the pump discharge set to 1.5× design pressure (3.6 bar) to trigger an immediate fan shutdown via a dedicated 24 VDC relay. Integrate a floating oil skimmer rated for 15 L/min in the sump to remove biofilm before it reaches the heat exchanger bundles. Verify all electrical panels conform to NEMA 4X enclosure standards, with breathers desiccated to –40°C dew point to prevent internal condensation during winter operation.
