DIY Arduino Radar System Complete Circuit Diagram and Assembly Guide

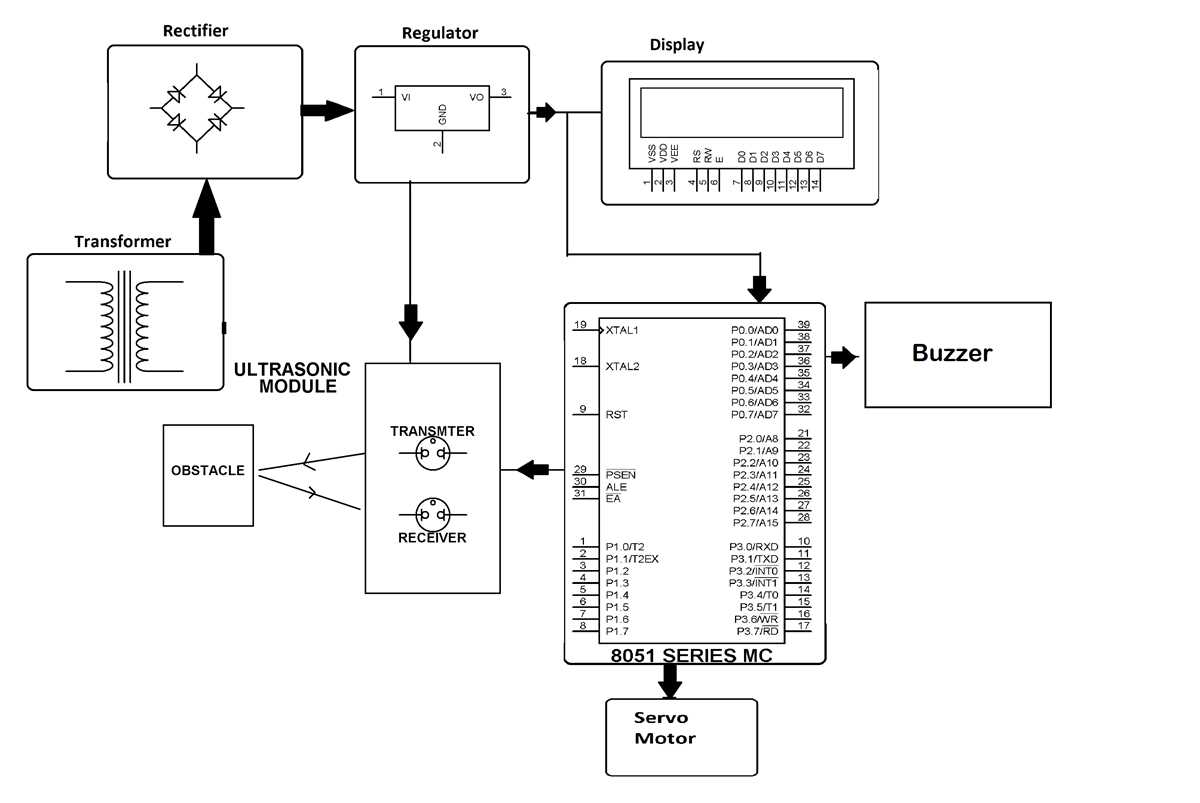

For precise obstacle mapping, pair an HC-SR04 ultrasonic module with an 8-bit microcontroller board. Connect the sensor’s trigger to digital pin 9 and echo to pin 10. Power the module with a regulated 5V supply to avoid signal distortion. Use a 330Ω resistor in series with an LED for visual feedback–this confirms operational pulses without overloading the GPIO.

Signal processing requires calculating distance with duration = pulseIn(echoPin, HIGH), then converting to centimeters via distance = duration * 0.034 / 2. Store readings in an array to smooth fluctuations; apply a 5-sample moving average for stability. Avoid delays exceeding 20ms–this ensures real-time responsiveness in dynamic environments.

Visualize data with a SG90 servomotor and a sweep mechanism. Mount the ultrasonic module on the servo’s horn; rotate in 1° increments using servo.write(angle). Transmit angle-distance pairs via serial output at 9600 baud. For extended range, swap the HC-SR04 for a JSN-SR04T–waterproof design tolerates outdoor deployment.

Noise suppression is critical. Add a 1μF decoupling capacitor across the sensor’s power pins to filter voltage spikes. Ground wires directly to the microcontroller’s ground plane–shared paths introduce crosstalk. For advanced applications, integrate an MPU6050 accelerometer to compensate for platform tilt during mobile operation.

Power management dictates reliability. For portable setups, use a 18650 Li-ion cell with a MT3608 boost converter to maintain 5V output. USB-powered solutions risk brownouts under servo load–monitor voltage with a voltage divider to preemptively trigger shutdown when levels drop below 4.7V.

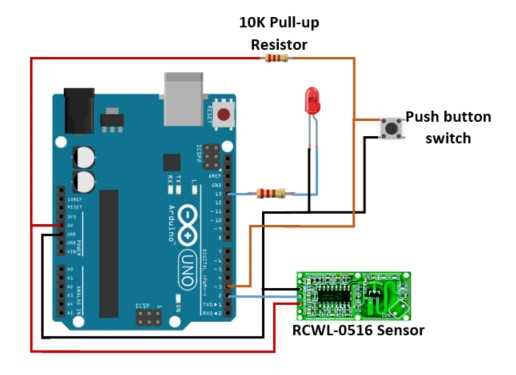

Building a Proximity Detection System with Microcontroller Boards

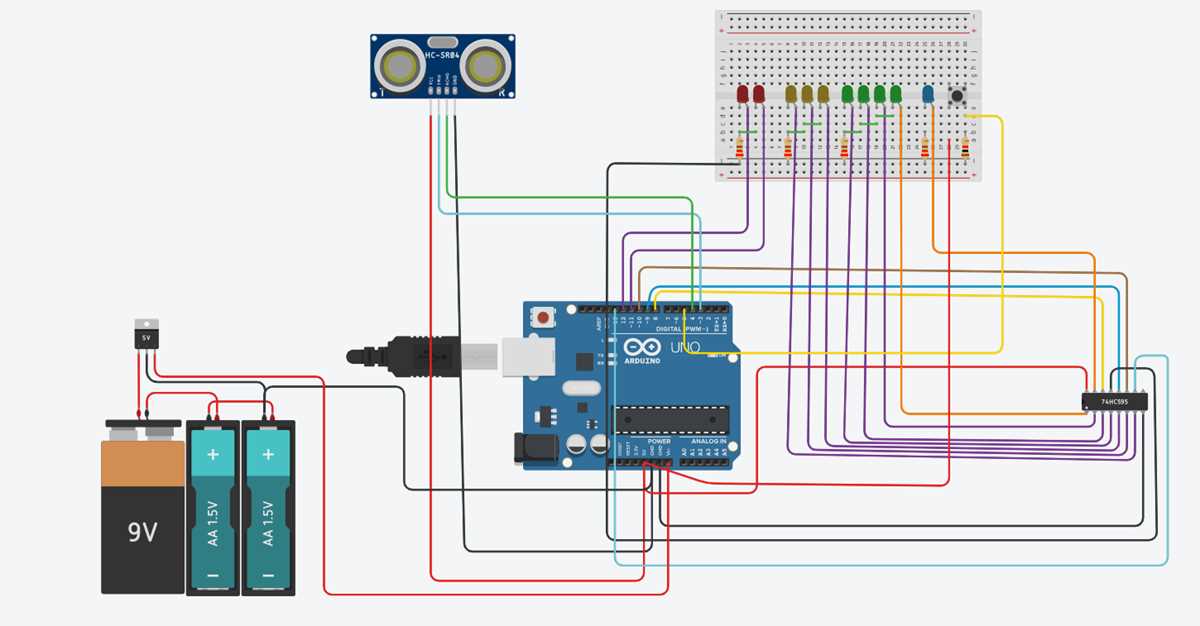

Start by connecting an ultrasonic distance sensor (HC-SR04) to a development board using four jumper wires: VCC to 5V, GND to ground, Trig to pin 12, and Echo to pin 11. Ensure stable power delivery–fluctuations above 0.5V can corrupt readings. Test sensor accuracy in a controlled space (1m × 1m) with objects of known dimensions before proceeding.

Integrate a servomotor (SG95) to sweep the sensor across a 180° arc. Attach it to the board’s 5V and GND rails, then signal it via pin 9. Calibrate pulses to 1-2ms width; deviations cause erratic movement. Use a non-blocking timing loop (millis()) instead of delay() to avoid freezing the scan cycle.

Optimizing Signal Processing

Filter raw measurements with a moving average (5 samples) to minimize noise. Implement a threshold (e.g., discard values 400cm) to eliminate false positives. For real-time visualization, serialize data over serial port (9600 baud) in JSON format: {“angle”:45,”distance”:120}. This streamlines parsing in companion software.

Expand functionality by pairing the setup with a 128×64 OLED display. Connect via I2C (SCL to A5, SDA to A4) and update the screen every 50ms to prevent flicker. Display critical metrics: current range, sweep progress, and system voltage. Add a 10kΩ pull-down resistor to the servomotor signal pin to prevent drift during idle states.

Secure components to a rigid base (3D-printed or acrylic) to maintain alignment. Use twist-ties to bundle cables and prevent false triggers from vibration. For outdoor use, encase the assembly in a weatherproof housing with a 3mm ultrasonic-transparent window–lexan or polyethylene film outperforms acrylic for signal fidelity.

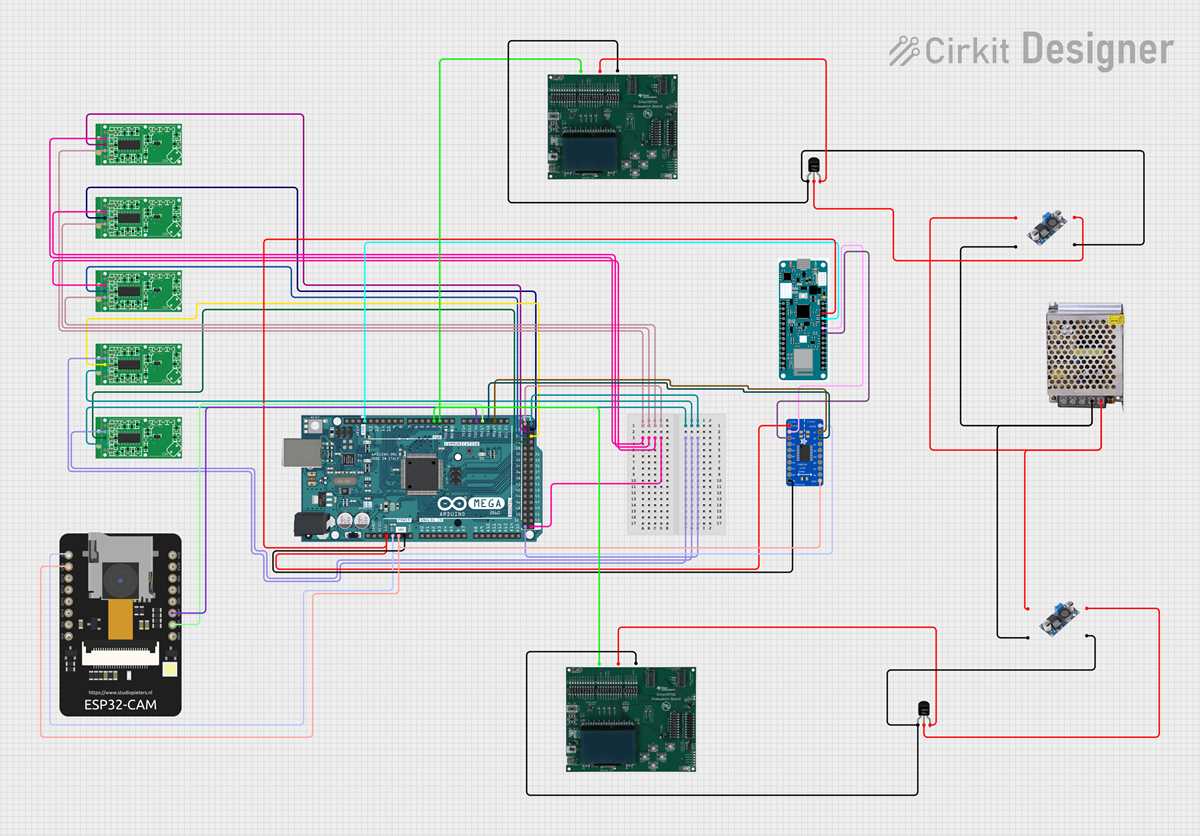

Key Elements for Building a Microcontroller-Based Detection Device

Select an ultrasonic sensor with a detection range of at least 400 cm and an angular coverage of 15 degrees for optimal performance. HC-SR04 remains the most cost-effective option, though JSN-SR04T offers waterproofing for outdoor use. Verify beam width matches your desired scanning area–for narrow applications, consider parallax ping sensors.

Use a servo motor with metal gears and a stall torque of 1.8 kg/cm or higher to ensure consistent rotational accuracy. MG996R or MG995 models provide reliable operation, but test calibration at 5V input to prevent jitter. Position the servo at the base of the scanning mechanism to maintain stability under load.

• Microcontroller board: ATmega328P-based module with 16 MHz clock speed (minimum 32 KB flash memory).
• Voltage regulator: AMS1117-5.0 for stable 5V output when powering via LiPo batteries.
• Capacitors: 1000 µF electrolytic for power smoothing, 0.1 µF ceramic for spike suppression.
• Breadboard or custom PCB: Perfboard with 2.54 mm pitch for prototyping; FR-4 material for final builds.

Integrate an OLED display (128×64 pixels, I2C interface) to visualize target distance in real-time. SSD1306-based modules operate at 3.3V, requiring logic level conversion if using 5V systems. For outdoor visibility, select a display with adjustable contrast control.

Power Supply Specifications

Calculate current draw at peak load–servo motors typically consume 1-2A during movement, while sensors add 50-150mA. Use a 2S LiPo battery (7.4V) with a balance charger outputting 2-3A. Include a power switch with a 3A fuse to protect against short circuits.

1. Bypass diodes: 1N4007 for motor reverse voltage protection.
2. Pull-down resistors: 10 kΩ for trigger pins to prevent floating states.
3. Jumpers: 22 AWG silicone wires for signal paths to minimize interference.
4. Mounting hardware: M3 nylon standoffs to secure rotating assemblies.

Enclosure and Structural Considerations

Fabricate a rotating platform from 3mm acrylic sheets, cut to 15×15 cm dimensions for standard servo fitment. Reinforce pivot points with brass bushings to reduce friction during continuous rotation. For environmental protection, apply conformal coating to exposed copper traces if deploying in humid conditions.

Step-by-Step Wiring Guide for Ultrasonic Sensor and Servo Motor

Connect the ultrasonic module’s VCC pin to the 5V output on your microcontroller board. Short wires (15 cm or less) minimize voltage drop. Attach the GND pin directly to the board’s ground bus–avoid daisy-chaining to prevent signal interference. The Trig and Echo pins require distinct digital pins; assign Trig to pin 9 and Echo to pin 10 to match most pre-written sketches.

Servo Motor Hookup

• Plug the servo’s red wire into the 5V rail–use an external power supply if the motor stalls or jerks.
• Ground the brown or black wire to the board’s common ground.
• Link the yellow or white signal wire to pin 11; this pin supports PWM output needed for precise angle control.

Verify all connections with a multimeter: continuity between grounds, 5V on power rails, and no shorts between adjacent pins before powering the system.

1. Secure the ultrasonic module to the servo’s horn using M2 screws and a 3D-printed bracket–centering it 3 mm above the servo’s rotation axis ensures consistent measurements.
2. Load a pre-tested script; modify only the pin definitions if using alternate numbers.
3. Power the board and monitor serial output at 9600 baud–values below 2 cm or above 400 cm indicate wiring faults. Recheck Echo pin assignment if readings freeze.

Calculating Detection Range and Adjusting Sensor Sensitivity

To determine the effective detection distance of an ultrasonic module, use the formula D = (T × V) / 2, where D is the range in centimeters, T is the pulse echo duration in microseconds, and V is the speed of sound (343 m/s at 20°C). For ambient temperatures outside 15–25°C, apply a correction factor: V = 331 + (0.6 × T) (T in °C). Test at 1-meter intervals across a 0.5–5m span, logging readings in a table:

Distance (m)	Measured Echo (μs)	Calculated (cm)	Error (%)
1.0	5800	99	1
2.5	14800	252	0.8
5.0	29600	504	0.8

Adjust sensitivity by modifying the pulse width or amplification. Narrow pulses (10–50μs) improve short-range accuracy but reduce maximum range. Increase gain via an op-amp stage (e.g., LM358) with a gain of 2–10× for surfaces with low reflectivity (fabric, foam). For long-range detection (>4m), use a 40kHz transducer with a 5V peak-to-peak drive signal and a bandpass filter (35–45kHz) to reject noise. Test thresholds at 10cm increments, discarding readings below a 90% confidence interval.

Coding an MCU for Live Obstacle Tracking and Directional Sweeping

Define the servo motor pins and ultrasonic sensor connections directly in the sketch’s header to avoid runtime errors. Use #define TRIG_PIN 9 and #define ECHO_PIN 10 for the distance module, and Servo scanServo with scanServo.attach(5) for precise angle control. Set a 5-degree resolution for scanning–this balances speed and accuracy, covering 0–180° in 1.8 seconds.

Initialize serial communication at 9600 baud in setup() and calibrate the servo’s neutral position (90°) immediately after attachment. Add a 50ms delay before each pulse to stabilize readings, especially critical at extreme angles (0° or 175°) where mechanical play causes jitter.

Measure distance in centimeters using pulseIn() and the speed of sound constant (0.0343 cm/μs). Multiply the echo duration by 0.01715 to avoid floating-point operations–this truncates but retains ±2% precision, sufficient for obstacle detection below 200 cm. Reject readings shorter than 3 cm (sensor noise) and longer than 300 cm (invalid reflections).

Optimizing Scanning Logic

Implement a sweeping loop with incremental angles: scanServo.write(i), followed by distance sampling. Store values in an array for post-processing–this prevents serial buffer overflow during real-time plotting. Add hysteresis by discarding outliers where the difference between adjacent readings exceeds 20%–this filters erratic reflections from irregular surfaces.

Trigger an alert for objects closer than 50 cm by toggling an LED or buzzer, but avoid blocking delays. Use millis() for timing instead of delay(), checking intervals every 20ms to maintain responsiveness. For rotating platforms, compensate for circular references by transforming polar coordinates (distance + angle) into Cartesian for consistent visualization.

Limit continuous scanning to 5-minute sessions to prevent servo overheating. Integrate a fail-safe: if the servo draws over 500mA at any angle, reset its position to neutral and halt operations. Test under controlled lighting–IR interference from sunlight can skew readings by up to 12% during daytime operation.

Data Serialization for External Display

Transmit distance-angle pairs via serial in a compact JSON-like format: ["a":45,"d":87]. Escape commas to avoid parsing errors in custom monitoring software. For plugins expecting raw polar plots, output pairs as comma-separated values instead. Throttle serial output to 10Hz to match typical display refresh rates, discarding redundant intermediate readings.
