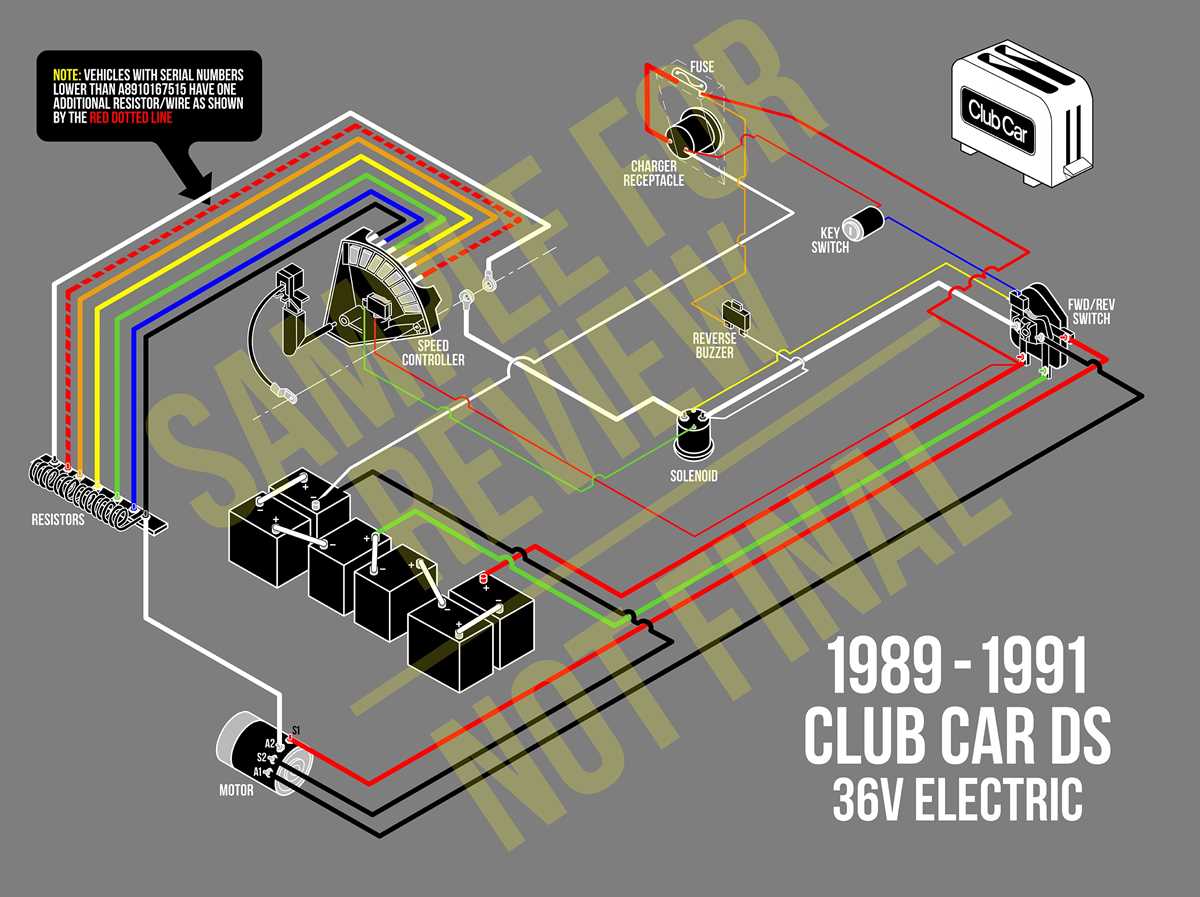

Complete Guide to Reading and Understanding Car Electrical Schematics

Start with a factory service manual for your specific model–aftermarket resources often omit critical details like pinouts for rare trim configurations or mid-year engineering revisions. The difference between a 2018 base model and its premium sibling can be a hidden splice near the BCM (body control module) that aftermarket guides ignore entirely. Verify wire gauge specifications before replacing any section; a 1.0 mm² circuit handling 15A will fail if downgraded to 0.5 mm², even if the color coding matches.

Use a multimeter set to continuity mode to trace circuits systematically, not a test light–modern vehicles rely on low-current signals for CAN bus communications, which a test light can disrupt or falsely diagnose. Label every connector pin number with a fine-tip permanent marker before disassembly; forgotten pin assignments waste hours during reassembly, especially on complex units like transmission control modules or hybrid inverter assemblies. Keep a spreadsheet tracking wire colors, pin numbers, and component locations; one oversight in a 144-pin ECM can stall the entire project.

Isolate circuits by disconnecting the battery negative terminal before altering any system–failing to do so risks damaging sensitive modules, particularly in vehicles with active battery management systems. For late-model European vehicles, consult the VIN-specific WDS (wiring diagram system) from the manufacturer’s portal; generic databases frequently miss manufacturer-approved modifications post-production. When repairing wire damage, crimp connections with a high-quality ratcheting crimper and heat-shrink tubing with adhesive lining–solder alone creates brittle joints prone to vibration failure.

Study the power distribution layout before troubleshooting: a short-to-ground in a shared fuse circuit (e.g., Fuse 12 feeding both the instrument cluster and O2 sensors) can manifest as unrelated symptoms like erratic speedometer behavior. For hybrid and EV systems, follow high-voltage safety protocols–orange cables indicate lethal current even when the vehicle appears inactive. Cross-reference electrical schematics with mechanical diagrams; a faulty relay for the cooling fan can mimic transmission override problems due to shared ground paths.

Mastering Vehicle Electrical Schematics

Start by labeling every fuse box terminal using color-coded heat-shrink tubing matching the circuit’s standard: red for constant 12V, yellow for ignition-switched, black for ground. OEM manuals often omit this detail, yet mismatched connections cause phantom faults in oxygen sensors and ABS modules. Cross-reference terminal numbers with ISO or SAE pinouts–European models (Bosch Motronic) use pin numbering opposite to Japanese (Denso) layouts, a frequent source of diagnostic errors.

Use a digital multimeter with

Decoding Symbols Beyond Standard Legends

Manufacturers embed non-standard symbols in schematics–Toyota’s “TPMS” diagrams include a dashed line ending in a triangle, indicating a radio frequency transmitter, not a wire. BMW’s E-series diagrams replace relays with numeric codes (e.g., “KL.50” for starter relay), requiring a separate relay location guide. Always verify relay pinouts against the internal schematic, not the socket diagram–aftermarket replacements often swap 85/86 coil terminals, causing failure-to-trigger scenarios.

Printed circuit boards inside modules (ECUs, instrument clusters) follow unique layering conventions. German vehicles (VAG group) use four-layer PCBs with embedded capacitors for EMI suppression; cutting traces without desoldering adjacent components risks shorting to adjacent vias. Japanese models (Subaru, Mazda) employ single-sided boards with jumper wires–trace faults by back-probing with a needle probe, isolating open circuits without removing the board.

Document modifications with annotated paper copies–digital files corrupt or get overwritten during ECU reflashes. Note splice points for aftermarket accessories (LED lights, heated seats) using military-grade labeling (MIL-STD-130) resistant to heat and solvents. For hybrid/electric systems, isolate high-voltage orange cables before probing; Nissan Leaf schematics label these “PH-2” for phase power, distinct from chassis ground “PH-G.” Cross-verify with an insulated multimeter–accidental contact with 400V DC creates arc flashes visible under UV light but invisible to the naked eye.

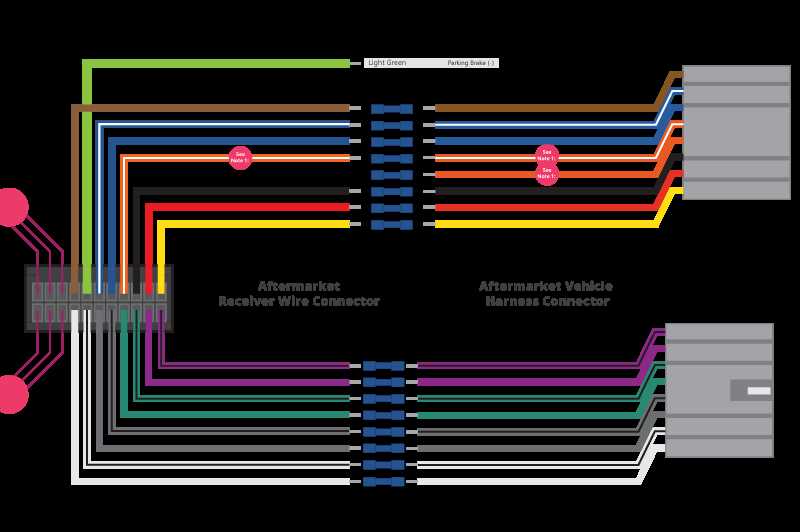

How to Read Color Codes and Symbols in Vehicle Circuit Schematics

Begin by locating the legend–typically a small box or sidebar on the schematic. It decodes abbreviations for wire colors, which follow ISO and SAE standards: BK (black), RD (red), GN (green), YL (yellow), WH (white), BL (blue), BR (brown), OG (orange), GY (gray), and PK (pink). Striped conductors combine two letters, e.g., BK/YL for a black wire with yellow stripe. European manufacturers often add a slash (BK/YL becomes SW/GE), while Japanese use different base codes (BR is CH). Cross-reference the legend if colors deviate–for instance, some Toyota schematics use L for light blue instead of SB.

Common Symbols and Their Meanings

Symbol	Component	Notes
↔	Connector	Arrow direction indicates male/female; number denotes pin count.
⏚	Ground	Solid line for chassis ground; dashed for signal ground.
⚡	Fuse	Amp rating printed next to symbol; e.g., 20A.
↻	Relay	Coil and contacts labeled separately; e.g., 85/86 (coil), 30/87 (contacts).
−●−	Switch	Open (off) or closed (on) position drawn; momentary switches marked MOM.
⟨ • ⟩	Bulb	Filament count shown inside symbol; e.g., 2 for dual-filament.

Trace lines: solid thick lines carry power, thin lines handle signals, and dotted lines indicate multi-page links (marked 1/2 → 2/2). Virtual splices–junctions without physical connectors–appear as small circles with intersecting wires, often labeled S123. Always verify pinouts: C101-8 denotes connector 101, pin 8. Abbreviations like HS CAN (high-speed CAN bus) or LIN (local interconnect network) flag specialized networks–check manufacturer specs for voltage and timing.

Step-by-Step Guide to Tracing Circuits in Factory Schematics

Locate the power source first–battery, fuse box, or ignition switch–marked by a bold line or “+” symbol. Use a multimeter to verify voltage before proceeding. Note component identifiers (e.g., “C100” for connectors, “S201” for sensors) on the factory layout; these codes mirror labels on physical harnesses.

Follow color-coded lines starting from the power source. Factory schematics use standardized colors:

• Red: constant 12V power
• Black: ground
• Yellow: switched power (ignition-controlled)
• Blue/White stripe: signal wires (e.g., sensors)
• Green: actuator outputs (e.g., injectors, relays)

Cross-reference wire gauge (e.g., 14 AWG for high-current circuits, 20 AWG for signals) to avoid misinterpreting parallel paths. Split harness branches at junctions–marked by dots or “T” intersections–and trace each fork independently.

Isolating Faults in Mixed Circuits

Check relay contacts if a circuit shows voltage drop. Disconnect the relay and probe terminals 30 (power) and 87 (output) with the switch engaged. No reading? Coil failure (terminals 85/86). Measurable resistance but no voltage? Corroded contacts or stuck armature.

For shared grounds, disconnect the ground wire at the chassis point. Measure resistance between the wire end and a known good ground–values above 0.5 ohms indicate corrosion. Hidden splices (often unlabeled) require probing every 10 cm along the harness; factory schematics omit these, but a sudden voltage drop reveals their location.

Essential Diagnostic Tools for Vehicle Circuit Troubleshooting

Start with a multimeter–digital models with True RMS accuracy like the Fluke 87V deliver reliable voltage, resistance, and current readings critical for pinpointing faults. Set it to DC voltage mode (20V range) to verify power at connectors, probing between the circuit terminal and a known good ground. A reading below manufacturer specs (typically 12.6V for a healthy battery) indicates voltage drop, corrosion, or loose connections.

Use a test light with a sharp, insulated probe for quick voltage checks in tight spaces. A low-amperage LED model prevents accidental short circuits when probing live circuits. Attach the alligator clip to chassis ground and touch the probe to terminals–illumination confirms power flow, while flickering or dim output signals intermittent faults or high-resistance issues. Avoid incandescent test lights on sensitive electronics like engine control modules.

For signal tracing, a logic probe or oscilloscope reveals live data patterns. A PicoScope 4425A captures voltage spikes, noise, or missing pulses invisible to multimeters. Connect the probe across sensor or actuator circuits, set the scope to 5V/division and 1ms/division, and observe waveforms–irregular patterns often point to faulty sensors, damaged wires, or poor grounding. Compare results to OEM specifications.

An infrared thermometer identifies hotspots caused by shorted circuits or excessive current draw. Scan connectors, fuses, and relay contacts–temperatures exceeding 50°C (122°F) suggest resistance build-up or internal component failure. Pair readings with a thermal imager for precise heat mapping, focusing on areas where heat distribution is uneven.

For continuity testing beyond a multimeter’s range, a tone generator and inductive probe isolate broken wires in harnesses. Clip the generator to one end of the circuit, follow the harness visually and audibly with the probe–audio lapses indicate breaks or corrosion. Replace damaged sections rather than splicing, as splices create future failure points.

A breakout box (BoB) like the OTC 3413 simplifies ECU pin testing without back-probing. Connect it between the module and harness, then probe individual pins for voltage, resistance, or signal integrity. Cross-reference readings with a pinout chart–discrepancies between expected and actual values narrow down faults to the ECU, wiring, or external components.

For advanced diagnostics, a scan tool with bidirectional controls (e.g., Snap-on Zeus) commands actuators like fuel pumps or solenoids for direct testing. Activate components individually to isolate mechanical faults from electrical ones. Use freeze-frame data to capture fault conditions and monitor live PID values, ensuring sensors and circuits respond within OEM tolerances.
