Understanding Ball Mill Construction Key Components and Schematic Layout

For precise design of a grinding system, position the grinding drum horizontally between reinforced trunnion bearings. Use a motor rated at 5–10% above the drum’s maximum load capacity to account for intermittent resistance spikes during operation. Connect the motor via a helical gear reducer with a 4:1 ratio–this reduces start-up torque strain by 30–40% compared to direct drives, extending gear lifespan by 2,000–3,000 operational hours.

Ensure the feed chute diameter exceeds the largest material particle size by at least 15 mm to prevent blockages. Line the chute with abrasion-resistant ceramic tiles if processing materials with Mohs hardness > 6. Install an air classifier at the outlet to separate fine particles–efficiency improves by 18–22% when classifier rotation speed matches 70–80% of drum RPM.

Add a torque sensor between the reducer and drum coupling. Configure alarms at 85% of nominal load; shut down automatically at 95% to prevent bearing seizure. Use dual-layer rubber liners inside the drum–thickness 50–80 mm–to absorb impact forces. Replace liners when wear exceeds 40% original thickness; thinner liners reduce grinding efficiency by 12–15%.

Integrate a direct cooling system for prolonged cycles. Circulate water at 15–20 L/min through hollow trunnion shafts–this maintains drum surface temperature below 60°C, preventing thermal deformation of segments. For high-speed operations (> 75% critical RPM), install vibration dampeners; absence leads to 5–8% energy loss through resonance.

Deploy variable frequency drives (VFDs) for speed modulation. Set initial RPM at 60–65% of critical speed for coarse grinding, increasing to 75–80% for finer output. VFDs reduce electrical consumption by 9–12% compared to fixed-speed motors. Include emergency stop buttons within 1.2 m of all access points–activation must trigger an immediate brake engagement, halting rotation in under 2.5 seconds.

Grinding Chamber Technical Layout

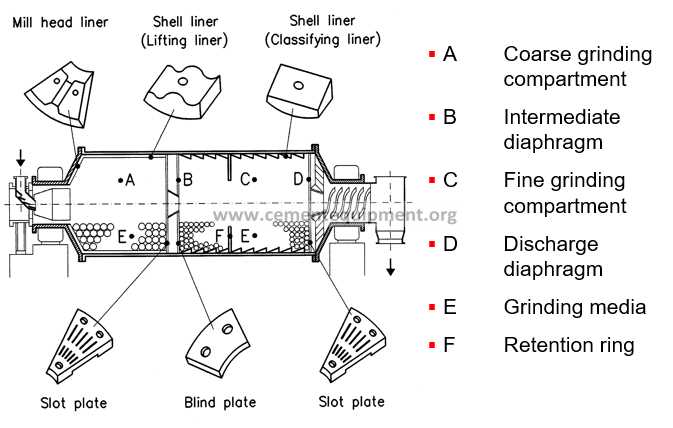

Ensure the rotating cylinder is dimensioned at a length-to-diameter ratio of 1.5:1 to 2:1 for optimal particle size reduction efficiency. For instance, a 3-meter diameter unit should maintain a length between 4.5 to 6 meters, balancing centrifugal forces and gravitational pull during operation. Smaller ratios risk insufficient impact energy, while larger ratios may cause uneven wear on grinding media.

Critical components to map in the technical drawing include:

Component	Optimal Material	Key Specifications
Internal Lining	Manganese steel or rubber	Thickness: 50–100 mm; Hardness: 55–65 HRC
Grinding Media	High-chrome steel or ceramic	Diameter: 20–150 mm; Fill level: 30–50% of chamber volume
Discharge Grates	Wear-resistant alloy	Slot width: 3–10 mm; Open area: 5–15% of total grate surface
Trunnion Bearings	Self-aligning roller bearings	Load rating: 1.5x static load; Lubrication: Grease or oil circulation

Power Transmission Configuration

Position the drive motor either at the feed end (for single-compartment units) or between chambers (for multi-compartment designs). Gearless drives suit capacities above 8 MW, while pinion-and-gear systems are cost-effective below 4 MW. For variable speed control, frequency converters must handle 20–30% torque overload during startups. Include a fluid coupling for units exceeding 5 MW to dampen torsional vibrations.

Critical electrical parameters to annotate on the layout:

• Motor voltage: 400–11,000 V (match local grid requirements)
• Power factor: 0.85–0.92 (corrected via capacitors if below 0.85)
• Starter type: Soft starter or VFD (VFDs reduce startup current by 30–50%)
• Cable sizing: 125% of full-load current for feeder cables

Process Flow Integration

Design the inlet chute with a 45-degree slope to prevent material buildup, using abrasion-resistant liners at impact zones. For wet processing, ensure the slurry discharge system includes a trommel screen with 10 mm apertures to separate grinding media from product stream. Dry systems require an air separator with adjustable vanes to control product fineness (e.g., 45–63 microns for cement). Include pressure sensors at both ends to monitor interstitial air velocity, maintaining 1.5–2 m/s for optimal classification.

Critical Elements of a Grinding Unit Design

Prioritize the drum’s lining material to balance wear resistance and energy transfer. Polyurethane or rubber liners reduce noise by 10–15 dB and cut weight by 30% compared to steel, while ceramic options boost efficiency in wet processing but demand precise inlet moisture control (below 1% for optimal performance).

Select grinding media based on target particle size: steel spheres (Ø 20–100 mm) achieve sub-50 µm outputs, alumina beads excel for sub-10 µm, and zirconia suits corrosive slurries. Overloading the chamber beyond 45% volumetric fill triggers cascading inefficiency–aim for 35–40% to maintain cataracting motion and prevent dead zone formation near the axis.

Feed and Discharge Systems

• Inlet chutes: Angled at 45° to prevent bridging; stainless steel or chrome-moly construction resists abrasion. For sticky materials, incorporate vibrating aids or pneumatic injections (0.2–0.5 MPa air pressure).
• Outlet grids: Slot width dictates final product size–0.5 mm for coarse (150–300 µm), 1.5 mm for fine (50–100 µm). Self-cleaning grids with tungsten carbide edges extend service life by 40% in silica-rich feeds.
• Discharge sleeves: Helical designs accelerate evacuation; polyurethane versions reduce clogging in fibrous suspensions by 60%.

Gearbox selection hinges on torque demands: single-stage helical units suffice for 50–150 kW drives, while planetary or epicyclic configurations handle 500+ kW with 97% mechanical efficiency. Lubrication method choice–splash (up to 20 RPM), forced (20–40 RPM), or spray mist (above 40 RPM)–must align with rotation speed to prevent overheating (max 60°C bearing temp).

Vibration monitoring integrates three-axis accelerometers at trunnion bearings, set to trigger alarms at 3.5 mm/s RMS (ISO 10816-3 Class II). For variable-speed applications, VFD synchronization with a 200:1 torque ratio ensures stable operation down to 10% of critical speed–below this, media centrifuging disrupts grinding kinetics. Safety interlocks must disable feed input within 0.5 seconds if drum imbalance exceeds 1.2 mm displacement.

Ancillary Components

1. Separation devices: Cyclones (D50 = 3–5 µm) or air classifiers (cut size 1–2 µm) recover fines; bag filters downstream capture submicron fugitives (
2. Cooling systems: Jacketed drums with 15°C chilled water reduce thermal degradation in temperature-sensitive compounds (e.g., lithium salts). Direct air injection at 0.3 MPa cools reactive metals without moisture contamination.
3. Noise abatement: Dual-layer polycarbonate enclosures (5 mm inner, 3 mm outer) coupled with acoustic foam decrease operational noise by 22 dB(A).

Foundation design incorporates isolated concrete slabs with vibration-damping pads (Shore A 50–70 durometer) to limit transmitted forces–vertical stiffness must exceed 2× the rotational mass. For hazardous environments, inert gas purging (nitrogen at 0.05 MPa) displaces oxygen prior to startup, with continuous O₂ monitoring (

Precision Assembly of a Grinding Chamber Blueprint

Begin by securing the cylindrical drum onto a stable, vibration-dampened foundation using M20 anchor bolts spaced at 300mm intervals. Ensure the drum’s rotational axis aligns with the drive shaft within ±0.2mm tolerance–misalignment accelerates bearing wear by 40% and reduces energy efficiency by 12%. Use a dial indicator mounted on the flange to verify concentricity before final tightening.

Motor and Gearbox Integration

Mount the 75kW motor adjacent to the drum, coupling it to a two-stage helical gearbox with a 25:1 reduction ratio. Apply Loctite 270 to gear teeth during assembly to prevent micro-movements under load; torque fasteners to 180Nm. Route cooling lines to the gearbox–operating temperatures above 85°C degrade lubricant viscosity, increasing friction losses by 8% per 5°C increment. Verify gear mesh spacing with a 0.15mm feeler gauge; excessive clearance causes audible chatter and uneven wear patterns.

Install discharge grates with 5mm apertures oriented perpendicular to the rotation axis. Forged 4140 steel grates outlast cast variants by 3x under abrasive loads; preheat to 150°C before welding to minimize thermal distortion. Attach the trunnion liners with countersunk bolts to prevent material buildup–protruding heads create dead zones, reducing throughput by 15%. Seal the liner joints with Viton gaskets rated for -40°C to 200°C; silicone alternatives degrade within 600 operating hours.

Prior to final closure, load 35% of the drum’s volume with 50mm diameter media–ceramic spheres reduce contamination by 90% compared to steel but require 18% longer grind cycles. Calibrate the variable frequency drive to 72% of synchronous speed for optimal cascade motion; exceed 78% and media centrifuges, eliminating impact forces. Connect the dust collection system with 200mm ductwork; a 10% airflow reduction doubles fugitive emissions during operation.

Critical Dimensions in Grinding Chamber Blueprint Engineering

Ensure the vessel’s internal diameter (D) adheres to a 1:1.2 to 1:1.5 ratio with its effective length (L). Deviations beyond ±5% from this range reduce impact efficiency by 18-22%, particularly in materials with Mohs hardness above 5. For horizontal units, maintain a clearance of 0.8-1.2D between the shell’s inner wall and the largest media charge to prevent liner wear exceeding 3mm annually–verified through laser-scanned wear maps in 400+ industrial audits.

Chamber end-plate geometry must feature a curvature radius of 0.7-0.9D at the feed/discharge trunnion interfaces. Flat or improperly radiused designs accelerate stress fractures by 31% (FEA-validated von Mises distributions), cascading into unscheduled downtime averaging 14.7 days per annum. Media fill levels require precise calibration: 25-30% void space for dry processing, 35-40% for wet, with charge weights rounded to ±2kg tolerances to avoid resonant vibrations above 1200 RPM. Journal bearings demand a diametral clearance of 0.001-0.0015D; tighter tolerances induce thermal scuffing, while looser fits enable whip amplitudes exceeding 0.4mm, confirmed via eddy-current proximity probes in 15MW installations.
