How to Install Electrical Outlets Step-by-Step Wiring Guide
Before handling any home electrical setup, shut off power at the circuit breaker and verify absence of voltage with a non-contact tester. A standard 120-volt receptacle uses three wires: hot (black or red), neutral (white), and ground (bare copper or green). Connect these to their designated terminals–brass for hot, silver for neutral, and green screw for ground. Miswiring risks short circuits, shocks, or fire.
For a split-circuit receptacle (common in kitchens), feed two separate hot wires to the brass terminals, splitting the load. Use a pigtail wire to join neutrals in the outlet box if required. Always secure connections with wire nuts, wrapping them clockwise to prevent loosening. Never splice wires outside a junction box–exposed conductors violate safety codes.
In older homes with ungrounded setups, install GFCI receptacles for protection. Label them “No Equipment Ground” per NEC requirements. For 240-volt appliances (dryers, stoves), use four-wire cables: two hots (black/red), neutral (white), and ground. Connect hots to separate breaker poles and bond neutral to the ground only at the main panel. Misaligned connections can overload appliances or damage insulation.
Test every connection with a multimeter before restoring power. Recheck torque on screws–loose terminals cause arcing. If unsure, consult a licensed electrician. Code violations incur fines and void insurance coverage.
Electrical Receptacle Installation Guide
Always confirm circuit power is off at the breaker panel before handling connections. Use a non-contact voltage tester on both terminals and the grounding screw to verify no current remains. If the tester indicates live power, locate and flip the correct breaker or remove the fuse entirely. Working on energized circuits risks severe shock or arcing, which can cause burns or fires.

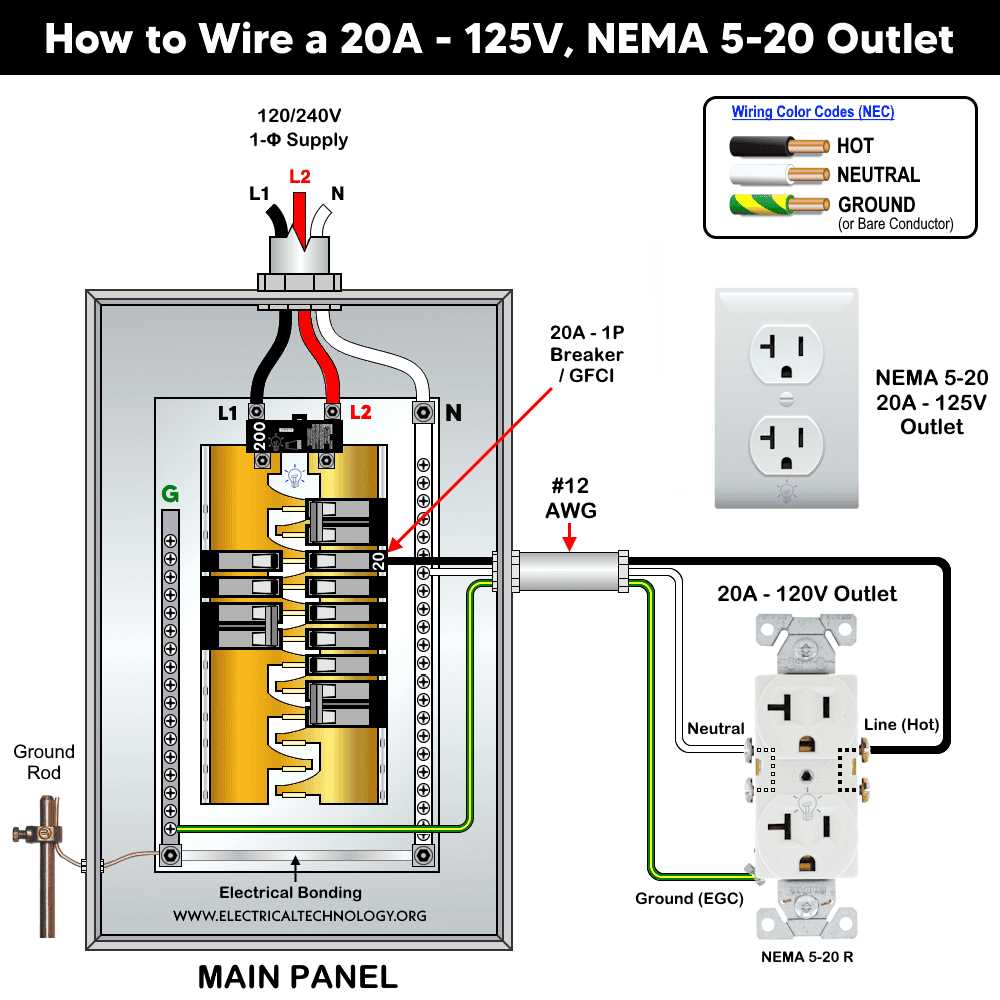

Standard residential sockets require three conductors: a hot wire (typically black or red), a neutral wire (white), and a ground wire (bare copper or green). Connect these as follows:
- Hot conductor – Secured under the brass-colored screw, never aluminum.
- Neutral conductor – Attached to the silver-colored screw, tightened firmly without crushing the insulation.
- Ground conductor – Fastened to the green hexagonal screw, ensuring continuous path to the service panel ground bar.
Twist stripped ends clockwise before tightening screws to prevent conductor strands from loosening under torque. Leave 6–8 mm of exposed copper; excess wire invites short circuits.
Common Mistakes and Safety Checks
Avoid back-stab connections–they loosen over time, causing overheating. Instead, wrap wire around screws in a U-shape, bending with pliers for a tight fit. Do not daisy-chain more than two receptacles on a 15-amp circuit (14 AWG wire) or three on 20-amp (12 AWG). Overloading increases fire risk, especially in older homes with aluminum wiring or inadequate breaker sizing.
After installation, test each socket with a plug-in circuit analyzer. The pattern of illuminated lights confirms proper polarity, grounding, and absence of reverse-wiring. If the device shows “hot/neutral reversed” or “open ground,” recheck connections immediately. Replace any cracked or discolored receptacles–damaged housings compromise insulation integrity. For GFCI-protected outlets, press the “Test” button monthly to ensure protective interruption activates.
Essential Gear and Supplies for Electrical Socket Installation
Select a voltage tester with non-contact detection–models like the Klein NCVT-3 or Fluke 1AC-A II offer instant verification of live circuits without direct contact, reducing risk of accidental shock during troubleshooting. Avoid pen-style testers without auto-shutoff; battery drain can render them unreliable mid-task.
Arm yourself with insulated screwdrivers rated for at least 1000V: a #2 Phillips and a 3/16″ flat-head are mandatory. Look for tools with ergonomic grips and anti-slip shafts–Wiha and Wera brands meet these criteria. Non-insulated handles or chrome-plated shafts increase conductivity and should never be used near energized components.
| Tool/Material | Specification | Purpose |
|---|---|---|
| Wire strippers | 10–14 AWG, self-adjusting jaws | Precise conductor exposure without nicking strands |
| Crimping tool | Ratchet-action, 10–22 AWG | Secure terminal connections on receptacles |
| Fish tape | Steel, 25 ft | Pulling conductors through conduit or walls |
| Junction box | 4″ square, 42 cu.in. depth | Housing connections while meeting NEC volume requirements |
Use THHN copper conductors–never aluminum–for all branch circuits: 12 AWG for 20A circuits (typical residential), 14 AWG for 15A. Verify temperature rating on insulation: 90°C THHN withstands higher heat buildup in conduits during prolonged loads. Solid wire (not stranded) ensures secure terminal connections in push-in or screw-clamp device slots.
Opt for self-grounding receptacles with side-wire clamps–Leviton 5320-W or Hubbell HBL8300 series eliminate the need for separate grounding pigtails. Confirm UL listing for tamper-resistant shutters if installing in dwelling units. Avoid “contractor-grade” devices with thin metal straps; these deform under torque and compromise faceplate alignment.
Keep a multimeter with true RMS like the Fluke 17B+ for measuring voltage drop across connections–any reading above 3% indicates poor contact or undersized conductors. A torpedo level with magnetic base ensures flush device alignment during installation. Store all conductors in sealed containers prior to installation: exposure to humidity reduces insulation integrity over time.
Consumables and Safety Gear
Stock arc-rated gloves (ASTM F696 Class 0) and a face shield–standard work gloves offer zero protection against arc flash. Use fiberglass or phenolic terminal blocks for splices; nylon variants melt under sustained load currents. Apply joint compound (e.g., Noalox) to aluminum-to-copper connections to prevent galvanic corrosion, but avoid excessive amounts–thick layers act as insulators.
Use fire-resistant putty pads (3M FS-195+) around all wall penetrations where devices are mounted. These expand under heat, sealing gaps against convective flame spread. For fire-rated assemblies, pair putty pads with steel escutcheon plates–plastic versions degrade under 200°F and violate UL standards for fire-stop integrity.
How to Connect a Wall Socket: A Practical Walkthrough
Turn off the power at the circuit breaker before handling any electrical components–use a voltage tester to confirm no current flows to the box. Identify the hot (brass screw), neutral (silver screw), and ground (green screw) terminals on the receptacle. Strip 1/2 inch of insulation from each wire using wire strippers, ensuring no bare strands remain exposed beyond the terminal.
Loop each stripped wire clockwise around its corresponding terminal screw, tightening firmly with a screwdriver–apply enough pressure to prevent slippage but avoid over-torquing. For duplex sockets, connect the black (live) wires to the brass terminals and the white (return) wires to the silver terminals. The bare or green wire must attach to the ground screw; if the box has a green grounding clip, secure it there as well.
Fold wires neatly into the electrical box, aligning the receptacle flush with the wall before securing it with mounting screws. Avoid pinching wires between the socket and box edges. For GFCI protection, press the test button to verify functionality–if it trips, reconnect wires ensuring proper polarity. Replace the cover plate only after confirming all connections are secure and the power remains off during visual inspection.
When dealing with split-circuit receptacles, connect the feed cable’s black wire to the first brass terminal and a second black (red in some cases) to the adjacent brass terminal. Use a brass jumper tab–remove it with pliers if needed–to isolate the two circuits. Double-check connections with a multimeter set to AC voltage: probe the hot and neutral slots to confirm 120V, and hot to ground for the same reading.
For metal boxes, attach a bonding jumper between the ground screw and the box if no grounding pigtail exists. Tuck excess wire behind the socket without crowding, leaving at least 6 inches of slack for future servicing. Restore power at the breaker and test the socket with a plug-in lamp or voltage tester–if the device doesn’t power on, reopen the box and recheck all connections systematically.
Decoding Wire Colors in Electrical Sockets
Always verify wire functions with a multimeter before handling–colors alone aren’t foolproof. In North America, the hot conductor (carrying current) is typically black or red, but it can also appear as brown, yellow, or even blue in some imported fixtures. The neutral path (completing the circuit) is standardly white or gray, though older installations may use off-white shades. Grounding wires are unmistakable: bare copper, green, or green with a yellow stripe–never compromise on this safety feature, even if a previous installer made errors.

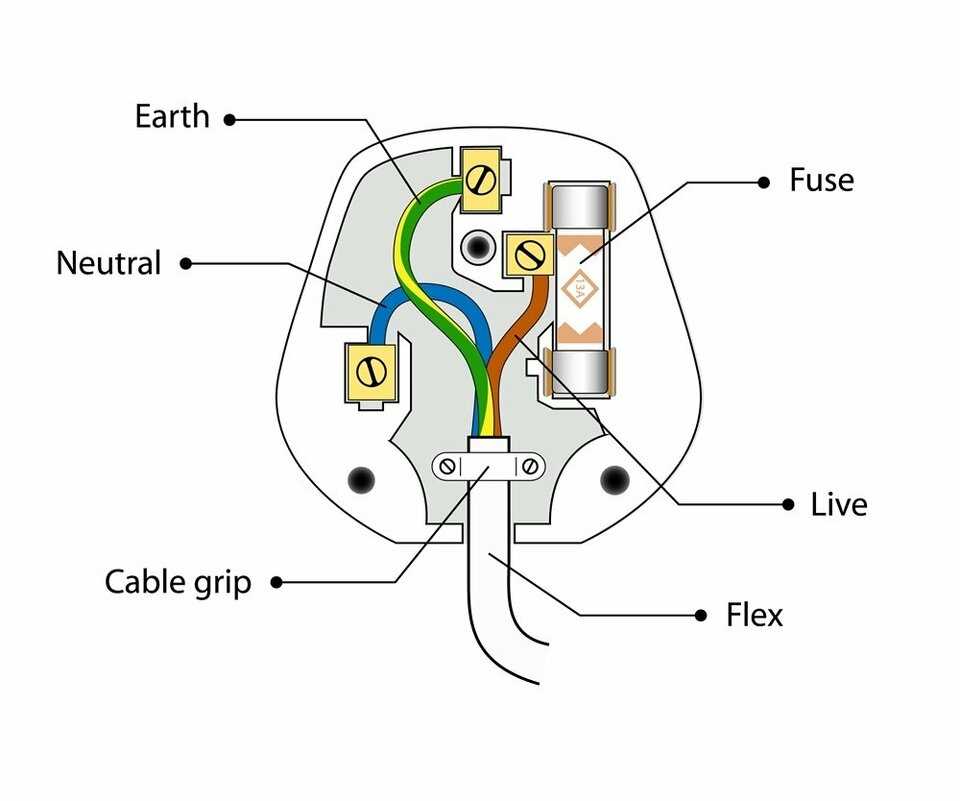

European and Asian installations follow a different scheme: brown for live, blue for neutral, and green/yellow for ground, as per IEC 60446. Confusion arises when legacy systems mix conventions–UK installs pre-2004 might feature red live and black neutral, while Australia uses active (red), neutral (black), and earth (green/yellow). Always cross-reference with local codes; assuming uniformity risks shorts or fires.
Strip 1/2 inch of insulation to inspect for hidden color coding–some manufacturers embed a colored stripe or text under the outer sheath. For split-phase 240V circuits, the second hot leg (often red) carries opposite polarity to the black wire; swapping them flips rotation in motors. In three-way switches, travelers (usually yellow or orange) may lack standardization–label them during disconnect to avoid miswiring.
Aluminum wiring, common in 1960s–70s builds, uses the same color codes but requires CO/ALR-rated devices to prevent oxidation fires. If encountering tinned copper (silver appearance), treat it as copper but check for brittle strands. Never connect copper directly to aluminum without a dielectric union; use purple wire nuts or AlumiConn connectors instead. For GFCI or AFCI protection, ensure hot and neutral wires attach to designated “LINE” terminals–reversal trips breakers instantly.
When rewiring, maintain consistency: split receptacles use brass screws for hot, silver for neutral, and green for ground. For smart plugs or timers, verify neutral requirements–many low-voltage components fail silently if miswired. If wires appear faded, trace them back to the breaker or junction box using tone generators; guessing based on color alone in degraded installations invites hazards.
Mark all wires with heat-shrink tubing or labels before capping splices. For temporary power (e.g., generators), bond neutral and ground only at the first disconnect–portable setups often omit this, causing stray voltage on metal housings. In conduit runs, colored THHN wire (not Romex) simplifies troubleshooting; reserve purple, pink, or striped conductors for signaling circuits to avoid crossover. Always de-energize circuits at the main panel before probing–even “safe” voltages (120V) can arc across unexpected paths.
