How to Build and Analyze Your Own Bass Guitar Wiring Schematic
For optimal performance, use a parallel passive tone network with a 250kΩ audio-taper potentiometer and a .047µF polyester film capacitor on the treble cut stage. This configuration preserves transient response while reducing harshness above 2.5kHz. Avoid carbon composition resistors–they introduce noise under 5mV RMS; opt for metal-film types with a 1% tolerance instead.
Grounding splits should follow a star topology, with the input jack serving as the central node. Route the shield wire directly to chassis ground, keeping it separate from signal ground until the final connection. For hum rejection, maintain a ≤3cm loop area between the pickup coils and output cable. Use a shorting-type output jack to prevent pops when disengaging.
Active circuits demand regulated power. A ±9V supply with a PI filter (220µF electrolytic + 100Ω resistor) eliminates ripple below 20Hz. Place decoupling capacitors (100nF ceramic) within 2mm of op-amp supply pins. For preamps, prioritize FET-input stages (e.g., TL072) over bipolar–lower input bias current (10pA vs. 200nA) extends battery life by 30%.
Printed boards should trace signal paths ≤0.2mm wide with ground fills on both sides. Keep input traces orthogonal to high-current paths to reduce crosstalk. For DIY builds, use a single-sided layout with jumpers–double-sided boards require vias, complicating hand assembly. Acid-etched prototypes benefit from 0.4mm annular rings around through-holes to prevent lift.
Passive instruments compel low-impedance design choices. A 4-conductor cable with an overall shield cuts RF interference by 12dB compared to braided shields. For tuning stability, wind pickup coils to an inductance of 2.5–3.2H; excessive values (>4H) roll off highs at 3kHz. Magnet strength directly impacts output–ceramic grades 5 or 8 strike the best balance between articulation and dynamic range.
Constructing a Low-End Instrument’s Electrical Blueprint
Begin by identifying the humbucker and single-coil pickup combinations most suited for sub-frequencies. A common configuration pairs a dual-coil near the neck with a single-coil at the bridge, yielding 9.5kΩ and 6.5kΩ impedance respectively. Wire the volume and tone pots using 500kΩ logarithmic potentiometers to preserve clarity in the 40–250Hz range. Avoid linear pots–they compress low-end dynamics unnaturally.

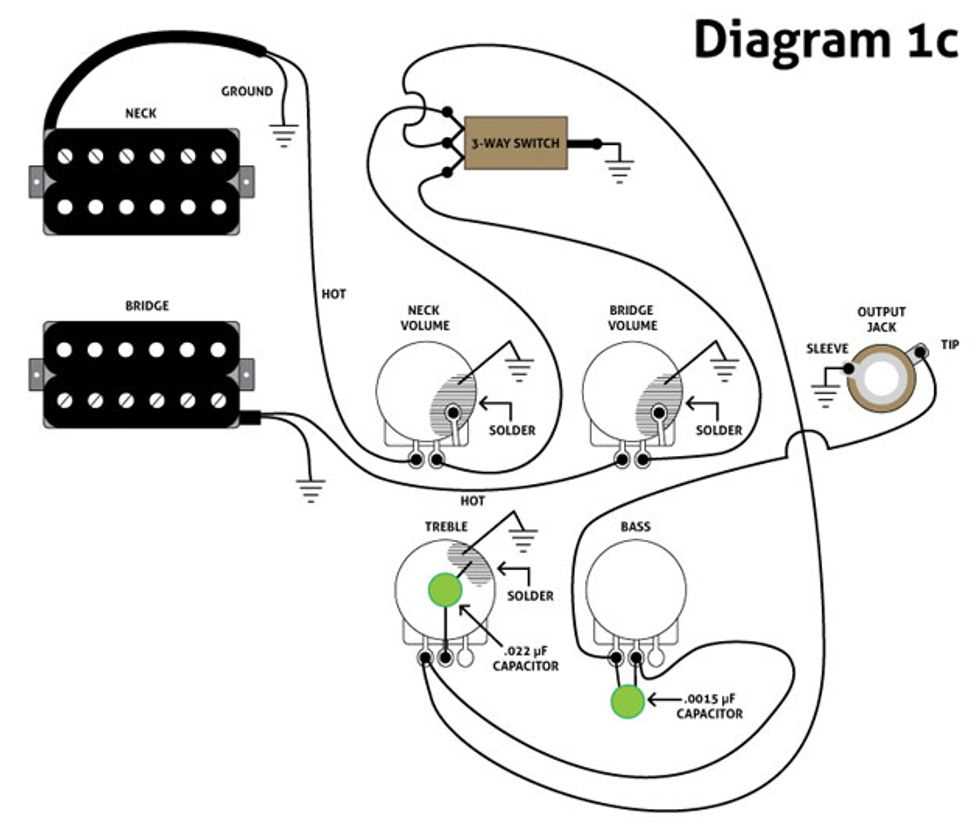

Incorporate a three-way toggle switch to isolate pickups or blend their outputs. Position the switch between the tone pot and output jack, grounding the unused terminal with a 0.047μF capacitor to eliminate high-frequency noise when switching. For active electronics, insert a 9V battery snap directly after the jack, ensuring the circuit breaks when unplugged to prevent drainage. Use 24-gauge shielded wire for signal paths to reduce electromagnetic interference from fluorescent lighting or amplifier transformers.
Add a treble bleed network if retaining brightness at lower volumes is critical. Install a 150pF capacitor in parallel with a 130kΩ resistor across the volume pot terminals–this maintains harmonic content above 2kHz when rolling off. For passive systems, a simpler 0.001μF cap suffices but will attenuate highs more aggressively. Test each stage with a 1kHz sine wave to verify signal integrity before final soldering.
Grounding strategy dictates noise reduction. Star-ground all components–pickups, pots, jack sleeve, and bridge–to a single central lug on the back of the volume pot. Avoid daisy-chaining grounds; this introduces ground loops in high-gain scenarios. Use a 10Ω resistor between ground points if faint hum persists, especially in environments with shared power sources (e.g., stage setups).
For advanced modifications, integrate a mid-frequency boost via a 10kΩ resistor and 0.022μF capacitor in series, placed after the tone control. This targets the 800Hz–1.5kHz band, reinforcing note definition without overpowering fundamentals. Calibrate the boost with a spectrum analyzer or ear-training software; excessive gain muddies the low-end response. Document each resistor and capacitor value on the rear control plate for future adjustments.
Key Components of a Passive Electric Low-End Instrument Wiring Layout
Start with a high-quality potentiometer rated at least 250KΩ for humbucking pickups or 500KΩ for single-coil configurations–this ensures proper signal integrity and minimizes treble loss. Pair it with a logarithmic (audio-taper) potentiometer for volume control to achieve smooth, natural attenuation, while a linear-taper potentiometer works best for tone shaping. Include a 0.047µF capacitor for standard tone circuits; adjust to 0.022µF for brighter instruments or 0.1µF for warmer, darker tones. Use shielded coaxial cable (e.g., Mogami W2534) for all internal connections to reduce noise interference, especially in environments with fluorescent lighting or dimmer switches.
| Component | Recommended Spec | Purpose | Common Alternatives |
|---|---|---|---|
| Potentiometer | 250KΩ–500KΩ, audio/linear taper | Volume/tone control | 200KΩ (warmer), 1MΩ (brighter) |
| Capacitor | 0.047µF polyester/film | Tone shaping | 0.022µF (crisp), 0.1µF (mellow) |
| Output Jack | Switchcraft mono 1/4″ | Signal transmission | Neutrik NMJ6HCD2 (longer lifespan) |
| Pickup Selector | 3-way toggle (short/medium throw) | Pickup switching | Mini-toggle (dual-pickup), 4-way (series/parallel) |
| Ground Wire | 18–22 AWG braided copper | Noise reduction | Tinned copper (corrosion-resistant) |
Ground the bridge and tailpiece directly to the potentiometer casing or a dedicated grounding lug–skip daisy-chaining ground wires to avoid hum loops. For dual-pickup setups, use a push-pull potentiometer or mini-toggle to add series/parallel/split wiring options without cluttering the control cavity. Test all solder joints with a multimeter (continuity mode) before reassembly to catch cold joints or shorts, which are primary causes of intermittent signal loss.
How to Read and Interpret Active Instrument Preamp Schematics
Identify power rails first–look for voltage lines marked +9V or +18V and ground symbols. Active components like op-amps (e.g., TL072, LM358) require stable power; trace these connections before analyzing signal paths. Check for decoupling capacitors (typically 0.1µF or 10µF) near IC pins to prevent noise. If schematic labels omit values, assume industry standards: electrolytic caps for power filtering, ceramics for signal stabilization.
Signal flow typically enters at a high-impedance input (e.g., 1MΩ resistor), passes through a buffer stage (often a JFET or op-amp unity gain configuration), then into EQ sections. Treble, mid, and bass controls are usually passive RC networks with potentiometers (25kΩ–500kΩ) forming voltage dividers. Note the wiper connections–common errors involve reversed wiring, causing nonlinear response. Active EQ uses op-amps in non-inverting or inverting configurations; gain is calculated via resistor ratios (Rf/Rin for inverting, 1 + Rf/Rg for non-inverting).
Decoding Component Interactions
Follow the signal from input to output, marking each stage’s purpose. Buffers isolate stages; EQs shape tone; summing amplifiers combine signals. Active filters (e.g., Sallen-Key) require precise capacitor values (±5%)–deviations alter cutoff frequencies. Check for feedback loops; phase inversion in op-amps can invert signal polarity. If the schematic includes a piezo interface, expect a separate high-impedance path (>1MΩ) to avoid loading.
Test points or LED indicators reveal intended voltage levels. A blinking LED on power lines signals oscillation–check for missing decoupling caps or improper ground routing. For battery-powered designs, verify low-power modes (e.g., LP358) and ensure shutdown circuits disconnect all loads when idle. Cross-reference part numbers with datasheets; substitutions may affect noise performance (e.g., TL072 vs. NE5532). Annotate unknown symbols–some schematics use proprietary notations for proprietary components.
Building Your Low-End Instrument’s Electronics: A Practical Soldering Walkthrough
Secure the PCB firmly with a helping hand tool or clamps–precise alignment prevents cold joints. Position the iron at 350°C (662°F) for standard lead-based solder; verify the temperature with a standalone meter if your station lacks calibration. Pre-tin both the pad and component lead by applying a rice-sized solder blob, then reheat to merge them. Work in this order: resistors first (lowest profile), then capacitors, potentiometers, and finally the output jack.
Use 60/40 rosin-core solder with a 0.7mm diameter for fine control. Apply the iron tip to the joint for 2–3 seconds before introducing solder–this ensures the flux activates fully. Feed solder from the opposite side of the joint, letting capillary action pull it through. A properly soldered connection should appear concave, not bulbous or jagged; excess solder increases resistance and risks bridging adjacent traces.
Inspect each joint under 5x magnification before proceeding. Look for dull surfaces (indicative of poor wetting) or crystalline formations (a sign of insufficient heat). For through-hole components, trim leads flush to the board with diagonal cutters, leaving ~0.5mm clearance to avoid shorting traces on the underside. Test continuity with a multimeter after each stage–ohm readings should show near-zero resistance across connected points.
Grounding wires demand special attention: twist multiple strands into a single bundle, then solder using a heat sink clamp to prevent insulation melt. Use 22 AWG stranded copper for flexibility; solid core risks breaking under vibration. Attach the ground lug to the metal enclosure first, then route the wire to the PCB’s ground plane–this shields signal paths from interference. Verify the enclosure contacts the potentiometer casings directly; paint or anodizing acts as an insulator.
Finish by cleaning flux residues with 99% isopropyl alcohol and a stiff-bristle brush. Avoid excessive scrubbing near delicate components like ceramic capacitors or ICs–mechanical stress can fracture them. Dry the assembly with compressed air, then test functionality before mounting it in the instrument. Store unused solder in a vacuum-sealed container to prevent oxidation; reflowed joints on aged solder exhibit grainy textures and higher failure rates.
