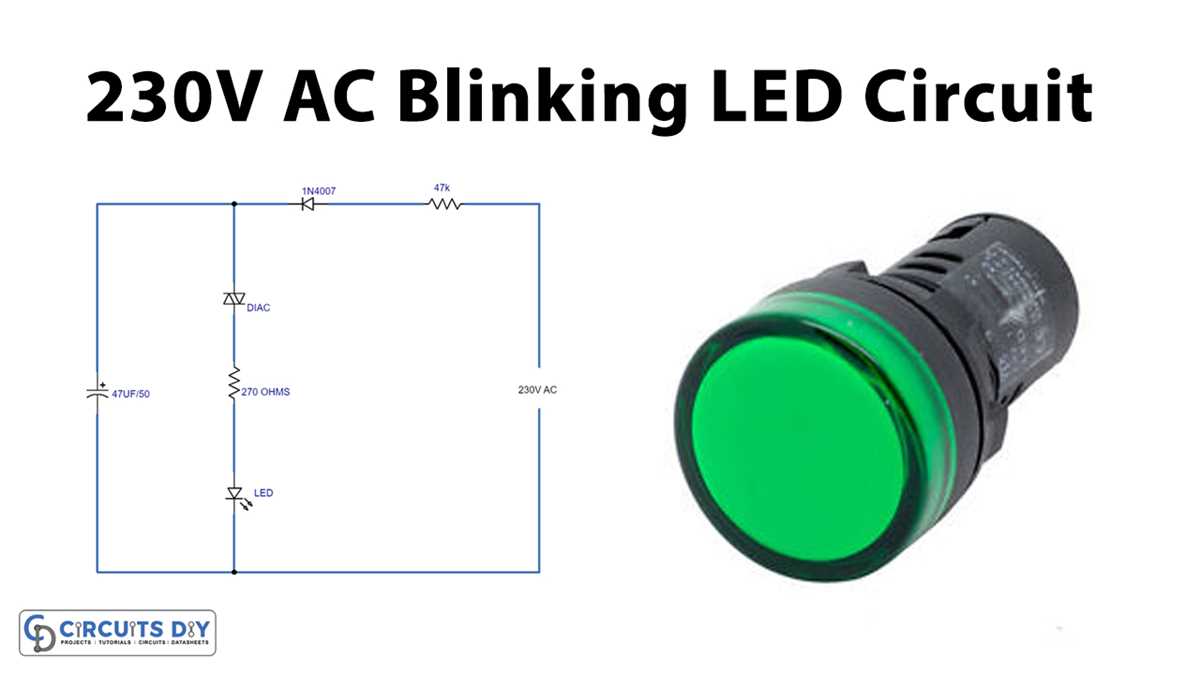

Simple LED Blinking Circuit Schematic with Timing Components

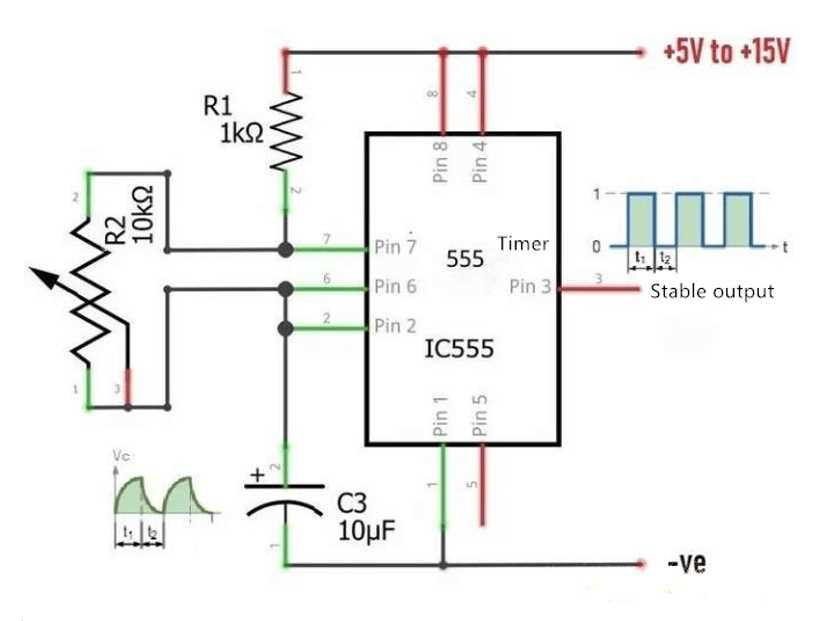

Build a reliable oscillator using a 555 timer IC in astable mode for predictable on-off cycles. Connect pin 2 and pin 6 with a 10kΩ resistor, then add a 100kΩ potentiometer between pin 6 and pin 7 to adjust flash rates without replacing components. A capacitor (10µF–100µF) between pin 2 and ground sets the timing interval–larger values slow the sequence.
Power the setup with a 5V DC source to avoid exceeding the IC’s voltage limits. Bypass pin 8 with a 0.1µF capacitor to filter noise and stabilize output. Drive LEDs directly from pin 3, but limit current with a 220Ω–470Ω resistor per LED to prevent burnout. For multiple LEDs, use a transistor (e.g., 2N2222) to handle higher loads.
Test frequency adjustments by sweeping the potentiometer–start at 1Hz for visual confirmation, then fine-tune to 0.5Hz–2Hz for optimal visibility. For battery-powered applications, reduce the capacitor to 1µF to extend runtime while maintaining functionality. Avoid ceramic capacitors; electrolytic types offer better stability in timing circuits.
If pulse duration needs symmetry, replace the potentiometer with two fixed resistors (e.g., 47kΩ each) to achieve a 50% duty cycle. For synchronized flashing across multiple outputs, cascade two 555 ICs or use a 4017 decade counter to sequence LEDs in patterns. Always verify connections with a multimeter before powering up.
Designing a Pulsing LED Schematic for Beginners
Start with a 555 timer IC in astable mode–the most reliable method for generating consistent flashes. Connect pin 8 (VCC) to a 5V source and pin 1 (GND) to the ground. For precise timing, pair a 1µF capacitor between pins 2 and 6, and add a 47kΩ resistor from pin 7 to VCC. This configuration yields a pulse rate of roughly 1Hz, ideal for visible alternation without straining the eyes.
Avoid solderless breadboards for high-current applications; instead, use a perfboard with copper traces or etched PCB for durability. If driving multiple LEDs, connect a 2N2222 transistor as a switch–base to the timer’s output (pin 3), emitter to ground, and collector to the LED’s cathode. This isolates the IC from excessive load, preventing overheating.
For low-power designs, replace the 555 with an ATtiny85 microcontroller. Program it with a simple Arduino sketch: void loop() { digitalWrite(0, HIGH); delay(500); digitalWrite(0, LOW); delay(500); }. This reduces component count while offering flexibility–adjust delay values to change the rhythm without hardware tweaks.
Optimize resistor values using Ohm’s Law: for a 20mA LED at 5V, use a 220Ω current-limiting resistor. For higher brightness, reduce resistance but stay above 150Ω to avoid LED burnout. Verify calculations with a multimeter–measure voltage across the resistor and LED to confirm compliance with the datasheet’s forward voltage.
Troubleshooting Common Issues
If the LED stays lit or fails to pulse, check the capacitor polarity–reverse connection disrupts charging. Swap electrolytic capacitors for ceramic if stability is critical, though they’ll require larger values (10µF+) to match timing. Test the timer’s output (pin 3) with an oscilloscope; a flat line indicates a wiring error, while erratic pulses suggest noise–add a 0.1µF decoupling capacitor near VCC.
For battery-powered setups, use a 3V CR2032 coin cell with a voltage divider (e.g., two 10kΩ resistors) to drop supply voltage to 1.5V if needed. Monitor current draw–excessive drain shortens battery life; aim for under 10mA. If pulses dim over time, replace batteries or switch to a rechargeable LiPo with a TP4056 charging module.
Document your layout with labels–mark every component and connection on the schematic. Use KiCad or Fritzing for digital copies; hand-drawn diagrams suffice but scan them at 600 DPI for clarity. Store spare resistors and capacitors in labeled bins–color codes fade, but values printed on tape (e.g., “47kΩ 5%”) eliminate guesswork during repairs.

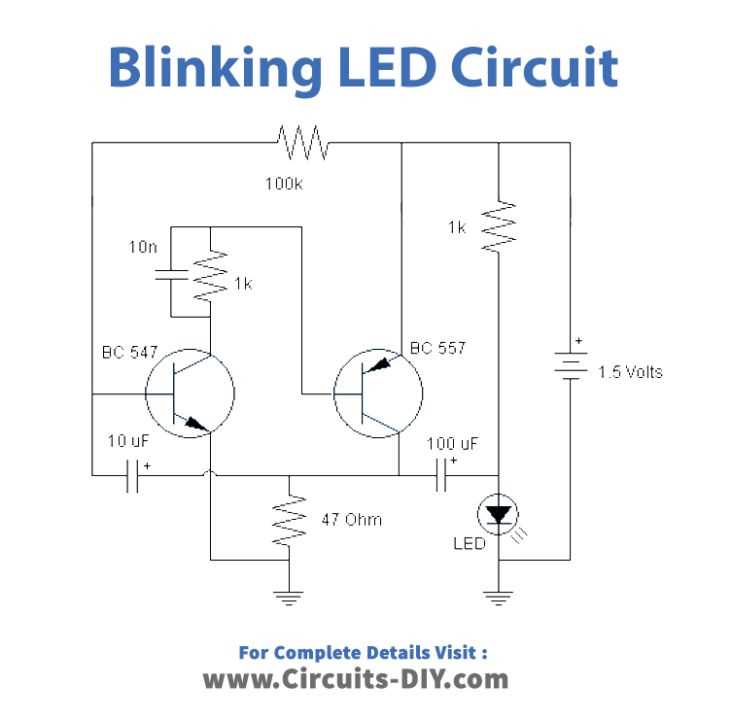

Core Elements for a Simple LED Flashing Setup
Begin with a 5V DC power supply–USB adapters or battery packs deliver reliable voltage. Pair it with a resistor sized between 220Ω and 1kΩ to limit current; values below 200Ω risk burning the LED. For standard 5mm LEDs, 330Ω strikes a balance between brightness and longevity.
A general-purpose NPN transistor like the 2N3904 or BC547 acts as a switch. Connect the emitter to ground, the collector to the LED’s cathode, and drive the base via a 1kΩ resistor linked to the timing source. Darlington pairs (e.g., ULN2003) amplify weak control signals if using microcontrollers with low output current.
Replace fixed resistors with a 10kΩ potentiometer for adjustable flash rates–wire the outer pins to Vcc and ground, routing the wiper to the timing capacitor. Electrolytic capacitors rated 10µF–100µF set the pulse duration; shorter flashes demand lower capacitance, while long delays need 470µF or more.
Timing Mechanism Comparison
| Component | Typical Range | Effect on Rate | Voltage Rating |
|---|---|---|---|
| Ceramic Capacitor | 0.1µF–1µF | Fast (ms-scale) | ≥16V |
| Electrolytic Capacitor | 10µF–1000µF | Slow (sec-scale) | ≥25V |
| Resistor | 1kΩ–1MΩ | Inverse correlation | N/A |
For standalone operation without logic ICs, a Schmitt trigger inverter (e.g., 74HC14) sharpens slow-charging capacitor edges into clean pulses–chain six inverters to build an oscillator, using 22kΩ and 1µF for a 1Hz flash. Dedicated blinkers like the LM3909 simplify design but mandate a 2V minimum supply.
High-brightness LEDs (e.g., 20mA, 3.3V forward drop) need lower resistors than low-current variants. Reduce resistance by 20% for blue or white LEDs, which draw higher voltages. Always confirm LED specs from datasheets to prevent overcurrent.

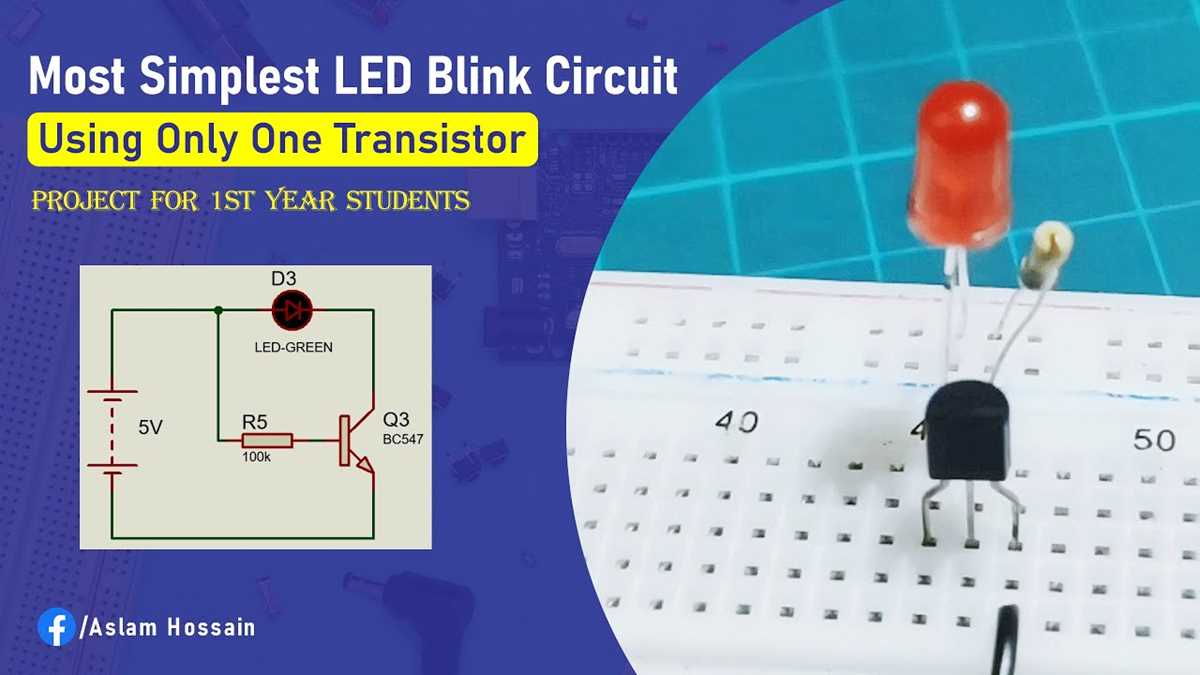

Solderless Prototyping
Use 10cm breadboard jumper wires for point-to-point connections–avoid stranded wire to prevent shorts under plugs. For permanent installations, twist solid-core wire around component leads before soldering, then insulate with heat-shrink tubing. Keep traces under 5cm to minimize capacitance that distorts timing.
A 1N4001 diode across the timing capacitor prevents reverse voltage spikes when power is removed–critical in battery-powered setups. Add a 100nF decoupling capacitor near the transistor’s Vcc pin to filter noise, especially if sharing power with motors or relays.

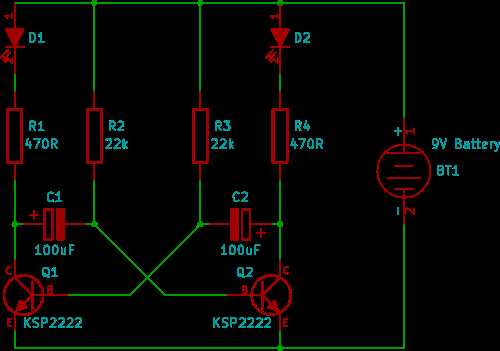

Step-by-Step Wiring Guide for a Transistor-Driven Flasher Assembly
Select an NPN transistor like the 2N3904 for reliable switching–its maximum collector current of 200 mA suits most LEDs without additional cooling. Solder the emitter directly to ground; avoid longer traces to minimize noise interference in the timing sequence.
Attach a 1 kΩ resistor between the transistor’s base and the timing capacitor’s positive terminal. This precise value prevents premature saturation while ensuring rapid turn-off cycles. Verify resistor tolerance (±5% or tighter); mismatched values alter blink duration unpredictably.
Choose electrolytic capacitors rated for at least 16V; 100 µF provides ~1-second intervals, while 470 µF extends flashes to ~5 seconds. Polarize correctly: the negative lead connects to ground, the positive to the resistor-transistor junction. Reverse polarity risks explosive failure.
Connect the LED’s anode to the power supply via a current-limiting resistor–220 Ω for 5V systems, 470 Ω for 12V. The cathode links to the transistor’s collector. Test LED polarity before finalizing; backward placement yields no illumination regardless of transistor state.
Fuse the power input with a 250 mA slow-blow type for 5V circuits, or 500 mA for 12V. Unprotected wiring risks thermal runaway in the capacitor or transistor under sustained short-circuits. Locate the fuse holder within 5 cm of the battery terminal for effective fault isolation.
Use solid 22 AWG wire for signal paths– stranded equivalents introduce capacitance variability that disrupts timing consistency. Solder joints should form smooth fillets; uneven connections increase resistance and skew flash rates. Apply heat sinks during prolonged soldering to prevent dielectric breakdown in plastic capacitors.
For adjustable intervals, replace the fixed capacitor with a 500 kΩ potentiometer in series with a 10 µF capacitor. Rotating the wiper alters charge/discharge rates–clockwise shortens cycles, counterclockwise prolongs them. Shield the potentiometer with a small metal casing to suppress RF interference in sensitive environments.
Ground all unused breadboard rails to a single point on the negative bus. Floating rails act as unintended antennas, inducing false triggers from ambient 50/60 Hz fields. Verify stability by oscilloscope: clean square waves should peak at the supply voltage with sub-10 µs rise times.
Calculating Resistor and Capacitor Values for Precise Flash Timing
Select the target pulse interval first–determine whether you need a 1 Hz blink (1 second on/off) or faster/slower rates. The classic RC timing formula T = 0.693 × R × C delivers the time (T) for one half-cycle in seconds, where R is resistance in ohms and C is capacitance in farads. For a 1 Hz signal, set T = 0.5 s; solve for either R or C given the other. Example: a 470 µF electrolytic capacitor paired with a 1.5 kΩ resistor yields roughly 0.5 s per flash.
Adjust values proportionally for faster or slower rates. Halving the resistor or capacitor doubles the flash frequency; doubling either cuts it in half. Practical limits apply–capacitors below 10 µF suffer leakage, distorting timing, while resistors above 1 MΩ introduce noise susceptibility. Common capacitors like 100 nF ceramics or 220 µF electrolytics work reliably when paired with 1 kΩ to 470 kΩ resistors. Avoid film capacitors above 10 µF–they’re impractical for this use.
Component Selection Constraints
- Minimum capacitance: 10 nF (ceramic) or 10 µF (electrolytic) to avoid leakage skew.
- Maximum resistance: 1 MΩ to prevent interference from ambient electrical noise.
- Power rating: ¼ W resistors suffice; higher wattage adds cost without benefit.
- Voltage tolerance: Capacitors must exceed the supply voltage by ≥20% (e.g., 16 V for a 12 V source).
Test calculated values on a breadboard before finalizing. Use an oscilloscope to verify the actual charge/discharge curve–real-world deviations arise from component tolerances (±5% for resistors, ±20% for electrolytics). If fine-tuning is needed, tweak R in 10% increments rather than C, as capacitors exhibit wider tolerance spreads. For consistent results, opt for low-ESR capacitors (e.g., tantalum or polymer types) when accurate timing is critical.
For astable oscillators with asymmetric duty cycles, split the RC network into two distinct paths. Example: use R₁ = 10 kΩ with C = 100 µF for the “on” phase, and R₂ = 5 kΩ with the same C for “off.” Adjust ratios to match desired on/off proportions while keeping total cycle time T = T₁ + T₂ = 0.693 × C × (R₁ + R₂). Logarithmic potentiometers simplify experimental tuning but add cost for production designs.
