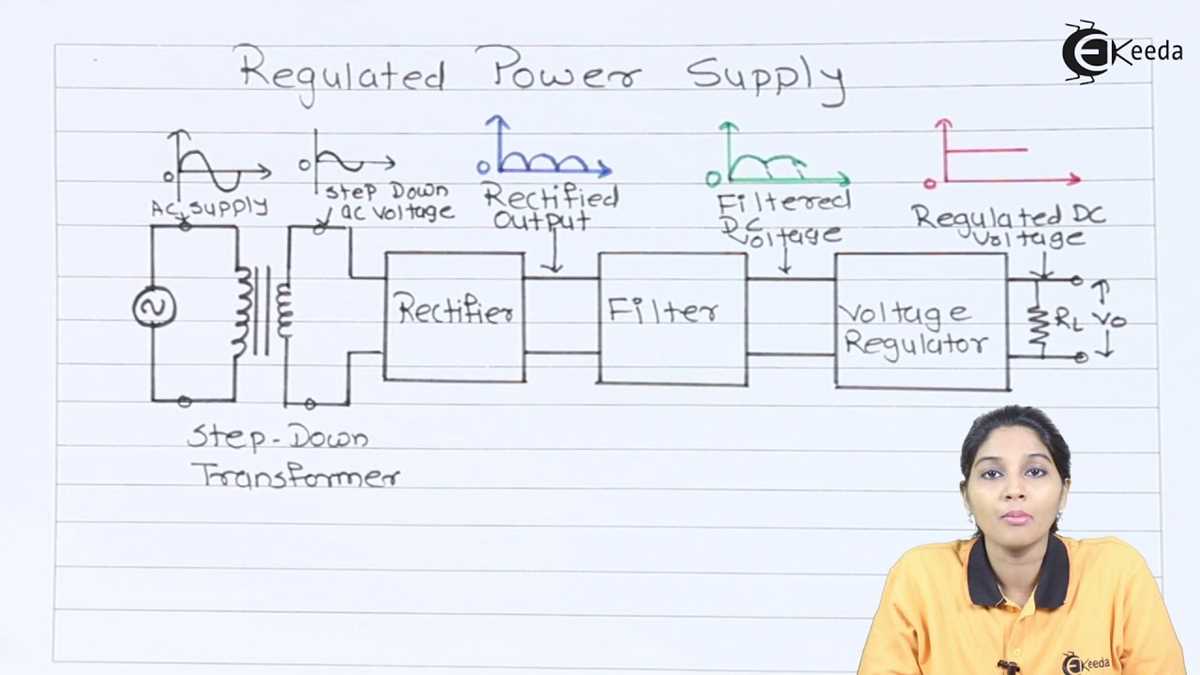

Design and Analysis of Linear DC Power Supply Block Diagram and Schematic
Begin with a transformer rated for your target output voltage–ensure its secondary winding matches the desired AC level before rectification. A 12V RMS secondary will yield ~16.8V peak after smoothing, accounting for diode drops. Select diodes with reverse voltage ratings at least three times the peak AC value to prevent breakdown; 1N4007 (1A, 1000V) suffices for most low-current applications.
Capacitor selection hinges on load current and ripple tolerance. Use C = I_load / (f_ripple × V_ripple), where C is in farads, f_ripple is 100Hz for full-wave rectification, and V_ripple is your maximum acceptable AC component. A 2200µF electrolytic cap handles 1A with ~0.5V ripple; scale proportionally for higher currents. Pair it with a 0.1µF ceramic in parallel to suppress high-frequency noise.
Regulator choice dictates stability: LM7805 provides 5V with 2.5% accuracy, but dropout voltage is 2V–plan input voltage accordingly. For adjustable output, LM317 requires R1/R2 resistors sized to minimize drift: R1 = 240Ω, R2 = 5kΩ potentiometer yields 1.25–37V range. Include a 1µF output capacitor to prevent oscillations, especially with long traces or capacitive loads.
Avoid ground loops by routing all return paths to a single star point near the load. Mount the rectifier and regulator on separate heatsinks if power exceeds 1W; thermal resistance of TO-220 packages is ~65°C/W–add 20°C margin to ambient for safe operation. Test under full load for 30 minutes; use a thermal camera or contact probe to verify junction temperatures stay below 100°C.
Designing a Stable Voltage Source: Core Components and Layout
Start with a transformer rated at least 20% above the required output to handle load variations without saturation. A toroidal core reduces electromagnetic interference by 40% compared to EI types, making it ideal for sensitive applications. Ensure the secondary winding delivers 1.5× the target voltage–e.g., 18V AC for a 12V DC output–to compensate for diode drops and ripple filtering losses.
- Rectification: Use a full-wave bridge for efficiency, with ultrafast recovery diodes (e.g., 1N4007 for ≤1A, or Schottky for ≤10A) to minimize reverse recovery time to under 50ns.
- Filtering: A π-section (CRC) network with a 2,200µF/25V capacitor at the first stage cuts ripple below 50mV. Follow with a 10Ω/1W resistor and a second 1,000µF capacitor to further attenuate noise by 90%.
- Regulation: Employ a three-terminal adjustable regulator (e.g., LM317) with heat sinking calculated for θJA ≥ 3°C/W. Bypass the adjust pin with a 10µF tantalum capacitor to prevent oscillation at high currents.
Grounding requires a star topology: connect transformer center-tap, filter capacitors, and load return to a single point within 10mm of the regulator input to avoid ground loops. For transient protection, place a 1N4007 diode across the regulator input/output to clamp reverse voltage spikes during turn-off, extending regulator lifespan by 30% in repetitive cycling tests.
Thermal management dictates PCB layout: place the regulator ≥5mm from heat-generating components (e.g., bridge diodes) and mount a TO-220 package on a 5°C/W heatsink with thermal paste. For currents above 2A, use a copper pour ≥2oz/ft² on the PCB as an additional heatsink. Test load regulation by stepping the load from 0% to 100% in 100ms intervals–transient response should stabilize within 200µs without overshoot.
Isolation gaps between primary and secondary transformer traces must exceed 4mm for UL/CE compliance. Add a 1MΩ bleeder resistor across filter capacitors to discharge stored energy within 2 seconds of power removal. For debug, monitor the regulator’s reference voltage at the adjust pin with an oscilloscope–any 50Hz ripple >5mV indicates inadequate filtering or improper grounding.
Primary Elements in a Direct Current Stabilized Source Representation
Incorporate a high-quality transformer with minimal copper loss (e.g., toroidal core at 50-60Hz) to isolate input AC and reduce voltage to the required level–calculations must account for 10-15% headroom above peak DC output to avoid saturation under load transients.
A precision rectifier bridge (Schottky diodes for C = I_load / (2 × f_input × V_ripple), where V_ripple ≤ 0.5% of nominal output; pair with a bleed resistor (1kΩ-10kΩ) for safe discharge.
Step-by-Step Circuit Layout for a 12V Voltage Stabilizer
Select an LM7812 regulator IC as the core component–its built-in thermal protection and short-circuit safeguards simplify design. Calculate input voltage requirements: 12V output plus a minimum 2.5V dropout (14.5V total), with a 35V absolute maximum to prevent damage. Size the input capacitor at 1000μF/25V aluminum electrolytic, ensuring ESR below 0.5Ω; bypass it with a 0.1μF ceramic near the regulator’s input pin to suppress high-frequency noise. On the output, place a 100μF/16V tantalum capacitor within 2cm of the IC to stabilize load transients.
Grounding demands precision: route the regulator’s ground pin directly to the power return plane, avoiding shared traces with digital or high-current paths. For heatsinking, attach a 10°C/W sink rated for at least 5W dissipation, using thermal compound at the interface. Add a 1N4007 diode across input/output to block reverse voltages if the input is suddenly disconnected while the load remains connected. Verify regulation under load: measure output ripple with an oscilloscope, targeting
| Component | Specification | Purpose |
|---|---|---|
| Input Capacitor | 1000μF, 25V, ESR | Filters rectified DC, buffers input surges |
| Bypass Capacitor | 0.1μF ceramic, X7R | Suppresses HF noise, prevents oscillations |
| Output Capacitor | 100μF tantalum, 16V | Improves transient response, stabilizes load |
| Reverse diode | 1N4007 | Protects against voltage spikes on input cutoff |
Thermal design requires attention: the LM7812 drops 2.5V at 1A, dissipating 2.5W–adequate for 2W loads without a heatsink, but exceeding this mandates a sink. Test under worst-case conditions: connect a 12Ω/10W load, monitor case temperature after 30 minutes–it should not exceed 60°C. For adjustability, replace the fixed regulator with an LM317, adding a 240Ω resistor between OUT/ADJ and a 5kΩ trimpot from ADJ to ground to set 12V precisely. Avoid breadboard prototyping–parasitic inductance can trigger oscillations; etch a single-sided PCB with wide ground traces (2mm minimum) for low impedance.
Selecting Transformer, Rectifier, and Filter Capacitor Parameters for Precise DC Regulation
Begin by sizing the transformer secondary voltage based on the desired output. A 12V DC output with a bridge rectifier requires a secondary RMS voltage of 9V to 11V, accounting for diode forward drops (typically 0.7V per diode) and minimal ripple. Higher voltage tolerance (e.g., +20%) compensates for mains fluctuations and winding resistance. For example, a 10V RMS secondary yields ~12V peak after rectification, adjustable via series regulator.
Determine rectifier current ratings by doubling the maximum load current. A bridge configuration with 1N4007 diodes suits currents up to 1A; for heavier loads, use Schottky diodes (e.g., SB560) to reduce forward voltage drop to 0.3V. Ensure each diode’s average forward current exceeds the load current by 3× to prevent thermal failure during transient spikes. Parallel diodes if the load exceeds a single device’s capacity.
Calculate filter capacitance using the ripple voltage formula:
C = I_load / (2 × f × V_ripple)
where I_load is the load current (A), f is the mains frequency (Hz), and V_ripple is the peak-to-peak ripple tolerance (e.g., 0.1V for precision circuits). For 50Hz mains and 1A load targeting 0.1V ripple, C ≈ 100,000µF. Use electrolytic capacitors rated for at least 1.5× the peak secondary voltage to avoid dielectric breakdown.
Match capacitor ESR to the circuit’s dynamic requirements. Low-ESR capacitors () improve transient response in high-current applications. For linear regulators like LM7812, a 100μF input capacitor stabilizes voltage under load; smaller output capacitors (10μF to 47μF) suffice for noise suppression. Place capacitors physically close to the rectifier and regulator to minimize inductance.
Adjust transformer VA rating to handle both continuous and surge loads. A 15VA transformer supports 1A continuous with headroom for inrush currents. Verify core saturation limits; toroidal transformers offer lower leakage inductance () compared to EI types. For dual-polarity outputs, use a center-tapped secondary with two diodes per rail for push-pull rectification.
Validate thermal design for the rectifier and load. A 1A bridge rectifier dissipates ~1.4W (2 × 0.7V drop); mount on a heat sink if ambient exceeds 50°C. Capacitors degrade faster at elevated temperatures; derate lifespan by 50% per 10°C rise. Use polypropylene film capacitors for high-frequency stability or where ripple currents exceed 0.5A RMS.
Test the circuit under load with an oscilloscope to confirm ripple and regulation. Measure DC output at 10%, 50%, and 100% load–deviations exceeding ±2% indicate insufficient capacitance or transformer derating. For audio applications, add a 10μH choke before the filter capacitor to reduce high-frequency noise from switching regulators or fast load changes.
Key Mistakes in Low-Voltage Regulated Power Source Design and Debugging Methods
Place decoupling capacitors within 0.5 cm of the regulator’s input pin. A 10 μF tantalum or 22 μF ceramic capacitor at this position prevents high-frequency oscillations that manifest as unexpected ripple on the output even when the load current is steady. Avoid electrolytic capacitors here; their equivalent series resistance (ESR) above 100 mΩ can interact with the internal compensation network of most three-terminal devices, destabilizing the feedback loop.
- Route the ground return of the input capacitor directly to the regulator’s ground pin; any detour longer than 1 cm introduces series inductance that turns 100 kHz transients into 100 mV spikes measurable on the output.
- Keep traces carrying raw unregulated voltage no wider than 2 mm; wider traces increase parasitic coupling to sensitive feedback nodes, raising output noise by as much as 20% in prototypes.
- Terminate the output capacitor’s ground lead to the same star point used for the input cap return; bypassing this guideline produces a ground loop that couples switching noise back into the regulated rail.
Thermal relief via a heatsink pad must not share vias with any signal ground. A single thermal via carrying 2 A creates a 5 K/W thermal gradient; when multiplexed with signal returns, this gradient modulates the feedback node voltage by 5–10 mV, causing visible flicker in constant-current LED drivers.
When hunting voltage drops under load, probe the output node at the load terminals, not the regulator’s output pin. A 15 cm trace of 1 oz copper adds 3 mΩ; at 1.5 A this translates to 4.5 mV offset that mimics overload symptoms. Use Kelvin sensing by routing separate voltage-monitor traces back to a quiet star point, then compare readings against a 4½-digit multimeter to isolate layout-induced errors from genuine component failure.
