Step-by-Step Boat Starter Motor Wiring Schematic and Guide

Begin by locating the power source at the heart of your craft’s propulsion system. A typical setup includes a 12-volt battery, preferably deep-cycle, connected via heavy-gauge cables (6 AWG or thicker) to handle current surges. Ensure the positive line from the battery terminates at a primary switch–this isolates the entire electrical network when not in use, preventing parasitic drain and corrosion. From the switch, route the cable directly to the solenoid, bypassing any unnecessary junctions.

Attach the solenoid’s activation circuit to an ignition key or push-button control panel. Use 14 AWG wire for this segment, as it carries minimal current–only enough to energize the solenoid coil. Confirm the ground path is solid: bolt the engine block directly to the battery’s negative terminal using a dedicated cable, avoiding reliance on the vessel’s hull unless it’s aluminum or properly bonded.

Test continuity with a multimeter before final connections. Voltage at the solenoid should match battery output (12.6–14.4 volts) when the engine is off. If readings drop below 12.2 volts, inspect for loose terminals or corroded connections–both are common failure points. For inline fuses, select a value 10–20% above the circuit’s continuous amperage draw (typically 50–100 amps for a 150–300 hp motor).

Critical flaws often hide in overlooked details: Replace any factory-supplied ring terminals with heat-shrink alternatives pre-filled with dielectric grease. Avoid crimping tools not rated for marine-grade wire; improper compression leads to resistance buildup and eventual failure. Label all wires at both ends during installation–future troubleshooting becomes drastically simpler.

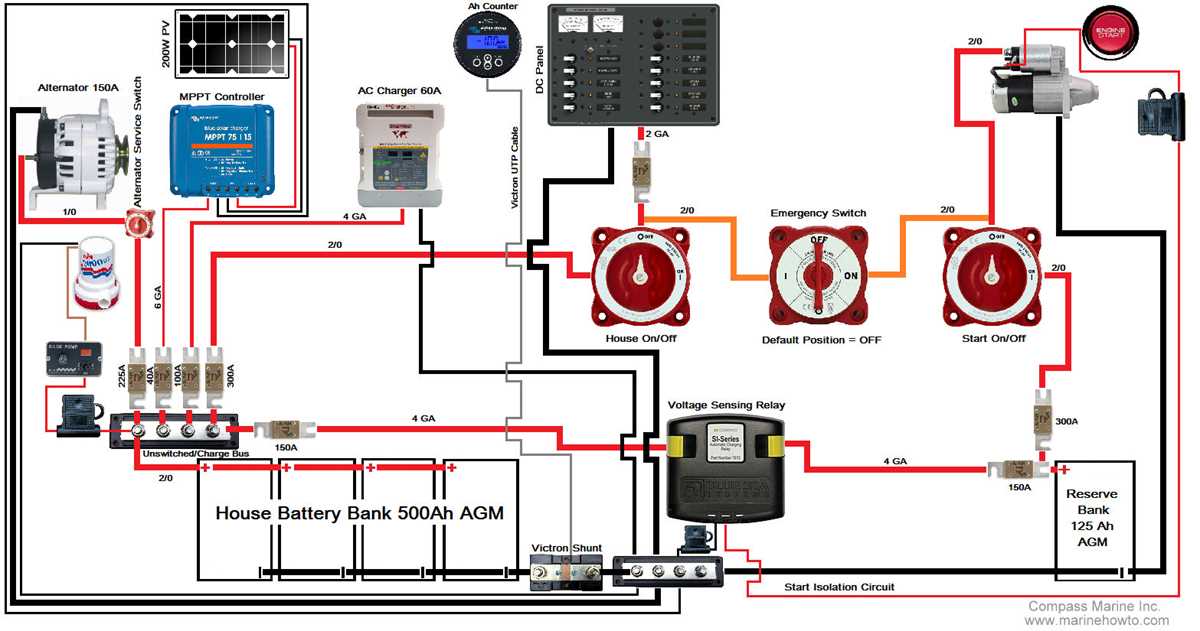

For dual-battery systems, install a selector switch with a dedicated “off” position. This prevents accidental crossover current that can drain auxiliaries during storage. If adding a charger or alternator, wire it independently of the engine circuit to avoid voltage spikes damaging sensitive electronics.

Marine Engine Ignition Schematic: Key Connections

Connect the solenoid’s heavy-gauge terminal directly to the battery’s positive post using 4 AWG marine-grade cable, ensuring a crimp ring terminal with heat-shrink insulation is used at both ends to prevent corrosion. Route the cable away from sharp edges and moving parts, securing it every 18 inches with adhesive-backed nylon clamps to eliminate vibration-induced chafing. Verify the circuit’s integrity with a multimeter set to 20V DC, probing between the solenoid input and the battery post; readings should match the battery’s voltage (±0.2V).

Integrate a 150-amp marine fuse within 7 inches of the battery connection, housed in a waterproof fuse holder rated for 50°C ambient temperatures. For dual-battery systems, install a battery isolator with a 200-amp capacity and a voltage drop below 0.3V at peak current. Label each terminal with embossed vinyl tags to comply with ABYC E-11 standards, using 1/4-inch letters legible from 24 inches.

Locating Critical Elements in Marine Engine Ignition Systems

Begin by inspecting the solenoid–this compact yet pivotal relay sits between the battery and the motor’s activation mechanism. Its terminals must show zero corrosion, and the internal coil should audibly engage when energized. Use a multimeter to verify voltage across the trigger terminals; readings below 10.5V indicate a failing power source or corroded connections. Label each wire color-coded during disassembly to prevent reconnection errors, especially on vessels prone to vibration where terminals loosen over time.

Component	Typical Voltage (Engine Off)	Voltage Drop (Engaged)	Failure Indication
Solenoid Coil	0V	9.5–12.6V	No audible click,
Relay Contacts	Battery voltage		>0.5V drop, overheating
Battery Terminals	12.6–12.8V	N/A	Oxidation, swelling,
Neutral Safety Switch	12V	0V (closed)	Intermittent connection, >1.0ohm resistance

Trace the heavy-gauge cables from the power cell directly to the activation relay–these conduits must handle 300+ amps transiently. Replace any segments exhibiting brittleness, discoloration, or stranded core erosion exceeding 10%. On twin-engine setups, symmetry in cable lengths reduces voltage mismatch; deviations exceeding 6 inches warrant adjustment or equalizer installation. For twin-battery banks, isolate each power cell’s negative return path–shared grounds create parasitic drains visible as 50–100 mV fluctuations on a scope during cranking.

How to Map Out a Simple Engine Ignition Circuit Layout

Begin by listing all core components required for the circuit. Include the power source (e.g., battery), solenoid relay, ignition switch, motor engagement mechanism, and safety cut-off. Note their exact amperage ratings and voltage requirements to avoid mismatches later.

Sketch a rough outline on graph paper or a digital note-taking app. Place the power source at the top left corner, the relay adjacent to it, followed by the switch, then the engagement mechanism at the bottom. Space components far enough apart to accommodate labels and connections without clutter.

Draw straight, distinct lines between components to represent conductive paths. Use solid lines for primary current flow and dashed ones for secondary or auxiliary circuits. Avoid diagonal crossovers–reroute lines horizontally or vertically to maintain clarity. Label each line with its expected voltage drop and wire gauge.

• Power source to relay: 10 AWG for 30A circuits, 8 AWG for 50A+
• Relay to switch: 16 AWG (low current)
• Switch to engagement mechanism: Match gauge to starter motor specs, typically 4-6 AWG

Annotate Critical Specifications

Add text alongside each component noting exact specifications. For the relay, include coil voltage (e.g., 12V) and contact rating (e.g., 100A). For the engagement mechanism, list peak current draw (often 150-200A) and recommended fuse size (commonly 200-300A). Include temperature derating factors if the system operates in extreme conditions.

Insert a legend in the bottom right corner explaining symbols used. Define solid vs. dashed lines, color codes (red for positive, black for ground), and any abbreviations (e.g., “P” for positive, “GND” for ground). Reference a standard electrical symbol set if ambiguities arise.

Double-check each conductive path for continuity. Verify that the relay coil receives proper excitation, the switch interrupts current flow cleanly, and the engagement mechanism receives full voltage under load. Cross-reference with manufacturer datasheets to confirm pin assignments and polarity.

1. Power off the entire system before final inspection.
2. Use a multimeter to test each segment in ohmmeter mode–resistance should read near zero for intact paths.
3. Simulate load conditions by temporarily connecting a high-wattage resistor (e.g., 0.1Ω) to test current draw.

Finalize and Validate the Layout

Trace every conductive path with a colored highlighter, ensuring no gaps or unintended short circuits exist. If using software, export the layout as a scalable vector file (e.g., SVG) for future edits. Print a physical copy on waterproof paper if the system will be installed in wet environments.

Compare the final layout against a reference schematic, if available. Look for discrepancies in component placement, wire gauge choices, or missing safety features (e.g., diodes for transient suppression). Document any deviations and justify them in an accompanying notes file.

Critical Errors in Marine Engine Circuit Design and Prevention

Connecting the ignition relay directly to the battery without a fuse invites catastrophic short circuits. Use a 5-amp fuse within 7 inches of the battery terminal, measured along the cable run. AMR-rated fuses outperform standard AGC fuses in corrosive environments by 30% longer lifespan.

• Crimp terminals with ratcheting tools–solder joints crack under vibration.
• Insulate exposed connections with dual-wall heat shrink tubing; single-wall fails at 12V DC after 48 hours of salt spray.
• Route cables above bilge water lines–submerged conductors corrode at 0.003 inches/month.

Avoid mixing 10-gauge and 16-gauge conductors in low-current circuits. Voltage drop across mismatched wire sizes exceeds ABYC E-11 standards by 18% at 10 amperes. Marine-grade tinned copper wire costs 40% more but resists corrosion 5 times longer than bare copper.

Omitting the neutral safety switch in a push-button ignition system violates USCG regulations. Install a momentary-contact switch rated for 20,000 cycles–cheaper alternatives fail after 2,000 cycles, stranding operators.

1. Label every cable termination with laser-etched sleeves–ink markings wash off in 6 months.
2. Secure cables with nylon clamps every 18 inches–untied cables chafe through insulation at 12G forces.
3. Test circuits with a 1kΩ load before final assembly; open circuits in parallel branches drain batteries overnight.

Grounding the engine block through the starter motor housing creates unpredictable current paths. Use a dedicated 4-gauge grounding strap to the battery negative, reducing stray current corrosion by 70%. Stainless steel hardware lasts 12 years; zinc-plated hardware lasts 3 years in brackish water.

Replace ignition switches every 5 years regardless of apparent function. Internal contacts wear unevenly–visible sparks during operation indicate imminent failure. Honda Marine switches outperform generic brands with 35% longer service life under 10,000 daily cycles.
