Understanding Brachial Plexus Anatomy A Detailed Schematic Guide

Begin by positioning the C5–T1 nerve roots at the vertebral origin. These five roots converge into three trunks: superior, middle, and inferior, visible along the lateral border of the scalene muscles. Label each trunk clearly–misidentification here leads to errors in tracing downstream branches.

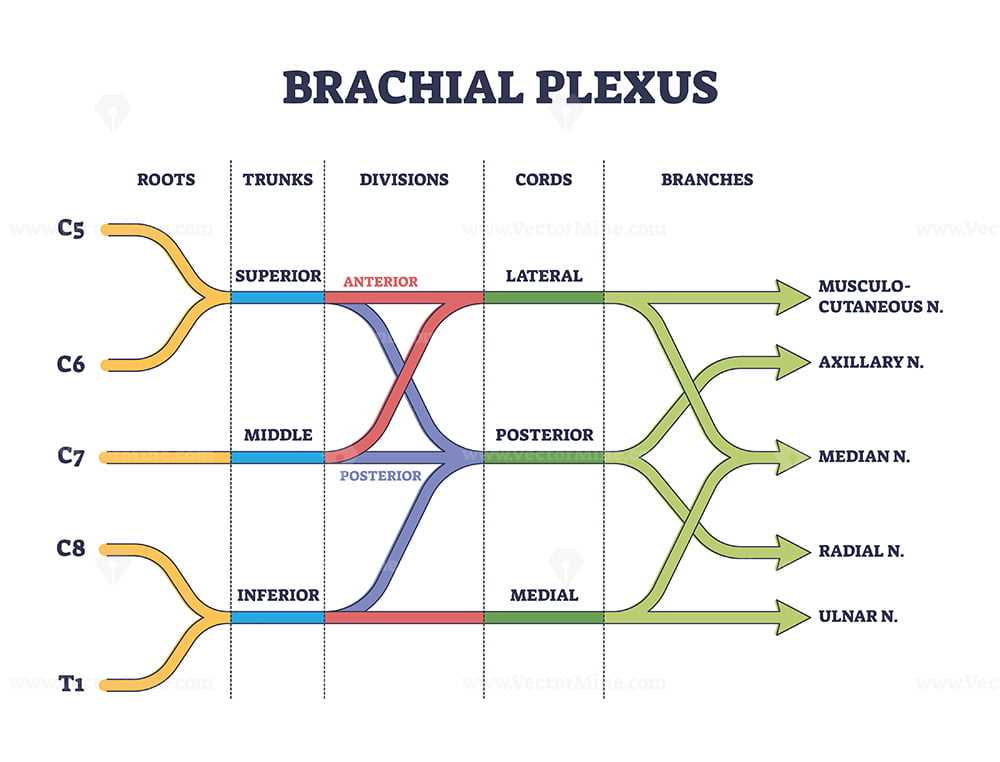

Trace the trunks into anterior and posterior divisions behind the clavicle. The anterior divisions of the superior and middle trunks merge into the lateral cord, while the inferior trunk’s anterior division forms the medial cord. The posterior divisions of all trunks unite into the posterior cord. Use color coding: red for lateral, blue for medial, and green for posterior cords to maintain clarity.

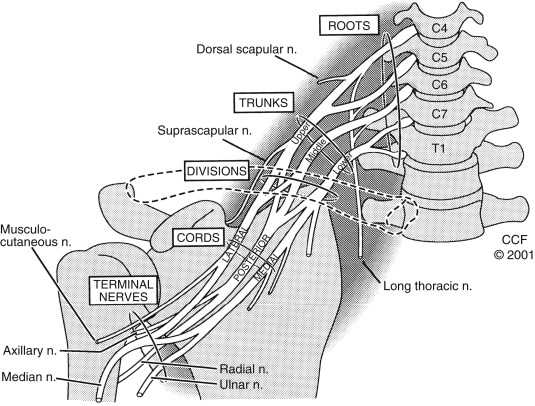

Locate the cords in relation to the axillary artery–the posterior cord lies directly behind it, the lateral cord anterolaterally, and the medial cord anteromedially. From these cords, the five terminal nerves emerge: musculocutaneous, axillary, radial, median, and ulnar. Measure branch points from the coracoid process–axillary nerve branches 3–4 cm inferior to it; radial nerve splits 1–2 cm more distal.

Include smaller branches: long thoracic nerve arises from C5–C7 roots, suprascapular nerve from the superior trunk, and medial/lateral pectoral nerves from their respective cords. Note that the medial cutaneous nerve of the arm and forearm branch from the medial cord before the ulnar nerve–omit these and risk inaccurate surgical planning.

Verify accuracy with surface landmarks: the musculocutaneous nerve pierces the coracobrachialis 7–8 cm below the coracoid; the median nerve runs medial to the biceps tendon at the elbow; the ulnar nerve passes behind the medial epicondyle. For digital versions, use vector-based software to scale branches proportionally–bitmap distortions misrepresent nerve relationships.

Test the diagram by tracing lesions: compression at Erb’s point (C5–C6 roots) disables shoulder abduction and elbow flexion; injury to the inferior trunk (Klumpke’s paralysis) affects intrinsic hand muscles. Ensure each nerve’s path accounts for 3–5 mm variability in cadaver studies.

Understanding Nerve Network Patterns in the Upper Limb

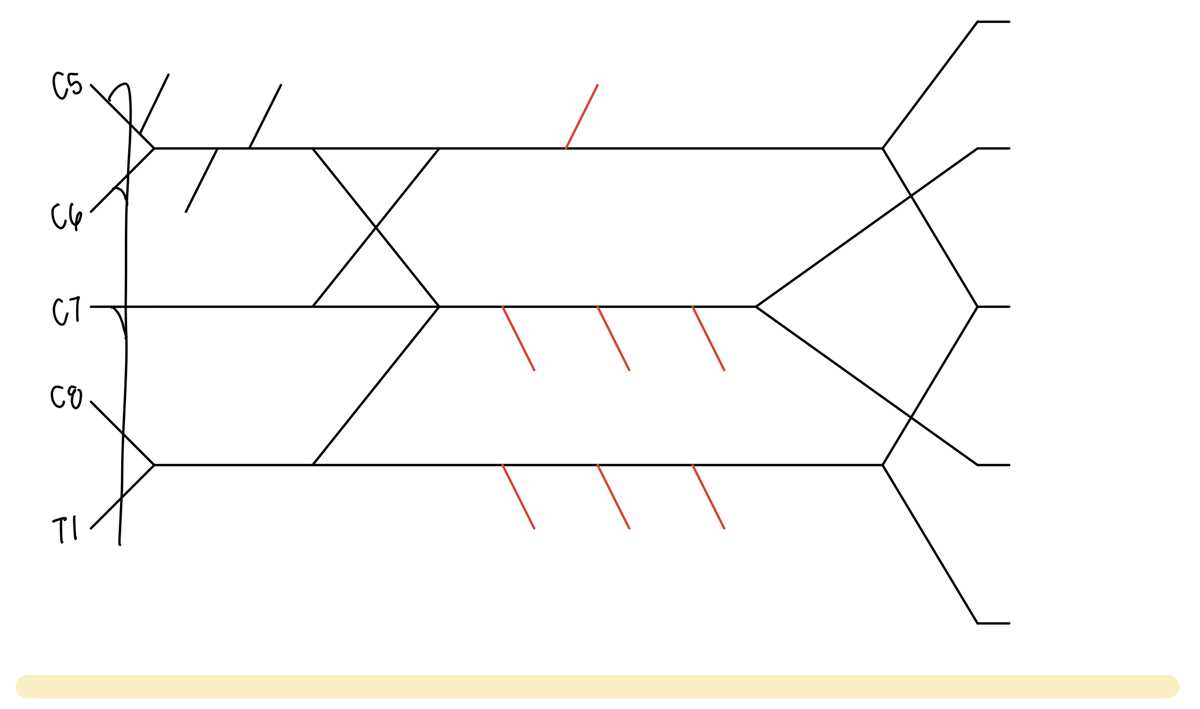

Begin by mapping root origins–C5 to T1 vertebrae–as horizontal lines spaced vertically on paper, ensuring exact millimeter gaps between C8 and T1 for later branching clarity.

Identify three trunks (superior, middle, inferior) by grouping roots immediately after emergence: C5-C6 merge for the upper segment, C7 persists alone centrally, C8-T1 unite for the lower portion–label each trunk’s diameter (8-12mm) for scale accuracy.

Divide each trunk into anterior and posterior divisions at clavicle level; use color-coding (red for flexor, blue for extensor paths) to distinguish motor fiber destinations–pectoral, subscapular, and deltoid innervation depend solely on these splits.

Fuse divisions into cords relative to the axillary artery: lateral cord (C5-C7 anterior divisions), medial cord (C8-T1 anterior division), and posterior cord (all posterior divisions)–measure 2cm distally from clavicle for precise cord convergence points.

Trace five terminal branches from cords: musculocutaneous nerve (lateral, 15cm length), axillary nerve (posterior, 10cm), radial nerve (posterior, 40cm), median nerve (lateral/medial union, 35cm), and ulnar nerve (medial, 30cm)–verify each branch’s angle (70° for radial, 45° for axillary) against anatomical photos.

Annotate non-terminal branches: suprascapular (C5-C6 roots), dorsal scapular (C5), long thoracic (C5-C7), and medial pectoral (C8-T1)–record their origins at root/trunk junctions to avoid misplacement.

Cross-reference nerve pathways with muscle innervation: anterior division fibers supply flexors (biceps, pronators), while posterior division fibers target extensors (triceps, wrist extensors)–include muscle insertion points for functional correlation.

Validate the finished layout with a checklist: root-to-terminal continuity, correct branch angles (

Critical Nerve Origins and Their Distal Extensions in the Upper Limb Neural Network

Isolate C5–T1 roots with precision during assessment. Use dermatome mapping to distinguish contributions: C5 (lateral arm sensation), C6 (radial forearm and thumb), C7 (index and middle fingers), C8 (ring and little fingers), and T1 (medial forearm). Confirm via motor testing–C5 (shoulder abduction), C6 (elbow flexion), C7 (elbow extension), C8 (finger flexion), T1 (finger abduction)–to avoid misdiagnosis of peripheral lesions versus proximal pathology.

Three trunks converge into six divisions, but their terminal branches dictate functional impact. The upper trunk’s anterior division forms the lateral cord, yielding the musculocutaneous nerve (C5–C7) for biceps and brachialis control–test elbow flexion with supination resistance to confirm integrity. The posterior cord divides into axillary (deltoid/teres minor) and radial nerves; check radial pulse with axillary block to ensure surgical safety before deltopectoral approaches. The medial cord’s median and ulnar nerves require separate evaluation: Phalen’s test for carpal tunnel, Froment’s sign for ulnar compromise.

Prioritize mixed-nerve branches in surgical planning. The median nerve (C6–T1) innervates forearm flexors and thenar muscles–preserve the anterior interosseous branch during volar wrist procedures to avoid pinch-grip deficits. The ulnar nerve (C8–T1) governs intrinsic hand muscles; avoid medial epicondyle traction during cubital tunnel release to prevent neuropraxia. Radial nerve (C5–T1) splits into deep motor (extensor muscles) and superficial sensory branches–identify the arcade of Frohse as a compression site in posterior interosseous syndrome.

Document variable anastomoses preoperatively. Martin-Gruber connections (between median and ulnar nerves) occur in 15–30% of limbs–stimulate the median nerve at the wrist; if ulnar-innervated muscles contract, adjust intraoperative monitoring. Riche-Cannieu anastomosis (thenar motor crossover) risks misinterpretation during thenar EMG–compare median and ulnar CMAPs for accurate localization. For traumatic injuries, map sensory territories with Semmes-Weinstein monofilaments to distinguish root avulsions from distal ruptures.

Step-by-Step Guide to Illustrating Nerve Pathways: Key Structures and Precision Labeling

Begin with a base sketch of the axilla and upper limb skeleton–clavicle, scapula, humerus, and ribs–using light, erasable strokes. Position the first cervical vertebra (C5) at the midpoint of the clavicle’s inferior border, ensuring the distance between C5 and the acromion equals the width of three fingerbreadths. T1 should align horizontally with the sternal angle, forming a 15-degree upward angle from C8 to avoid compression artifacts in the illustration.

Trace the primary nerve trunks divergently: the upper division starts at C5-C6, the middle at C7, and the lower at C8-T1. Maintain a 2:1 ratio between the upper and lower trunks’ lengths, with the angle of divergence not exceeding 30 degrees from the vertical axis. Label trunks immediately after sketching–use 8-point Helvetica for consistency–placing text 3 mm from the nearest nerve branch to prevent overlap.

Divide each trunk into anterior and posterior divisions at a point equidistant from the origin and termination. The anterior divisions should curve medially toward the coracoid process, while posterior divisions descend vertically before veering laterally. Use a dashed line for posterior divisions to differentiate them from continuous anterior paths without relying on color.

Converge divisions into cords at the mid-humeral line: lateral cord from the anterior upper and middle divisions, medial from the anterior lower, posterior from all three posterior divisions. Position the lateral cord 5 mm lateral to the axillary artery, the medial cord directly posterior to it, and the posterior cord 8 mm inferior-lateral to the artery’s midpoint. Label cords with uppercase letters (L, M, P) to minimize visual clutter.

Extend terminal branches from cords at 90-degree angles for the musculocutaneous, median, and ulnar nerves, and 45-degree angles for the axillary and radial nerves. The musculocutaneous nerve routes superior-laterally toward the coracobrachialis muscle belly, while the median nerve descends along the brachial artery’s medial border. Mark branch origins with 1 mm dots and label after confirming alignment with anatomical landmarks (e.g., median nerve bifurcation at the cubital fossa).

Incorporate lesser-known branches–lateral pectoral nerve from C5-C7, medial cutaneous nerves of the arm and forearm–using thinner lines (0.3 mm) and italicized labels. Place the medial cutaneous nerve of the forearm 2 cm distal to the medial epicondyle, ensuring it does not intersect the ulnar nerve’s path. For the posterior cord branches, draw the thoracodorsal nerve horizontally at the level of the scapular spine, and the upper subscapular nerve vertically toward the subscapularis muscle.

Verify anatomical accuracy by cross-referencing nerve terminations with muscle insertion points: the axillary nerve exits posteriorly at the surgical neck of the humerus, while the radial nerve spirals along the radial groove. Use grid paper or digital overlays to maintain proportional distances–1 cm on the illustration should equal 2.5 cm in cadaveric measurements. Label terminal branches last, centering text along the nerve’s axis for clarity.

Apply final adjustments: thicken primary nerve pathways to 0.7 mm, secondary to 0.5 mm, and tertiary to 0.3 mm. Add arrowheads to branches longer than 5 cm to indicate directionality. Erase unnecessary construction lines and confirm all labels are legible at 70% zoom. Export as SVG for scalability, ensuring no pixelation occurs when resized to A3 dimensions.
