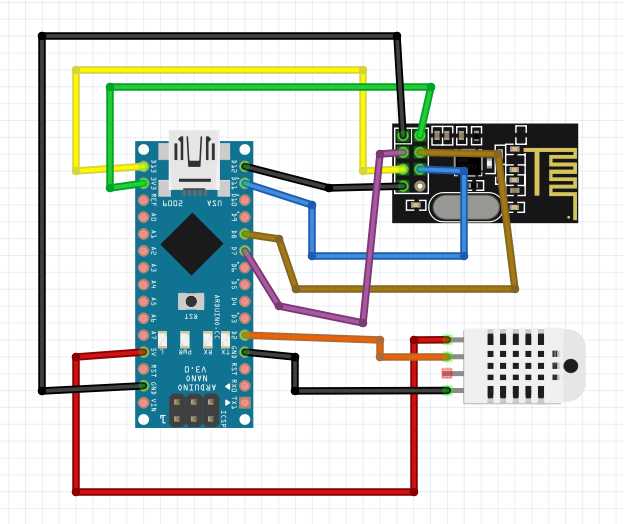

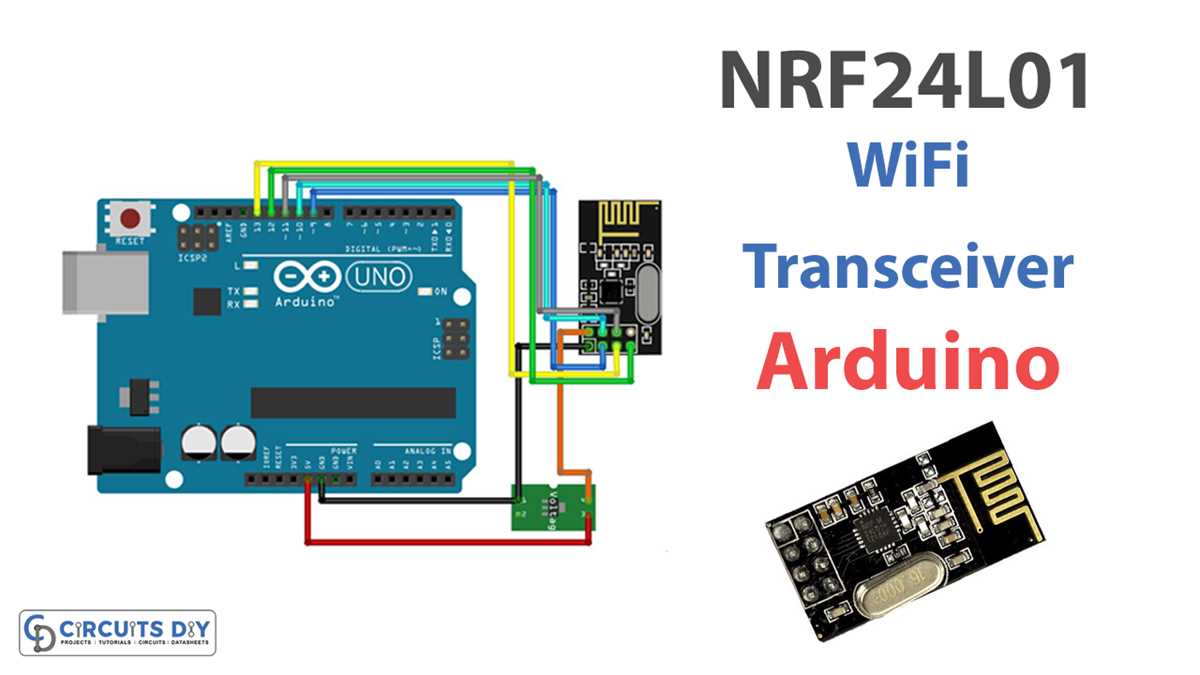

Complete Nrf24l01 Wiring Guide with Circuit Schematic

Begin by ensuring proper power supply stability: the module operates at 3.3V, but its signal pins tolerate 5V logic. Connect VCC to a regulated 3.3V source–avoid direct USB power unless filtered, as noise disrupts communication. For microcontrollers with 5V logic (e.g., Arduino Uno), use a voltage divider or logic level converter on data lines (CE, CSN, SCK, MOSI, MISO) to prevent damage. Ground loops cause signal degradation; tie GND directly to the MCU’s ground plane.

Match SPI pin assignments precisely. For ATmega328-based boards, wire SCK (pin 13), MOSI (pin 11), MISO (pin 12), CE (custom pin, typically D8/D9), and CSN (custom pin, often D10). Misaligned connections waste debugging hours–verify each trace with a multimeter. Use a 0.1µF ceramic capacitor between VCC and GND at the module’s pins to filter transients.

Amplify range with external antennas if needed. The default PCB trace antenna offers 50–100m line-of-sight; soldering a 2.4GHz whip or SMA connector extends this to 300–500m. Reduce interference by spacing the module ≥5cm from metal objects or other RF sources. For outdoor use, waterproof the connection points–oxidation corrupts signals over time.

Test connectivity with loopback code before deployment. Transmit a payload (e.g., “0xAA”) and verify reception on the same unit. Failed transmissions often trace to incorrect channel/frequency configurations; set the same 2.4GHz band and CRC length on all nodes. Use 1Mbps air data rate for reliability–higher speeds increase packet loss.

Practical Wiring Guide for 2.4GHz Wireless Module Integration

Connect the power pin (VCC) directly to a 3.3V regulated source–never exceed 3.6V or risk permanent damage. Use a 10µF capacitor across VCC and GND as close to the module as possible to suppress voltage spikes during transmission bursts. Ground the module to the same plane as your microcontroller to minimize noise interference.

For reliable SPI communication:

• SCK → 10 (max 10MHz clock speed)
• MOSI → 11 (data out from master)
• MISO → 12 (data in to master)
• CSN → 8 (active-low CS)
• CE → 7 (transmit/receive toggle)
• IRQ → leave unconnected unless using interrupts

Keep trace lengths under 10cm when breadboarding. For longer distances, use twisted pairs for SPI signals with the ground wire serving as a shield. Add 1kΩ pull-up resistors to MOSI and SCK if communicating over 30cm to prevent signal degradation.

Power Management and Signal Optimization

Bypass the onboard 100nF capacitor by soldering an additional 4.7µF tantalum capacitor directly between the module’s VCC and GND pads. This prevents brownouts during peak current draw (up to 115mA during transmission). For battery-powered setups, use a low-dropout regulator with at least 300mA capacity and add a ferrite bead on the VCC line to filter high-frequency noise.

To reduce packet loss in noisy environments:

1. Enable dynamic payload length (reduces airtime)
2. Set data rate to 250kbps (most robust setting)
3. Use channel 76 (2.476GHz, least congested)
4. Add 2.2pF capacitors to antenna pins if using a PCB trace antenna
5. Implement CRC-16 for error detection

Position modules at least 20cm apart during testing–RF interference occurs at closer distances even when idle. For multi-node networks, assign unique addresses (5-byte) and enable auto-acknowledgment with a 250µs retransmit delay.

Basic Transceiver Module Pinout and Wiring for Beginners

Connect the VCC pin to a stable 3.3V power source–avoid 5V as it may damage the module. Use a dedicated voltage regulator if your microcontroller only supplies 5V. The GND pin must share a common ground with the power source and microcontroller to ensure proper communication.

Core Wiring Steps

• CE (Chip Enable): Attach to any digital pin on your microcontroller to control transmission/reception.
• CSN (Chip Select Not): Connect to another digital pin to manage SPI communication.
• SCK (Serial Clock): Link to the SPI clock pin (e.g., pin 13 on Arduino boards).
• MOSI (Master Out Slave In): Wire to the corresponding SPI pin (pin 11 on Arduino).
• MISO (Master In Slave Out): Connect to the SPI input pin (pin 12 on Arduino).
• IRQ (Interrupt Request): Optional–use if you need real-time data reception notifications.

Double-check wiring polarity before powering on. Misaligned connections can fry the module or prevent it from functioning.

For reliable performance, keep data lines short (under 10cm) and avoid routing them parallel to high-current traces. Add a 0.1µF decoupling capacitor between VCC and GND, placed as close to the module as possible to filter noise. If using long-range mode, attach a 10µF capacitor to stabilize power delivery.

Common Pitfalls to Avoid

1. Omitting the decoupling capacitor, leading to erratic behavior or failed transmissions.
2. Using breadboards with high resistance–opt for soldered connections or high-quality jumper wires.
3. Ignoring antenna orientation; even small modules require proper alignment for optimal range.
4. Mixing up MOSI/MISO pins, which reverses data flow and causes silent failures.
5. Supplying voltage outside the 1.9V–3.6V range, risking permanent damage.

Test connectivity with basic send/receive sketches before integrating the module into larger projects. Start with default settings (2Mbps, 0dBm) to verify hardware functionality, then adjust parameters like air data rate (250kbps–2Mbps) and power level (0dBm–-18dBm) as needed.

Step-by-Step RF24 Module to Microcontroller Hookup Examples

Begin by connecting the VCC pin to 3.3V on your board. Avoid 5V–most transceiver variants lack onboard regulation and may overheat or fail. If your development kit lacks a 3.3V rail, use an external LDO like the AMS1117-3.3 with a 0.1μF ceramic capacitor on the input and output to stabilize voltage under load.

Ground the module’s GND to the common ground plane. Skipping this step introduces noise, causing dropped packets or erratic behavior. For breadboard setups, ensure both the RF module and microcontroller share the same ground node–split grounds create ground loops, degrading signal integrity.

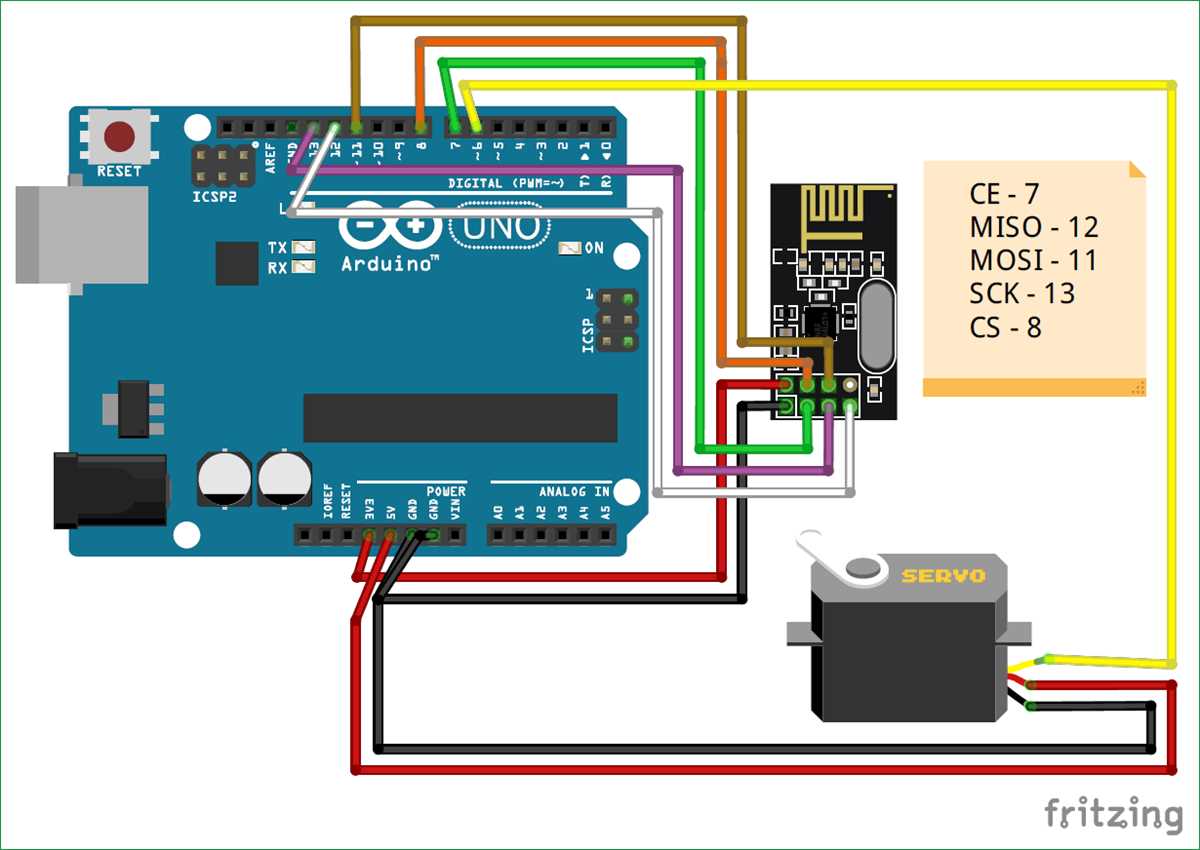

Wire the SPI bus: MOSI to pin 11 (or hardware MOSI pin), MISO to pin 12 (or hardware MISO), and SCK to pin 13 (or hardware SCK). For Arduino Uno, these are fixed; consult the datasheet for other boards. The CE pin (trigger) and CSN (chip select) can use any digital pins–common choices are 7 and 8 for CE and CSN respectively.

Add a 10μF decoupling capacitor across VCC and GND, placed as close to the module as possible. This filters high-frequency noise from power spikes during transmission. For environments with heavy EMI, enclose the entire setup in a grounded metal shield or use ferrite beads on the power lines.

Single-Device Configuration

Load the RF24 library via Arduino IDE (v1.4.9 or later). Initialize the transceiver with:

RF24 radio(CE_pin, CSN_pin);

Set the channel (0-125) to avoid interference; channel 76 is default but often congested in urban areas. Configure the data rate: 250kbps (longest range), 1Mbps (balance), or 2Mbps (fastest but shortest range). Example:

radio.begin(); radio.setChannel(90); radio.setDataRate(RF24_1MBPS);

Dual-Device Communication

Assign one device as the transmitter (radio.openWritingPipe(address)) and the other as the receiver (radio.openReadingPipe(0, address)). Use a 5-byte address (e.g., 0xABCDABCDA7)–avoid repeating patterns like 0x0000000001 or 0xFFFFFFFFFF, which some modules reject. Enable dynamic payloads if packet size varies:
radio.enableDynamicPayloads();

For bidirectional communication, swap roles after acknowledgment:

radio.txStandBy(500); radio.startListening();

Test with a 1-byte payload (bool success = radio.write(&data, sizeof(data))). If writes fail, verify SPI connections, power quality, and address alignment. For debugging, enable auto-acknowledgment (radio.setAutoAck(true)) and check return values. Up to 6 logical pipes can coexist, but ensure each uses a unique address to prevent collisions.

Power Supply Options and Decoupling Capacitors Configuration

Use a stable 3.3V linear regulator like the AMS1117-3.3 or MCP1700 for reliable operation–switching regulators introduce noise that disrupts signal integrity. Bypass the input with a 10μF tantalum capacitor near the regulator, and place a 1μF ceramic at the output pin to suppress high-frequency transients. Avoid long traces between the regulator and load; keep the path under 20mm to minimize inductance.

Decoupling Capacitor Placement

Attach a 0.1μF X7R ceramic directly between the module’s VCC and GND pins, with leads shorter than 5mm–longer traces act as antennas, radiating noise into sensitive RF paths. For enhanced stability, add a 10μF electrolytic in parallel, positioned no farther than 30mm from the power input. Ground both capacitors to a solid plane or star point; shared vias with signal lines degrade performance. Test with an oscilloscope–ripple should stay under 20mV peak-to-peak across the entire frequency range.

Common Antenna Designs and PCB Trace Antenna Layouts

For 2.4 GHz wireless modules, the inverted-F antenna (IFA) offers a balance of compactness and performance, requiring a clearance area of 8×16 mm on a 1.6 mm FR4 substrate with a ground plane cutout beneath the trace. Maintain a feedline width of 0.3 mm to match 50 Ω impedance, tapering to 0.5 mm at the shorting stub positioned 3 mm from the open end. Vias for the stub should be 0.5 mm in diameter, spaced 1 mm from the edge of the trace to minimize parasitic inductance. Copper pour around the antenna must be removed within a 5 mm perimeter to prevent detuning.

Meandered Trace Antenna Parameters

Meandered trace antennas reduce footprint while sacrificing gain; a 4-turn design with 0.5 mm trace width and 0.5 mm spacing achieves -3 dBi gain at 2.45 GHz. Increase turn spacing to 0.8 mm to lower resonant frequency by 80 MHz without altering trace length. A 0.1 mm soldermask opening over the trace improves radiation efficiency by 12% but risks corrosion–use ENIG plating instead of HASL for reliability. The table below summarizes critical dimensions:

Parameter	Value (mm)	Tolerance (±)
Trace width	0.5	0.05
Turn spacing	0.5	0.1
Ground clearance	3	0.2
Stub width	1.0	0.1

Ceramic chip antennas (e.g., Johanson 2450AT43A0100) demand a 1.2 mm wide 50 Ω feedline with a via fence at 1.5 mm pitch to suppress surface waves. Place the antenna 5 mm from any ground plane, routing the feedline perpendicular to the ground edge to avoid coupling. For dipole variants, split the feedline into two 25 Ω traces, each 0.6 mm wide on a 1.6 mm substrate, converging at the antenna pad with a 0.2 mm gap. Test impedance with a VNA at 100 MHz intervals to verify
