1993 Ford Tempo GL Brake Line Routing and Connection Guide
The hydraulic pressure distribution network for this model follows a split-system design with a primary diagonal routing. The front-left and rear-right circuits share one branch, while the front-right and rear-left form the opposing diagonal. This arrangement ensures partial functionality if one circuit fails, though stopping distances will increase by 30–50% as documented in owner manuals from that year.
Locate the master cylinder assembly beneath the hood, mounted to the firewall on the driver side. Two independent chambers feed separate 3/16-inch copper-nickel pipes exiting the unit. Follow each pipe downward; the left line immediately splits to the front caliper and rear drum wheel cylinder via a proportioning valve bolted to the frame rail near the rear axle. The right line mirrors this path, extending to the opposite corners through similar splits and fittings.
Inspect the junction blocks carefully, particularly the brass fittings at each caliper and drum cylinder. Corrosion typically develops at these connection points, causing internal leaks. Use flare-nut wrenches (11mm and 13mm) to avoid rounding fittings during disassembly. Replace any sections showing wall thinning or brass discoloration immediately–standard copper-nickel replacements (P/N 3803255) are available through aftermarket suppliers.
Bleeding sequence requires starting at the wheel cylinder furthest from the master cylinder, progressing in order of increasing proximity. Rear drums demand a modified bleed procedure: open the bleeder valve while an assistant lightly taps the backing plate to dislodge trapped air bubbles, then close the valve promptly after fluid flows free of air. Caliper bleeding follows conventional two-person or vacuum pump methods.
Verify proper valve calibration after any hydraulic system service. The combination valve integrates pressure-sensitive metering, ensuring rear drums receive reduced force during light braking to prevent premature lockup. Test calibration dynamically by driving at 30 mph on dry pavement, applying steady pedal pressure–rear wheels must lock marginally after front wheels. Adjust the valve using the 5mm hexagonal adjuster accessible beneath the vehicle near the rear axle if this sequence is reversed.
Hydraulic Pipe Routing Layout for the 1993 Tempo GL
Locate the master cylinder at the firewall on the driver’s side; it connects via two primary tubes–one routed to the left front wheel and the other split toward the rear wheels. Replace corroded tubes immediately; the GL’s routing includes a 3/16-inch steel line from the master to the proportioning valve, then splits into 1/4-inch lines for rear wheels. Consult a vacuum-pressure bleed sequence if pedal feel is spongy–start at the wheel furthest from the master.
Critical Junctions and Valve Positions
- Proportioning valve sits under the master cylinder, attached to the firewall bracket–verify its locknut is torqued to 15-18 ft-lbs to prevent leaks.
- Twist-mount clips along the frame rails secure tubes–inspect clips at 12-inch intervals to avoid vibration chafing.
- ABS module (if present) integrates near the right rear wheel well–bypass it only after verifying no fault codes; flushing requires a scan tool to cycle the pump.
Front calipers receive fluid through separate 3/16-inch pipes; the left pipe crosses above the transmission pan, secured by a single 10mm bolt near the starter. Rear pipes merge at a tee fitting beneath the driver’s seat, then continue as a single 1/4-inch line to each drum assembly. Replace any fitting with a flare angle exceeding 45 degrees–OEM spec demands 37 degrees for proper sealing.
Flush the entire circuit every 30,000 miles using DOT 3 fluid matched to the original factory spec (SAE J1703 compliant). Pressure-bleed the system with an adapter at the master cylinder; maintain 10-15 psi to avoid introducing air into the ABS module. For drum rear assembly, crack the bleeders in a diagonal sequence–left rear first, followed by right front–to ensure consistent hydraulic balance.
Key Elements in the Hydraulic Circuit of a 1993 Tempo GL
Locate the master cylinder first–mounted on the firewall, driver’s side, beneath the brake booster. It has two outlets: the upper feeds the front circuit, while the lower connects to the rear. Verify the dual-chamber design; failure in one should not compromise the other entirely. Replace it if leaks appear at the ports or if pedal feel becomes spongy after bleeding.
Trace the rigid tubes from the master cylinder to the proportioning valve. The valve, a small inline component near the firewall, regulates pressure between front and rear wheels. Observe its brass body and two inlet/outlet pairs; corrosion here often causes uneven stopping. Clean threads with a wire brush before disconnecting to prevent damage.
Flexible hoses link rigid tubing to wheel cylinders and calipers. On the Tempo GL, the front hoses attach to the strut-mounted brackets, while the rear ones connect near the axle. Check for cracks, bulges, or soft spots–any sign mandates replacement. Use stainless steel braided replacements if original rubber degrades within three years, despite OEM claims of longevity.
Wheel cylinders at the rear drums require annual inspection. Slide the drums off to expose the cylinders; leaks at the boots or pistons are visible as wet, dark stains. Lubricate the adjusters with silicone grease during reassembly to prevent seizure. If leakage persists, rebuild kits are available, though complete replacement is often simpler.

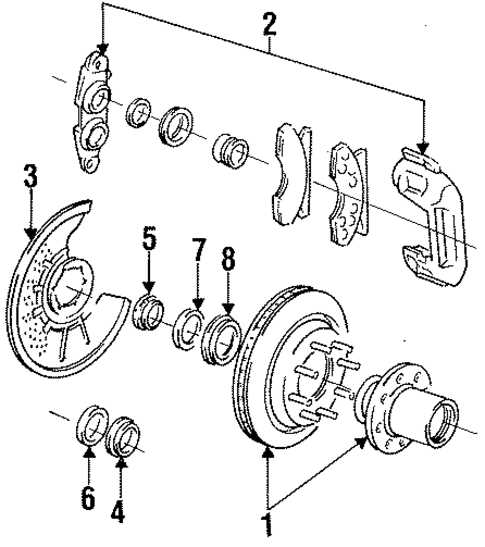

Calipers on the front discs should slide freely on their pins. Remove the pins, clean with brake cleaner, and apply fresh synthetic grease to ensure smooth operation. Pads must retract fully when released; if not, caliper pistons may be seized. Compressed air can force sticky pistons back, but corrosion usually demands rebuild or replacement.
How to Interpret Hydraulic Circuit Blueprints for Servicing
Locate the master cylinder connections first–typically marked with “Front” and “Rear” ports on the left side of the layout. The rear circuit splits into two branches: one feeds the right caliper through a metering valve (identifier MV-1), while the other routes to the left via a proportioning valve (PV-2). Measure resistance at each junction with a multimeter set to 200Ω; readings above 5Ω indicate corrosion requiring immediate replacement of the affected segment. Use color-coded tubing (white for primary, yellow for secondary) to trace leaks–pressurize the system at 800 psi and check for seepage at each fitting.
Replace flared fittings with double-walled steel tubing (0.25″ OD) if the original nylon-coated lines show pinholes–cut 1/8″ longer than the old section to accommodate compression nuts. Secure the front wheel circuit at three points: near the strut tower (clip C-12), beneath the engine cradle (hanger H-5), and adjacent to the caliper (bracket B-7). Bleed air in this sequence: master cylinder → proportioning valve → metering valve → calipers–use a scan tool with ABS functionality to cycle the pump between each step.
Identifying and Swapping Corroded Hydraulic Conduits on a Early ’90s Mid-Size Sedan
Start beneath the driver-side rocker panel–common failure zones hide behind the plastic shield near the rear wheel well. Use a flashlight to spot white crust or flaking metal; these signal terminal oxidation. A 10mm wrench removes retaining clips securing the conduit to the chassis. Note the routing: OEM paths snake forward, then upward toward the master cylinder, avoiding sharp bends that kink aftermarket tubing.
Measure existing sections with a cloth tape prior to cutting. Four-foot rolls of Bundy tubing (.25″ OD, SAE 45-degree inverted flare) work for most replacements. Cut with a tubing cutter–hacksaws leave burrs that block flow. Deburr inside edges with a cone-shaped tool, then slide a flare nut over the tube before forming the flare. A manual flaring tool with a double-lap adapter ensures leak-proof joints. Torque new fittings to 12-15 ft-lbs; over-tightening cracks brass seats.
Bench-bleed the new segment before installation. Fill a spare master cylinder reservoir, attach a short length of tubing to the open nipple, and submerge the other end in the fluid. Pump the cylinder until bubbles cease, then cap the nipple with a flare fitting. This prevents air locks when reconnecting to the hydraulic circuit. Route new tubing along factory brackets, securing every 12 inches with OEM-style clips. Avoid twisting; misaligned flares leak under pressure.
Pressure-test after assembly. Have an assistant depress the pedal while you inspect each joint with soapy water–bubbles indicate leaks. Focus on flare seats and unions near heat shields; these areas trap moisture and fail first. Replace any suspect flex hoses simultaneously; age brittleness compromises safety margins. Drive 100 miles, recheck torque, then seal conduit exteriors with rust-inhibiting spray wax.
Essential Equipment and Connections for Hydraulic Tube Renewal on a 1993 Tempo Variant
Begin with a flare nut wrench set–10mm, 11mm, and 12mm are non-negotiable for loosening seized fittings without rounding edges. Standard open-end wrenches risk stripping fasteners, particularly on aged tubing junctions. Include a backup crow’s foot adaptor for confined spaces behind the engine bay firewall.
Secure tubing cutter with rollers instead of a hacksaw; clean cuts prevent internal burrs from obstructing fluid flow. A deburring tool follows immediately–failure risks damaging slave cylinder seals during reattachment. For stainless replacements, an anodized tubing bender (3/16″ OD) ensures precise bends without kinks that throttle pressure.
| Component | Critical Specifications | Recommended Brand/Model |
|---|---|---|
| Double-flare tool | Accepts 3/16″ and 1/4″ tubing; hardened steel dies | Eastwood #21090 |
| Hydraulic pressure tester | 0-2,000 psi range; glycerin-filled gauge | OTC #4510A |
| Bubble-free fluid bleeder | Vacuum pump attachment; venturi design | Motive Products EBB-1 |
New OEM-style copper washers for bolted connections–the 15mm crush washer under the master cylinder reservoir cap is often overlooked yet causes slow-pressure leaks. Count three per caliper, one per proportioning valve junction. Apply anaerobic sealant sparingly on tapered threads to prevent seepage without contaminating the system.
Protective caps for open ports during swaps–magnetic covers prevent debris from entering calipers. Temporary plastic plugs from dismantled fuel injectors work in a pinch but verify compatibility with DOT 3 fluid resistance before reuse. Gloves must be nitrile; latex dissolves on contact, leaving sticky residue that bonds tubing walls.
Torque specifications demand a 3/8″ drive click-type wrench: master cylinder mount bolts to 25 ft-lbs, caliper bracket bolts to 70 ft-lbs, and tubing nuts to 14 ft-lbs. Over-tightening risks shearing hollow steel fittings–a common failure point during winter freeze-thaw cycles.
Fluid storage requires dedicated sealed containers; polyethylene jugs leach plasticizers, compromising lubricity. Use purpose-built 1-quart reservoirs with child-resistant caps to comply with EPA disposal guidelines. Pre-fill all new tubing with fresh fluid to displace air pockets before final torque-down; gravity bleeding alone rarely purges valve block passages.
Final inspections mandate a road test progression: 3 mph stops to verify initial bite, then 30 mph panic stops on loose gravel to confirm proportional valve response. Check junction tightness immediately post-test–thermal expansion loosens connections by 5-7%.
