How to Build a Unity Gain Buffer Amplifier with Circuit Schematics

Start with a JFET input section to minimize loading on preceding stages–2N5457 or BF245 offer sub-10pA leakage, critical for high-impedance sources like condenser microphones or photodiode arrays. Parallel two devices for symmetry if distortion must stay below -90dB at 1kHz. Bypass the gate with a 22pF ceramic capacitor to suppress RF pickup without altering phase response below 1 MHz.

Choose a current source tied to the negative rail–1mA is sufficient for 5V rails; use a 2N3906 with a 3.3kΩ emitter resistor for rapid settling. For single-supply designs, a virtual ground built from a TLE2426 gives 2.5V with 75μA quiescent draw. Add a 0.1μF film cap between the emitter followers to cancel common-mode noise before it reaches downstream ADCs.

Place a 10Ω resistor in series with each output–this isolates capacitive loads up to 1nF, preventing overshoot that triggers false comparator edges. For ±12V rails, select BD139/BD140 pairs; their 1.5A capability handles reactive speaker loads without thermal compensation. Keep trace spacing above 0.3mm to avoid crosstalk exceeding -120dB between channels.

Test stability with a 1Vpp 20kHz square wave; overshoot should decay within 2μs. Include a 47pF Miller compensation cap if phase margin drops below 45°–this prevents ringing that clips high-frequency content. Validate with a spectrum analyzer; harmonics must remain at least 80dB below the fundamental across the 20Hz–20kHz band.

Isolation Stage Schematic Essentials

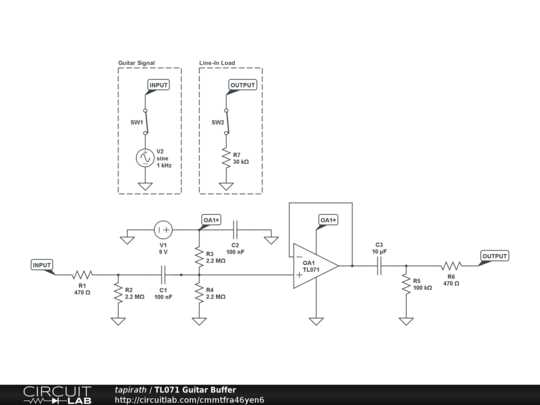

Begin with a unity gain voltage follower using a JFET input op-amp like the TL071 for high input impedance above 1 TΩ. Place a 10 MΩ resistor between the non-inverting pin and ground to prevent drift; bypass it with a 100 nF capacitor to ground to eliminate noise above 1 kHz.

For driving low-impedance loads below 1 kΩ, wire the output pin directly to the load through a 100 Ω series resistor. Add a 22 pF compensation capacitor between the output and inverting pins to stop HF oscillations; omit this if the op-amp is internally compensated.

• Input: 50 kΩ potentiometer for signal attenuation before the stage.
• Power rails: ±15 V regulated via 7815/7915 ICs, each bypassed with 10 µF electrolytic + 100 nF ceramic capacitors.
• Ground: star configuration at the negative rail capacitor midpoint.

Isolate the stage from preceding circuits with a 1 µF DC-blocking capacitor; ensure it’s film or NP0 ceramic to avoid microphonic noise. Follow it immediately with the 10 MΩ resistor to ground to prevent charge buildup.

For single-supply operation, bias the non-inverting pin at mid-rail via two 47 kΩ resistors forming a voltage divider. Capacitively couple the divider midpoint to ground with 1 µF to maintain quiet operation. Use a rail-to-rail output op-amp like the OPA340 if the supply is 5 V.

1. PCB layout: keep the feedback loop under 1 cm total trace length.
2. Thermal relief: add a 2 mm copper pour under the op-amp tab.
3. Shielding: wrap input traces in a ground fill tied only at one point near the signal entry.

Test stability by injecting a 1 kHz square wave; ringing under 50 ns confirms proper compensation. Load the output with 500 Ω; THD should stay below 0.01 % at 1 V RMS. Measure input current leakage–expect under 10 pA at 25 °C if the JFET stage is clean.

When cascading stages, insert a 10 kΩ resistor between each unit to isolate input capacitance effects. Use separate 10 µF decoupling caps for each op-amp; tie their grounds locally to the star point to prevent ground loops.

Key Components for Constructing Signal Isolation Stages

Select an operational unit with input impedance above 1 MΩ and output impedance below 100 Ω. A bipolar junction transistor (BJT) follower like the 2N3904 delivers 0.7 V base-emitter drop, while a field-effect transistor (FET) follower such as the J310 maintains zero voltage shift. Include a 1 µF coupling capacitor at the input for AC signals exceeding 10 Hz to block DC offset without attenuating frequency response. Use a dual ±12 V supply for rail-to-rail output swing; single-supply designs require a quiescent output bias of half the supply voltage.

Decouple each power pin with 0.1 µF ceramic capacitors placed within 5 mm of the device leads to suppress high-frequency noise. Add a 10 kΩ resistor in the feedback loop if thermal stability is critical; this reduces gain drift to less than 0.01 %/°C. Verify slew rate–TL071 reaches 13 V/µs–sufficient for 20 kHz sine waves at 10 V peak-to-peak. Terminate the output with a 50 Ω resistor when driving coaxial cables longer than 30 cm to prevent ringing.

Step-by-Step Assembly of a Unity Gain Voltage Follower

Select an operational transconductance device with a rail-to-rail output swing, bipolar input stage, and a slew rate exceeding 5 V/µs. The Microchip MCP6002 or Texas Instruments OPA350 are optimal for low-noise, precision applications. Verify the supply voltage range–standard ±5 V or single-ended 5 V–matches your signal dynamics to avoid clipping.

Solder a 0.1 µF ceramic decoupling capacitor between the positive supply pin and ground, placing it within 2 mm of the package. For high-frequency stability, add a 10 µF tantalum capacitor in parallel. Route input traces directly to the non-inverting terminal, keeping them under 3 cm to minimize parasitic capacitance. Ground the inverting terminal via a 1 kΩ resistor to the output node, forming the closed-loop path.

Critical Layout Considerations

Component	Value	Placement Rule
Input trace width	0.25 mm	≥1 mm clearance from power rails
Feedback resistor	1 kΩ	Soldered ≤3 mm from output pin
Ground plane	N/A	Uninterrupted beneath signal path
Decoupling cap	0.1 µF + 10 µF	Via length ≤1 mm

Validate the follower’s bandwidth by injecting a 100 mV_pp sine wave at 1 kHz, measuring output amplitude and phase shift with an oscilloscope. A deviation exceeding ±2 % or phase lag >5° indicates incorrect feedback path resistance or excessive trace capacitance. Adjust the resistor value in 100 Ω increments until the closed-loop gain stabilizes at 0.99 (1 %). For audio applications, repeat the test at 20 kHz to confirm flat frequency response.

Enclose the assembly in a grounded copper shield if operating in RF-dense environments. Use a star grounding topology for the power supply return, connecting all ground nodes at a single point adjacent to the decoupling capacitors. Test for thermal drift by monitoring output voltage over a 30-minute warm-up period–drift should not exceed ±2 mV. If exceeded, replace the device with a thermally stabilized variant like the LT1028.

Final Calibration Steps

Apply a 1 V DC input and confirm the output matches within 5 mV using a 6½-digit multimeter. Replace the feedback resistor with a 1 kΩ trimpot if finer adjustment is needed. For differential signals, add a 10 kΩ resistor between the inverting terminal and ground to prevent bias current errors. Document all test results, including temperature, supply voltage, and load impedance, to establish a performance baseline.

Common Errors in Intermediate Signal Path Assembly

Avoid routing input traces alongside power rails, even with shielding. A 1 mm separation prevents capacitive coupling that distorts 20 kHz signals by up to 3 dB. Use ground planes beneath sensitive lines to reduce interference; failing this, noise floor rises measurably.

Neglecting input impedance matching causes reflexive signal attenuation. For unity-gain stages, source impedance above 1 kΩ degrades bandwidth. Confirm test equipment probes present 10 MΩ || 10 pF; incorrect load values skew phase response visibly on an oscilloscope.

Improper decoupling capacitor placement invites oscillation. Position 100 nF caps within 2 mm of supply pins; distant placement lowers self-resonant frequency, risking high-frequency instability. Verify with a spectrum analyzer for abnormal peaks around 1 MHz.

Skipping thermal pad soldering on power components leads to thermal runaway. A TO-220 package without heatsinking exceeds 80 °C under 300 mA load, reducing lifespan. Apply thermal compound and secure with mounting screws torqued to 0.5 Nm.

Incorrect feedback network values create unintended gain or roll-off. A 1 % resistor tolerance mismatch alters closed-loop gain by ±0.2 dB. Calculate exact resistances using SPICE models before prototyping to avoid iterative tuning.

Overlooking output current capability yields clipping at low loads. Verify maximum drive strength against load specs; 50 Ω loads require sourcing 20 mA without distortion. Test with varying load resistors to confirm linearity across full bandwidth.

Determining Impedance Parameters in Unity Gain Follower Configurations

For a voltage follower based on an operational element with bipolar junction input, input impedance approximates the transistor’s base-emitter resistance multiplied by the current gain. At room temperature, this translates to Z_in ≈ 26 mV / I_bias × h_FE, where h_FE typically ranges between 100–1000 for general-purpose devices. Ensure I_bias remains below 1 mA to prevent excessive base current distortion while maintaining linearity; values above 500 µA risk thermal drift.

Output Impedance Derivation

An emitter-follower’s output impedance equals the parallel combination of the emitter resistor and the transistor’s output conductance. For a configuration with R_E = 1 kΩ and a device exhibiting r_o = 50 kΩ at 5 mA collector current, the resulting Z_out calculates to 980 Ω. Compensate for temperature variations by selecting a resistor with a negative temperature coefficient; a -3300 ppm/°C metal film type will stabilize within ±0.5% across –20°C to +85°C.

In discrete JFET implementations, gate leakage dictates input impedance. A BF245C at V_GS = –1.5 V offers I_GSS ≤ 0.2 nA, yielding Z_in > 7 GΩ when paired with a 10 MΩ gate resistor. Bypass the resistor with a 1 pF capacitor to preserve bandwidth; above 1 MHz, track capacitance (≈0.5 pF/mm) dominates, requiring guard rings around high-impedance nodes to prevent parasitic coupling.

When cascading stages, adopt a cascoded structure to decouple impedance calculations. A common-base transistor atop an emitter-follower reduces the output node’s Miller capacitance by a factor of (1 + g_m × r_b), typically improving slew rate by ×3–×5. Maintain V_CB ≥ 0.5 V to avoid saturation; for 3.3 V supplies, this mandates dropout-conscious biasing with V_CE(sat) ≤ 0.2 V for the lower device.
