How to Read and Connect Your Ebike Controller Wiring Schematics

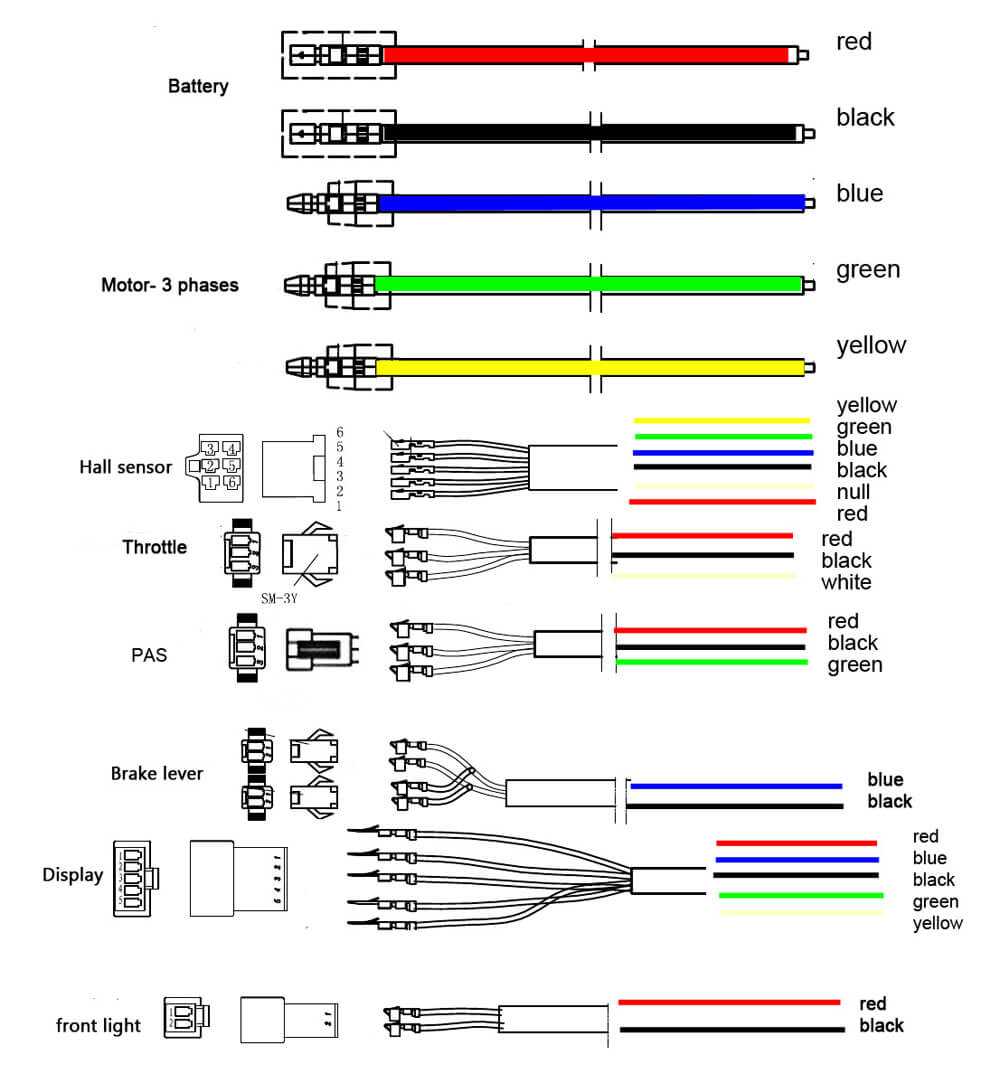

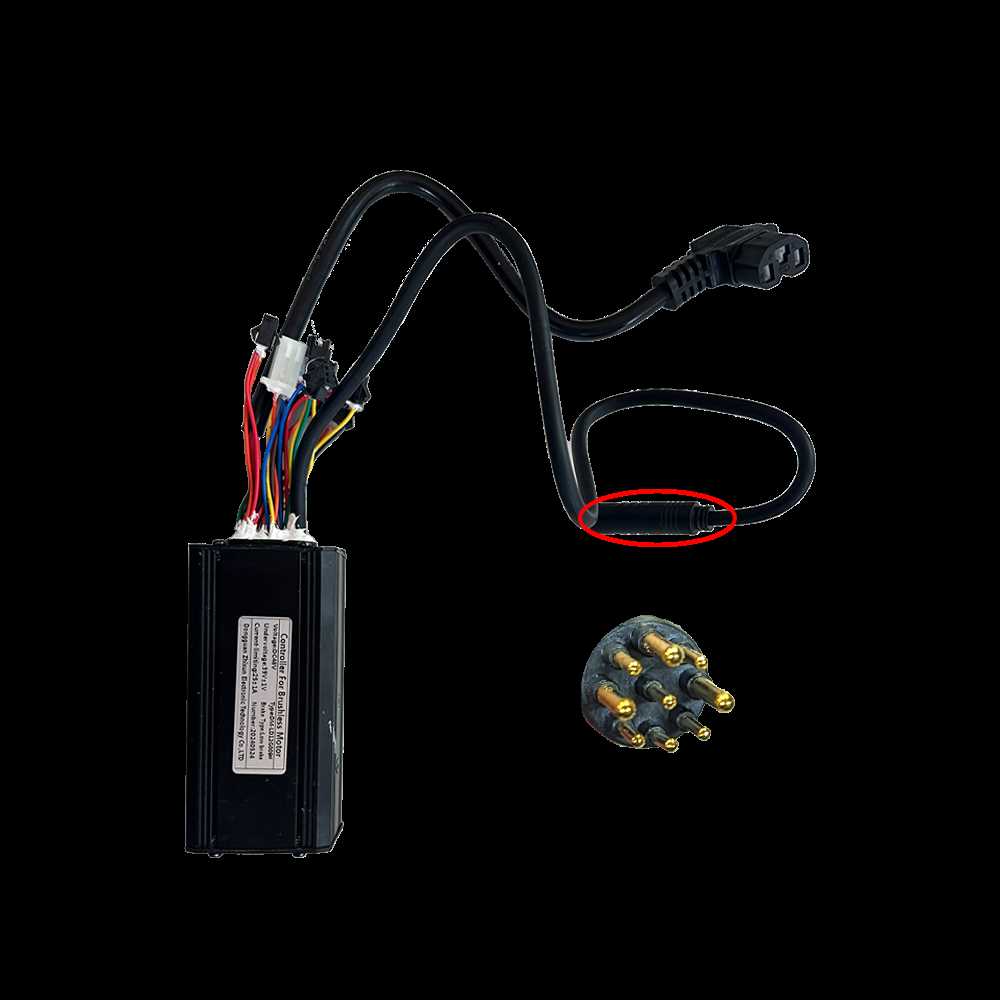

Start by identifying the three core components: the motor hub, battery pack, and speed regulator. Most 36V or 48V setups use a Hall sensor motor, requiring a 6-pin connector for phase wires and sensors. Match each wire color to the regulator’s labeled inputs–typically red for power, black for ground, and yellow/blue/green for sensor signals. Reversing phase wires will spin the motor backward, while incorrect sensor wiring causes erratic behavior or failure to start.

Measure voltage between the battery’s positive terminal and regulator’s power input before connecting. A drop below 30V on a 36V system indicates weak cells or poor contact. Use 14-16 AWG silicone-insulated wire for high-current paths (battery to regulator) and thinner 18-20 AWG for sensor lines. Secure all joints with heat-shrink tubing and solder for durability; avoid electrical tape in moving parts.

Check for loose connections by gently tugging each wire after assembly. Vibration from rough terrain can dislodge poorly crimped terminals, leading to intermittent power loss. Install a 30A fuse between the battery and regulator to prevent fire hazards. For throttle-based systems, ensure the twist-grip’s 1-4V output aligns with the regulator’s input range–mismatches cause uncontrolled acceleration.

Test the setup on a stand before riding. Spin the wheel by hand and observe smooth motor engagement. If the hub stutters or jerks, swap two phase wires to correct timing. For pedal-assist systems, verify sensor alignment–misaligned magnets on the crankarm cause delayed or abrupt power delivery. Always disconnect the battery before making adjustments to avoid short circuits.

Understanding Motorized Bike Electrical Connections

Connect the throttle to the designated input port–typically marked TH or T–using a 3-wire harness (red for power, black for ground, and green or yellow for signal). Ensure the voltage matches your system’s requirements (36V, 48V, or 52V) to prevent damage. For sensors like torque or cadence, align the colored wires per the manufacturer’s pinout: red to 5V+, black to ground, and blue or yellow to signal. Misalignment risks incorrect readings or system failure.

Critical Safety Checks Before Powering On

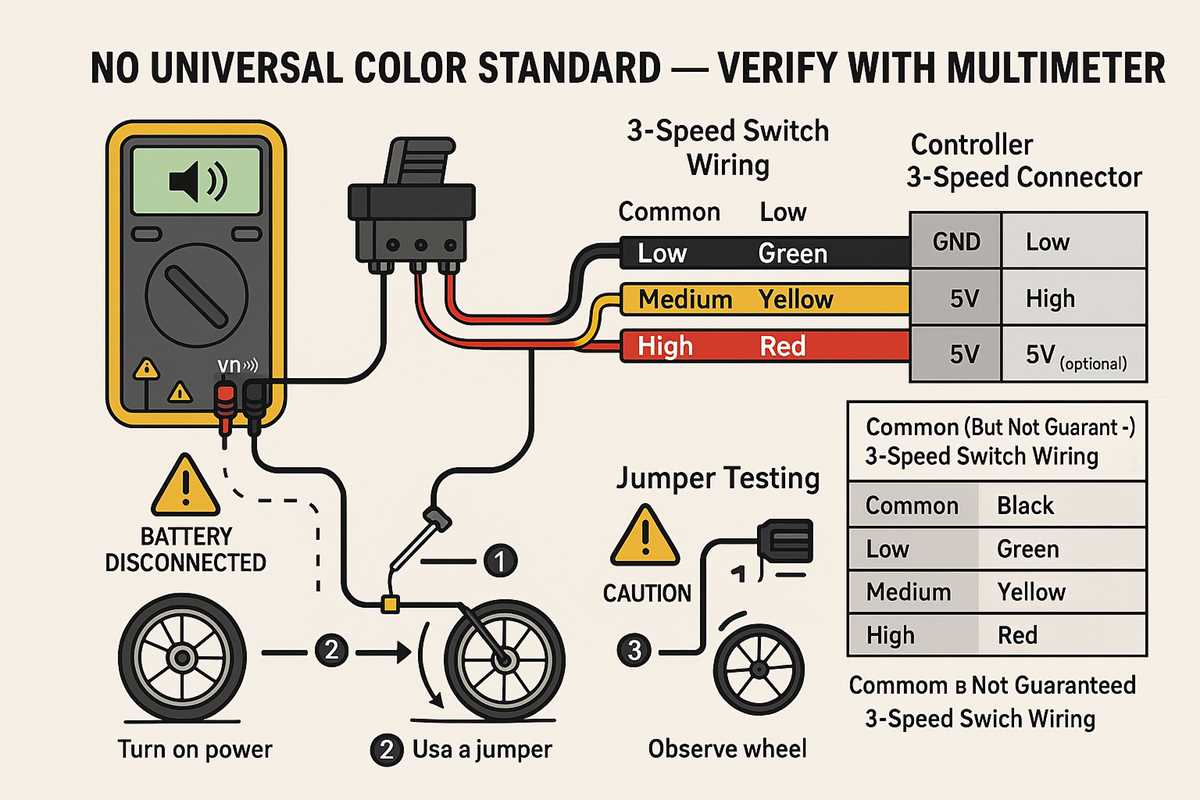

Insulate all exposed connections with heat shrink tubing or electrical tape to avoid short circuits, especially in wet conditions. Test continuity with a multimeter: probe the battery’s positive and negative terminals to confirm no unintended paths exist. Verify the brake cutoff switch engages by pulling the lever–current should drop to zero. Overlooking this step may lead to uncontrolled acceleration or fire hazards.

Critical Parts of a Power-Assist Bicycle Control System Layout

Select a microprocessor unit with at least 16 MHz clock speed and 64 KB flash memory for smooth throttle response and real-time torque sensing. Brands like STM32F103 or ATmega328P handle PWM outputs efficiently while processing Hall sensor feedback within 2 milliseconds. Ensure the chip supports SPI or I2C protocols for seamless integration with battery management modules.

Use MOSFET transistors rated for 100V and 40A continuous current in an H-bridge configuration to regulate motor phases. IRFB4110 or IPB017N10N3 models offer low RDS(on) resistance, reducing heat buildup during acceleration. Pair these with fast-recovery diodes (e.g., MUR1560) to clamp voltage spikes exceeding 50V, protecting the circuit from inductive kickback during regenerative braking.

Integrate a 200 μF 100V electrolytic capacitor on the input stage to filter sudden voltage drops when the motor draws peak currents above 30A. Add a 0.1 μF ceramic capacitor across each MOSFET gate-source junction to suppress high-frequency noise, preventing false triggers during rapid commutation cycles. Place capacitors within 2 cm of their respective components to minimize trace inductance effects.

Opt for waterproof connectors with gold-plated contacts (e.g., Molex Micro-Fit or JST PH series) to prevent corrosion in humid conditions. Use 18 AWG silicone-insulated wire for throttle and brake signals, and 12 AWG for motor-phase connections to handle thermal stress during sustained 20-minute rides at 25°C ambient temperature. Secure connections with heat-shrink tubing rated for -40°C to 125°C to avoid cold-flow failures at subzero temperatures.

Implement hardware overcurrent protection using a 10A resettable fuse and a shunt resistor (0.001 Ω) monitored by a dedicated ADC channel on the processor. Add a 5V linear regulator (e.g., LM7805) with a 10 μF output capacitor to stabilize logic supply voltage under load transients. Include a thermistor (10kΩ NTC) mounted near the power stage to disable the system if temperatures exceed 85°C, preventing thermal runaway in high-discharge scenarios.

Step-by-Step Guide to Connecting Magnetic Encoders to Motor Control Units

Locate the encoder harness on the motor–typically a bundle of five thin wires exiting near the axle. Trace these to their connector, noting the color coding: often red (power), black (ground), and three signal wires (yellow, green, blue). Verify the sequence matches the control unit’s input pinout; discrepancies require re-mapping or adapter cables.

Identify the control unit’s encoder port–usually a 5-pin JST or Molex header labeled “HALL,” “SENSOR,” or “ENC.” Cross-reference the pinout with the motor’s wiring: power (+5V) and ground must align, while signal wires may follow direct (yellow→A, green→B, blue→C) or swapped configurations. Use a multimeter to confirm voltage on the power pin before connection.

Insert connectors with firm pressure–partial engagement risks intermittent faults. Secure with zip ties or clips near strain points; encoder signals degrade from vibration. For waterproof systems, apply dielectric grease to contacts and sheath connectors in heatshrink tubing before final assembly.

Troubleshooting Signal Errors

• No Power: Check for +5V at the motor’s red wire. If absent, test the control unit’s output; a blown fuse or faulty regulator requires replacement. For external power sources, verify voltage drops across the harness–exceeding 0.1V indicates corrosion or undersized wiring.
• Phase Mismatch: Swap signal wire pairs (e.g., yellow/green) if the motor stutters or spins backward. Document changes to avoid repeated trials; some motors use inverse Hall sequencing (blue→A, yellow→B, green→C).
• Intermittent Cutouts: Probe signal wires for voltage fluctuations (2.5V–5V pulses). Noise-induced faults stem from unshielded cables–reroute away from high-current lines (battery, throttle) or add ferrite chokes near the control unit.

Calibrate the control unit’s firmware post-connection. Most systems offer an auto-detection feature (trigger via control panel or diagnostic app) to align encoder timing with motor phases. For custom builds, manually adjust commutation delay–incorrect settings cause excessive heat or erratic torque.

Seal connections with adhesive-lined heatshrink after testing. For field repairs, use 0.5mm² silicone wire and crimp connectors; tin solder joints thinly to prevent brittleness. Label each terminal with permanent marker or color-coded sleeves–sketch a reference diagram for future disassembly.

Validation Checklist

1. Spin the motor manually: encoded systems should generate distinct clicks per signal pulse (count pulses per revolution–typically 6–24 for mid-drive motors).
2. Power system at 25% throttle; monitor signal wire voltages: static +5V (power), ~2.5V (active signal).
3. Load test: accelerate under moderate load–abrupt cutouts suggest loose connections, while smooth operation confirms correct sequence.

Replace damaged connectors immediately–corroded or bent pins disrupt signal integrity, leading to uncontrolled shutdowns. For retrofit projects, prioritize control units with matching encoder protocols (e.g., sinusoidal commutation for parkour motors) to avoid compatibility rewiring.

Diagnosing Frequent Electrical Errors in Power Modules

Check the phase connectors first when the motor exhibits irregular noises or fails to engage. Loose or reversed leads between the drive unit and motor often cause these issues. Use a multimeter to verify continuity; readings should match the manufacturer’s specifications, typically 0.1–1.0 ohms between phase wires. If resistance exceeds this range, inspect for partial breaks or oxidation at the terminals.

Reverse polarity on the battery input poles remains a frequent but overlooked error. Connecting the positive lead to the negative terminal and vice versa instantly damages the control circuitry. Confirm polarity before connecting by labeling wires or using colored heat-shrink tubing–red for positive, black or blue for negative. If the unit refuses to power on despite correct connections, test the battery with a known working system to isolate the fault.

Overlooked ground loops create erratic behavior, including sudden cutoffs or intermittent power loss. Ensure all ground points meet at a single location, preferably the chassis or a dedicated ground bus. Use thick gauge wire (minimum 12 AWG) for grounding; thinner wires introduce resistance, leading to voltage drops. Inspect ground screws for corrosion–clean with a wire brush and apply dielectric grease to prevent future oxidation.

Mismatched throttle voltage ranges cause uncontrolled acceleration or weak response. Most systems expect a 1–4V signal from the throttle. Measure the output voltage with the throttle at rest and fully engaged; deviations beyond ±0.3V indicate a faulty throttle or miswired harness. Replace the throttle if voltage spikes or drops unexpectedly–cheap potentiometers degrade quickly under vibration.

Hall sensor errors manifest as jerky motor rotation or failure to start. Verify sensor alignment by rotating the motor manually while monitoring the sensor outputs with an oscilloscope. Each sensor should produce a clean 0V–5V square wave, 120 degrees apart. Misaligned sensors generate irregular signals; adjust the sensor plate position or replace damaged sensors if waveforms are distorted.

Water ingress shortens lifespan and causes unpredictable faults. Seal all exposed connectors with waterproof heat-shrink tubing or silicone dielectric grease. If the unit has been exposed to moisture, disassemble and dry it thoroughly–use compressed air and a low-heat setting on a hairdryer. Avoid high heat, as it can warp plastic components. Replace any corroded contacts immediately to prevent cascading failures.

Voltage Regulation Issues

• Low-voltage cutoff triggers prematurely? Confirm the battery’s actual charge level; a degraded pack may report 70% capacity but drop below cutoff at 20% discharge.
• Fuses blow repeatedly? Check for shorted MOSFETs–a common failure in power stages. Desolder and test each MOSFET with a multimeter in diode mode.
• Unstable output under load? Inspect capacitor health–bulging or leaking capacitors cause voltage spikes. Replace any damaged electrolytic capacitors with high-temperature-rated versions (105°C minimum).

Signal Noise and Interference

1. Twist signal wires (throttle, brake, Hall sensors) with their corresponding ground wires to reduce electromagnetic interference. Separate high-current leads (battery, motor phases) from low-voltage signal paths by at least 3 cm.
2. Avoid running wires parallel to motor phase cables–crossing at right angles minimizes induced noise. Shield sensor cables if interference persists; use foil shield or braided mesh, grounding the shield at one end only.
3. Filter noise at the source. Solder a 0.1µF ceramic capacitor across the throttle signal and ground to smooth voltage fluctuations. For Hall sensors, add a 10nF capacitor between each signal line and ground.

If the power unit overheats despite adequate cooling, suspect a failing switching regulator. Monitor input voltage at the regulator–drops below 10V indicate excessive load or faulty components. Replace the regulator if it operates outside its specified temperature range (typically
