Comprehensive Guide to Buzzer Circuit Design and Wiring
Start with a 5V piezoelectric element or electromagnetic coil–these demand minimal current and integrate smoothly into low-power setups. Pair it with a 2N3904 NPN transistor or an IRFZ44N MOSFET as a switch; the choice depends on whether the load exceeds 200mA. For precise timing, a NE555 timer IC in astable mode delivers consistent frequencies between 500Hz and 2kHz, adjustable via a 10kΩ potentiometer and a 0.1µF capacitor.
Wire the transistor’s base to the control signal (e.g., microcontroller GPIO) through a 1kΩ resistor to prevent saturation. Ground the emitter (for NPN) or source (for MOSFET); connect the alert device’s positive terminal to the collector/drain with a flyback diode (1N4007) across coils to suppress voltage spikes. If using a microcontroller, ensure the GPIO pin’s current rating exceeds 10mA–Arduino’s pins handle 20-40mA, but STM32 or ESP32 can sink higher.
For isolated control, opt for an optocoupler (e.g., PC817) between the logic and power stages. Power the circuit from a regulated 5V source; linear regulators (LM7805) introduce heat at currents above 200mA, while buck converters (MP1584) maintain efficiency but require input filtering (10µF cap). Test with an oscilloscope–ringing at the output indicates insufficient decoupling; add a 0.1µF ceramic cap near the IC’s power pins.
Adjust pulse width via the NE555’s timing resistors (R1=10kΩ, R2=100kΩ) for a 75% duty cycle, or replace R2 with a 1MΩ pot for variable tone. In high-noise environments, shield the signal traces and use twisted pair for long runs. For battery-powered designs, a low-dropout regulator (e.g., AMS1117) extends runtime; lithium cells (3.7V) need a boost converter (MT3608) for stable output.
Designing an Audible Alert Circuit

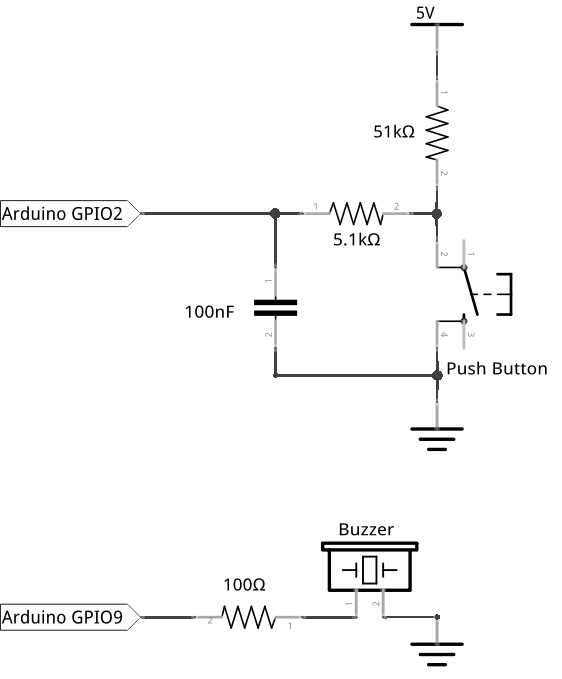

Start with a piezoelectric element rated between 3V and 24V–common examples include Murata PKLCS1212E4001-R1 (12V, 3kHz) or TDK PS1240P02BT (5V, 4kHz). Connect the positive terminal to a microcontroller’s GPIO through a current-limiting resistor (220Ω–470Ω) to prevent excess draw; the negative terminal grounds directly. For active variants, verify polarity: the anode often links to the control signal, while the cathode ties to ground. Passive types require an external square wave (50% duty cycle) at their resonant frequency–generate this via PWM on pins like Arduino’s D9 (TIMER1) or RP2040’s SIO0.
Component Selection for Reliability
Use a Schottky diode (1N5817) across the drive transistor’s collector-emitter to clamp inductive spikes if switching via BJT (e.g., 2N2222) or MOSFET (IRLML6401). For battery-powered setups, add a 100nF decoupling cap near the element’s power pins to suppress noise. Check datasheets for sound pressure level (SPL): typical piezo discs yield 85–100dB at 10cm, while magnetic coil types push 110dB. Avoid exceeding 20mA continuous current–calculate resistor size using R = (Vsupply – Vforward) / Imax. For 3.3V logic, a 150Ω resistor limits current to ~15mA.
Test resonance by sweeping frequencies from 1kHz to 8kHz in 100Hz steps while measuring SPL with a decibel meter; the peak indicates the optimal drive frequency. If using a transistor, ensure β (hFE) exceeds 100–common values for 2N2222 are 100–300. For MCU-less designs, pair a 555 timer in astable mode (R1=10kΩ, R2=100kΩ, C=10nF) to produce a 2kHz tone without coding. Always verify traces on a protoboard first; PCB layouts should separate high-current paths (transistor + element) from sensitive logic lines.
Selecting the Optimal Acoustic Alert Component for Your Design
For low-power applications under 5V, a piezoelectric sounder with a 3-20mA current draw delivers the best efficiency without sacrificing audibility. These elements operate via a ceramic disc that flexes when voltage is applied, generating a sharp 2-4kHz tone at 85-95dB from 10cm. Prioritize models with integrated drive circuits if your microcontroller lacks sufficient output current–most common 8-bit MCUs can’t directly power a bare piezo element rated above 5mA. Check the resonant frequency against your requirements; general alerts benefit from 2-3kHz, while safety-critical systems demand 4kHz for better penetration through ambient noise.
Electromagnetic transducers excel in 12V and 24V industrial setups where a deeper, louder output is needed. These units use a coil and magnet to drive a diaphragm, producing 100-110dB at 10cm with a broader frequency spectrum of 500Hz-3kHz. Current consumption ranges from 30-100mA, so ensure your power supply can handle the initial inrush. Always pair an electromagnetic unit with a flyback diode if driving from a relay or transistor; without it, the inductive kickback can fry adjacent ICs. For PWM control, choose models with built-in amplifiers to prevent distortion at lower volumes.
Self-oscillating components reduce external circuitry by including a built-in oscillator. Models like the SMT-0825S specify a 2.5-5V input range and a fixed 2.4kHz output, simplifying design at the cost of flexibility. Compare the following key specs when selecting:
| Type | Voltage Range | Current Draw | SPL @ 10cm | Frequency | Drive Method |
|---|---|---|---|---|---|
| Piezo w/ driver | 3-20V | 5-20mA | 85-95dB | 2-4kHz | Direct MCU/Transistor |
| Electromagnetic | 5-24V | 30-100mA | 100-110dB | 500Hz-3kHz | Transistor + flyback diode |
| Self-oscillating | 2.5-5V | 8-15mA | 80-90dB | Fixed (e.g., 2.4kHz) | Direct connection |
For remote or outdoor applications, water-resistant variants with ingress protection ratings of IP67 or higher are mandatory. Polyimide-coated piezo elements withstand humidity and temperature swings from -40°C to +85°C, though hermetically sealed electromagnetic units offer longer lifespans in corrosive environments. Always test the sound pressure level in the actual enclosure; a resonant cavity can boost or attenuate frequencies unpredictably. If space is constrained, surface-mount piezo discs start at 7mm diameter but require a sound port for proper resonance.
Matching Alert Behavior to Application Demands

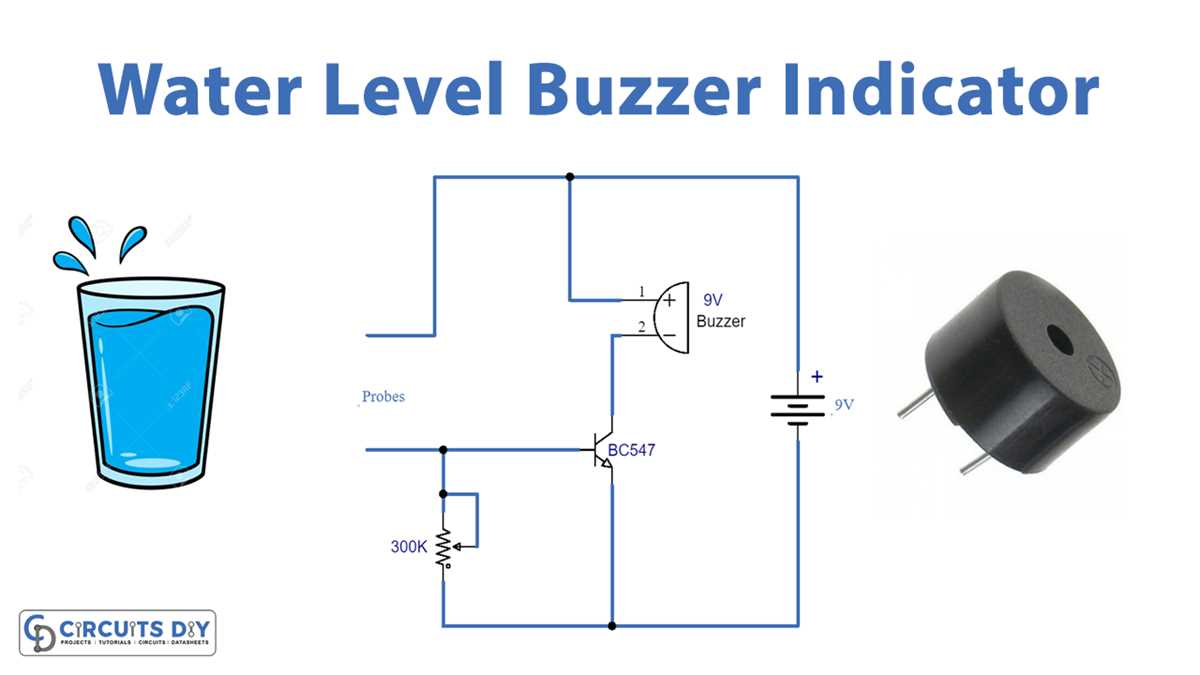

Continuous tone alerts suit steady-state monitoring–think power-on indicators or liquid level sensors–but introduce a 50% duty cycle for battery-operated devices to halve current draw without losing effectiveness. For intermittent alarms, specify a model with rapid attack time; electromagnetic units reach full volume in <20ms, while piezo elements lag at 50-100ms. Safety-critical systems like fire alarms demand an instant response, ruling out piezo options unless paired with a pre-charged capacitor bank. Always verify the component’s compatibility with your voltage regulator; linear regulators can handle steady loads, but switching supplies may induce audible whine in the transducer.

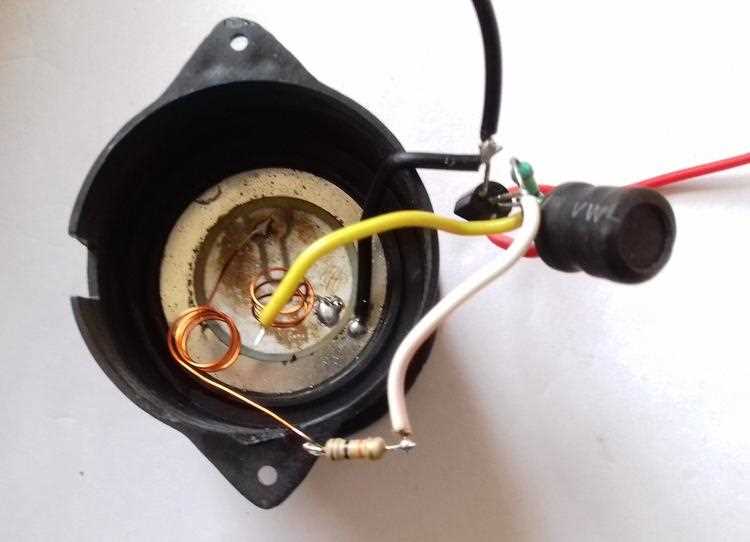

Step-by-Step Guide to Crafting a Passive Audio Signal Component Layout
Begin by placing a NPN transistor (e.g., 2N3904 or S8050) at the core of your circuit. Connect its collector to the positive terminal of the power source via a 220Ω resistor to limit current. The emitter should link directly to the ground rail, while the base requires a 1kΩ resistor to interface with a microcontroller pin–this ensures controlled activation without damaging outputs.
Next, position the piezo element between the transistor’s collector and a 100nF capacitor. The capacitor acts as a high-pass filter, removing DC offset and tightening the emitted frequency range. For bidirectional drive (enhancing volume), mirror this setup with a second transistor and capacitor pair on the opposite terminal of the piezo element, forming an H-bridge configuration. Verify polarity if using polarized capacitors to avoid reverse voltage damage.
Critical Connection Checks
- Flyback diode: Add a 1N4007 diode across the transistor’s collector-emitter (cathode to collector) to clamp voltage spikes when the transistor switches off.
- Power decoupling: Place a 10µF electrolytic capacitor within 5mm of the power input to stabilize voltage for sharp transitions.
- Frequency tuning: Adjust the base resistor (330Ω–4.7kΩ) or capacitor (47nF–470nF) to shift the operating frequency–test with an oscilloscope for harmonic clarity.
Label all components with designators (e.g., R1, C2, Q1) and include a netlist adjacent to the layout for debugging. For PCB designs, separate high-current paths (transistor leads) into thicker traces (minimum 1mm width) to reduce resistive losses, while signal paths can use standard 0.3mm widths. If prototyping on breadboard, avoid long jumpers between the transistor and piezo element to minimize parasitic inductance.
Power Supply Considerations for Active vs. Passive Sound Emitters
Active emitters require a steady DC voltage within their specified range–typically 3V to 24V–to function immediately. Apply a voltage below the minimum threshold, and the component may fail to oscillate; exceed the maximum, and permanent damage occurs. For example, a 5V active unit draws ~15mA, so a 500mA power supply ensures stable operation even under intermittent load spikes. Always verify the datasheet for current ratings, as some models demand up to 50mA.
Passive variants rely on an external driver circuit to generate the required AC signal. A 5V peak-to-peak square wave at 2kHz to 4kHz is common, but amplitude and frequency must match the emitter’s resonant characteristics. Insufficient drive voltage–below 1V–results in inaudible output, while excessive voltage distorts the tone or damages the coil. Linear regulators or PWM controllers are preferred for precise voltage control, with decoupling capacitors (10µF) placed within 10mm of the emitter to suppress noise.
Voltage Regulation Techniques
For active units, a low-dropout regulator (LDO) like the AMS1117-3.3 handles input fluctuations while maintaining a tight ±2% output tolerance. Passive emitters benefit from Class D amplifiers, which deliver >90% efficiency at 100mW output. Avoid resistive dividers for voltage adjustment; they waste power and introduce thermal drift. Instead, use a buck converter (e.g., MP2307) for input voltages above 9V to prevent overheating and ensure consistent performance across battery discharge cycles.
Ground loops can introduce audible hum in passive emitters. To mitigate this, implement a star grounding topology, keeping the emitter’s ground return path separate from high-current traces. For battery-powered designs, calculate the duty cycle–active emitters at 10% duty draw ~3mA average current, while passive emitters at 50% duty consume ~30mA. LiPo cells degrade rapidly if discharged below 3V; add a low-voltage cutoff circuit to extend lifespan.
Component Placement and Noise Suppression
Place the power source and emitter on the same PCB layer to minimize parasitic inductance. For passive configurations, a Schottky diode (e.g., 1N5819) across the driver transistor protects against back-EMF, which can reach 50V during switching transitions. Ferrite beads (600Ω @ 100MHz) on the power line filter high-frequency noise from microcontrollers. Active emitters containing built-in oscillators are sensitive to ripple; a 22µF tantalum capacitor at the input terminal stabilizes voltage under transient loads.
Test power delivery under worst-case conditions: ambient temperature extremes (-20°C to 60°C) and maximum load. Active emitters exhibit a ~5dB drop in sound pressure level at 0°C; passive emitters driven at 80% PWM may exceed thermal limits if not heatsinked. Use a thermal camera to identify hotspots, and adjust the driving waveform or add a current-limiting resistor if temperatures exceed 85°C. For extended operation, opt for emitters with a >10% tolerance on voltage specs to accommodate power supply drift.
