Complete CAN Bus Wiring Schematic for Vehicle Network Systems

Use a differential pair for noise immunity: Implement twisted-pair wiring with a characteristic impedance of 120Ω ±10% to match standard automotive communication protocols. Shield the pair with a grounded braid or foil to suppress electromagnetic interference, especially in environments with high-current actuators or ignition systems. Avoid running signal lines parallel to power cables longer than 10 cm.

Termination resistors are critical: Place 120Ω resistors at both ends of the network segment to prevent signal reflections. A common error is omitting one or using incorrect values (e.g., 47Ω or 1kΩ). For star topologies, position resistors only at the outermost nodes; branches without termination will cause data corruption. Test with an oscilloscope–proper termination should yield a clean, rectangular waveform between 1.5V and 3.5V.

Select transceivers based on voltage levels: For 12V systems (e.g., passenger vehicles), use components like the TJA1050 or MCP2551, which tolerate ±42V transients. In 24V setups (commercial trucks, heavy machinery), opt for devices with enhanced surge protection, such as the L9616 or MAX3051. Verify bus dominant/recessive voltage thresholds: recessive (logical 1) should be ≥2.0V, dominant (logical 0) ≤0.8V at the receiver.

Power isolation prevents ground loops: Isolate transceivers using DC-DC converters or optocouplers (e.g., ISO1050) if devices share no common ground. For battery-powered nodes, add a 100nF decoupling capacitor between the transceiver’s VCC and GND, as close to the IC as possible. Use a ferrite bead on the power input to block high-frequency noise from switching regulators.

Avoid chained node failures: Design each node with independent power so a single failure doesn’t collapse the entire segment. Use current-limiting resistors (1kΩ–10kΩ) on the TX/RX lines to protect microcontrollers from transients. For diagnostic purposes, include LED indicators (with 1kΩ series resistors) to show bus activity–flashing LEDs confirm correct termination and signal integrity.

Test under real-world conditions: Connect nodes to the network one at a time while monitoring errors with a protocol analyzer. Check for bus-off states (error passive/counter saturation) and voltage drops during peak load. Simulate worst-case scenarios: disconnect a node mid-transmission, short a line to ground, or introduce 1MHz noise above 5V–operation should recover within 100ms.

Designing a Robust Vehicle Communication Network Layout

Begin with a 120 Ω terminating resistor at both ends of the communication line to prevent signal reflections and ensure stable data transmission. Use a twisted pair cable (AWG 22-24) with grounded shielding to reduce electromagnetic interference–critical for reliable operation in automotive or industrial environments.

Key Component Placement

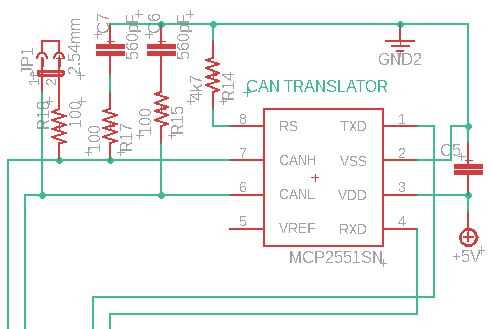

Position the transceiver (e.g., MCP2551 or TJA1050) as close as possible to the microcontroller to minimize trace lengths. A 47-100 nF decoupling capacitor must be placed between the transceiver’s VCC and ground pins to filter noise. Avoid daisy-chaining power lines; instead, route separate power traces from the main supply to each node to prevent voltage drops.

Separate high-speed and low-speed branches by using a dual-line topology. High-speed nodes (500 kbps–1 Mbps) should be clustered near the central hub, while nodes with lower data rates (e.g., sensors) can extend further. Ensure all ground connections converge at a single point to avoid ground loops, which degrade signal integrity.

Test the layout with an oscilloscope before final assembly. Probe the differential lines (CAN_H and CAN_L) to verify a clean 1.5–2.5 V swing (dominant state) and 2.5 V idle (recessive state). If signals appear distorted, check for impedance mismatches or inadequate shielding–common culprits in noisy systems.

Critical Elements of Vehicle Communication Networks

Ensure the transceiver complies with ISO 11898-2 (high-speed) or ISO 11898-3 (low-speed fault-tolerant) standards, depending on application demands. Select components with a maximum transmission rate of 1 Mbps for high-speed variants or 125 Kbps for low-speed alternatives. Verify electromagnetic compatibility (EMC) ratings to prevent interference from ignition systems or electric motors.

Termination resistors (120 Ω ± 5%) must be placed at both ends of the physical layer to match impedance and eliminate signal reflections. Avoid daisy-chaining resistors–position them directly between the high and low signal lines. Check for short circuits or open circuits during installation, as improper termination causes data corruption. Replace generic resistors with automotive-grade options rated for extended temperature ranges (-40°C to +125°C).

Use twisted-pair cabling with minimal twist variance (e.g., 1 twist per 25–50 mm) to reduce noise susceptibility. Shielding is mandatory for environments exposed to high electromagnetic fields–opt for tinned copper braid shielding with ≥85% coverage. Maintain consistent cable length; variations exceeding 40 meters degrade signal integrity. Connect shields to ground at a single point near the primary controller to prevent ground loops.

Microcontrollers should include a dedicated communication interface (e.g., Bosch C_CAN, TI’s DCAN) with hardware filtering for message priorities. Configure message acceptance filtering to limit bus load–critical signals (e.g., engine control, braking) require minimal latency. Power the network with a stable 5V supply; use decoupling capacitors (0.1 µF ceramic) near each node to suppress voltage spikes. Test node failure behavior: nodes must enter standby mode without disrupting communication.

Step-by-Step Wiring Guide for a Standalone Network Node

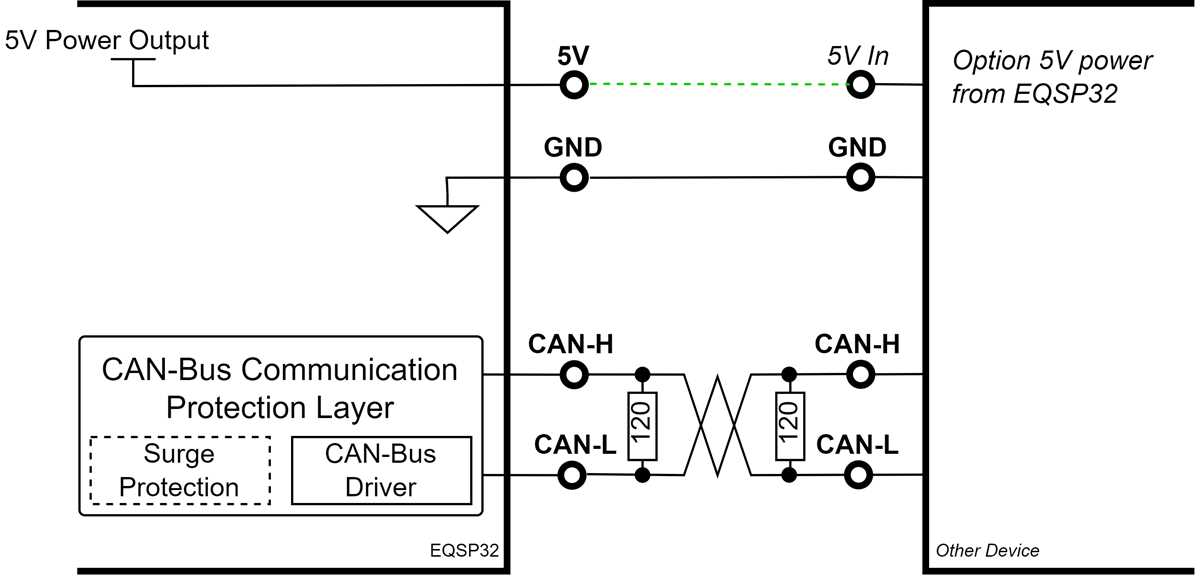

Begin by connecting a 120-ohm termination resistor between the two signal lines at the physical endpoint of your setup. This resistor stabilizes communication by matching the characteristic impedance of the twisted pair–omitting it causes signal reflections, leading to errors. For a single-node test, place the resistor directly at the node’s connector, ensuring the lines are twisted tightly (minimum 2-3 turns per inch) to minimize electromagnetic interference.

Attach the primary (dominant) and secondary (recessive) conductors to their designated pins on your controller’s transceiver. Most modules use ISO 11898-compliant pinouts: pin 2 for dominant (e.g., CAN-H) and pin 7 for recessive (e.g., CAN-L). Verify polarities with a multimeter–reversed connections will prevent protocol synchronization. Supply power to the node with a regulated 5V-24V DC input, isolating ground paths if noise persists. A 100nF decoupling capacitor near the power pins filters high-frequency transients.

Validate the link by transmitting a frame with an arbitration identifier set to 0x100 or lower–higher-priority messages ensure immediate propagation. Use an oscilloscope to confirm the signal’s differential voltage: dominant state should read 2V (H-L), recessive 0V. If waveform edges appear rounded, shorten conductor length or add a grounded shield for the final 10cm of wiring. For debugging, insert a protocol analyzer; error counters above 96 indicate miswiring or missing termination.

Critical Errors in Network Interface Schematics and Prevention Methods

Incorrect termination resistor placement destabilizes signal integrity. Always install 120Ω resistors at both ends of the physical layer–not along the path or near intermediates. Omitting one causes reflections; adding more than two splits impedance, reducing noise immunity. Verify with an ohmmeter: total resistance between differential lines should read ~60Ω.

• Use high-quality metal film resistors, 1% tolerance.
• Avoid jumper wires; solder directly to connectors for low inductance.
• For star topologies, isolate branches with repeaters to prevent stub effects.

Power supply decoupling overlooked leads to transient failures. Every node must have a 100nF capacitor placed within 2mm of the transceiver’s VCC pin. Bulk capacitance–10μF minimum–should sit close to the node’s power input. Neglecting this causes bit errors during load changes, especially at 1Mbps or higher bit rates.

Ground loops arise from improper shield connections. Connect cable shields at a single point–typically the main controller’s ground. Never daisy-chain shields or bond them at multiple nodes. Separate analog and digital grounds to prevent noise coupling; use a star ground configuration with a dedicated return path.

1. Route differential pairs with constant spacing–no sharp bends >45°.
2. Keep trace lengths within 5mm difference to prevent skew.
3. Use twisted pair cables with at least 2 twists per cm for noise rejection.

Transceiver selection impacts robustness. Avoid low-cost variants without galvanic isolation for industrial use. Choose devices with ±25kV ESD protection and ±36V fault tolerance. Cheaper models fail under ground offsets, causing silent data corruption. Check datasheets for common-mode voltage range–nodes must tolerate ±7V for reliable operation.

Incorrect baud rate selection complicates debugging. Standard rates–125k, 250k, 500k–provide built-in margins; custom values introduce timing errors. Ensure all nodes use identical bit timing parameters, including sample point (80-90% of bit time) and synchronisation jump width. Misaligned sample points cause CRC errors or dropped frames.

Ignoring cable length limits risks signal degradation. Maximum trunk length depends on rate: 500m at 125kbps, 100m at 1Mbps. Exceeding this requires repeaters or switching to fiber optics. For multi-drop setups, minimize stub lengths–ideally under 1m. Use shielded cables for environments with >1V/m RF interference.
