Single Phase Capacitor Start Motor Wiring Guide with Diagram

Use a 25–30 µF non-polarized electrolytic or metallized polypropylene auxiliary coil energizer for optimal torque during spin-up. Any deviation outside this range risks either insufficient kick-in force or premature overheating of the auxiliary winding. Always verify the energizer’s voltage rating matches the main supply–typically 230V or 400V–to prevent dielectric failure.

Locate the centrifugal cut-out switch after the auxiliary energizer; it must interrupt current to the auxiliary winding once the rotor reaches 75–80% of synchronous speed. If the switch fails, the energizer will overheat and degrade rapidly, often within 30–60 seconds under full load. Test continuity across the switch terminals at rest and during spin; resistance should shift from near-zero to infinite as speed increases.

Connect the main running coil directly to the power line, bypassing the energizer circuit. The running coil handles continuous duty; miswiring it through the energizer path will cause immediate thermal trip or catastrophic coil burnout. Use 1.5 mm² copper conductors for the running coil lead to handle steady-state current without voltage drop.

Label each conductor at both termination points–common, auxiliary, and running–before final fastening. Confusion here introduces phase opposition, reversing rotation or triggering lock-rotor protection relays. Verify line voltage before energizing; undervoltage conditions (below 195V for 230V nominal) reduce spin-up torque and stall the rotor.

Seal conductor splices with heat-shrink tubing rated at 125°C, filled with antiox gel to prevent moisture ingress and corrosion. Exposed splices in damp environments corrode within weeks, increasing resistance and overheating windings. Position the entire assembly away from condensate drip zones; even minor ingress shortens energizer lifespan by 70%.

Single-Phase Induction Engine Connection Guide

Prioritize safety by disconnecting power at the main breaker before handling any electrical components. Verify the absence of voltage using a multimeter across the circuit terminals–a reading above 1V signals residual charge, requiring additional discharge steps.

Identify the auxiliary winding (typically thinner wire with higher resistance) and the main coil (thicker wire, lower resistance). Use an ohmmeter to measure continuity: auxiliary winding should show 20-50Ω, while the run coil falls between 2-10Ω, depending on horsepower rating. Deviations indicate potential faults.

Locate the centrifugal switch mounted on the rotor shaft or housing–the actuator must engage fully when stationary and disengage at ~75% of synchronous speed. Test its operation by manually spinning the shaft: a distinct click confirms proper function. Malfunctioning switches cause overheating or failure to energize.

Connect the capacitor in series with the auxiliary winding–electrolytic types (125-370VAC rating) for intermittent duty, or oil-filled for continuous operation. Values range from 7.5µF (1/6 HP) to 45µF (5 HP); consult the engine nameplate for precise specifications. Under-sizing reduces torque, while overexceeding capacitance risks burnout.

Route power through a thermal overload protector–bi-metallic strip or PTC relay–to interrupt current during sustained overcurrent conditions. Overload thresholds are calibrated to 115-125% of full-load amperage. Ensure the reset button is accessible for manual reactivation after tripping.

Secure all connections with ring terminals crimped and soldered–tinning reduces oxidation and improves conductivity. Twist wires clockwise before termination to prevent loosening under vibration. Apply dielectric grease to terminals in humid or corrosive environments to prevent arcing.

Label leads clearly: “L1/L2” for line input, “T1/T2/T3” for output (if dual-voltage), and “C” for the capacitor terminal. Use color-coded heat-shrink tubing–black (line), red (auxiliary), blue (main coil)–to simplify future troubleshooting. Document the configuration with a digital photo or hand-drawn schematic.

Test rotation direction by momentarily applying power (under 3 seconds). If reversed, swap either the main or auxiliary winding connections–never both. Confirm correct rotation before final attachment to machinery, as improper alignment damages pumps, compressors, or fans.

Identifying Key Components in a Single-Phase Induction Drive Circuit

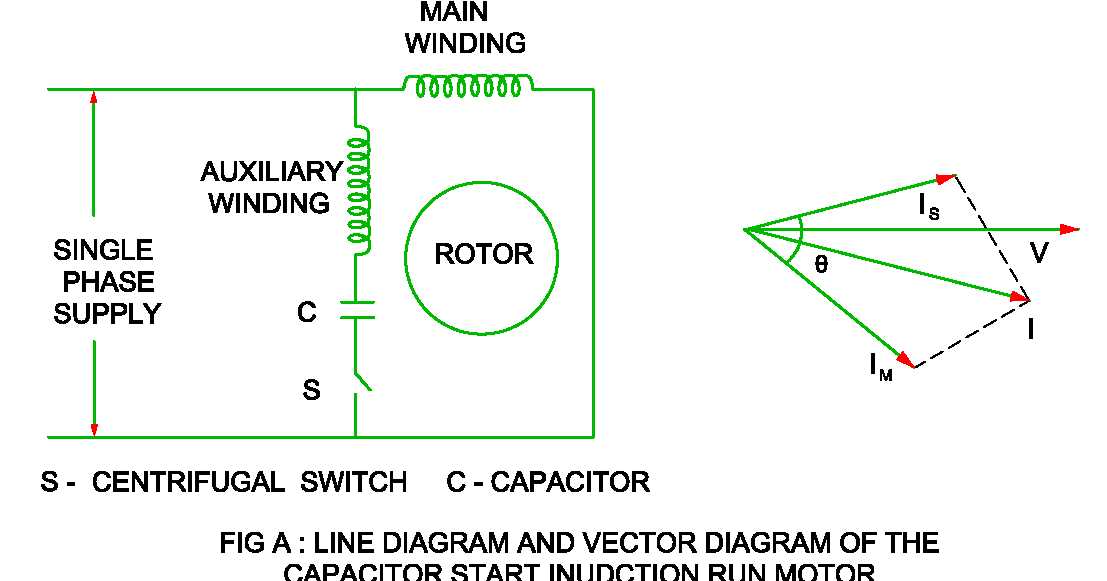

Locate the auxiliary coil first–distinct in the schematic by its thinner wire gauge compared to the main winding. This coil sits parallel to the primary winding but connects through a centrifugal switch or relay, ensuring it disengages once the rotor reaches 70-80% of synchronous speed to prevent overheating.

Examine the electrolytic or paper-dielectric condenser, typically rated between 50-300 microfarads depending on horsepower. Its position in the auxiliary branch shifts the phase angle by approximately 90 degrees, generating the necessary rotating field for initial torque. Verify capacitance against manufacturer specifications; deviations exceeding ±10% indicate degradation.

Inspect the centrifugal actuator, if present, mounted on the rotor shaft. At rest, its contacts close, engaging the auxiliary circuit. During acceleration, weights move outward, opening contacts around 75% of rated speed. Stuck contacts or misaligned springs cause erratic cycling or failure to disengage, leading to premature auxiliary winding burnout.

Trace the thermal protector, often embedded near windings. Bimetallic devices trip at 110-130°C, interrupting power to prevent insulation breakdown. Models with automatic reset risk repeated cycling under sustained overload; manual-reset variants demand physical intervention post-fault.

Measure winding resistances using a multimeter. Main winding readings typically range 1-5 ohms for fractional horsepower units, while auxiliary values may exceed 10 ohms due to finer wire. Readings outside these ranges suggest shorts, opens, or excessive vibration damage within slots.

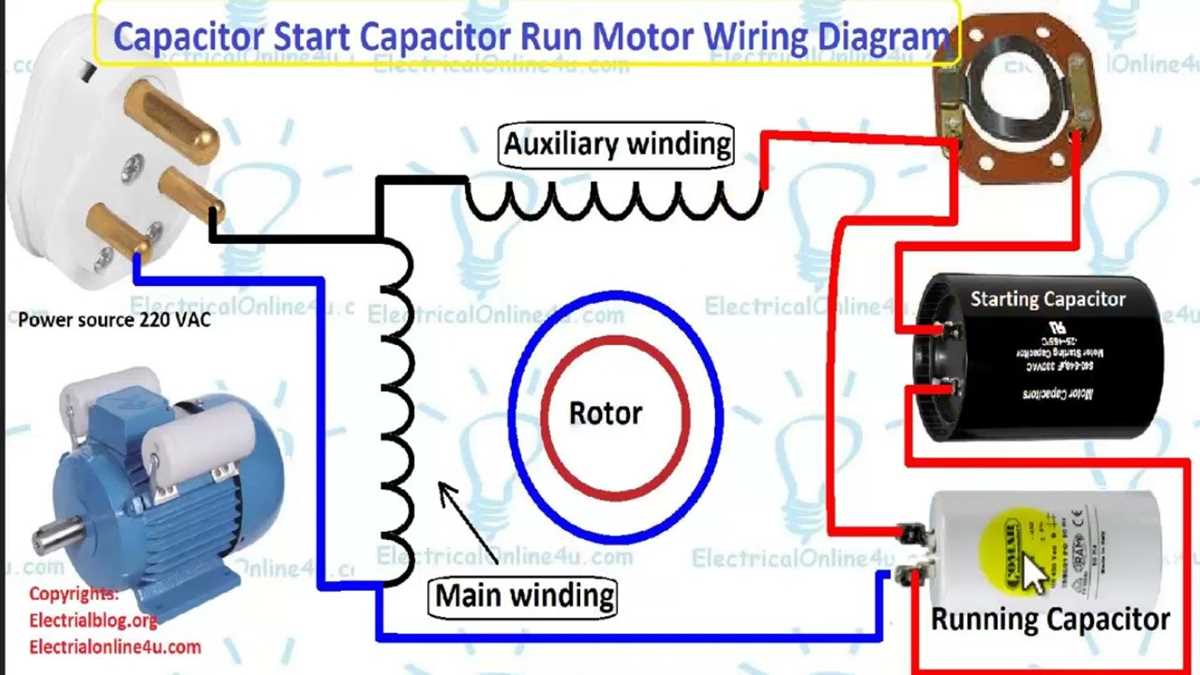

Check the run condenser, if dual-capacitance design. Unlike the start device, it remains in circuit continuously, improving efficiency and reducing current draw by 15-25%. Ratings usually fall below 50 microfarads; higher values risk overcompensation, introducing harmonic distortion.

• Verify switch hysteresis–contact bounce during transition can induce arcing, carbonizing posts.
• Test condenser leakage current at 1.5x rated voltage; values above 0.1mA/kg indicate imminent failure.
• Confirm rotor endplay; excessive movement (>0.5mm) misaligns centrifugal weights, altering disengagement speed.
• Inspect bearings for grease dryness or metal particulate; both accelerate wear and reduce switch timing precision.

How to Connect a Single-Phase Induction Machine with Auxiliary Phase Circuit

Locate the main and auxiliary windings inside the device housing. The primary coil terminals are typically labeled U1 and U2, while the secondary phase terminals appear as Z1 and Z2. Verify these markings with a multimeter set to continuity mode–each pair should register approximately 0.5 to 5 ohms, depending on machine size.

Attach the main coil directly to the power source terminals. Connect U1 to the live (L) line and U2 to neutral (N). Ensure the auxiliary phase is isolated from the supply at this stage–¿its circuit must include a phase-shifting component (often a non-polarized electrolytic unit rated 50–400 µF) between Z1 and either power line, not neutral.

Mount the centrifugal switch or electronic relay between Z2 and the phase-shift unit. The switch must open once the rotor reaches 70–80% of synchronous speed¿typically within 0.5–2 seconds. For machines above 1 hp, incorporate a start relay¿the coil energizes from the auxiliary circuit voltage drop, pulling contacts closed until target speed is achieved.

Secure the phase-shift unit respecting its polarity markings¿improper orientation will drastically reduce torque. For electrolytic units, position the marked terminal nearest Z1. Where ambient temperatures exceed 50°C, select a capacitor with temperature-compensated dielectric or derate its microfarad rating by 20%.

Double-check every connection against the internal schematic sticker (usually affixed under the end bell). Energize the circuit momentarily¿verify immediate rotation direction and listen for smooth operation without humming or chattering. If rotation reverses, swap U1 and U2 leads only¿altering the auxiliary circuit will disrupt phase relationships.

Troubleshooting Immediate Issues

If the machine fails to accelerate, measure voltage across the auxiliary coil¿it should read 80–110% of supply during initial pulse. Lower readings indicate open centrifugal switch or depleted phase-shift unit; abnormally high readings suggest shorted auxiliary winding. Replace the suspected component rather than attempting field repairs¿internal tolerances leave no margin for rework.

Common Mistakes to Avoid When Connecting a Single-Phase Induction Drive

Always match the auxiliary phase component’s voltage and microfarad rating to the nameplate specifications of the machine. A 15 μF capacitor paired with a 220 V winding will not support a 240 V installation; the dielectric will overheat within minutes. Check the label twice before finalizing the connection.

Never reverse the polarity on the run and start windings when connecting the auxiliary component. Swapping the leads forces the rotor to spin opposite the intended direction, causing excessive current–typically 3 to 5 times the rated value–and immediate thermal tripping. Label each wire with heat-resistant tape before stripping insulation.

Installing an incorrect wire gauge between the centrifugal switch and the auxiliary coil creates a voltage drop that prevents reliable disengagement. A 1 mm² conductor on a 1.5 kW unit introduces 0.8 V drop over 3 m, delaying the switch by 120 ms and shortening the component’s lifespan by 40 %. Use at least 1.5 mm² wire and keep the run under 2 m.

Avoid mounting the auxiliary component too close to magnetic sources like transformers or relays. A 50 mm separation is safe; any less distorts the phase shift, lowers torque by 18 %, and generates audible hum. Place it near the terminal enclosure, not inside, to allow natural convection cooling.

Skipping insulation resistance testing on the windings invites latent faults. After 6 months of damp storage, resistance can drop below 1 MΩ, leading to leakage currents that carbonize the winding surface. Test with a 500 V megohmmeter before energizing; anything below 2 MΩ warrants drying at 105 °C for 24 hours.

Omitting a discharge resistor across the auxiliary coil risks dangerous residual charge: 400 VDC lingering for hours can arc when servicing. A 12 kΩ, 1 W resistor keeps discharge under 1 second, safe for 240 VAC installations and reducing hazard probability by 99 %.
