Complete Guide to Car Headlight Wiring Schematics and Circuits
Start by locating the fuse box beneath the dashboard or under the hood–most modern vehicles mark illumination circuits with labels like “LTS” or “HL.” Use a multimeter set to 12V DC to verify power at the connector before proceeding. Disconnect the battery negative terminal to prevent short circuits during testing.
Check polarity at the bulb socket: the outer shell typically serves as ground, while the central terminal carries the positive charge. If retrofitting LED assemblies, confirm compatibility–some require load resistors to bypass flickering from the onboard computer.
Trace the harness from the bulb to the main relay. On most sedans, the main harness branches near the mid-engine firewall. Splice connections only with crimp connectors rated for 20 AWG or thicker. Avoid soldering near moving parts or excessive vibration zones.
For dual-filament units, note the switched power feed: low beam draws from a separate fuse, high beam shares a circuit with the relay. Test continuity between pins 85 and 86 on the relay–resistance should read below 50 ohms. Replace relays exceeding 80 ohms or showing corrosion.
Label each wire before disconnecting–use heat-shrink tubing for repairs longer than 2 inches. Crossed connections between signal and power wires risk damaging the body control module. Verify ground integrity by measuring voltage drop–values above 0.2V indicate a corroded chassis point.
After reassembly, power the system and observe for flickering or dimming. If present, check for loose fuses or fatigued alternator output (13.8–14.4V). Modern adaptive systems may require a diagnostic scan tool to reset error codes post-installation.

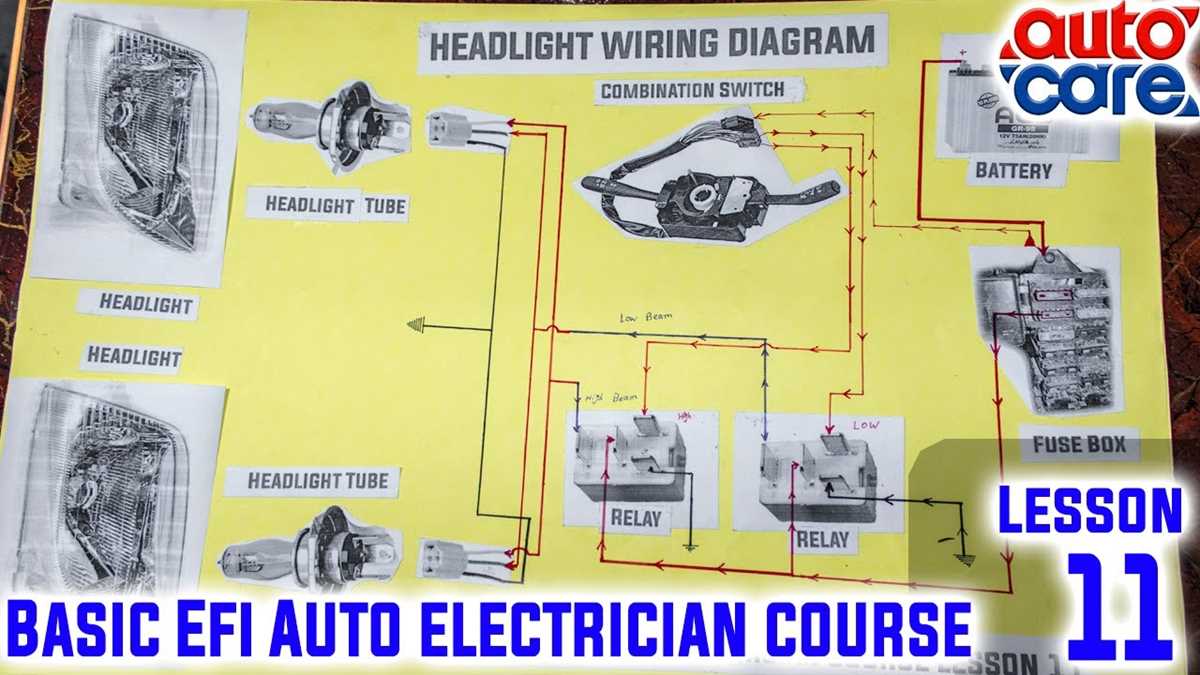

Understanding Vehicle Illumination Circuit Schematics

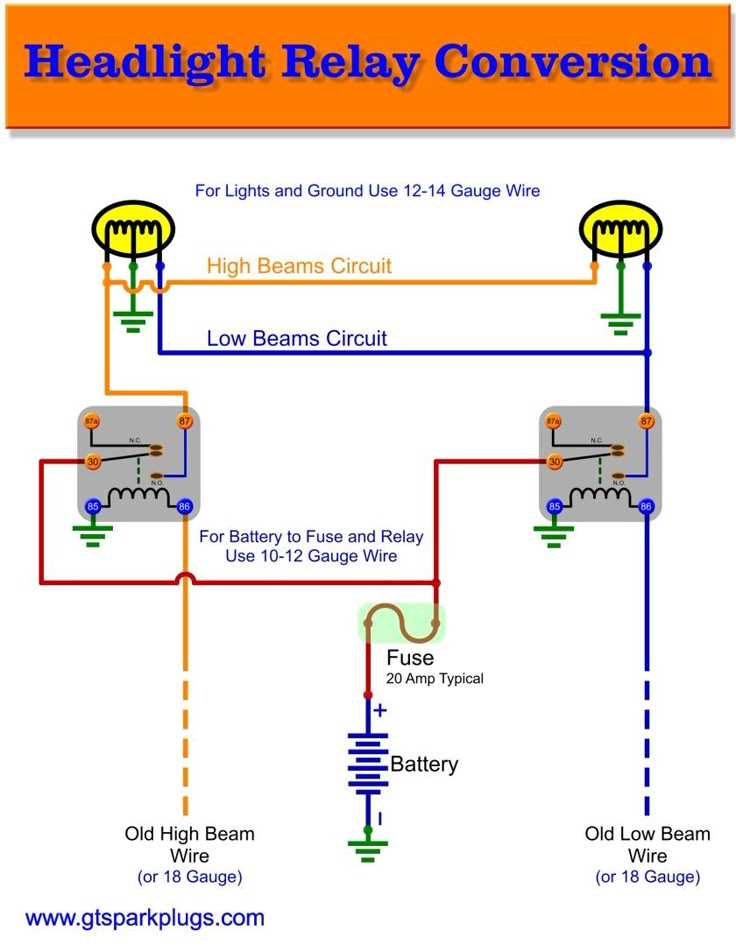

Begin by identifying the power source connection points in the lighting circuit. Most front illumination systems include a fuse linked directly to the battery, typically rated between 10-20 amps. Trace the main feed wire–often colored red or yellow–to confirm it leads to a relay before branching to individual bulbs. Verify relay terminals: 30 (input), 85 and 86 (coil), 87 (output). Use a multimeter to test continuity across these points to rule out corrosion or breaks.
- Locate the ground connection–commonly a black or brown wire–attached to the chassis or engine block. Clean the contact surface thoroughly to ensure a solid connection; oxidation here causes intermittent failures.
- Examine the control switch wiring: ensure the activation signal (usually blue or green) flows from the stalk switch through the fuse box to the relay coil.

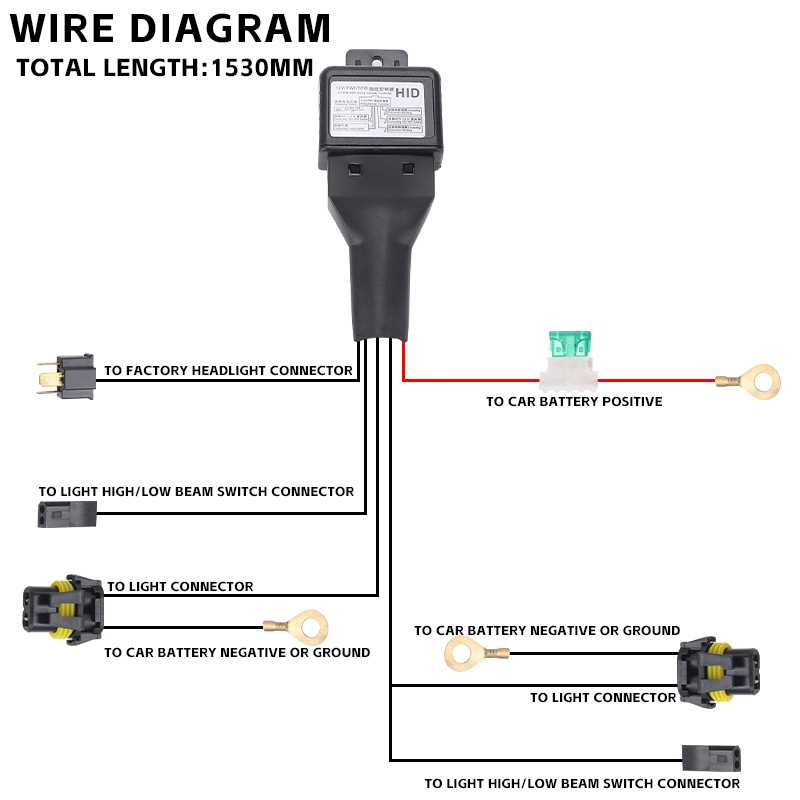

- For HID or LED systems, confirm the presence of a ballast or driver module. These components require dedicated wiring harnesses, often involving pink or purple wires for power and white or gray for ground.
Color coding varies by manufacturer–consult the specific service manual for precise wire functions. For instance:
- German vehicles often use black/yellow for high beam inputs, white/red for low beams, and gray/violet for parking lights.
- Japanese models frequently designate red for main power, blue for high beam triggers, and green for low beam signals.
- American trucks may utilize brown for running lights, light blue for high beams, and dark blue for low beams.
When troubleshooting, isolate the issue by testing each segment with a 12V test light or multimeter. Start at the bulb socket–measure voltage between the power terminal and ground. If voltage is present but the lamp remains off, replace the bulb. If voltage is absent, work backward: check the relay, then the fuse, then the control switch. For modern vehicles with CAN bus systems, an OBD-II scanner may reveal error codes indicating faulty modules or open circuits in multiplexed networks.
Key Parts of a Vehicle Illumination Electrical Setup
Locate the fuse box first–typically found under the dashboard or near the engine bay. Check the owner’s manual for its exact position, as models differ. A blown fuse is a common culprit for malfunctioning beams, so verify its condition with a multimeter or by visual inspection for broken filaments. Replace only with an identically rated fuse to avoid electrical damage.
Trace the main harness from the fuse to the lighting assembly. Look for connectors–often gray, black, or white plastic clips–securing power cables to the bulb sockets. Corrosion or loose connections here disrupt current flow, causing flickering or total failure. Clean contacts with electrical cleaner and a small wire brush if oxidation is present.
Examine the bulb sockets closely. On halogen units, the two thick prongs deliver power, while a third smaller tab ensures proper alignment. LED setups may use multiple pins or a single plug. Burnt or melted plastic indicates overheating–replace the socket immediately to prevent fire hazards. Always handle bulbs with gloves to avoid oil transfer from skin, which shortens bulb lifespan.
Test the switch operation last. Remove the dashboard panel to access it directly. Use a test light to confirm voltage reaches the switch when activated. If no power is detected, inspect the relay–often situated near the fuse box–by swapping it with a known functional one. Relays click when engaged; absence of sound signals failure.
How to Sketch a Simple Vehicle Illumination Electrical Layout
Gather a 12V battery, two bulbs (H4 or H7 type), three switches (one for main beam, one for dipped beam, one for parking lights), 18-gauge wire, a fuse holder with a 10A fuse, and a ground point near the front assembly. Use a schematic template or blank paper to map connections before physical assembly.
Begin by marking the battery’s positive terminal at the top of your layout. Draw a straight vertical line downward to represent the power feed. Place the fuse 5 cm from the battery–this protects the circuit from overloads. Label the fuse’s output side as “Fused 12V.”
Branch the fused line into three horizontal paths, each ending at a switch. Space the switches 3 cm apart for clarity. The leftmost path controls low-intensity auxiliary illumination (parking lights), the center path manages primary low beams, and the rightmost path governs bright illumination (high beams). Use a triangle symbol for each switch.
From each switch, extend a 4 cm line toward a bulb symbol–draw two circles (one for each filament in an H4 bulb) or one circle for H7. Connect the auxiliary light line to the smaller circle, the dipped beam line to the larger circle, and the high beam line merges into the same larger circle for H4 bulbs. Label each bulb’s filament voltage (12V for parking, 12V for low/high beams).
Draw a common return path from the bulb’s ground lug–use a dotted line to illustrate chassis grounding. Route this to the negative battery terminal at the bottom of the layout. Confirm all bulb-to-ground connections meet at a single point to avoid voltage drop across multiple ground straps.
Measure wire lengths: 20 cm from battery to fuse, 15 cm from fuse to switches, 25 cm from switches to bulbs, and 20 cm from bulbs to ground. Cut wire segments to these lengths, strip 5 mm insulation from each end, and crimp connectors–use yellow spade terminals for bulb sockets and ring terminals for chassis grounds.
Test each path with a multimeter: set to DC 20V, probe fused power line and ground–readings should fluctuate between 11.8V–12.2V when activated. Activate each switch sequentially; verify bulbs illuminate at rated brightness without flicker. If voltage drops below 11.5V, check ground connections for corrosion or loose crimps.
Key Electrical Cable Colors and Their Roles in Vehicle Illumination Systems
Always connect the black or dark brown cable to the ground terminal–failure to secure a clean, corrosion-free earth connection will cause intermittent failures or dim output. This lead carries return current from the bulb and must attach directly to the chassis or a designated grounding point near the assembly, never to painted surfaces or bolt threads.
Yellow or white cables typically supply low-beam filaments with 12V power; splice these only with matching gauge wire and soldered joints wrapped in heat-shrink tubing. Relay-triggering leads–often red or orange–should link straight to the fused ignition circuit to prevent drain during off-states; avoid tapping into accessory circuits to stop premature filament burnout.
Blue-striped or solid blue wires usually feed high-beam bulbs; verify voltage with a multimeter before connecting because reversed polarity instantly destroys halogen filaments. For LED upgrades, locate the pink or violet lead that controls daytime running modules; this requires a dedicated 5V pulse-width signal and must not be tied to constant 12V lines to maintain proper intensity modulation.
Green-striped cables frequently signal turn indicator integration–route these through flasher units without altering resistance to ensure consistent flash rates. Dual-filament setups may include gray or tan wires feeding parking illumination; these demand independent fusing and should bypass headlamp switches for separate control.
Always test continuity with a closed-circuit tester before final installation; short circuits between color-coded leads can blow fuses or trigger ECU fault codes. Keep harnesses away from sharp edges and vibrating components, securing them with plastic clips instead of zip ties to prevent abrasion.
Diagnosing Illuminator Circuit Issues with Schematics
Begin by isolating the front lamp assembly from the vehicle’s main electrical grid. Disconnect the battery’s negative terminal to prevent unintended shorts. Using a multimeter set to continuity mode, probe the connector pins against the chassis ground. If resistance exceeds 5 ohms, corrosion or a broken circuit is likely.

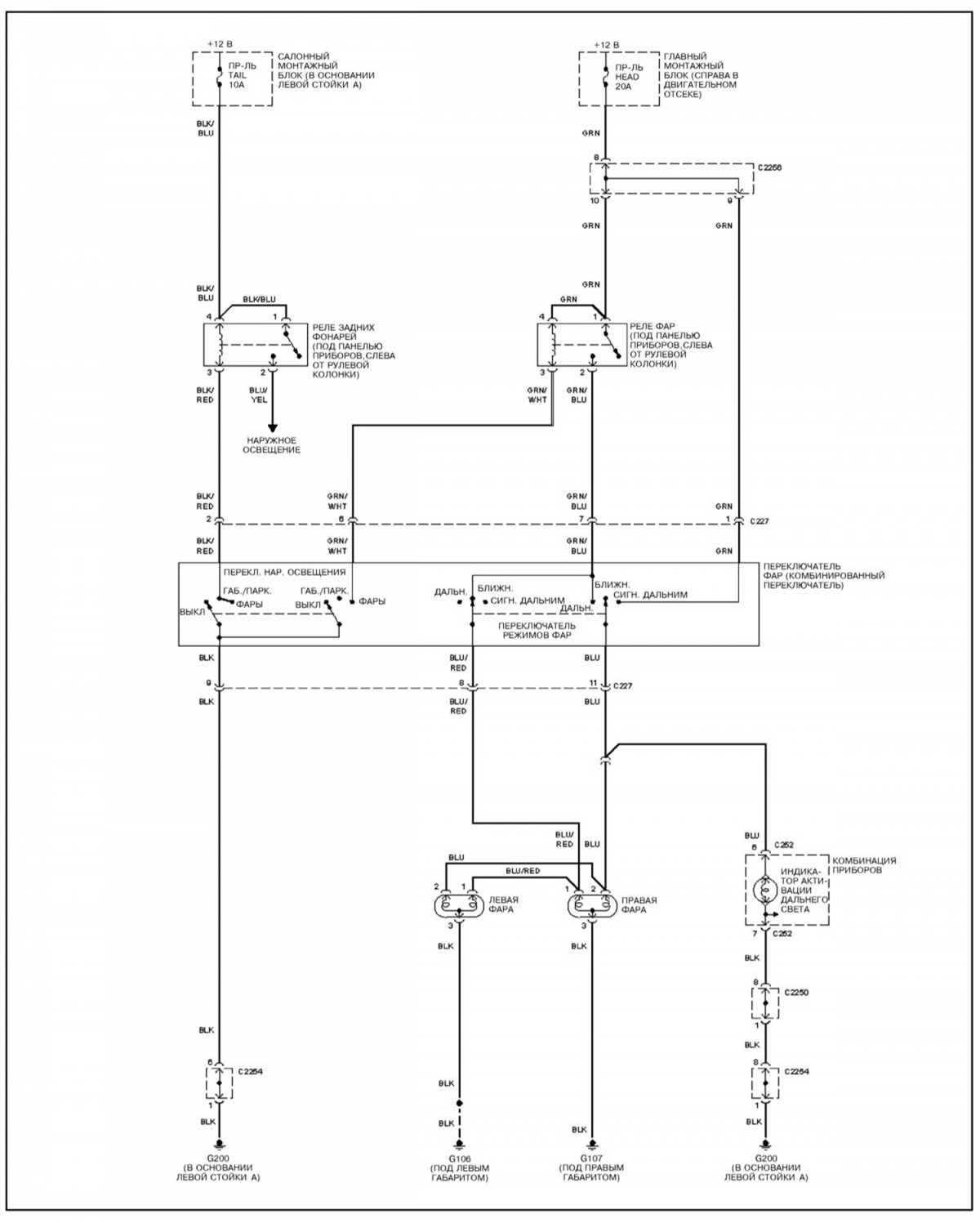

Refer to the vehicle’s electrical blueprint for pin assignments. Identify the power feed, ground, and relay trigger pathways. Trace each path with the multimeter while toggling the light switch. A voltage drop below 11.5V on the feed line indicates excessive resistance–clean connections with 600-grit sandpaper or replace the wire if insulation is compromised.
Inspect relay operation by swapping it with a known-good unit of identical rating (typically 20A/30A). If illumination restores, the relay’s internal contacts are welded or corroded. Verify the relay socket for molten plastic or discoloration–replace the socket if damaged.
| Symptom | Likely Cause | Solution |
|---|---|---|
| Flickering at high RPM | Loose alternator output connection | Tighten B+ terminal; check for 13.8–14.4V |
| Single lamp inoperative | Blown bulb or broken bulb socket spring | Test bulb with 12V supply; replace socket if spring tension |
| Both lamps dim | Faulty dimmer switch or corroded fuse block | Spray switch contacts with electrical cleaner; measure fuse resistance < 0.1Ω |
Examine fuse links using the schematic’s fuse rating. Pull the fuse and measure continuity across its terminals. If resistance reads infinite, replace with an identical amperage fuse–never exceed the original rating. For blade-type fuses, a visible gap in the element confirms failure.
Test the light switch by back-probing the connector with the ignition on. High-beam activation should show 12V on the corresponding terminal. If voltage is absent, the switch is defective–remove the steering column shroud and replace the switch assembly. Ensure the new switch’s momentary contact aligns with the schematic’s timing diagram.
For integrated daylight modules, disconnect the module’s harness and jumper the power and output pins as per the blueprint. If illumination returns, the module requires reprogramming or replacement. Reprogram using the manufacturer’s scan tool, ensuring the module’s firmware matches the vehicle’s build date.
