Step-by-Step Guide to Creating a Cat 6 Ethernet Cable Wiring Diagram

For optimal performance in gigabit networks, use the T-568B pinout standard when terminating cables. Arrange conductors in the following order: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This configuration ensures backward compatibility with older Fast Ethernet deployments while maximizing bandwidth for modern applications.

When splicing conductors, maintain consistent twist ratios–no more than 13 mm (0.5 inches) of untwisted wire per pair. Exceeding this length introduces crosstalk and signal degradation, particularly at frequencies above 100 MHz. Use high-quality 24 AWG solid copper cables with PE insulation for minimal attenuation; CCA (copper-clad aluminum) alternatives reduce performance by up to 20% over 100-meter runs.

Shielded termination (FTP or STP) is mandatory in environments with high electromagnetic interference, such as data centers or industrial settings. Ground the shield at both ends using a 330Ω drain wire connected to the metallic connector housing. For unshielded installations, ensure cable separation of at least 30 cm from power lines to prevent inductive coupling.

Testing is non-negotiable. Use a certified cable analyzer to verify compliance with ISO/IEC 11801 Class E performance metrics. Key parameters include: insertion loss ( 32 dB), PS NEXT (> 30 dB), and return loss (> 12 dB). Failure to meet these thresholds compromises data integrity, manifesting as packet loss or retransmissions.

Label every termination point at both ends with unique identifiers matching your network documentation. Use heat-shrink sleeves or durable labels resistant to UV and abrasion. In patch panels, follow the 6-5-4-3-8-7-2-1 port numbering scheme to maintain logical consistency across installations.

Standardized RJ45 Pinout for High-Speed Ethernet Cables

Use the T568B color-coding scheme for consistently reliable Gigabit connections. Pin 1: white-orange, Pin 2: orange, Pin 3: white-green, Pin 4: blue, Pin 5: white-blue, Pin 6: green, Pin 7: white-brown, Pin 8: brown. This sequence matches equipment defaults and prevents miswiring errors.

Terminate shielded variants with grounded connectors only when the entire link–including patch panels and switches–supports shielding. A single unshielded segment negates EMI protection, causing increased crosstalk and intermittent speed drops.

Keep untwisted pairs under 13 mm (0.5 in) during termination. Excessive untwisting degrades NEXT by 3 dB per additional 6 mm, increasing bit errors above 1 Gbps thresholds.

Test every link with a cable certifier rated for TIA-568-D Category 6A standards. Field testers verifying only continuity will miss hidden faults causing 250 MHz attenuation spikes or return loss above -15 dB.

Alternate Configurations for Specialized Networks

For PoE installations, confirm pin pairs 1-2 and 3-6 carry DC power without exceeding 600 mA per pair. Pair-splitting adapters violate PoE standards, risking overheated conductors and voltage drop to below 44 V at the PD.

Patch cords shorter than 0.5 m should use stranded conductors instead of solid-core to prevent large impedance mismatches. A 30 cm solid-core patch cord can reflect up to 15% of signal energy back into the link, raising error rates on marginal channels.

Troubleshooting Common Termination Errors

Interchanging pairs 1-2 and 3-6 creates 100BASE-TX compatibility but halves Gigabit throughput. Verify wire map with a certifier; visual inspection often misses swapped leads buried in punch-down blocks.

Stagger the lengths of exposed conductors at the RJ45 plug by 0.5 mm–the green pair shortest, orange pair longest–to minimize alien crosstalk between adjacent channels in bundled cables.

Essential Tools and Supplies for Network Cable Termination

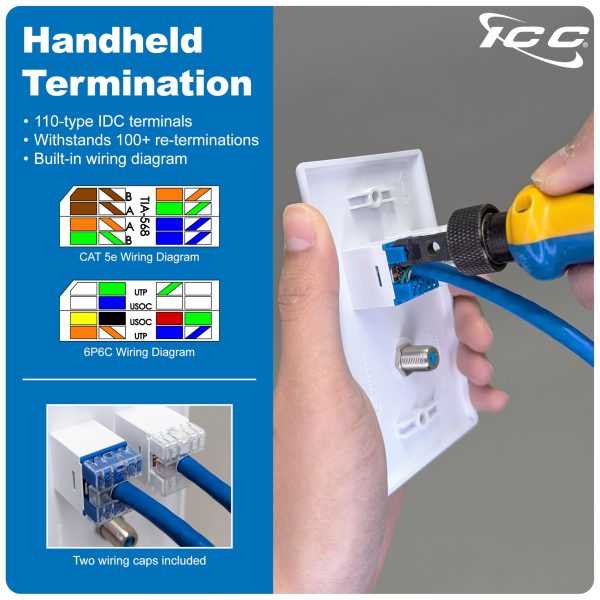

Begin with a high-quality cable stripper calibrated for 23–24 AWG twisted pairs–brands like Klein Tools VDV526-205 or Jonard CST-500 ensure clean sheath removal without damaging internal conductors. Pair this with a precision crimp tool designed for 8P8C connectors (e.g., Platinum Tools 100054C or TRENDnet TC-CT68), which exerts uniform pressure across all pins to prevent connector failure. Include a punch-down tool with a 110-type blade (Klein Tools VDV427-817 or Panduit CT720) for keystone jack terminations, ensuring consistent wire seating and strain relief. A digital cable tester with PoE detection (Fluke Networks DTX-LT or Ideal Networks 62-200) validates continuity, pair separation, and shielding integrity post-termination.

Specialized Supplies for Optimal Performance

Use solid copper conductors with a 23 AWG diameter (e.g., Monoprice Cat6 Bare Copper or Superior Essex Megapair) to maintain signal integrity over runs exceeding 55 meters. Shielded variants (F/UTP) require grounding hardware–include a dedicated 6 AWG bonding wire and a 360-degree shield termination tool (like the Paladin 11468). For outdoor or industrial deployments, select direct burial-grade jacketing (such as Belden 7706A) and waterproof gel-filled boots (Panduit CBOT24) to prevent moisture ingress. Terminate shielded jacks with MPTL-compliant boots (e.g., Connectix SLT-BLK) for consistent impedance matching. Avoid stranded patch cables for horizontal runs; these introduce attenuation and degrade bandwidth performance.

Verify termination accuracy with a TDR-equipped analyzer (e.g., Fluke DTX-1800) to detect impedance mismatches or reflections exceeding 20 dB. For PoE++ applications, use connectors and jacks rated for 90W (such as CommScope AMP NETCONNECT 594820-1 or TE Connectivity 558327-1) to prevent overheating. Keep a set of dielectric grease (CRC 05113) and a torque wrench (Klein JISV20) for securing shielded connectors to RJ45 jacks, ensuring EMI mitigation down to 50 MHz. Never exceed bend radius limits (8x cable diameter for unshielded, 10x for shielded); use rigid conduit (Carlon ENT) for sharp turns or exposed installations.

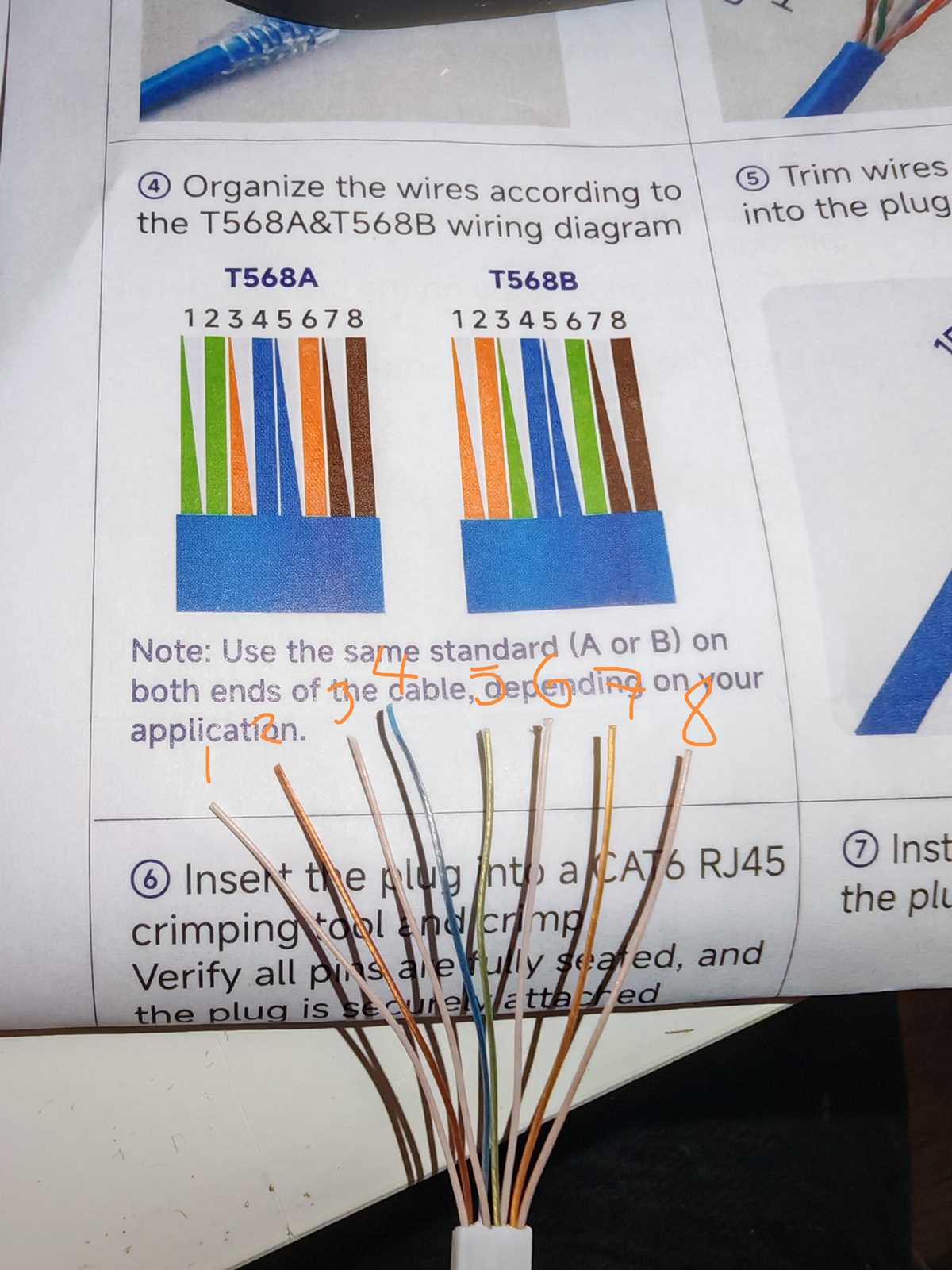

Step-by-Step Guide to Terminating Ethernet Cables with T568A and T568B Standards

Begin by stripping 1.5 inches of the outer jacket from the cable using a precision cutter, ensuring no damage to the inner twisted pairs. Confirm the integrity of each conductor–none should be nicked or frayed before proceeding.

Separate the four pairs slightly, then untwist them just enough to arrange the wires in order without straightening more than necessary. Excessive straightening weakens signal performance, particularly above 100 MHz.

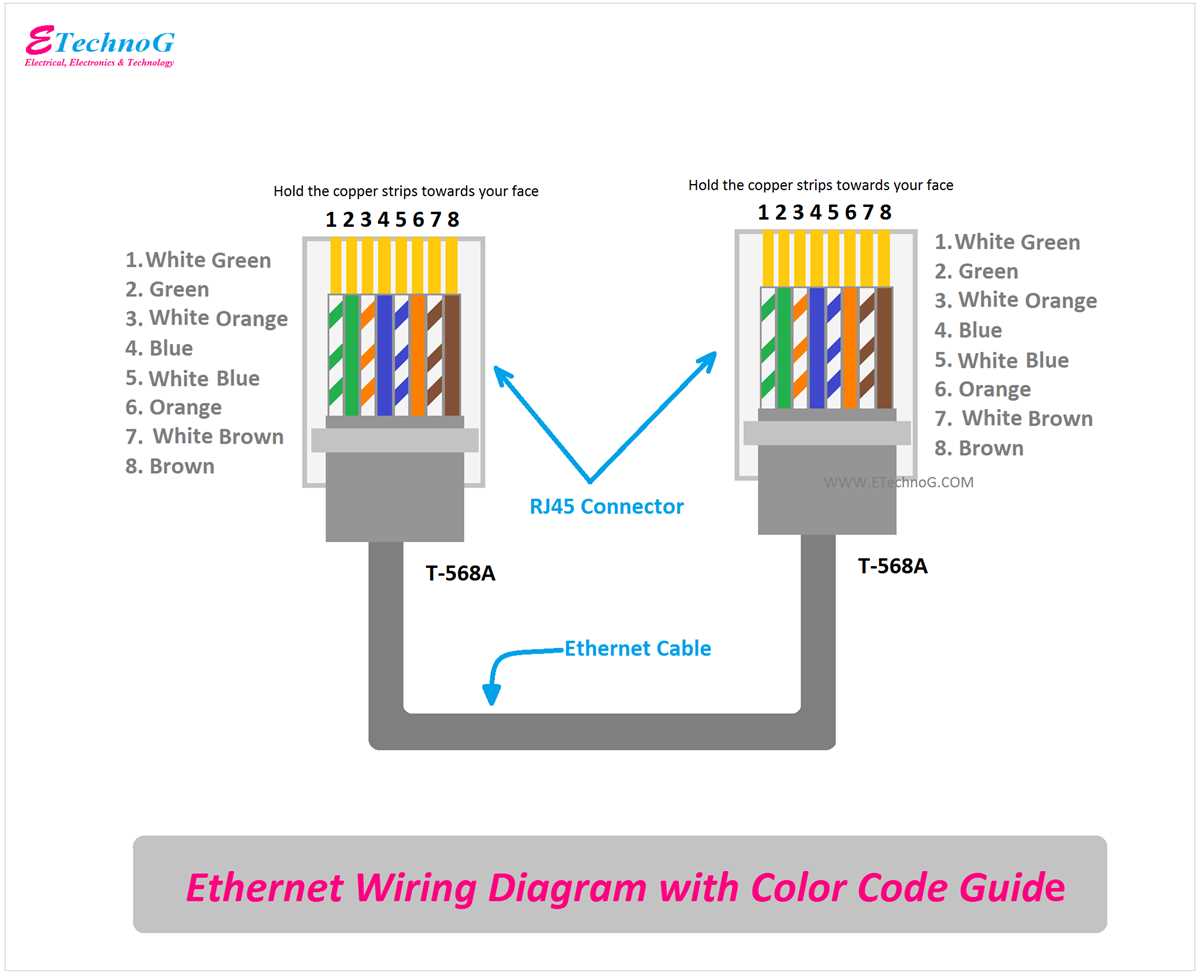

• T568A sequence (ANSI/TIA-568 standard): Green-White, Green, Orange-White, Blue, Blue-White, Orange, Brown-White, Brown.
• T568B sequence (alternate standard): Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown.

Arrange the conductors in the chosen order, pressing them firmly into the RJ-45 connector slots, ensuring each wire reaches the contact point. Use a crimping tool to secure the connection only after verifying all conductors are fully seated–misalignment reduces bandwidth by up to 20%.

Critical Termination Checks

1. After crimping, tug each wire gently–proper termination withstands 0.5kg of force without slippage.
2. Inspect the connector with a flashlight–every conductor’s tip must extend just beyond the crimp point but not touch the connector housing.
3. Test with a dedicated cable analyzer: measure attenuation, crosstalk (NEXT/PSNEXT), and return loss. For gigabit applications, PSNEXT values above -32 dB at 250 MHz indicate potential failures.

Avoid mixing standards on the same link–terminate both ends identically. T568A is common in residential installations; T568B dominates commercial networks. Swapping standards mid-link introduces impedance mismatches, degrading signal-to-noise ratios.

For installations exceeding 90 meters, use shielded twisted-pair variants, grounding the shield at both ends to prevent ground loops. Unshielded cables in high-interference environments require strict separation from power lines (minimum 30cm) to maintain signal clarity.

Common Mistakes to Avoid When Terminating Ethernet Connections

Stripping more than 1.5 inches of outer jacket exposes conductors to excessive bending, increasing crosstalk and signal degradation. Use a calibrated stripping tool adjusted to 1.25 inches–this length ensures sufficient twist retention while preventing exposed pairs from unraveling during insertion. Excessive stripping also weakens the cable’s structural integrity near the termination point, leading to intermittent faults under minimal mechanical stress.

Avoid twisting conductors after untwisting beyond the ANSI/TIA-568 specified length of 0.5 inches. Each pair’s twist rate differs (orange/white-orange: 18 twists/foot, blue/white-blue: 20 twists/foot), and disturbing the factory twist by even 0.25 inches can drop PSACR values by up to 3 dB. Use a pair separator tool to maintain exact twist proximity at the connector interface.

Critical Termination Errors and Corrections

Error	Impact	Correction
Inconsistent conductor length (±0.03 in)	Impedance mismatch, NEXT failure (>-45 dB)	Cut conductors at 90° angle, verify length under magnification
Incorrect pinout sequence	Channel mismatch, 100% link failure	Use T568B as default; validate with continuity tester
Over-crimping (connector deformation)	Narrowband noise, return loss	Apply 8-10 lbs of force; check with crimp gauge

Inserting conductors unevenly into the connector housing creates air gaps between the conductor and contact, reducing contact force by up to 40%. Align each wire flush with the connector’s forward stop; use a modular plug holding tool to prevent rearward movement during crimping. Verify insertion depth with a light source–exposed conductors should terminate within ±0.01 inches of the connector face.

Reusing failed connectors is a false economy: worn contacts develop tin migration layers, increasing contact resistance by 15-20 ohms. Replace connectors after three termination attempts on the same cable end. Store unused connectors in ESD-safe bags at 20-25°C to prevent oxidation; exposure to 30°C for 72 hours can reduce gold plating adhesion by 30%.

Post-Termination Validation Checklist

Always perform these tests in sequence before deployment:

1. DC resistance:
2. Continuity: No opens, shorts, or miswires
3. Insertion loss:
4. Return loss: >20 dB at 1-250 MHz
5. NEXT: >45 dB at all frequencies
