StepbyStep Guide to VFD Drive Wiring Diagram Connections

Start by identifying the power terminals on your adjustable speed controller: L1, L2, L3 for input and U, V, W for motor output. Always verify voltage compatibility–most industrial frequency converters require 380–480V three-phase input, while single-phase models (typically 220–240V) demand derating to avoid overheating.

Grounding must be direct–never daisy-chain. Connect the PE terminal to a dedicated earth point using 6 AWG or thicker copper wire to prevent stray currents. For noise-sensitive setups, route control and power cables in separate conduits; maintain 20 cm minimum separation or use shielded twisted pairs for signal lines.

Braking resistors (when needed) connect between +BR and -BR terminals. Calculate resistance: R = V²/P, where V is DC bus voltage and P is motor power in kW. Over-sized resistors risk bus voltage spikes–select a unit with 1.5x–2x motor power rating for safe transient absorption.

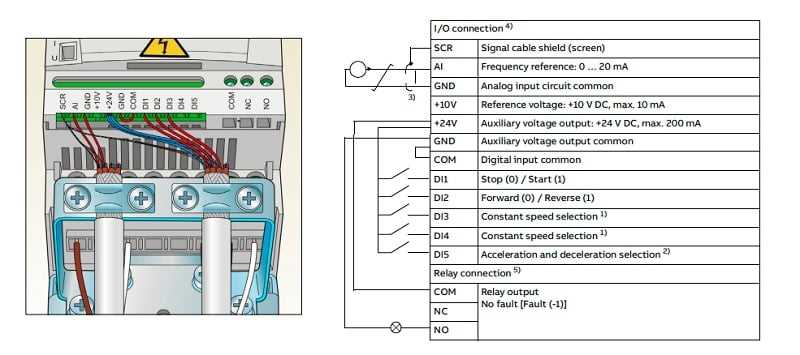

Digital input/output (I/O) wiring demands sturdy connections. Use 18–22 AWG stranded wire for control signals and avoid soldered joints–crimp or use screw terminals rated for 10 A minimum. For analog signals (+10V, 4–20mA), ensure 500 Ω impedance matching to prevent calibration drift.

Before energizing, check phase rotation with a meter. Incorrect sequence (e.g., L1–L2–L3 vs. L1–L3–L2) will reverse motor direction unexpectedly. Verify all fasteners are torqued to 3–4 Nm–loose connections cause arcing and pitting on terminal surfaces.

Connecting Adjustable Frequency Controllers: A Step-by-Step Schematic

Start with isolating power to the variable speed regulator by switching off the main breaker. Verify absence of voltage at the input terminals using a multimeter–readings should confirm zero potential before proceeding. Label all conductors at both ends (motor, supply, control circuits) with heat-shrink tubing or numbered tags matching the reference design to prevent misconnection later.

For a 3-phase 400V system, connect supply phases to terminals L1 (R), L2 (S), and L3 (T) on the converter’s input. Ground the chassis securely to the facility’s protective earth busbar using a minimum 10 AWG copper wire, ensuring resistance below 0.1 ohms. If the installation includes line reactors or filters, wire them downstream of the circuit breaker and upstream of the controller.

On the output side, route motor cables to U, V, and W terminals–observe phase sequence consistency with motor nameplate markings to avoid reverse rotation. Shielded cables are mandatory for runs exceeding 10 meters; ground the shield at both ends using a 360° clamp, but only at one point near the controller end to thwart circulating currents.

Connect control signals next. For start/stop commands, wire a maintained-contact pushbutton between DI1 and common (COM); a 24V DC source can be tapped from the controller’s internal supply. Analog speed reference requires a 0-10V potentiometer (2 kΩ, linear taper) wired to AI1 (+), AI2 (wiper), and AGND (–). Bypass capacitors (0.1 μF ceramic) should be placed within 20 mm of digital input terminals to suppress transient noise.

Before energizing, measure insulation resistance between motor conductors and ground with a 500V megohmmeter–minimum reading should exceed 2 MΩ. Set initial parameters via the keypad: configure ramp times to 5 seconds, enable dynamic braking if the application requires rapid deceleration, and select the correct motor type (induction, synchronous) in the auto-tuning menu. Record the schematic’s wiring sequence in a durable, weather-resistant format and attach it to the enclosure door for future troubleshooting.

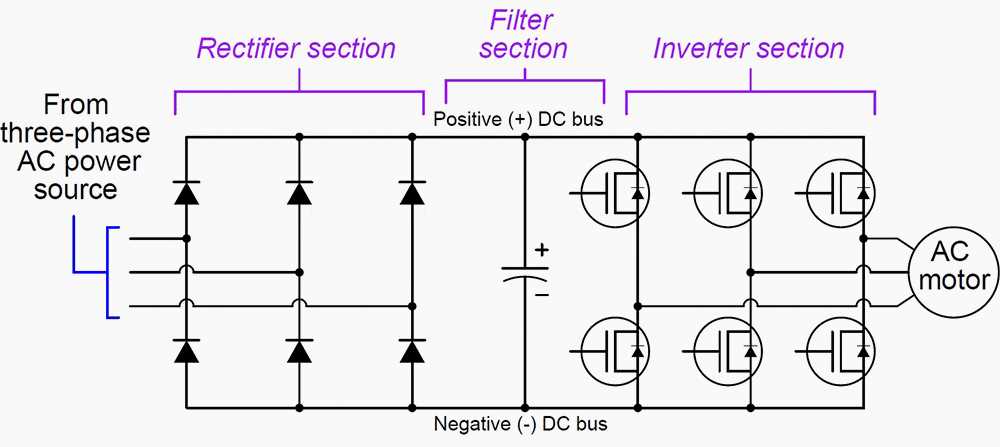

Critical Elements of a Frequency Converter Circuit Layout

Begin by labeling every conductor–input power lines, motor leads, and control signals–with unique identifiers matching the manufacturer’s terminal designations. Most industrial inverters use L1/L2/L3 for mains input and U/T1, V/T2, W/T3 for motor connections. Mismatched tags cause miswiring, leading to immediate tripping or permanent damage.

Isolate high-voltage and low-voltage circuits using separated ducts or barriers; NEMA standards mandate a minimum clearance of 25 mm between 480 VAC conductors and 24 VDC control lines. Employ shielded cables for analog signals (4–20 mA, 0–10 V), grounding the shield at one end only–preferably the inverter’s signal ground terminal–to prevent ground loops.

Control Signal Integration

Map start/stop, speed reference, and fault reset inputs directly to the converter’s digital and analog terminals. Use relay outputs from PLCs or pushbuttons, ensuring the control voltage matches the converter’s logic level (typically 24 VDC). Avoid daisy-chaining control signals; route each command through a dedicated conductor to minimize interference.

Grounding requires a star configuration: connect all shields, motor frame, and converter chassis to a single, low-impedance earth point. Copper busbars with cross-sections ≥16 mm² reduce ground potential differences. Never rely on conduit as a grounding path; bond metallic enclosures with green/yellow insulated conductors.

Protection and Isolation Devices

Insert appropriately rated fuses or circuit breakers upstream of each converter, sized at 125% of the nominal current. For 10 HP (7.5 kW) units, use 30 A time-delay fuses. Include MOVs (metal oxide varistors) across input terminals to clamp surges; place them as close to the converter as possible, ideally within 30 cm.

Verify motor insulation resistance before energizing; megohm readings should exceed 1 MΩ at 500 VDC. Test phase-to-phase and phase-to-ground continuity with a multimeter–impedance imbalance >5% indicates winding faults. Document all measurements in the installation log; deviations often precede catastrophic failure.

Step-by-Step Guide to Connecting Power Input Conductors

Begin by verifying the incoming voltage matches the frequency controller’s specifications. Consult the manufacturer’s data plate for exact requirements–typically 200-240V single-phase or 380-480V three-phase. Mismatched voltage risks equipment damage or maloperation. Use a multimeter to confirm live conductors before proceeding. Ensure the power source is disconnected during initial setup.

Identify the L1, L2, and L3 terminals on the control unit for three-phase input. Single-phase setups use L1 and L2 (or L and N for neutral). Strip the insulation from the ends of the cables to expose 10-15 mm of copper. Insert each conductor into its designated terminal slot and tighten screws to 1.5-2.0 Nm using a torque screwdriver. Loose connections cause overheating and arcing.

Ground the system properly. Locate the grounding terminal (marked ⏚ or PE) and attach the earth wire. This wire should be equal or larger in gauge than the phase conductors. Secure it with the same torque specification. Improper grounding voids safety certifications and increases shock hazards. For industrial setups, connect to a dedicated earth rod if local codes require it.

• For motor controllers with built-in filters, connect line reactors between the power source and the device to reduce harmonic distortion.
• Use stranded copper wire rated for 75°C or higher–solid wire risks breakage under vibration.
• Avoid routing signal and power cables in the same conduit to prevent interference.

Recheck all connections for correct phase sequence. Incorrect sequencing causes motors to rotate in the wrong direction. Swap any two phase wires if needed. Seal unused terminals with insulating caps to prevent accidental contact. Energize the circuit only after a final inspection–use a contactor or circuit breaker rated for the system’s current draw.

Test the setup with a soft start. Gradually increase speed while monitoring for unusual noise, vibration, or overheating. Abnormal signs indicate miswiring or mechanical binding. Refer to the device’s manual for specific fault codes if errors appear on the display. Record voltage and current readings at idle and full load for future reference.

Label all cables clearly with heat-shrink tubing or adhesive tags. Include phase designation, voltage, and circuit breaker identification. Store a copy of the connection schematic near the installation for maintenance crews. Regularly inspect terminals for corrosion or loosening–retorque annually as part of preventive upkeep.

Motor Connection Schemes Across Frequency Converter Brands

For a Delta C2000 series unit, configure 3-phase induction motors using the 3G3M terminals labeled U/T1, V/T2, and W/T3–connect each motor lead directly without neutral. Ensure phase rotation matches the motor nameplate (U→V→W) or swap any two leads for reverse operation. Larger motors (above 7.5 kW) require a dedicated ground terminal; fasten it to the chassis with a minimum 10 AWG conductor to comply with CE and UL noise immunity standards.

Hitachi SJ700E regulators support both star (Y) and delta (Δ) configurations via DIP switch SW1-1. Set SW1-1 to “ON” for star mode, reducing startup current by ~33%, then switch to “OFF” after 10 seconds delay (automated via parameter A1-03). For delta on the same model, wire T1→T6, T2→T4, T3→T5; ignore terminal T0–it’s reserved for optional braking resistors in 40+ HP applications. Thermal overload protection must use a Class 10 relay calibrated to 115% of motor FLA.

Key Brand-Specific Terminal Blocks

• Siemens G120: Use X21 (PE), X22 (L1/L), X23 (L2/N), X24 (L3). For single-phase input, bridge X22 to X24; never exceed 400V nominal on internal DC bus.
• Fuji FRENIC-Mini: Terminals R/L1, S/L2, T/L3 accept 200-240V three-phase; U, V, W output must align with motor phases–swap V and W if rotation is incorrect.
• Allen-Bradley PowerFlex 525: Connect DPI terminals 1-3 for 480V line-to-line; jumper terminal 4 to 5 for 60Hz operation, or to 6 for 50Hz without parameter adjustment.

Toshiba VF-S15 requires specific shielding for lengths exceeding 50 meters: twist motor cables at no less than 25 turns per meter and enclose in a grounded galvanized conduit. Terminate shield braid at both ends to the motor frame and the converter’s SHIELD terminal, never pigtail over 25 mm. Failure to comply voids CE electromagnetic conformity and risks nuisance tripping on E009 fault codes during rapid deceleration.

Voltage-Specific Wiring Nuances

1. 230V single-phase input (e.g., ABB ACS355): Bridge L1-L2 internally via parameter 9907; wire motor phases across U1-V1, V1-W1, W1-U1–delta configuration is mandatory for motors rated above 3 HP.
2. 460V three-phase input (e.g., Mitsubishi FR-D700): Align converter L1-L3 input phases with motor U-W output phases; relocate jumpers J4 and J5 if using 380V or 415V grids to prevent 15% overvoltage on DC bus.
3. 690V heavy-duty (e.g., Yaskawa GA700): Only delta motor configuration is supported; verify motor insulation class (minimum Class F) before energizing–transient spikes exceed 1200V on sudden stop.

Schneider Altivar Process ATV630 terminals L1/R, L2/S, L3/T accept 400-690V three-phase; confirm motor kW rating via parameter PrO-12 before wiring 6+ lead motors–split winding connections are invalid for inverter duty. Ground via dedicated terminal LG; daisy-chaining grounds between multiple motors causes differential mode noise currents exceeding 30 mA, tripping GFI protection on ETA-10 error messages.
