Complete CCTV DVR Circuit Schematic Guide for Security Systems
Start with a 4-channel analog video processor IC like the HI3520 or TW2866–these handle encoding and multiplexing for standard PAL/NTSC inputs. Connect each camera feed to a dedicated video input buffer (e.g., LM1881 sync separators) to stabilize signals before routing to the processor. The IC’s output pins (typically Y/C or composite) should feed directly into the storage controller, but add a 74HC157 multiplexer if switching between live preview and playback modes.
For power distribution, use a LM2596 switching regulator to drop 12V DC to 5V for logic circuits. Isolate the video ground from the power ground using a 1Ω resistor or ferrite bead to prevent noise coupling. Critical filtering includes a 220μF electrolytic capacitor on the regulator’s input and a 0.1μF ceramic capacitor on each IC’s power pin to suppress high-frequency interference.
Storage requires a SPI NOR flash (e.g., W25Q128) for firmware and a NAND flash (minimum 16GB) for footage. Interface the NAND via an ARM Cortex-M3 (STM32F4) or Allwinner V3 for Linux-based systems. Include pull-up resistors (4.7kΩ) on I2C lines for EEPROM communication. For real-time clock functionality, integrate a DS3231 module with a backup CR2032 battery.
Network connectivity demands an RTL8201 PHY chip for 10/100 Ethernet. Route differential pairs (TX+/TX-, RX+/RX-) with matched 100Ω impedance and keep traces ≤25mm to avoid signal degradation. For PoE support, add a SI3402 controller and a 1N5822 Schottky diode for polarity protection. Test video streams at 100Mbps to confirm bandwidth suffices for D1 resolution (720×576) at 25fps per channel.
Thermal management: attach a 5mm × 5mm thermal pad to the HI3520’s underside and bolt it to a 20°K/W aluminum heat sink. Monitor temperatures with the IC’s built-in ADC–shut down at 85°C to prevent silicon degradation. For HDMI output (optional), use a IT66121FN transmitter with EDID emulation; connect via TMDS pairs shielded with ground fills (3mm spacing).
Building a Surveillance Recorder Schematic
To design a reliable recording device for security feeds, begin with a microcontroller (MCU) like STM32F4 or ESP32 for core processing–prioritize models with DMA channels to offload video capture tasks. Pair it with an ADV7180 or TVP5150 video decoder IC to handle analog signal inputs, ensuring it supports CVBS/PAL/NTSC at 720×576 resolution. Use a DDR3 SDRAM (256MB–1GB) for frame buffering, selecting a chip with a 32-bit bus width to maintain 30fps playback without stuttering. For storage, integrate an eMMC module (32GB+) or SATA interface for HDD/SSD support, ensuring the filesystem is formatted in ext4 for optimized write speeds.
Power distribution requires a TPS54331 buck converter for 3.3V (MCU/SDRAM) and a LM2596 for 5V (decoder/storage), with decoupling capacitors (0.1µF–10µF) near each IC to suppress noise. Add a MAX3232 for RS-232 debugging and an Ethernet PHY (LAN8720) with magnetics for network connectivity. For analog frontend protection, include TVS diodes (P6KE6.8CA) on signal lines and a polyfuse (0.75A) on the 12V input. Test signal integrity with an oscilloscope, ensuring
Key Elements for Building a Video Recording System
Start with a processing unit capable of handling multiple video streams. A quad-core or octa-core ARM-based processor clocked at 1.2 GHz or higher ensures smooth compression and storage. Look for models with hardware-accelerated encoding, such as H.264 or H.265, to reduce CPU load during high-resolution recording.
Integrate dedicated video interfaces like BT.656 or MIPI-CSI for direct camera connections. These protocols eliminate the need for additional converters, reducing signal latency. Ensure the board supports at least four simultaneous inputs for scalability.
Memory allocation is critical–opt for 1GB DDR3 RAM minimum, paired with 8GB eMMC flash storage for the operating system and firmware. For video storage, use a SATA III interface with a 2TB HDD or SSD, supporting sustained write speeds of 150MB/s to prevent frame drops during peak activity.
A power management IC with adjustable output (e.g., 5V/12V) is essential. Choose a buck converter with overvoltage protection to safeguard components from voltage spikes, especially in outdoor or industrial environments where power fluctuations are common.
Include Gigabit Ethernet for network connectivity, enabling remote access and cloud integration. A PHY chip like the RTL8211 reduces packet loss during high-bandwidth transfers. For wireless options, add a dual-band Wi-Fi module (2.4GHz/5GHz) with MIMO antennas to improve signal stability.
Add optical isolation for analog inputs using a TVP5150 decoder. This chip converts composite video into digital signals while filtering electrical noise, which is critical for maintaining image clarity in noisy environments like factories or parking lots.
Incorporate real-time clock (RTC) hardware with a backup battery (CR2032). This ensures timestamp accuracy for recorded footage, even during power outages. Pair it with a watchdog timer to automatically restart the system if software hangs.
User interfaces should include HDMI 1.4 for local monitoring and USB 2.0/3.0 ports for peripheral devices. For secure authentication, embed a TPM 2.0 module to encrypt data streams and prevent unauthorized access. Use a touchscreen controller like the FT5x06 for resistive or capacitive displays if a graphical interface is needed.
Step-by-Step Wiring Guide for Surveillance Recorder Power Supply
Start by selecting a 12V/2A power adapter with a center-positive connector to match the input requirements of most standalone recording units. Confirm compatibility by checking the device’s label–most specify a 5.5mm x 2.1mm jack. If the adapter’s output exceeds 2.5A, use a fuse rated 20% above the device’s max draw, placed in series on the positive line to prevent overheating.
Preparing Cables and Connections
Strip 5mm of insulation from both the adapter’s leads and the recorder’s power input wires. For outdoor setups, use 18AWG silicone-jacketed wiring to withstand temperature fluctuations (-20°C to 60°C). Twist the exposed strands clockwise before soldering or crimping to reduce resistance–poor joins can drop voltage by up to 0.3V over 3m of cable.
| Wire Gauge (AWG) | Max Current (A) | Recommended Length (m) |
|---|---|---|
| 22 | 2 | ≤1.5 |
| 18 | 5 | ≤5 |
| 16 | 8 | ≤10 |
Attach a multimeter to the adapter’s output and verify 11.8V–12.2V under load; deviations beyond ±0.2V risk erratic boot cycles or firmware corruption. Secure connections with heat-shrink tubing (minimum 10mm length) rather than electrical tape–tape degrades within 12 months under UV exposure, causing shorts.
Grounding and Final Checks
Connect the negative lead to a dedicated grounding rod if the system is installed in a metal enclosure with more than three connected cameras–floating grounds can introduce 50/60Hz noise in footage. Use a brass grounding lug and star washer to penetrate oxidized metal surfaces. Avoid shared neutrals with lighting circuits; induced surges can exceed 200V during switching events.
Before sealing the enclosure, power on the unit and monitor temperature at the power jack and nearby components for 30 minutes. A rise above 40°C indicates insufficient airflow or undersized wiring–add a small fan rated for 12V/0.1A or replace the cable with a thicker gauge. Label both the adapter and the recorder’s power port with voltage and polarity to prevent mismatches during maintenance.

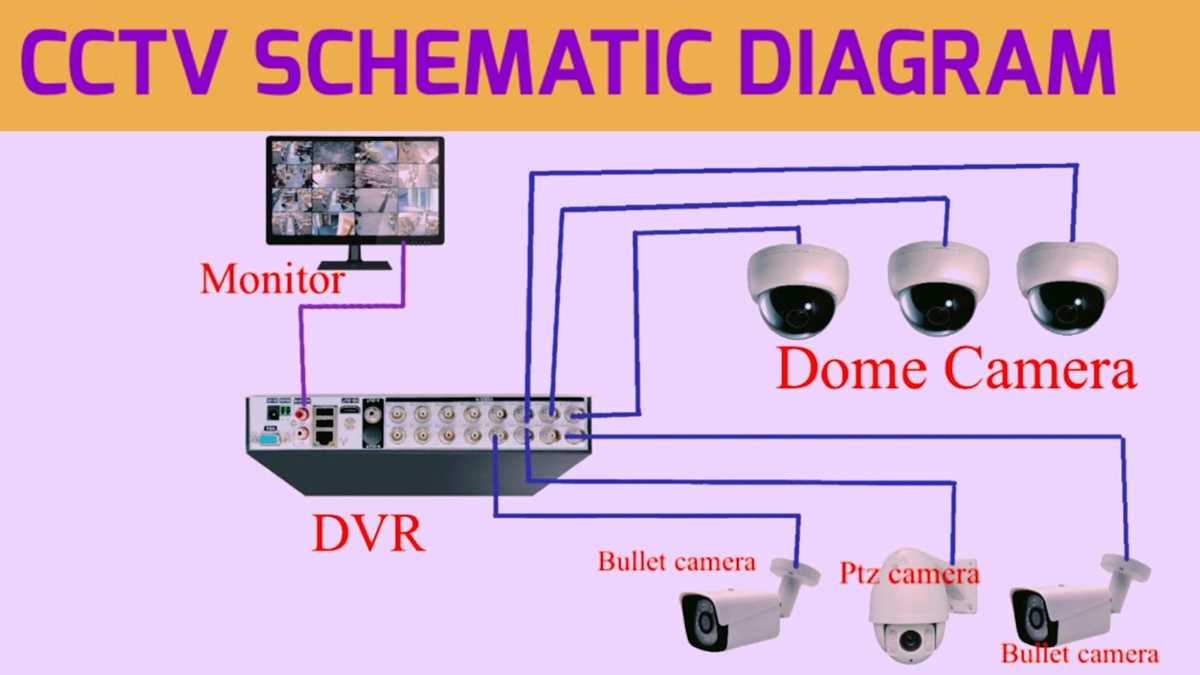

Connecting Cameras to a Recording Unit via BNC and RCA Cables
Use BNC connectors for analog surveillance feeds to ensure signal stability–twist-lock cables prevent accidental disconnections, a common failure point in 75-ohm coaxial setups. Verify impedance matching between cameras and the recorder (typically 75Ω) to avoid ghosting or signal loss; mismatches degrade video quality by up to 30% at distances beyond 100 meters. For power-over-coaxial (PoC) systems, confirm the recorder supports 12V/24V output, as forcing unregulated current risks damaging camera sensors or burning out power regulators. Route cables through grounded conduits if burying or running outdoors to shield against electromagnetic interference (EMI) from nearby electrical lines, which can introduce flickering or horizontal lines in the feed.
RCA Connections for Auxiliary Audio or Lower-Resolution Feeds
RCA cables, limited to composite video (480i/576i), suit older cameras or auxiliary inputs where BNC isn’t available. Pair them with RG-59 coaxial (not RCA audio cables) to maintain video integrity–standard audio RCA lines lack shielding and will distort analog signals. Connect the yellow plug to the recorder’s composite input, red (right audio) and white (left audio) to corresponding inputs if syncing mics or legacy audio sources. Avoid exceeding 50-meter runs with RCA; signal attenuation begins at 30 meters, requiring active repeaters or baluns for longer distances. Test connections with an oscilloscope or multimeter to confirm
Hard Drive Installation and Configuration in Video Recording Units
Select a server-grade storage device with a 3.5-inch form factor and a minimum 7200 RPM rotational speed for optimal write endurance in surveillance applications. Drives rated for 24/7 operation with vibration resistance (e.g., WD Purple or Seagate SkyHawk) prevent early failure under continuous stream recording conditions.
Disconnect power to the recording unit before installation to avoid electrostatic discharge. Ground yourself with an antistatic wristband attached to the chassis or touch a grounded metal surface repeatedly during handling. Remove the unit’s top or side panel–typically secured by 2–4 screws–and locate the SATA drive bay(s) beneath the mainboard compartment.
Attach the storage device to the bay using the provided mounting screws. Connect the SATA data cable to the drive’s interface port first, then route it to the nearest motherboard SATA connector (avoid bending the cable beyond a 90-degree angle). Secure the power cable to the drive’s power port–ensure alignment to prevent forced insertion, which can damage pins.
Configure the storage drive via the unit’s interface before initializing recording. Access the storage settings menu, select the newly installed drive, and choose the file system–GUID Partition Table (GPT) for drives over 2TB, Master Boot Record (MBR) for smaller capacities. Format the drive using the built-in utility; this erases existing data but prepares the volume for surveillance footage storage.
Adjust the recording schedule and quality settings to match storage capacity. For example:
- Full HD resolution (1920×1080) at 15 FPS with H.265 compression consumes ~8–12GB per camera per day.
- 2MP resolution (1280×720) at 10 FPS with H.265 reduces usage to ~4–6GB per camera per day.
- Enable motion detection-only recording to cut storage needs by 60–80% during low-activity periods.
Enable overwrite protection (often labeled “Cyclic Recording”) to automatically delete oldest footage when storage reaches 90–95% capacity. Set a minimum free space threshold (e.g., 10%) to prevent recording gaps during file deletion operations. Disable audio recording unless required; it increases file sizes by 15–25%.
Verify drive health monthly using the built-in SMART monitoring tool. Look for:
- Reallocated Sector Count (exceeding 10 indicates imminent failure).
- Spin Retry Count (values above 0 suggest motor or platter issues).
- Current Pending Sector Count (non-zero requires backup and replacement).
Replace drives exhibiting these symptoms immediately–do not rely on chassis cooling alone to prolong lifespan.
For multi-drive setups, distribute camera streams evenly across volumes. Assign high-resolution channels to separate drives to balance I/O load. Use RAID 1 (mirroring) only if redundancy is critical; surveillance footage tolerates minor corruption, and RAID configurations increase write latency under heavy load. Always back up critical footage to an external NAS or cloud storage before major firmware updates or hardware modifications.
