Step-by-Step Guide to Wiring Ceiling Speakers with Diagrams
Begin by identifying the amplifier’s impedance rating–common values include 4Ω, 6Ω, or 8Ω–to match it precisely with your overhead units. Failure to do so risks overheating or degraded sound quality. Use oxygen-free copper cables (16-14 AWG) for runs under 50 feet; beyond that, upgrade to 12 AWG to prevent signal loss.
Mark each terminal clearly: positive (+) for red or striped wires, negative (-) for black or plain. Twist the bare ends tightly to avoid loose connections, which cause intermittent audio dropouts. Secure splices with solder for permanent setups or lever-lock connectors for temporary installations.
For distributed systems, use a parallel connection if the amp supports multiple loads; series wiring simplifies impedance calculations but reduces output. Verify polarity with a multimeter before finalizing–reversed leads cancel bass frequencies. Ground the amplifier chassis to a metal mounting plate or dedicated earth point to eliminate hum.
Label all cables at both ends with numbered tags. Test each segment independently: play a 1kHz sine wave and check for distortion or volume imbalance. Adjust crossover settings if using passive units–typically 80Hz for subwoofers, 2.5kHz for tweeters.
Avoid running audio lines parallel to power cables longer than 12 inches; cross at 90° angles if necessary. Use conduit in exposed areas to protect against interference. Document your layout with a schematic, noting cable lengths, gauge, and connection points for future troubleshooting.
Installing In-Wall Audio Systems: Essential Connection Schemes

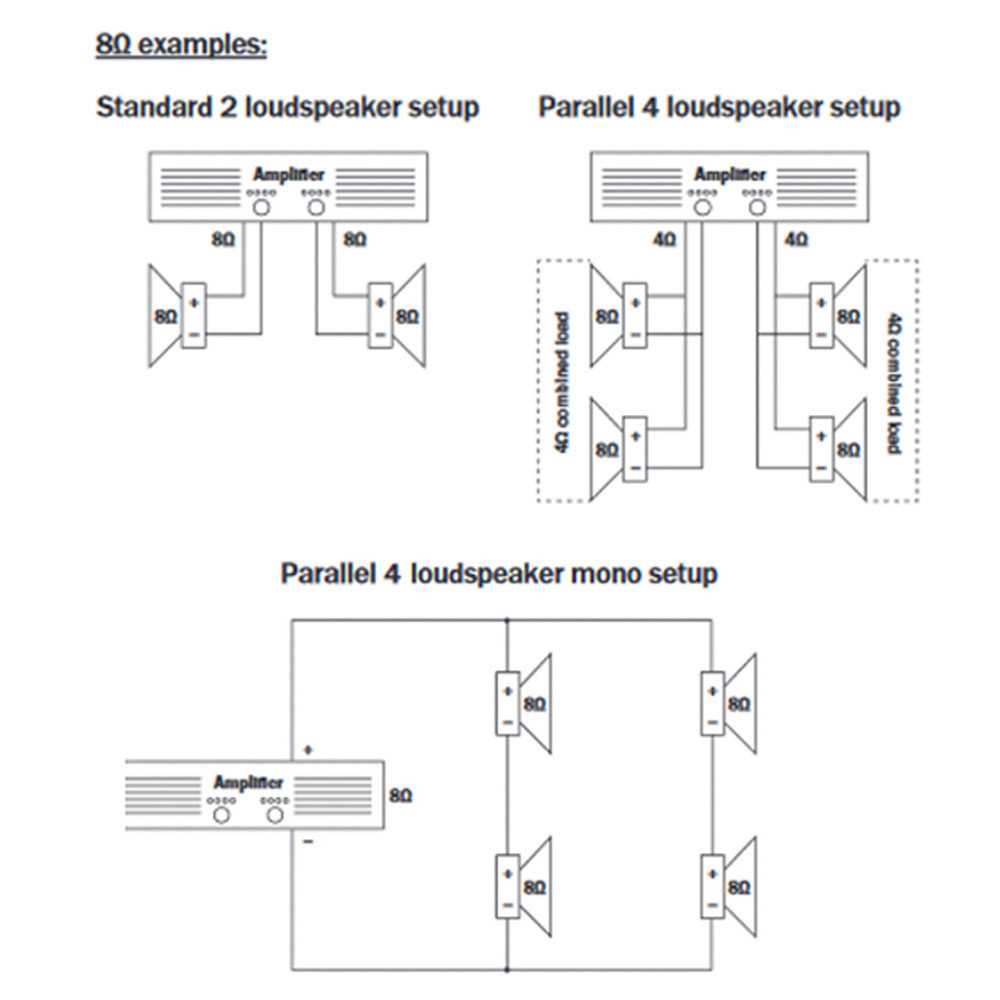

Begin by identifying the amplifier’s impedance rating–most modern receivers support 4–8 ohms, but mismatch risks overheating. Calculate total load by dividing the system’s impedance by the number of drivers if wiring in parallel (e.g., two 8-ohm units yield 4 ohms). For series connections, sum individual ratings (two 8-ohm units equal 16 ohms). Mark terminals clearly: red for positive, black or silver for negative, using color-coded 18-gauge oxygen-free copper wire for residential setups.
Critical Pathways for Signal Integrity
Route cables through joist cavities perpendicular to structural beams, avoiding sharp bends (radius > 5x wire diameter). Maintain ≥15 cm separation from AC lines to prevent hum. For long runs (>20 m), upsize to 16-gauge wire or use a dedicated preamp with balanced XLR connections. Terminate ends with banana plugs, spade connectors, or soldered joints–never twist bare wires, as corrosion degrades high frequencies within months.
Daisy-chain configurations work for distributed audio but degrade performance at each node. Instead, use a home-run topology with a central patch panel for modular flexibility. Label each run (e.g., “Kitchen-Rear Left”) and document phases using a multimeter: +12V DC indicates correct polarity. For Dolby Atmos setups, allocate separate channels for height drivers, wiring them directly to the AVR’s dedicated “Height” outputs.
Test each connection with a 1 kHz sine wave at -20 dB before finalizing drywall. Use a pink noise generator to verify balanced output across drivers. If clipping occurs, reduce amplifier gain by 3 dB or insert a 100 Ω resistor in series. For zones with volume control, integrate impedance-matching transformers rated for 70V/100V systems if driving more than six drivers from a single channel.
Selecting the Optimal Cable Thickness for In-Wall Audio Installations
For most residential setups, 16 AWG (American Wire Gauge) oxygen-free copper cable delivers the best balance of performance and cost. This gauge handles runs up to 150 feet without significant signal loss, provided the amplifier output remains below 50 watts RMS per channel. Over longer distances or higher power demands, drop to 14 AWG to maintain impedance consistency–especially critical for distributed multi-zone systems where cable runs often exceed 200 feet.
Key factors influencing gauge selection:
- Run length: Every 50-foot increase beyond 150 feet requires one step thicker wire (16 → 14 AWG) to offset resistance buildup.
- Power handling: 100W+ amplifiers demand 14 AWG or thicker to prevent voltage drop across extended runs.
- Impedance matching: 8-ohm drivers pair well with 16 AWG; 4-ohm models need 14 AWG or lower to preserve damping factor.
- Cable material: Oxygen-free copper (OFC) outperforms CCA (copper-clad aluminum) by 40% lower resistance–a difference audible in high-frequency clarity.
Common Mistakes to Avoid
Underestimating resistance: A 300-foot run of 16 AWG OFC introduces ~1.5 ohms of resistance–enough to skew impedance calculations and degrade bass response. Always measure actual runs, including vertical drops and conduit bends, which add 10-15% effective length. Another error: mixing gauges in parallel circuits. If one branch uses 14 AWG, all branches should match to prevent current imbalance.
For commercial installations with runs exceeding 500 feet or demanding 200W+ power, switch to 12 AWG or dual 14 AWG conductors. Larger venues benefit from shielded twisted pair (14 AWG + foil shield) to reject interference from lighting dimmers and HVAC systems. In-wall installations near fluorescent fixtures require CL2/CL3-rated cable to meet local fire codes–always verify ampacity tables against local regulations.
Quick reference chart:
- 16 AWG: Up to 150 ft | 50W max | 8-ohm drivers
- 14 AWG: 150–300 ft | 100W max | 4–8 ohm drivers
- 12 AWG: 300–500 ft | 200W+ max | 4-ohm/low-impedance drivers
Pro tip: Use a multimeter to confirm impedance at the driver terminals. If reading is >10% above nominal, upgrade gauge or split runs into shorter segments with localized amplification.
Step-by-Step Guide to Routing Audio Lines in Overhead Spaces
Before accessing the attic or crawl space, prepare these tools: a fish tape (10–25 ft), glow sticks (for visibility), insulated cable clamps (UL-rated, sized for your conduit), 14/2 or 16/2 oxygen-free copper cable (check local electrical codes for gauge requirements), and low-voltage mounting straps (plastic, ½” wide). Ensure the attic is at least 60°F to prevent jacket embrittlement during handling.
Pre-Work Safety and Layout
Shut off all attic circuits at the breaker–label each switch with masking tape to avoid accidental reactivation. Use a non-contact voltage tester near joists and ducts to confirm no live wires are present. Map the route on graph paper, marking obstacles (ducts, piping, recessed lights) at 1:4 scale; maintain a 12″ horizontal clearance from AC vents and 3″ vertical clearance from insulation. Measure twice–cut insulated conduit only after confirming the path.
| Obstacle | Required Clearance | Tool/Method |
|---|---|---|
| Furnace/Water Heater Exhaust | 24″ horizontal | Pre-formed metal conduit, heat-resistant sleeve |
| Fiberglass Insulation | 3″ vertical | Insulation baffles, rigid foam channel |
| Romex or THHN Bundles | 6″ separation | NMC straps, separately clamped |
Begin at the exit hole near the wall plate. Feed the fish tape from the attic downward, guiding it between studs with a rotary drill attachment (¼” bit) if resistance exceeds 5 lbs. Secure the cable to the fish tape’s hook using a temporary loop knot (avoid electrical tape–it degrades under attic heat). Have an assistant pull steadily from below while you guide the line above, releasing slack in 18″ increments to prevent kinking. Attach foam grommets at every penetration point–reduces cable friction by 30% and prevents jacket abrasion.
Final Securing and Testing
Staple the line every 48″ using insulated clamps, keeping a ¼” sag between joists to accommodate thermal expansion. At junction boxes, leave a 6″ service loop coiled clockwise for future adjustments. Terminate at the amplifier using gold-plated banana plugs (50 µohm contact resistance) or direct solder tabs (ensure a 10-second dwell time with a temperature-controlled iron set to 700°F). Test continuity with a multimeter: 0.1–0.3 ohms per 100 ft indicates proper installation. Seal exit holes with fire-rated caulk (UL 2079 compliant) to maintain vapor barrier integrity.
How to Integrate Wall-Mounted Sound Adjusters with Overhead Audio Units
Start by identifying the low-voltage terminal on your in-wall volume control–locate the “+” and “-” markings, typically near the back or underside of the device. Pair these directly with the corresponding red (positive) and black (negative) leads from the overhead audio source. Secure connections using twist-on wire nuts rated for 18-14 AWG solid core wire, ensuring no exposed strands remain.
For rooms requiring multiple adjusters, use a parallel connection method rather than daisy-chaining to maintain consistent impedance levels across all units. Each adjuster’s input terminals should tap into the main feed from the amplifier’s output channels separately, preventing signal degradation in shared circuits.
Select volume controls with impedance-matching transformers when pairing with high-power audio systems. Models like the OSD Audio VC650 or the Niles SSVC-4 are designed to handle 70-volt distributed systems, allowing seamless integration without overload. Verify the transformer’s wattage rating–it should exceed the combined load of all connected overhead units by at least 20%.
Route wiring through electrical conduit if running alongside AC power lines to prevent interference. Use CL2 or CL3-rated cables for fire safety compliance in walls. Keep runs under 150 feet to avoid voltage drop; beyond this length, consider a 16 AWG cable upgrade or an inline booster near the adjuster for signal reinforcement.
Label each wire at both the adjuster and the distribution point using heat-shrink tubing or adhesive tags. Include room location and polarity indicators (e.g., “Den+,” “Kitchen-“) to simplify future troubleshooting. Store spare wire segments coiled and secured with zip ties to prevent tangling during maintenance.
Test each connection with a multimeter before enclosing adjusters in wall plates. Set the device to continuity mode and touch probes to the adjuster’s output screws; a steady beep confirms proper polarity. For transformer-based systems, measure DC resistance–values between 4-8 ohms indicate correct impedance alignment.
Calibrate volume levels room-by-room by playing a pink noise signal at reference volume (typically 85 dB SPL at 3 feet). Adjust the knob on each in-wall control to achieve uniform sound pressure across zones, using a decibel meter for precision. Document final settings for future reference, noting any acoustic anomalies that may require EQ adjustments at the amplifier.
