Interactive Guide to the Steps of Cellular Respiration Process

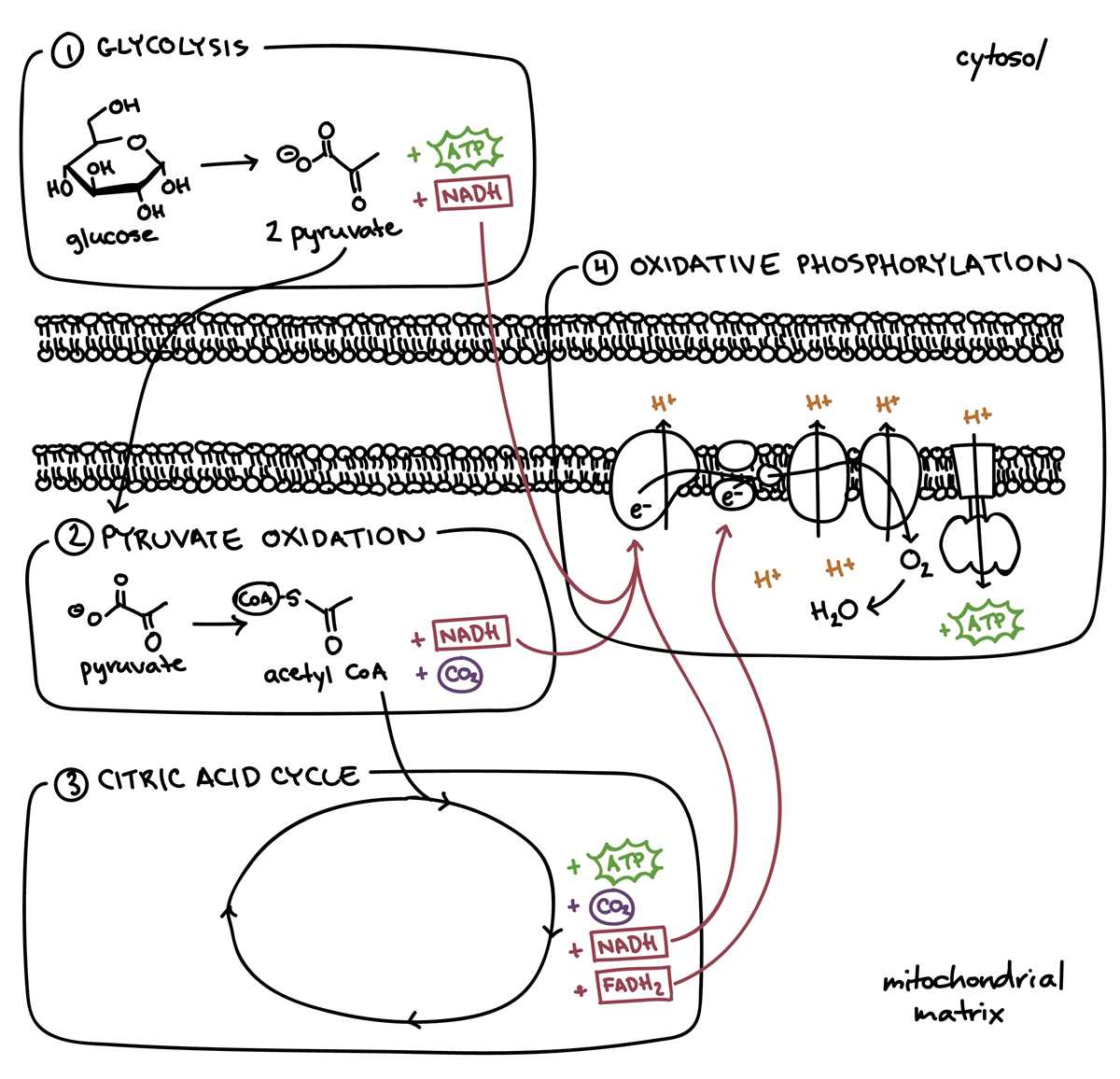

Begin by isolating the three core phases of metabolic energy extraction: glycolysis, the Krebs cycle, and oxidative phosphorylation. Each phase should occupy a distinct column on your reference chart, connected by arrows that mark electron carriers (NADH and FADH₂) and ATP yield. Label substrate inputs–glucose, pyruvate, acetyl-CoA–and trace their carbon skeletons through each transformation. Place mitochondria at the center if illustrating eukaryotic pathways; prokaryotes require no such separation.

Use color-coding to distinguish energy currencies: red for ATP produced, blue for ATP consumed, and yellow for electron transport chain components (Complex I-IV). Annotate proton gradients across the inner membrane with symbols–H⁺ influx at ATP synthase, H⁺ efflux at Complexes I, III, and IV. Avoid overcrowding labels; prioritize clarity by grouping enzymes (e.g., pyruvate dehydrogenase complex as a single entity).

Include stoichiometric ratios adjacent to each reaction: 2 ATP net from glycolysis, 2 ATP from the Krebs cycle (via GTP), and up to 28 ATP from oxidative phosphorylation per glucose molecule. Add a legend explaining how 1 NADH ≈ 2.5 ATP and 1 FADH₂ ≈ 1.5 ATP, accounting for proton leak. If visual space permits, superimpose a second layer for alternative substrates–fats via β-oxidation, proteins through deamination–highlighting where pathways merge.

Cross-reference with electron micrographs showing mitochondrial cristae; this grounds abstract arrows in physical evidence. Embed a small inset comparing aerobic versus anaerobic fates of pyruvate, using dashed lines for lactate/ethanol divergence. Verify all arrows align with actual biochemical regulation points: citrate inhibition of phosphofructokinase, ADP activation of oxidative phosphorylation.

Visual Guide to Energy Conversion in Living Cells

Begin by structuring the process flow into four distinct stages: initial substrate activation, electron transport preparation, proton gradient formation, and final ATP synthesis. Use color-coded pathways (e.g., green for glucose derivatives, blue for electron carriers, red for high-energy intermediates) to trace molecular transformations without overlap. Include consistent labels for NAD⁺/NADH, FAD/FADH₂, and ADP/ATP ratios at each step–these values (e.g., 2 ATP net gain in glycolysis, 6 NADH per glucose in decarboxylation) must align with standard biochemistry references.

Embed mitochondrial membrane-bound complexes (I-IV) as geometric shapes (e.g., rectangles for enzymes, arrows for proton flux) scaled proportionally to their molecular weight. Annotate critical cofactors (CoQ, cytochrome c) in 0.5-point font adjacent to their pathways to avoid clutter. For clarity, separate cytosolic and matrix reactions with a dashed line, and include a legend linking chemical structures (e.g., pyruvate’s 3-carbon skeleton) to their abbreviations.

Key Elements for an Energy Metabolism Visual Representation

Label all stages clearly: glycolysis, the Krebs cycle, and oxidative phosphorylation. Each phase must include its primary substrates (e.g., glucose, pyruvate), enzymes (e.g., hexokinase, ATP synthase), and cofactors (NAD⁺, FAD). Position them in logical sequence to reflect biochemical progression without spatial distortion.

Delineate mitochondrial structures distinctly: outer membrane, inner membrane, intermembrane space, and matrix. Annotate cristae to emphasize their role in electron transport chain localization. Use solid lines for membranes and dotted lines for functional boundaries where complexes operate.

Specify electron carriers: NADH and FADH₂ production sites at each step. Indicate their oxidation points within the inner membrane, showing directional flow toward oxygen as the final acceptor. Include color-coding (e.g., blue for NADH-derived electrons, red for FADH₂) to differentiate pathways.

Integrate ATP yield at each stage: 2 ATP from glycolysis, 2 from Krebs cycle, and ~28 from oxidative phosphorylation. Place net values adjacent to corresponding reactions, using superscript notation (e.g., ATP⁴) for clarity. Avoid combining values; isolate per-step outputs.

Highlight proton gradients across the inner membrane. Indicate proton pumping sites (Complexes I, III, IV) and ATP synthase as a rotary mechanism. Use arrows scaled to proton quantity (thicker for higher flux) and label pH differences between matrix (≈7.8) and intermembrane space (≈7.2).

Include regulatory checkpoints: hexokinase inhibition by glucose-6-phosphate, pyruvate dehydrogenase complex regulation via phosphorylation, and ATP/ADP ratio effects on electron transport. Annotate allosteric modulators (e.g., citrate, AMP) with brief mechanism descriptions.

Demonstrate oxygen’s dual role: as electron acceptor (forming H₂O) and as a potential source of reactive oxygen species (ROS) at Complexes I and III. Place ROS symbols (e.g., superoxide) near leakage sites, with a disclaimer on their downstream signaling versus damaging effects.

Add a concise legend outside the main flow: enzyme nomenclature (EC numbers), cofactor abbreviations, and membrane symbols. Keep it minimal–only elements used in the visual. Exclude unrelated pathways (e.g., fermentation) unless directly comparing yield differences.

Step-by-Step Breakdown of Glycolysis in Metabolic Pathways

Begin by identifying glucose (C6H12O6) at the pathway’s entry point–this six-carbon sugar is the sole starting material for this phase. Trace its phosphorylation into glucose-6-phosphate (G6P) immediately after uptake, catalyzed by hexokinase with ATP as the phosphate donor. This irreversible reaction traps glucose inside the cytosol, preventing diffusion back across the membrane while consuming one ATP. Monitor the free energy change: ΔG ≈ -16.7 kJ/mol, ensuring forward progression even under fluctuating metabolite concentrations.

Observe G6P’s isomerization to fructose-6-phosphate (F6P) via phosphoglucose isomerase–a reversible step with near-equilibrium ΔG (~+1.7 kJ/mol). This aldose-to-ketose conversion primes the molecule for symmetrical cleavage later. Follow F6P’s phosphorylation to fructose-1,6-bisphosphate (F1,6BP), another ATP-dependent reaction (phosphofructokinase-1, PFK-1). The ΔG ≈ -14.2 kJ/mol underscores PFK-1’s regulatory role: allosteric inhibition by ATP and citrate, activation by AMP and fructose-2,6-bisphosphate. This step is rate-limiting–adjust PFK-1 activity to predict flux through the entire pathway.

Cleavage and Energy Investment Return

Track F1,6BP’s lysis by aldolase into two three-carbon sugars: dihydroxyacetone phosphate (DHAP) and glyceraldehyde-3-phosphate (G3P). Despite ΔG ≈ +24 kJ/mol, DHAP’s rapid isomerization to G3P (via triose phosphate isomerase) drives this step forward. At this juncture, two critical points demand attention:

• Net yield reset: The pathway’s early investment–2 ATP consumed–is now “repaid” during G3P processing.
• Symmetry exploitation: Aldolase’s specificity ensures both products feed into a single downstream route, doubling flux efficiency.

Focus on G3P’s oxidation and phosphorylation via glyceraldehyde-3-phosphate dehydrogenase (GAPDH), yielding 1,3-bisphosphoglycerate (1,3BPG). This NAD+-dependent reaction (ΔG ≈ +6.3 kJ/mol) generates NADH–critical for later oxidative phosphorylation. Pyruvate kinase then converts 1,3BPG to 3-phosphoglycerate (3PG), transferring a phosphate to ADP (ΔG ≈ -18.5 kJ/mol). Finally, enolase dehydrates 2-phosphoglycerate (2PG) to phosphoenolpyruvate (PEP), setting up pyruvate kinase’s second irreversible step: PEP + ADP → pyruvate + ATP (ΔG ≈ -31.4 kJ/mol).

Key Outputs and Regulatory Nodes

1. Substrate-level phosphorylation: Two ATP per pyruvate (net +2 ATP per glucose) arise from 1,3BPG and PEP conversions.
2. Reducing equivalents: Two NADH per glucose form during G3P oxidation–shuttle these to mitochondria for oxidative metabolism.
3. Allosteric controls:
   • Hexokinase: inhibited by G6P.
   • PFK-1: inhibited by ATP/citrate, activated by AMP/fructose-2,6-BP.
   • Pyruvate kinase: inhibited by ATP/alanine, activated by fructose-1,6-BP.
4. Thermodynamic checkpoints: Three irreversible reactions (ΔG ≪ 0) mandate regulatory enzymes–target these for metabolic perturbation experiments.

Visual Representation of the Krebs Cycle Stages

To accurately depict the Krebs cycle, begin by segmenting the process into eight distinct phases, each represented as a circular node in a clockwise sequence. Label nodes with the following substrates and products: citrate, isocitrate, α-ketoglutarate, succinyl-CoA, succinate, fumarate, malate, and oxaloacetate. Place acetyl-CoA and CoA-SH at the entry point (between oxaloacetate and citrate) to emphasize the 2-carbon input. Use directional arrows between nodes, ensuring arrows loop back to the origin only after completing the full cycle.

• Citrate → Isocitrate: Mark this step with an upward arrow to highlight the isomerization requiring aconitase, a distinct spatial shift.
• Isocitrate → α-Ketoglutarate: Insert a bifurcated arrow here–one branch denoting CO₂ release, the other NADH formation–to illustrate the oxidative decarboxylation.
• α-Ketoglutarate → Succinyl-CoA: Repeat the bifurcated arrow pattern, noting the second CO₂ and NADH output alongside CoA binding.
• Succinyl-CoA → Succinate: Replace arrows with a dashed line to signify substrate-level phosphorylation, where GTP (or ATP) synthesis occurs.
• Succinate → Fumarate: Use a thin arrow labeled FADH₂ to show the single electron transfer via succinate dehydrogenase.
• Fumarate → Malate: A standard arrow suffices; hydration via fumarase adds no cofactor changes.
• Malate → Oxaloacetate: Draw a final bifurcated arrow here–NADH production paired with oxaloacetate regeneration.

Color-code each node: citrate (blue), isocitrate (green), α-ketoglutarate (red), succinyl-CoA (purple), succinate (orange), fumarate (yellow), malate (teal), oxaloacetate (gray). Reserve bold outlines for nodes involving cofactor interaction (e.g., NADH, FADH₂, GTP). Annotate each bifurcated arrow with the specific cofactor released (e.g., “NADH,” “CO₂”) in 8-point font adjacent to the split. For digital formats, hyperlink each node to its corresponding enzyme (e.g., “aconitase,” “isocitrate dehydrogenase”).

For printed diagrams, use a minimum diameter of 3 cm per node to ensure legibility of substrate names. Scale arrow thickness proportionally: solid arrows (1.5 pt) for standard reactions, dashed arrows (1 pt) for GTP synthesis, and bifurcated arrows (2 pt) for oxidative decarboxylation steps. Include a legend in the bottom-right corner listing color assignments, arrow types, and cofactor symbols. Exclude membrane-bound proteins like succinate dehydrogenase unless illustrating mitochondrial context explicitly.
