Complete Chevy GM Starter Wiring Diagram Guide for Repairs

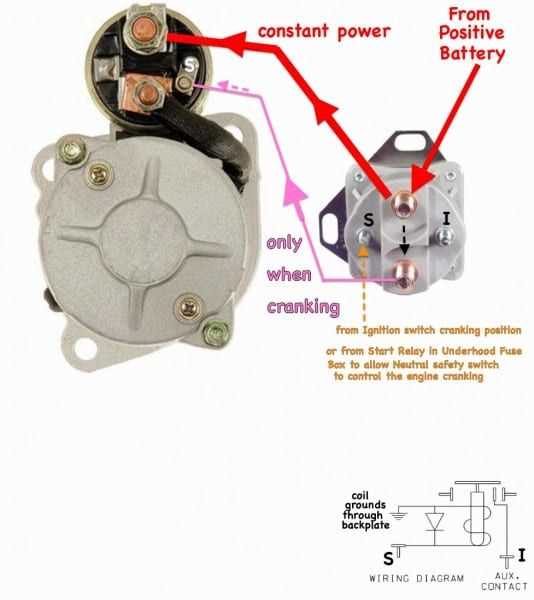

For immediate troubleshooting, locate the solenoid control terminal–typically a blue or purple wire–leading from the ignition switch to the starter relay. Verify continuity between this connection and the relay coil when turning the key to the CRANK position. Voltage should read 10-12V; anything below 9.5V indicates a faulty relay, corroded contacts, or a compromised ground path.
Refer to the OEM schematics for models 1996-2004 GMT400 and 2007-2013 GMT900–both share an identical solenoid circuit but differ in relay pinouts. The GMT400 uses a standalone relay, while GMT900 integrates this function into the underhood fuse block. Disconnect the battery before probing terminals to avoid triggering the ignition-control module into fail-safe mode.
Pay specific attention to the neutral safety switch wiring. On automatic transmissions, the switch interrupts the circuit between the ignition switch and relay when the shifter isn’t in PARK or NEUTRAL. Test by bridging the switch harness; if the engine cranks, replace or adjust the switch. Manual transmissions use a clutch safety switch wired in series–verify this with a multimeter at the switch connector while depressing the pedal.
Ground paths often degrade first. Inspect the starter mounting bolts and engine block threads for corrosion or paint overspray, particularly on Vortec 4300/5300 engines where the starter housing doubles as the primary ground. Scrape contact surfaces to bare metal and apply dielectric grease to prevent oxidation. For persistent no-crank issues, run a dedicated 4-gauge copper wire from the starter case to the battery negative terminal as a diagnostic bypass.
When replacing components, match the exact relay type–Tyco 1347777-01 for GMT400, Bosch 0332209131 for GMT900–and confirm the fuse amperage (typically 40A for cranking circuits). Avoid aftermarket “universal” relays, which frequently lack surge protection and may damage the ignition control module during voltage spikes.
GM Engine Cranking Circuit Guide for Vehicles
Verify the solenoid’s S-terminal connects directly to the ignition switch via a 14-gauge red or purple lead–no splices permitted. The B-terminal must link to the positive battery post through an 8-gauge fusible link, typically orange-striped, with a 40A fuse integrated. Ground paths should terminate at the engine block near the mounting bolts, using 10-gauge braided cable for optimal conductivity. Resistance checks: solenoid coil
| Component | Wire Gauge | Color Code | Circuit Function |
|---|---|---|---|
| Solenoid S-Terminal | 14 | Red/Purple | Ignition activation |
| Battery Feed | 8 | Orange/Black | Power delivery |
| Motor Terminal | 6 | Yellow/Brown | High-current cranking |
| Ground Path | 10 | Braided | Earth return |
Diagnostic Steps for Voltage Drop
Measure across the entire circuit with the engine cranking: total voltage drop should not exceed 0.5V. Break down readings–battery to solenoid (≤ 0.2V), solenoid contacts (≤ 0.1V), motor windings (≤ 0.2V). If values are higher, inspect connections for corrosion (clean with 600-grit sandpaper) and retorque to 8-10 ft-lbs. Replace cables exhibiting pitting or fraying.
Pinpointing Critical Conductors in GM Ignition System Layouts
Trace the thick red cable running directly from the battery’s positive terminal–this is the primary power feed. It connects to the solenoid’s upper post or a dedicated lug on late-model units. Verify gauge clarity: 4-6 AWG for V8 engines, 8 AWG for inline fours. Look for crimp connectors with heat-shrink sleeving; corrosion at these joints creates 0.3+ volt drops.
Locate the thin purple conductor near the solenoid’s smaller terminal. This triggers the relay when keyed to crank position, engaging the Bendix assembly. A consistent 12V pulse here confirms proper switching–measure with a DVOM while cycling the ignition, ensuring no voltage bleed-over exceeds 0.5V during engine run.
Inspect the black/yellow stripe wire (GM’s factory standard) grounding the motor housing. This path must terminate to the engine block’s bare metal surface, not painted or coated areas. Resistance above 0.1 ohms demands sanding of contact points; aluminum blocks need star washers to prevent oxide buildup.
Check for an auxiliary fusible link–typically 14-16 AWG orange or pink–branching upstream of the solenoid. This fuse blows at 200% of the circuit’s rated amperage, protecting against shorts. Replace with exact gauge copper wire; substitutions risk fire hazards during heavy-duty cranking cycles.
How to Methodically Identify Electrical Paths in a General Motors Ignition System
Locate the solenoid terminal where the thick cable from the battery connects–this is your starting point. Use a multimeter set to continuity mode to probe this terminal against the motor housing; a reading confirms the circuit ground path. If no signal appears, trace the braided strap linking the engine block to the chassis, as corrosion here disrupts current flow. Replace any frayed or oxidized straps with a 4-gauge equivalent to ensure minimal resistance.
Key Connection Points to Verify
- Battery positive: Follow the heavy-gauge lead (typically red) from the power source to the starter solenoid–inspect for cracked insulation or loose crimps. Test voltage drop with the ignition engaged; readings below 9.6V indicate excessive resistance.
- Solenoid switch terminal: The single smaller post receives power from the ignition switch. Disconnect the connector and check for 12V when turning the key to “start.” Absence of voltage directs troubleshooting toward the ignition switch, neutral safety switch, or fuse block.
- Field coil connections: Inside the housing, two spade terminals link to the internal windings. Probe these with the multimeter; open circuits require replacement of the unit. Clean mating surfaces with 220-grit sandpaper if minor oxidation is present.
For intermittent failures, tap the housing sharply with a plastic-handled tool while an assistant engages the ignition. A brief response suggests worn brushes or a faulty overrunning clutch–disassemble the unit to inspect for copper dust or uneven wear on contact plates. Reassemble with dielectric grease applied to all moving interfaces to prevent moisture intrusion. Label each lead with masking tape during disconnection to avoid cross-wiring during reinstallation.
GM Solenoid Terminal Color Codes and Connection Standards
Identify the battery feed terminal on GM solenoids by its red or purple wire–this connects directly to the positive battery cable via a 4-6 gauge conductor. The ignition switch input, typically marked “S” or “50,” uses yellow or yellow-black stripe insulation; ensure this path has no more than 3 ohms resistance to avoid slow engagement. Heavy-duty applications may substitute pink for the ignition lead, but verify with a multimeter before assuming polarity.
Ground-side return paths split into two categories: internal and external. The internal ground attaches to the solenoid casing via a bare copper or green wire, usually crimped into the mounting flange. External grounds utilize black or black-white stripe cables terminating at the transmission bell housing or engine block–never rely on exhaust manifolds or painted surfaces for this critical return. Corrosion here manifests as intermittent cranking or solenoid chatter.
- Starter motor feed (labeled “M” or “C”): brown or brown-white stripe wire, often 10-12 gauge.
- Accessory bypass (if equipped): light blue or orange, designed for heavy loads like A/C compressors.
- Neutral safety switch input: purple-black stripe, grounded only in “Park” or “Neutral.”
Pre-1996 GM systems frequently employ a white wire for the solenoid hold-in coil–this activates only when the ignition circuit closes, reducing voltage drop across switches. Post-1996 models replace this with a dedicated two-wire connector: one white (ground) and one dark blue (ignition hold-in). Always cross-reference these colors with the date code stamped on the solenoid housing; mid-production variations exist between 3.8L V6 and 5.7L V8 assemblies.
High-torque applications (diesel or towing packages) may include a secondary purple-white wire for glow plug control–this bypasses the solenoid entirely and routes through a dedicated relay. Verify function by checking for 12V at this terminal during key-on, engine-off; absence indicates either a failed relay or severed trace in the harness loom. Repair splices with soldered heat-shrink connections–twist-and-tape methods degrade within 18 months under hood temperatures.
Connector pinouts follow a left-to-right convention when facing the solenoid terminals:
- Battery + (red/purple, largest gauge)
- Ignition “S” (yellow, 18-20 gauge)
- Motor “M” (brown, 10-12 gauge)
- Ground (bare/green, chassis direct)
Wire gauge mismatches cause overheating at the solenoid plate–upsize conductors if modifying for aftermarket audio amplifiers or winches. For ECM-controlled systems (LS/LT platforms), retain the factory orange and dark green wires: these carry critical sensor feedback and must not be rerouted through auxiliary relays. Substitute failed components with OEM replacements only; aftermarket solenoids often reverse terminal assignments for Asian-market compatibility, requiring repinning.
How to Test Voltage on a GM Ignition Activation Harness
Set your multimeter to DC 20V and connect the black probe to a clean ground point–bare metal on the engine block or chassis. Touch the red probe to the smaller terminal on the solenoid while an assistant turns the key to the crank position. A reading between 9.5V and 12.5V confirms control circuit integrity. Anything below 9V indicates resistance, corrosion, or a faulty ignition switch.
For the high-amperage lead, probe the larger solenoid post while cranking. Expect 8V minimum–anything lower suggests battery depletion, poor connections, or excessive cable resistance. Use a clamp meter on the positive cable if the multimeter shows inconsistent readings; normal cranking amps should fall within 150–300A for most GM powertrains.
Key Troubleshooting Points
Check the fusible link–a melted or swollen segment will drop voltage by 0.5V or more. Probe both ends while cranking; if voltage differs, replace the link. Inspect the starter relay by swapping it with a known-good relay (e.g., horn or A/C relay). If the issue persists, bypass the relay temporarily with a jumper wire–successful activation pinpoints a relay failure.
Corrosion on connectors causes voltage drops. Clean terminals with a wire brush and apply dielectric grease. Pay attention to the neutral safety switch on automatic transmissions–test its continuity in Park and Neutral. Manual transmissions require a functional clutch interlock switch; verify its operation by probing the switch contacts during pedal engagement.
If voltage tests pass but the engine still fails to rotate, attach an oscilloscope to the solenoid control wire. A healthy signal shows a clean 12V pulse during cranking. Irregular waveforms or extended delay (over 200ms) indicate a failing ignition cylinder or ECM commands requiring further diagnosis.
