Understanding Basic Circuit Components and Their Schematic Symbols

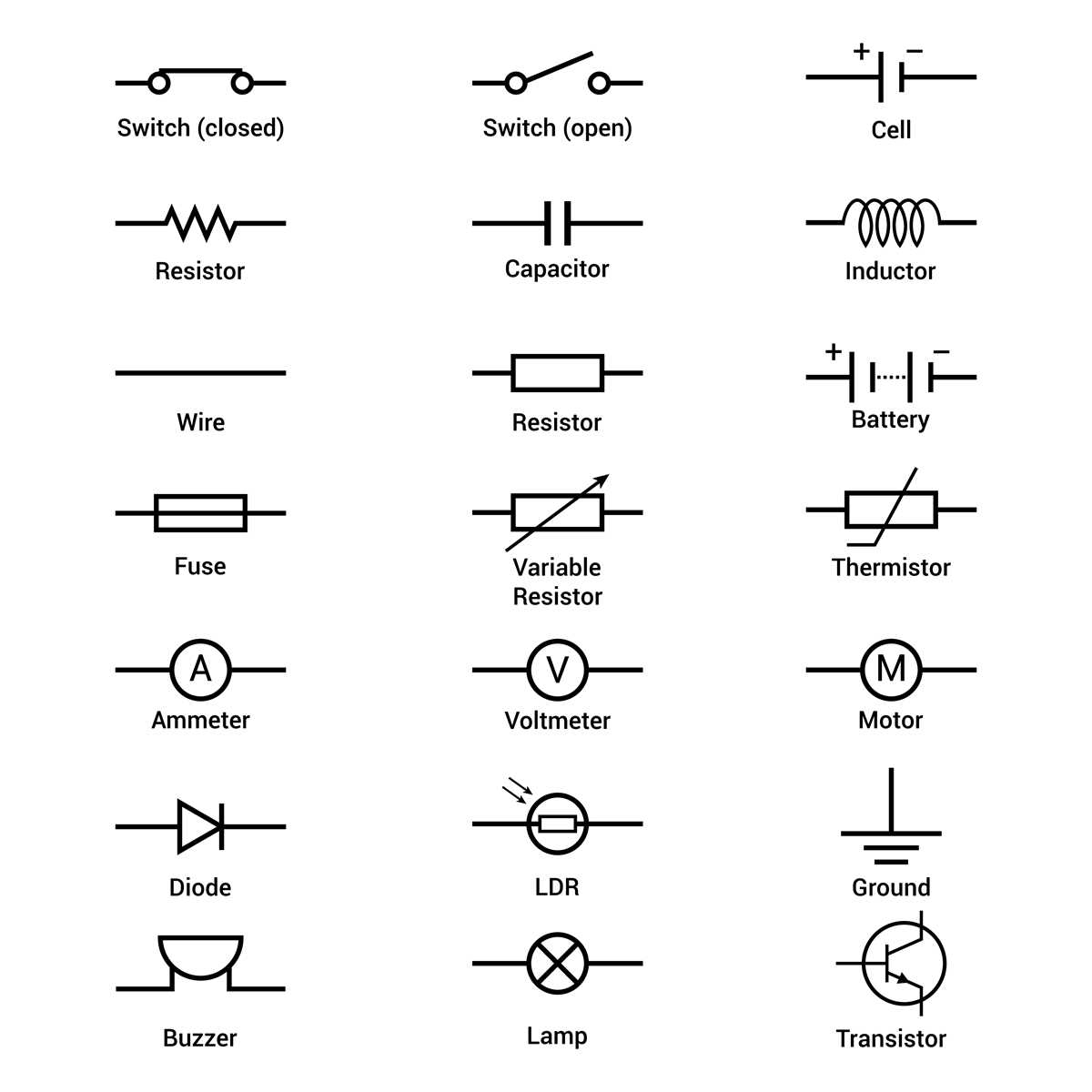

Begin by memorizing the primary symbols for resistors, capacitors, inductors, and semiconductors–these appear in 95% of schematics. A standard carbon-film resistor uses a simple rectangle (IEC: R, ANSI: zigzag line), while adjustable resistors add an arrow across the symbol. Capacitors split into two types: polarized (electrolytic) with a curved plate for the negative terminal, and non-polarized (ceramic) with two identical parallel lines. Inductors use coiled lines, sometimes with a core identifier (ferrite). Semiconductors like diodes and transistors require exact orientation–diodes use a triangle pointing toward a line (anode to cathode), while NPN/PNP transistors distinguish emitter, base, and collector with directional arrows.
Verify polarity before routing traces. Electrolytic capacitors mark the negative terminal with a stripe or minus sign, while diodes use a band on the cathode side. Transistors label pinouts differently–BC547 (NPN) or 2N3906 (PNP)–so check datasheets for pin assignments. Incorrect polarity risks immediate failure in 70% of cases, often causing audible pops, smoke, or silent dead circuitry. Test continuity with a multimeter in diode mode to confirm correct orientation before applying power.
Use standard symbols consistently: IEC (common in Europe, Asia) versus ANSI (preferred in the US). A resistor (IEC: rectangle, ANSI: zigzag) or battery (IEC: long/short lines, ANSI: unequal line pairs) should match the format of the rest of the diagram. Voltage sources split into AC (sine wave) and DC (battery symbol); never substitute one for the other without verification. Op-amps use a triangle with inverting/non-inverting inputs (+/–) on opposite sides–swap them to invert the signal phase.
Group related elements visually: keep power rails at the top or sides, ground symbols aligned at the bottom. Use nets (short straight lines) to connect identical nodes–avoid crossing lines without dots at junctions. Switches use mechanical break symbols; momentary (push-button) add a small circle, toggle switches use angled lines. LEDs inherit the diode symbol but add two outward arrows indicating light emission–polarity remains critical.
Double-check symbols against a reference chart: common IEC/ANSI mismatches include transformers (IEC: two circles, ANSI: coil pairs) and fuses (IEC: rectangle, ANSI: zigzag). Print a one-page chart for quick cross-referencing during design reviews. Errors in symbol selection propagate through entire projects, causing miscommunication during assembly, debugging, or replication.
Key Electronic Elements and Symbolic Representations
Select resistors based on power rating–carbon film handles 0.25W, metal film 0.5W, while wirewound tolerates 5W or higher. Always match resistance values to thermal limits to prevent overheating; a 10Ω resistor at 1A dissipates 10W, requiring wirewound construction.
Use capacitor types strategically: ceramic for high-frequency decoupling (X7R for stability, NP0 for precision), electrolytics for bulk storage (low ESR for switching regulators), and film for signal integrity. Polarized variants must align with DC bias–reverse voltage risks catastrophic failure.
| Element Type | Symbol | Critical Considerations |
|---|---|---|
| Inductor | Coiled line with optional core | Saturation current must exceed peak load; ferrite cores handle 10–100 kHz, powdered iron 1–10 MHz. |
| Diode | Triangle + line | Schottky for fast switching (1ns recovery), Zener for voltage regulation (breakdown tolerance ±5%). |
| Transistor | BJT: lines with arrow; MOSFET: isolated gate | MOSFET RDS(on) under 10mΩ for high current; BJT hFE derates above 1MHz. |
Opt for surface-mount packaging (0402, 0603, 0805) for compact designs, but prioritize hand-solderable 0805/1206 for prototyping. Thermal pads require stencil apertures at 1:1 paste-to-pad ratio for reliable reflow.
Signal integrity demands controlled impedance: 50Ω for RF, 90Ω for differential pairs. Trace width (W) and spacing (S) follow 7*(W+S) r).
Power supplies mandate decoupling networks: 100nF ceramic + 10µF electrolytic near IC power pins, with bulk capacitance (100µF+) at the input. Place decouplers within 2mm of the pin to suppress transients.
Switching regulators necessitate layout disciplines: star grounding, short loops for L-C filters, and thermal vias (1.0mm diameter, 0.3mm annular ring) under heatsinks. Feedback traces must avoid coupling with high-dI/dt paths to prevent instability.
Identifying and Sketching Key Passive Elements in Electrical Drawings
Begin by memorizing the standard symbols for resistors: a zigzag line for through-hole types or a rectangle for surface-mount devices (SMD). The zigzag has two terminals, while SMD variants often include numerical values like 10k or color bands decoded via the resistor color code chart. Always verify the tolerance–gold (5%), silver (10%), or none (20%)–as this affects accuracy in calculations.
Capacitors appear as two parallel lines for non-polarized types (e.g., ceramic) or a curved line alongside a straight one for electrolytic variants. Polarized types–like tantalum or aluminum electrolytics–require correct orientation; the curved line represents the negative terminal. Values are labeled in picofarads (pF), nanofarads (nF), or microfarads (µF), often using shorthand like 104 for 100nF. Mind voltage ratings: exceeding them risks catastrophic failure.
Inductors use a coiled symbol, resembling a spring, with optional magnetic core indicators (e.g., a vertical line through the coils). Air-core inductors lack this line, while toroidal cores may show a circular outline. Values are specified in henries (H), microhenries (µH), or millihenries (mH), frequently paired with current ratings–exceeding these can saturate the core, drastically altering performance.
For batteries, sketch one or more pairs of long and short lines: the long line is the positive terminal. Multiple cells use stacked pairs, their quantity matching the voltage (e.g., three pairs for a 4.5V source). Avoid reversing polarity in diagrams–this can damage downstream parts in physical builds. Note the chemistry (e.g., alkaline, lithium) in the label, as this influences charge/discharge curves.
Drawing Techniques for Clarity
Use consistent line weights: thick for power rails, thin for signal paths. Keep terminal connections (dots or intersections) unambiguous–misplaced nodes create phantom connections. Label each element with its value and reference designator (e.g., R1 10kΩ) to avoid confusion during prototyping. Group related parts spatially: decoupling capacitors near IC power pins, pull-up resistors adjacent to their respective switches.
Avoid crossing lines unless absolutely necessary. When unavoidable, use a small bump or bridge symbol to denote non-connection. For bus lines (e.g., address/data), use a single thick line with stubs to each component–this reduces clutter while preserving function. Always include a ground symbol (three horizontal lines, decreasing in length) to establish a reference point.
Double-check pin assignments; flip symbols if needed (e.g., MOSFET gates often align with the source on the left). For integrated passives (e.g., resistor networks), use a dashed rectangle around grouped elements. Add notes for critical specs: power ratings for resistors, ESR for capacitors, or self-resonant frequency for inductors–these details prevent silent failures in high-frequency or high-power designs.
Common Pitfalls to Avoid
Never assume default orientation; some symbols (e.g., diodes, LEDs) have standardized arrow directions denoting current flow. Misalignment here can invert functionality. Overlooking package types (e.g., TO-220 vs. SOT-23) risks footprint mismatches during PCB layout. Verify polarity twice: electrolytic capacitors and polarized connectors (e.g., barrel jacks) are frequent culprits in reversed-component damage.
Ignore generic symbols at your peril. A ferrite bead looks similar to an inductor but serves a noise-suppression role–wrongly placing one for the other introduces unintended filtering. Likewise, varistors (voltage-dependent resistors) use a distinct crossed-arrow symbol; mistaking them for standard resistors disrupts surge protection. Always cross-reference unfamiliar symbols with manufacturer datasheets.
Guide to Connecting Active Devices in Electrical Layouts
Begin by placing active elements–transistors, operational amplifiers, or microcontrollers–on the diagram first. Align them vertically or horizontally based on signal flow, ensuring input pins face the left or top, outputs to the right or bottom. Label each pin with its function (VCC, GND, IN, OUT) using consistent nomenclature. For ICs, use the manufacturer’s datasheet pin numbering; double-check orientation to avoid mirroring errors.
Draw power rails (+5V, +12V, GND) as thick, straight lines along the top and bottom of the layout. Connect each device’s power pins directly to these rails with short, orthogonal lines. Avoid diagonal connections. For multi-voltage designs, separate rails with distinct colors or line styles (e.g., dashed for -5V). Add decoupling capacitors (typically 0.1µF) between power and ground pins, positioned within 2–5mm of the active device.
Route control and signal paths next. Use thin lines for analog signals, thicker lines for digital buses or high-current pathways. Keep traces short and direct; lengths over 10cm may require termination resistors for impedance matching. For differential pairs, maintain parallel traces with consistent spacing (50–100Ω trace width). Add pull-up/pull-down resistors (1kΩ–10kΩ) where needed, and mark test points for debugging (TP1, TP2).
Verify all connections against the reference design. Cross-check polarity for diodes and electrolytic capacitors. For programmable devices, document required firmware pins (SWD, UART) and leave unconnected pins as NO-CONNECT unless specified otherwise. Use a netlist comparison tool to validate the layout before prototyping.
