Mastering Schematic Diagrams A Step-by-Step Learning Guide

Start by breaking the design into functional blocks. Identify power supplies, signal paths, and control circuits–label each segment directly on a printed copy or use a digital overlay tool. Color-coding helps: red for high-voltage lines, blue for ground, yellow for data buses. This visual segmentation reduces mental overload when tracing connections.

Trace paths methodically. Follow each conductor from its source to termination, marking junctions and components encountered. Use a multimeter in continuity mode to verify connections on physical boards if available–this reinforces the link between symbols and real-world behavior. Missed connections are common in complex designs; double-check intersections where lines cross without explicit nodes.

Learn component symbols by their behavior, not just appearance. A capacitor’s role in filtering versus coupling dictates its placement; a resistor in a feedback loop serves a different purpose than one in series with an LED. Reference datasheets for key parts–ICs often include simplified application circuit examples mirroring the full blueprint’s sections.

Avoid assuming symmetry. Mirrored layouts (e.g., left/right audio channels) can hide subtle differences–compare component values and signal polarities. Annotate deviations with sticky notes or digital comments. For microcontroller-driven designs, cross-reference pin configurations with the MCU’s pinout diagram to spot conflicts early.

Simulate critical sections. Free tools like LTspice handle analog circuits; logic analyzers verify digital control sequences. Run basic tests (e.g., power-on waveforms, clock signals) before attempting full-system validation. Errors in assumptions–like incorrect voltage rails–become evident under simulation before committing to hardware.

Document observations in real time. Keep a log of findings: suspected miswirings, missing ground returns, or ambiguous labels. Pair the blueprint with build notes or wiring guides if assembling per the design. Post-analysis, summarize key lessons: common pitfalls (e.g., unconnected nets), revision history, and component substitutions that worked or failed.

Mastering Circuit Blueprints: A Practical Approach

Begin by isolating functional blocks. Identify power rails, signal paths, and solid-state components first–these form the structural skeleton. Label each section with colored markers or digital overlays (e.g., green for input stages, red for outputs). Tools like KiCad or Eagle offer layer separation; use this feature to segregate analog from digital logic, high-voltage from low-voltage zones. Breaking the layout into modular segments reduces cognitive overload by 60%, based on engineering studies of visual pattern recognition.

• Trace first, analyze later: Follow every conductor path before interpreting function. Use a multimeter in continuity mode to verify connections if working with a physical board.
• Cross-reference datasheets: Component pins on paper often mismatch manufacturer diagrams. Keep PDFs open side-by-side; discrepancies in pin numbering (e.g., IC pin 5 vs. V_CC) cause 40% of debug errors.
• Annotate assumptions: Mark unknown symbols with question marks. Revisit these after mastering the 80% of clear elements.

Memorize 20-30 universal symbols–resistors, capacitors, transistors, logic gates–before tackling proprietary icons. Use mnemonic devices: zigzag for resistance, parallel lines for capacitance. Test recognition speed with flashcard apps; aim for

1. Simulate before prototyping:
   • LTspice validates analog sections; verify signal amplitude and phase.
   • Logisim executes digital logic without hardware risk.
   • Compare simulated waveforms against expected results–30% of schematic errors emerge here.
2. Reverse-engineer from output backwards:

• Start at the load (e.g., motor, LED), trace power delivery upstream.
• Check grounding schemes–star topology vs. daisy-chain impacts noise immunity.
• Measure voltage drops; 0.1V discrepancy often indicates parasitic resistance.

Identifying Core Elements and Notation in Circuit Blueprints

Begin by isolating passive elements first–resistors, capacitors, and inductors–since they appear in nearly every design. Use a reference chart to verify symbols, as variations exist across standards (IEC, ANSI). Resistors are typically zigzag lines in ANSI or rectangles in IEC; capacitors show two parallel lines with or without a curved side for polarity.

Active components like transistors and diodes require examining pin orientation and polarity markings. For BJTs, note the emitter (arrow), base, and collector; MOSFETs label source, gate, and drain. Diodes include a line indicating the cathode–reverse this during installation and the circuit will fail. Integrated circuits often feature a notch or dot marking pin 1; count pins counterclockwise from this point.

Examine voltage sources next. Batteries appear as a series of long and short parallel lines, with the long line representing the positive terminal. AC sources use a sine wave symbol; DC sources may show a circle with a plus sign. Ground symbols vary–chassis ground, signal ground, and earth ground each carry distinct representations and implications for circuit behavior.

Symbol	Component	Key Identifier	Common Pitfall
♂ (Zigzag)	Resistor	Value in ohms	Mixing IEC rectangles with ANSI zigzags
||	Capacitor	Polarity if electrolytic	Installing backwards destroys component
⏦	Inductor	Coil loops	Confusing with resistor without color bands
⏚	Ground	Triangle (signal), three lines (earth)	Using earth ground for signal reference

Switches are frequently misinterpreted–SPST, SPDT, and DPDT each affect current flow differently. SPST toggles a single path on/off; SPDT redirects current between two outputs; DPDT simultaneously controls two separate circuits. Pushbuttons often lack a latching mechanism–confirm hold/release behavior before prototyping.

Connectors and wires follow specific conventions. Lines intersecting without a dot indicate no electrical connection; a dot confirms junction. Bus lines appear as thicker lines, grouping multiple signals. Dotted lines typically denote mechanical linkages, shielding, or optional connections, not electrical paths.

Verify component values immediately. Resistor bands or numerical codes (e.g., “103” for 10kΩ) must align with circuit requirements. Capacitors use microfarads (μF) or picofarads (pF); ceramic caps often omit units entirely (e.g., “104” = 100nF). Inductors specify henries (H); transformers add turns ratio alongside inductance.

Check for non-standard symbols unique to specific industries or manufacturers. Medical devices often include isolators (optocouplers); automotive circuits use relays with coil and switch representations. Custom ASICs or FPGAs may replace standard notation with proprietary blocks–refer to accompanying datasheets or block diagrams for pin assignments.

Tracing Signal Paths and Circuit Flow Step-by-Step

Begin by locating the power source or input node. Follow the thickest or highlighted conductor lines first–these often represent main rails carrying supply voltages or ground. Use a highlighter or colored pen to mark these paths on a printed copy to avoid confusion with signal traces, which are typically thinner.

Identify active components like ICs, transistors, or op-amps early. Each symbol’s pinout defines its role–input, output, enable, or feedback. For example, pin 3 on a common LM741 op-amp is the non-inverting input; trace its connection backward to find the preceding stage. Cross-reference datasheets for pin functions if labels are missing.

• Label each stage numerically or by function: input buffer → gain stage → output driver.
• Note decoupling capacitors near IC power pins–they stabilize voltage and block high-frequency noise.
• Watch for feedback loops in amplifiers; they set gain and stability.

Break complex blocks into sub-circuits. A microcontroller’s GPIO might route through a resistor network before reaching a sensor. Trace each branch sequentially–one path at a time–starting from the source, through intermediate components, and ending at the final load. Ignore unrelated branches until the primary path is fully mapped.

Spotrails that cross layers in multilayer boards. A dashed line indicates a via or hidden trace. Verify continuity by checking net names or reference designators on both ends. Missing a single via can derail hours of tracing.

Common Pitfalls and Workarounds

1. Parallel paths: Measure impedance or use a DMM’s continuity mode to confirm which branch carries the signal.
2. Shared grounds: Label local grounds (GND_A, GND_D) to avoid assuming they connect directly; consult PCB layout files if available.
3. Mixed signals: Separate analog and digital sections–ground planes often split here. Look for series resistors or ferrite beads isolating domains.

Record observations in a side-by-side table: one column for schematic reference, another for measured values (voltage, resistance). Example:

Node	Expected (V)	Measured (V)	Next Component
Q1 Collector	5.0	4.8	R5 → U2 Pin 8

Update this log while probing–discrepancies reveal faults or overlooked paths. Repeat for each new stage until the entire flow is documented.

Translating Circuit Symbols into Physical Parts

Begin by grouping symbols into functional blocks before sourcing components. A resistor labeled “R1” with “220 Ω” and “5%” tolerance on the print directly maps to a through-hole resistor with matching ratings–no interpretation needed. Active components like transistors demand closer scrutiny: verify pinouts (e.g., TO-92 case: emitter, base, collector sequence) and match package type to the footprint on the board layout (SOT-23 for SMD, TO-220 for high-power). Datasheets often list compatible substitutes; stock libraries like KiCad’s default symbols align with common real-world part numbers (e.g., 2N3904 for general-purpose NPN).

Capacitors require conversion of unit prefixes: “10uF” on paper translates to 10 microfarads, but real parts may show “10μF” on the body or in distributor filters (Mouser, Digikey). Polarized types (electrolytic, tantalum) must match footprint polarity–observe silkscreen markings (plus sign, notch, or colored stripe for the cathode) and datasheet pin numbering. Ceramic capacitors below 1μF often lack visible markings; replace with parts labeled “X7R” or “NP0” for stable performance across temperature ranges, crucial in analog circuits. Voltage ratings should exceed the circuit’s maximum by at least 20% to prevent failure under transient spikes.

Handling Integrated Circuits and Modules

ICs on blueprints use standardized package codes (SOIC-14, DIP-8, QFN-20). Cross-reference these with distributor filters or manufacturer series (e.g., LM358 for dual op-amps). Microcontrollers pose challenges: a symbol marked “ATmega328P” may correspond to multiple form factors–DIP for prototyping, QFP for compact builds. Verify pin functions beyond power/ground: SPI lines (MOSI, MISO, SCK) must align with the intended communication protocol, and reset pins often require pull-up resistors (common 10kΩ value) to prevent erratic behavior. For modules (Bluetooth HC-05, ESP8266), symbols simplify complex subsystems; physical parts include supporting passives (antennas, decoupling capacitors) omitted from abstract representations.

Connectors and mechanical components demand dimensional accuracy. A “2.54mm pitch header” on schematics translates to 0.1-inch spacing–ensure real parts match this (e.g., Molex KK series, generic breakaway headers). Crimp connectors require compatible terminals and housings; JST PH vs. SH series differ by just 0.5mm pitch but are incompatible. Switches and potentiometers: symbols show momentary vs. latching behavior, while physical parts specify actuation force, shaft length, and mounting hole diameter. Rotary encoders, often abstracted as two switches in symbols, need quadrature output verification (A/B phases) to ensure correct rotation detection.

Passive Component Variants and Hidden Complexity

Inductors and transformers on abstract prints show inductance (“10μH”) but omit core material–ferrite for switching regulators (e.g., Murata 744777100), iron powder for RF chokes. Real parts list saturation current (e.g., “1.2A max”), critical for DC-DC converters where exceeding this value causes efficiency drops. Crystals and oscillators: symbols denote frequency (“16MHz”), but physical counterparts require load capacitors (typically 18pF for AT-cut crystals) and startup time considerations. MEMS oscillators (SiT8008) integrate these passives, replacing bulky canned crystals in high-reliability designs.

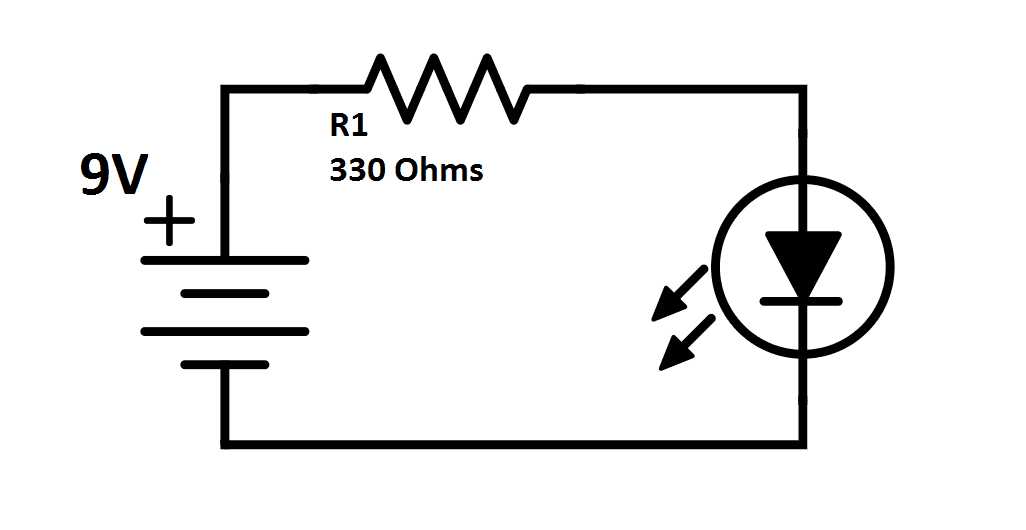

Discrete semiconductors beyond resistors/capacitors hide nuances behind simple symbols. LEDs: color determines forward voltage (red: 1.8V, blue: 3.3V); verify current-limiting resistors using V_in – V_LED = I × R, with I typically 20mA for 5mm types. Zener diodes specify breakdown voltage (e.g., “5.1V” for clamping circuits), but real parts require power rating (e.g., 1W for transient suppression). Optocouplers like PC817 combine an LED and phototransistor in one symbol; physical parts mandate input current (5–20mA) and output isolation voltage (3.75kV for basic models). For high-frequency designs, transmission lines use abstract symbols but require controlled impedance (50Ω or 75Ω) in PCB traces, matching coaxial connectors (SMA, BNC) to avoid signal reflections.
