How to Connect Battery Positive and Negative Terminals in Circuit Diagrams

Connect the anode of a power cell directly to the load’s input terminal marked with “+12V” or similar–never reverse polarity. Even a brief misconnection can destroy sensitive components. Verify voltage at the entry point with a multimeter before finalizing the link.

Trace the conductive path from the cathode–symbolized by a shorter line or “-” sign–to the ground plane. Ensure this line avoids parallel runs with high-frequency signals to minimize noise coupling. In mixed-signal designs, separate digital and analog returns to prevent interference.

Use color-coded wires: red for the anode lead, black for the cathode. This convention reduces assembly errors. In high-current setups, double-check crimp connections with a pull test–solder alone may fail under vibration.

For lithium-based cells, integrate a protection module with overcharge and short-circuit safeguards. Place it closer to the power source than any switch or fuse. Calculate wire gauge using the 1A/mm² rule for copper conductors under 3 meters; scale up for longer runs.

In dual-supply arrangements, mark the midpoint as “COM” or “0V“. Keep ground loops below 100mΩ by using star topology. For batteries in series, match internal resistance within 5% to prevent uneven discharge.

When prototyping, test each segment under 50% load before full activation. Label every node with its expected voltage–omitting this risks hidden faults during debugging. Store unused power cells at 40% charge in dry conditions below 25°C.

Proper Terminal Hookup in Electrical Schematics

Always connect the anode (marked with a “+” symbol) to the load’s input conductor first, ensuring the correct voltage polarity reaches components like LEDs, motors, or ICs. For a 9V alkaline cell, the anode terminal delivers 1.5A continuous current at room temperature, while the cathode (stamped with a “−”) must tie to ground or the return path. Mismatched connections risk reverse bias–an LED drops 2V forward but withstands only 5V reverse before failure. Use red wire for high-potential leads and black for low-potential returns to prevent cross-polarity errors. Verify hookup with a multimeter; a 0V reading between anode and cathode signals a dead cell or open circuit.

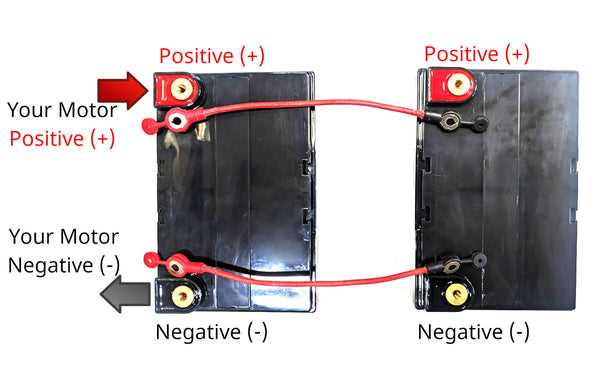

In series stacks–three AA cells yield 4.5V–link the cathode of the first cell to the anode of the next, preserving total potential; parallel arrays demand identical cells to share current equally, avoiding thermal runaway in a single unit. Solder joints should handle at least 3A; stranded copper wire (22 AWG) suits low-power builds, while solid wire (18 AWG) is mandatory for circuits pulling 5A or more. Heat shrink tubing over terminal junctions prevents accidental shorting, and a Schottky diode in series guards against reverse current during charging. Check manufacturer specs: Lithium-ion cells tolerate 1A discharge, but 3A spikes shorten lifespan by 30%.

How to Locate Source and Ground Contacts on Energy Cells

Check for marked symbols: most power units label the anode with a + and the cathode with a −. If absent, look for color coding–red typically denotes the active pole, while black or blue indicates the return path. Some sealed packs use wider or raised contacts for the high side, or a notch along the edge. In cylindrical cells like AA or AAA, the protruding end is the live terminal, while the flat base acts as the neutral.

Additional Verification Methods

• Measure voltage with a multimeter: the probe touching the live contact will show a higher reading.
• Inspect connectors: car and device packs often have a larger or recessed ground side.
• Check documentation: datasheets specify terminal orientation for lithium and lead-acid units.
• Observe wiring: grouped cables usually attach to the active side first.

1. Remove any plastic caps covering the contacts.
2. Wipe oxidation to confirm metal indentations or text engraving.
3. Compare dual-cell packs: the side without a divider tab is typically the reference.

Step-by-Step Guide to Illustrating Power Source Symbols in Schematics

Begin with a long vertical line to represent the primary cell terminal–this marks the anode (higher potential side). Draw a shorter parallel line 5–8 mm apart to denote the cathode, ensuring the gap remains consistent for clarity. For multi-cell configurations, align additional pairs horizontally with uniform spacing (2–3 mm between each pair) while maintaining the standard IEC 60617 proportions: 20 mm for the longer line, 10 mm for the shorter one.

Add a plus sign (+) adjacent to the anode line, positioned 2 mm above its midpoint, and a minus sign (−) beside the cathode, centered between the lines. Use a sans-serif font (e.g., Arial, 3 mm height) for symbols to match professional schematic standards. For polarized variants (e.g., electrolytic cells), replace the minus sign with a curved line mirroring the cathode’s shape, maintaining a 1 mm offset from the terminal.

Verify polarity alignment by tracing connections: the anode must link to components requiring current inflow (e.g., switches, resistors), while the cathode connects to return paths. Use arrowheads (ISO 1219-1) on conductor lines if directionality is critical–point arrows toward the anode to indicate conventional current flow. Cross-check dimensions with a 1:1.5 ratio (anode:cathode length) to ensure compliance with industry norms.

Common Mistakes When Connecting Power Source Terminals in Schematics

Reverse terminal alignment tops critical errors during schematic design. Many designers mislabel the anode and cathode on symbols, leading to flipped polarity in physical builds. Even minor deviations–like a 5° rotation of a symbol–can swap terminals unnoticed. Verify alignment using standardization charts: IEC 60617 marks the anode with a longer line, ANSI Y32.2 uses a “+” sign, and IEEE 315 assigns specific pin orientation for polarized components. Cross-checking these against ECAD library defaults prevents silent failures.

Omitting surge protection for terminal connections invites catastrophic failures during transient events. A 12V sealed lead-acid unit subjected to a 30V arc from incorrect attachment can vent gases in under 200ms. Always integrate protection: a bidirectional TVS diode rated for 1.5× the nominal voltage, or a PPTC resettable fuse with trip latency under 50ms. Below is a reference table for sizing protection based on voltage and current:

Source Rating	TVS Diode Breakdown (Min)	PPTC Trip Current	Clamping Tolerance (±%)
3.3V, 2A	5.8V	2.5A	5
5V, 3A	7.6V	3.75A	5
12V, 5A	18V	6.25A	8
24V, 10A	36V	12.5A	10

Ground loops form when multiple reference points connect haphazardly to the cathode. This induces noise–measured at 40-60Hz hum in audio or 20-50mV ripple in precision sensors. To avoid, follow a star topology: route all cathode paths to a single point on the board, keeping traces under 0.5Ω resistance. Use copper pours for heavy loads (>5A); thinner traces create voltage drops that misalign analog readings by up to 3%. Validate with a 4-wire Kelvin measurement.

Connector pinouts reversed in board layout files compound assembly errors. JST headers sold as “right-angle” often rotate 180° when mounted, swapping input/output unintentionally. Always annotate pin 1 orientation on footprint land patterns and include an explicit silkscreen arrow. For non-keyed connectors, enforce a mechanical notch or color coding: red for anode, black for cathode. Prototype boards built from misaligned Gerber files can short power rails internally during reflow, an issue detectable only via thermal imaging post-assembly.

Voltage regulator dropout ignored during terminal pairing causes LDO instability. A low-side switch attached to the anode output of a 7805 regulator (minimum dropout 2V) will enter dropout when the supply dips below 7V, cutting power abruptly. Ensure minimum load currents align with specs–most regulators require ≥5mA steady-state to maintain regulation. Simulate worst-case scenarios: input sag to 1.1× dropout voltage, output load cycling from 10% to 90% of rated current, ambient rise to 85°C. Oversights here manifest as erratic MCU resets or RF dropout in wireless modules.

Tools and Software for Precise Power Source Polarity Visualization

KiCad remains the most reliable open-source toolkit for schematics. Its built-in symbol library includes over 2,500 standardized components–among them are multiple DC supply variants with distinct anode/cathode markings. The Eeschema editor allows custom symbol creation if default options don’t match specific needs. Paired with the PCB footprint editor, it ensures electrical pin assignments stay consistent across design phases. Cloud-based synchronization keeps team members aligned when collaborating remotely.

Altium Designer handles high-complexity projects with native support for hierarchical schematic sheets. Its Smart Paste function duplicates entire sub-systems while preserving polarity orientation–critical when duplicating multi-cell arrays. Integrated SPICE simulation validates potential reverse connections pre-manufacturing, reducing prototype iterations. The ActiveBOM feature cross-references supplier data, flagging parts with ambiguous terminal definitions before procurement.

• LTspice: Lightweight yet powerful for analog simulation–pre-built models cover lithium-ion, lead-acid, and alkaline chemistries with accurate ESR/OCV curves. Plot transient responses to identify unintended voltage drops during load steps.
• Fritzing: Ideal for breadboard-stage prototyping. Drag-and-drop interface maps real-world wiring to schematic views, enforcing consistent color-coding (red for supply, black for return). Exports directly to Gerber for quick PCB ordering.
• Eagle (Autodesk): Scriptable ULPs automate repetitive tasks like bulk connector pin swapping while maintaining polarity integrity. Layer-based designs let you separate high-current paths from signal traces.

For embedded developers, STM32CubeMX generates peripheral initialization code while visualizing MCU pin assignments. It flags conflicting configurations, such as assigning ADC inputs to sink-only terminals. The toolchain exports directly to IDEs, ensuring software-defined logic matches the hardware layout. Third-party plugins integrate thermal models, so heat dissipation doesn’t alter intended terminal behavior.

If your workflow prioritizes rapid iteration, EasyEDA bridges schematic and layout views without requiring local installations. Cloud collaboration tools highlight potential polarity mismatches during peer reviews. The built-in component library includes simulation-ready models for buck regulators, ensuring the input/output sides remain correctly oriented. Direct links to LCSC’s inventory streamline BOM validation.

When verification requires real-time telemetry, LabVIEW pairs with NI’s DAQ hardware to log terminal voltages alongside current flow. Custom dashboards visualize polarity-dependent behaviors (e.g., charge pumps or H-bridges) under varying loads. Scripted tests auto-flag deviations from expected potential differences–ideal for automated certification processes. RTOS integration ensures deterministic sampling rates for mission-critical systems.

For disposable prototypes, Inkscape + LaTeX offer vector-based schematics with LaTeX’s equation support. Export to PDF maintains crisp resolution for technical documentation. SVG-based workflows allow scripting (Python/API) to auto-generate repetitive configurations like series-parallel cell groupings while enforcing consistent orientation symbols (arrows, plus/minus icons).

1. OrCAD Capture: Native support for multi-level design constraints flags nets where polarity-sensitive components connect to incompatible nets (e.g., a Schottky diode’s anode mistakenly tied to a GND plane).
2. Proteus: Co-simulation of firmware and virtual models means a PIC microcontroller’s pin states can be monitored as they interact with digital potentiometers–critical for verifying that control signals respect source/drain conventions.
3. QElectroTech: Specializes in industrial automation schematics. Symbols follow IEC 81346, with filters to hide unrelated components, letting engineers focus only on high-power terminals during safety reviews.
