How to Read and Interpret Brake Controller Wiring Diagrams for Trailers
Begin by identifying the power source for your towing setup–typically a dedicated 7-pin trailer socket or a direct circuit from the vehicle’s fuse panel. Modern vehicles often integrate a pre-wired harness for deceleration systems, but aftermarket units require manual routing. Use a multimeter to verify the voltage at the connector; expect 12V on the output terminal when the activation switch is engaged. If readings deviate, inspect the inline fuse–most modules specify a 25–30A fuse for protection against current spikes during abrupt stops.
Route cables away from exhaust manifolds, sharp edges, and rotating components. Secure them with zip ties every 12–18 inches to prevent chafing. Ground the module at a clean, unpainted metal surface on the vehicle’s chassis–avoid common grounding points shared with high-draw accessories like winches or audio amplifiers. Poor grounding causes erratic operation, including false activation or delayed response times. For dual-axle trailers, split the output from the unit to each axle using a proportional signal split, ensuring even distribution of braking force.
Test the installation before road use. Activate the system at a controlled speed (30–40 mph) and monitor the trailer wheels for smooth, progressive engagement. If the trailer jerks or locks, recalibrate the sensitivity settings. Some units allow manual adjustment via a potentiometer or digital interface–set this based on trailer weight (refer to the manufacturer’s load chart). For electric-over-hydraulic systems, confirm the hydraulic pump receives a steady 12V signal when the activation switch is pressed; intermittent power suggests a loose connection or corroded terminals.
Document the circuit paths with labeled diagrams for future troubleshooting. Note wire gauges (10–12 AWG for power leads, 14–16 AWG for signal wires) and color codes specific to your module. For systems with synchronization features, confirm compatibility with the towing vehicle’s stability control–some OEM setups require a bypass module to prevent conflicts. Regularly inspect connections for heat damage or oxidation, especially after exposure to road salt or moisture. Replace any compromised components immediately to avoid system failure under load.
Electrical Connection Guide for Trailer Halting Systems
Begin by matching the power lead from the activation unit to the vehicle’s auxiliary circuit–typically a 12V source fused at 30A. Attach the ground to a clean, unpainted chassis point within 18 inches of the unit to prevent voltage drop. For tow vehicles with integrated modules (Ford Expy, Ram 1500), bypass factory circuits using a relay to avoid signal interference; connect the relay coil to the stoplight circuit (brown/white wire) and the switch leg to the unit’s red lead. Verify all connections with a multimeter set to DC voltage–expect 11.8V–12.2V at the blue output terminal when the pedal is pressed.
| Component | Wire Gauge (AWG) | Color Code | Max Current (A) |
|---|---|---|---|
| Power feed | 12 | Red/White | 25 |
| Ground | 10 | Black | 35 |
| Trailer output | 14 | Blue | 20 |
| Brake switch | 16 | White/Brown | 5 |

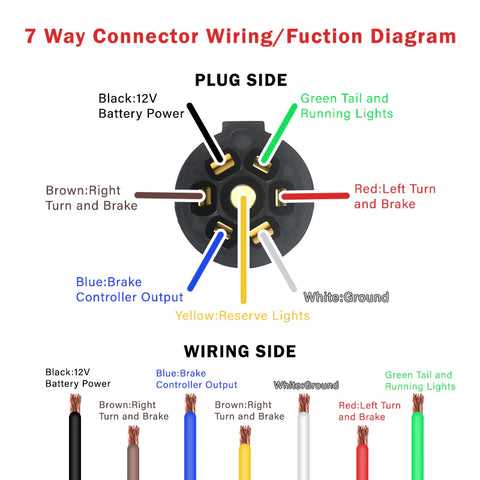

Never splice into the ABS wiring harness–use the OEM port under the dash (T-connector for GM, 4-pin for Toyota). For 7-way connectors, the blue terminal carries modulated voltage; test with a load resistor (12Ω) to confirm pulse-width signals between 2V–10V during gradual stops. If voltage spikes above 13.5V, install a transient suppressor diode (1N4007) across the output leads. Isolate circuits with dielectric grease at every junction to prevent corrosion in humid conditions; recheck continuity every 5,000 miles.
Selecting Optimal Electrical Parts for Trailer Signal Integration
Begin with a 10- to 12-gauge copper conductor for power delivery to ensure minimal voltage drop under load. Avoid aluminum or thinner strands–resistance rises exponentially with distance, risking overheating at connection points. Brands like Ancor or Southwire offer marine-grade tin-coated strands that resist corrosion better than standard automotive variants.
For ground return, dedicate a separate path directly to the vehicle chassis using the same gauge as the positive lead. Avoid sharing grounds with lighting circuits; voltage fluctuations from trailer lamps can induce erratic behavior in the signal module. Use a crimped ring terminal with heat-shrink tubing over the connection to prevent moisture ingress.
Opt for a heavy-duty relay with a 40-amp rating or higher if the system draws more than 30 amps continuously. Automotive SPDT relays (ISO 280) with coil voltage matching the tow vehicle’s system (12V/24V) prevent coil burnout. Mount the relay within 18 inches of the power source to minimize inductive losses.
Choose connectors with gold-plated contacts for low-current signal paths, such as the link between the dash-mounted interface and the trailer coupling. Molex Minifit Jr. or Deutsch DT series connectors handle vibration better than blade-style terminals, reducing intermittent failures. Apply dielectric grease to all non-ferrous junctions before assembly.
Verify fuse ratings based on the module’s peak surge current, not its continuous draw. For a 20-amp circuit, use a fast-acting fuse rated 25–30% above the operating current to avoid nuisance trips. Install the fuse holder within 7 inches of the battery or power distribution block to protect the entire circuit path.
Step-by-Step Guide to Linking Trailer Braking System Cables to a Car
Locate the electric coupling port beneath the dashboard near the driver’s side. Use a circuit tester to identify the live feed–typically a red or black cable supplying 12V power from the fuse box. Confirm the polarity before proceeding to avoid damaging the system.
Connect the power lead from the device to the verified 12V source. Secure the connection with a crimp connector or solder, then insulate with heat-shrink tubing. Ensure no bare metal remains exposed to prevent shorts during operation.
Grounding and Signal Integration
Attach the ground wire (usually white) to a clean, unpainted metal surface on the vehicle’s chassis. Use a self-tapping screw or existing bolt, ensuring a tight fit. Poor grounding causes unreliable performance or intermittent failures.
Trace the signal cable (often blue) to the vehicle’s rear light assembly. Splice it into the brake light circuit–identified by the corresponding wire leading to the tail lights. Use a multimeter to verify the correct wire before making the connection.
For vehicles with proportional systems, adjust the sensitivity settings after installation. Test under controlled conditions, applying light pressure to observe response time. Fine-tune the controls until the trailer’s stopping force aligns with the vehicle’s deceleration.
Finalize by securing all loose cables with zip ties or loom tubing. Route them away from moving parts and heat sources. Perform a full road test, checking for consistent engagement at varying speeds.
Diagnosing Faults in Electronic Towing System Connections
Check the voltage at the power input terminal using a multimeter while activating the system. A reading below 11.8V indicates insufficient current delivery, often caused by corroded connectors, undersized cable gauge, or a weakened power source. Replace terminals showing green oxidation or tighten loose crimp connections with a hydraulic press for consistent contact.
Verify ground integrity by measuring resistance between the chassis and ground post–values above 0.2Ω suggest high-impedance paths. Sand paint or rust at attachment points, then secure with stainless-steel hardware. Poor grounding replicates symptoms of a faulty activation unit, including erratic output or complete failure.
Inspect the conductor linking the activation switch to the electronic module for damaged insulation or partial fractures. Wrap exposed sections with heat-shrink tubing rated for 125°C, or splice in fresh 14AWG silicone-jacketed cable if burns are visible. Intermittent responses often trace back to compromised strands inside seemingly intact sheathing.
Test the 5-pin trailer plug by probing each cavity with a continuity tester while cycling the activation switch. Pin 1 should read battery voltage, pin 2 signal output (typically 0-12V PWM), pins 3 and 4 return paths, and pin 5 auxiliary power if equipped. Swap mismatched leads; reverse polarity on pins 1 and 2 will immediately damage sensitive solid-state components.
Confirm compatibility between the towing vehicle’s electrical architecture and the installed module. Factory-installed pre-wiring harnesses may lack dedicated circuits, requiring a relay spliced into the ignition-switched fuse box–use a 30A blade fuse to prevent overload. Aftermarket modules often demand direct battery connections via an inline 40A breaker to handle peak surge currents.
Examine the interface cables for voltage drop across connector housings. Insert a 10AWG jumper wire between the module’s output and the trailer connector; if performance stabilizes, the existing cabling carries excessive resistance. Upgrade to tinned copper conductors in wet environments to prevent galvanic corrosion.
Reset the electronic assembly by disconnecting the battery for 10 minutes, then reconnecting while monitoring for error codes via an OBD-II scanner. Persistent faults often require reflashing firmware–download updates from the manufacturer’s portal using a Windows-based utility, ensuring the interface cable matches protocol (CAN, PWM, or analog voltage).
