Understanding Circuit Diagram Keys Practical Symbols and Interpretation Guide
Begin by locating the standard reference legend–usually positioned in a corner or sidebar–before interpreting any wiring layout. This guide maps symbols to components: resistors (zigzag lines), capacitors (parallel lines), transistors (three-pronged shapes), and power sources (battery icons). Ignore generic icons; focus on ANSI or IEC standards for accuracy. Cross-reference ambiguous symbols against this reference immediately to avoid misreading voltage paths or signal flows.
Prioritize symbols with numeric or alphanumeric labels–these pinpoint exact values (e.g., R5 10kΩ or C3 22µF). For integrated circuits, trace pin numbers adjacent to the rectangle; validate against the datasheet to confirm functionality. Ground symbols (downward triangles) and test points (circles with labels) demand separate attention–mark them permanently on printed layouts to prevent oversight during prototyping.
Adopt a systematic approach: scan left-to-right, top-to-bottom, layering annotations on the layout itself. Highlight power rails in red, signal paths in blue, and grounds in green to visualize interactions. Discrepancies between schematic and physical connections often stem from overlooked NC (no connect) pins or hidden traces–verify each twice, especially in multilayer boards.
Use tools like KiCad’s symbol library or Altium’s component browser to auto-generate legible legends if the original lacks clarity. For custom symbols, embed a small inset diagram directly into the project file, ensuring team members bypass confusion. Never assume–confirm every resistor’s wattage, capacitor’s polarity, and IC’s voltage tolerance against the reference.
Decoding Electrical Schematic Symbols: A Practical Guide
Always label every component in your wiring plan with a unique identifier, such as R1 for resistors, C2 for capacitors, or Q3 for transistors. Standardized prefixes prevent ambiguity–use IEC 60617 (Europe) or ANSI Y32.2 (US) as a reference. For example, a resistor marked “R4 (4.7kΩ)” clarifies both its role and value. Omit vague notations like “RES1” or “COMPONENT A,” which complicate troubleshooting.
Group related elements with dashed outlines or color-coding. Highlight power lines in red, signal paths in blue, and ground connections in black. This visual separation reduces errors during assembly. Below is a reference table for common color associations:
| Function | Color | Line Style |
|---|---|---|
| Power (+Vcc) | Red | Solid thick |
| Ground | Black | Dashed |
| Signal | Blue | Solid thin |
| Control | Green | Dotted |
Annotate junctions and test points with concise notes. Example: “TP1 (5V)” or “JP2 (SPI Clock).” Avoid generic labels like “Point A” unless referencing an external document. Include pin numbers for ICs (e.g., “U5 Pin 3 (Reset)”) to align with datasheets. Mark unused pins clearly–either “NC” (No Connect) or “Reserved”–to prevent accidental shorts.
For connectors, specify both the physical interface and signal function. Example: “CON1 (USB-B, +5V/DP/DM/GND)” instead of “USB Port.” If using non-standard connectors, add a cross-reference to the mating part’s data. Below are critical fields to include for connectors:
| Field | Example | Purpose |
|---|---|---|
| Pin Number | 1, 2, 3 | Physical order |
| Signal Name | VIN, GND, TX | Functional role |
| Voltage/Current | 12V@2A, 3.3V | Electrical specs |
| Mechanical Spec | 2.54mm pitch, 4P | Physical fit |
Use arrows or directional symbols to indicate signal flow. For example, draw a right-pointing arrow above a data line labeled “→ UART TX” to show transmission direction. Label bidirectional buses (like I2C) with double-headed arrows and note “Half-Duplex” or “Full-Duplex” where applicable. Avoid relying solely on line thickness–combine visual cues with text for clarity.
Error-Prone Symbols to Double-Check
Verify polarity markings for diodes, capacitors, and batteries. A reversed electrolytic capacitor can explode; mark the positive terminal with a “+” and the negative with a striped band or “-.” For transistors, confirm the pinout (E, B, C) matches the schematic software’s default–many common-footprint devices (e.g., TO-92) have manufacturer-specific layouts. Cross-reference with the component’s datasheet before finalizing the plan.
Include a revision block in the bottom-right corner with the format: “Rev [X] – [Date] – [Author] – [Change Description].” Example: “Rev 2 – 2024-04-05 – J. Smith – Added pull-up resistor R7.” This ensures traceability during prototyping and debugging. Never leave revisions undocumented–retroactive changes introduce confusion.

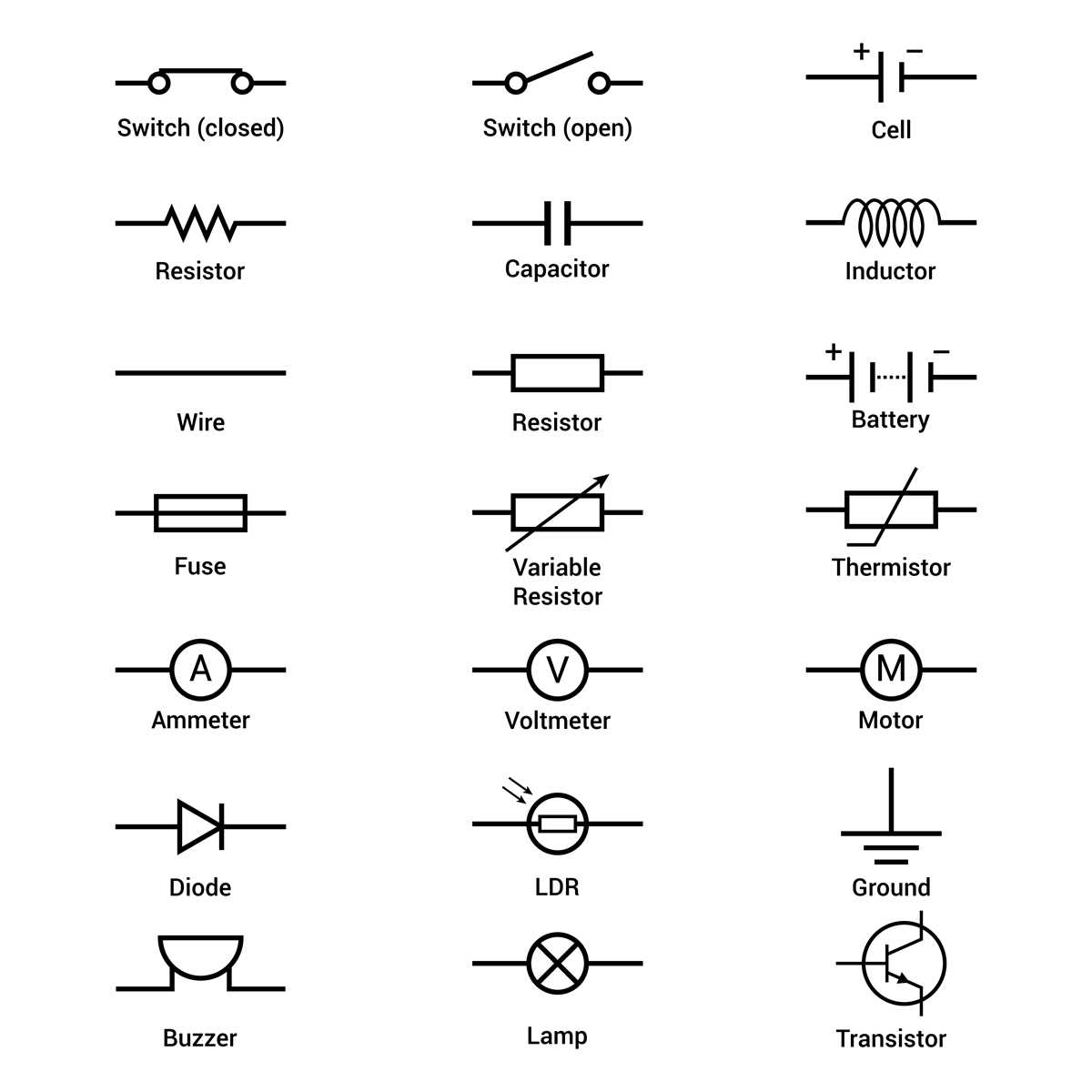

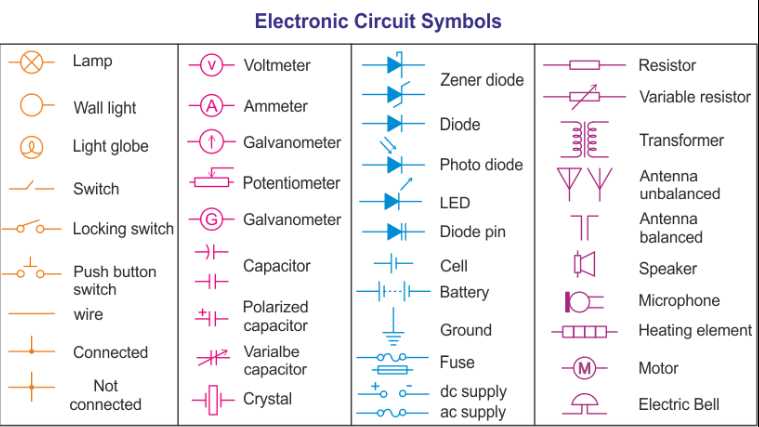

How to Recognize Standard Schematic Symbols
Search for straight lines intersecting at 90 degrees with short parallel marks at each end–this represents a resistor. The number of marks or the value printed next to it (e.g., “4.7k”) confirms its resistance. Color bands on physical components match these values, simplifying cross-checking between plans and hardware.
Identify capacitors by two parallel lines, often with one curved side indicating polarity. Non-polarized symbols lack this curve. Look for values in microfarads (μF) or picofarads (pF) directly on the graphic; larger numbers typically denote electrolytic types requiring correct orientation.
A triangle pointing toward a line defines a diode, with a vertical bar on the line’s end showing the cathode. Light-emitting variants add two small outward arrows. Always trace current direction from anode to cathode to avoid reverse-bias errors.
Spot transistors by three leads extending from a central circle: emitter, base, collector. NPN types label the emitter with an outward arrow; PNP flips it inward. Verify lead designations against manufacturer datasheets–confusing them risks damaging parts.
Look for small circles at connection points or switches–these mark junctions where traces split. Solid dots indicate intentional soldered links; absence means crossing lines don’t electrically connect. Use a multimeter’s continuity mode to confirm physical board behavior matches the graphic.
Locate integrated chips by rectangular blocks with numbered pins along the edges. Pin 1 often has a notch or dot. Reference pinouts in data sheets–mismatches cause faulty assembly, especially with power and ground pins.
Examine power sources by long and short parallel lines for DC or alternating sine waves for AC. Battery symbols stack unequal lengths; positive terminals are longer. Always verify voltage ratings–exceeding them burns components instantly.
Step-by-Step Process for Reading a Schematic
Identify the power source first–look for symbols like batteries or voltage rails. Note the label (e.g., +5V, GND) and trace its path to confirm it feeds every component needing power. Missed connections here cause silent failures later.
Scan for ground references early. Grounds anchor the entire layout; they’re often marked with downward-pointing triangles or lines ending abruptly. Verify that every component with a power input also ties back to ground–floating pins invite noise and instability.
Break the layout into signal chains. Follow the thickest, most direct lines first–these usually carry high-current paths. Thin, meandering traces typically denote control or data lines. Label each chain mentally (e.g., “clock line,” “reset path”) to avoid confusion when reviewing later.
Deciphering Symbols
Memorize the five most common symbols in your schematic: resistors (zigzag), capacitors (parallel lines), transistors (arrows), switches (gaps), and ICs (rectangles). Use a legend if provided–symbols vary across industries (e.g., European vs. ANSI). For unfamiliar shapes, check the reference designator (R1, C2) and cross-reference with the parts list.
Validation Checks
Test continuity by tracing each path from source to destination. Use colored pens or digital layers to mark verified routes. Look for red flags: direct shorts (lines crossing without a dot), orphaned components (no power/ground), or missing decoupling caps near ICs. Measure expected voltages at key nodes before prototyping–a 0V reading on a powered line signals a break.
Critical Connections: Power and Ground Markings
Label power rails with VCC (positive supply) or VDD (for CMOS) and ground references as GND or VSS. Use thicker lines (0.7mm–1.0mm) for high-current paths to distinguish them from signal traces. For multi-voltage schemes, prefix markings with voltage levels (e.g., 3V3, 5V) to prevent shorts during assembly or debugging.
- Star grounding: Connect all grounds at a single point near the power source to minimize noise in analog sections. Avoid daisy-chaining grounds, especially in mixed-signal layouts.
- Thermal relief: Apply thermal spokes (0.3mm width, 45°–90° angles) to large copper pours around pads for solderability without compromising conductivity.
- Decoupling: Place 0.1µF capacitors within 2mm of IC power pins, with a 10µF bulk cap near the voltage regulator. Mark these components in the schematic legend.
Layer-Specific Rules
On multi-layer boards, dedicate inner layers to power and ground planes. For signal integrity:
- Assign Layer 2 to GND if using a 4-layer stackup.
- Keep power nets at least 0.5mm away from outer edges to avoid EMI.
- Use polygon fills for power rails in two-layer designs, with via stitching (minimum 1.27mm pitch) to improve current capacity.
Diagnosing Faults with Schematic Blueprints
Begin by isolating the faulty segment: trace the signal path from input to output, verifying each component’s state with a multimeter. For resistors, measure resistance–deviations exceeding ±5% indicate failure. Check capacitors for short circuits (zero ohms) or open circuits (infinite resistance). Transistors require base-emitter voltage drops of ~0.7V for silicon; deviations suggest junction failure. Use an oscilloscope to confirm clock signals–missing pulses or distorted waveforms point to timing errors or noise interference.
Follow these steps for systematic verification:
- Compare measured voltages against annotated values on the blueprint–mismatches reveal power delivery issues or incorrect component placement.
- Inspect solder joints for cracks or cold joints; reheat suspect connections with a soldering iron.
- Test diodes in both directions–forward bias should show low resistance (~0.6–0.7V), reverse bias high resistance (OL on multimeter).
- For ICs, confirm VCC and ground pins have correct voltages; missing power typically causes erratic behavior.
- Check logic gates with a logic probe–stuck-at faults appear as constant high/low states regardless of input.
- Replace components with known-good spares if testing confirms failure; avoid assumptions based on visual inspection alone.
