Understanding Relay Switch Circuit Diagrams Components and Connections
Start by selecting a DPST (double-pole single-throw) or SPST (single-pole single-throw) configuration based on load requirements. For low-power applications–under 10A–opt for a sensitive 5V coil with a rated contact resistance below 50 milliohms. High-current setups (20A+) demand heavy-duty silver alloy contacts and a flyback diode (1N4007) directly across the coil to suppress inductive voltage spikes exceeding 100V.

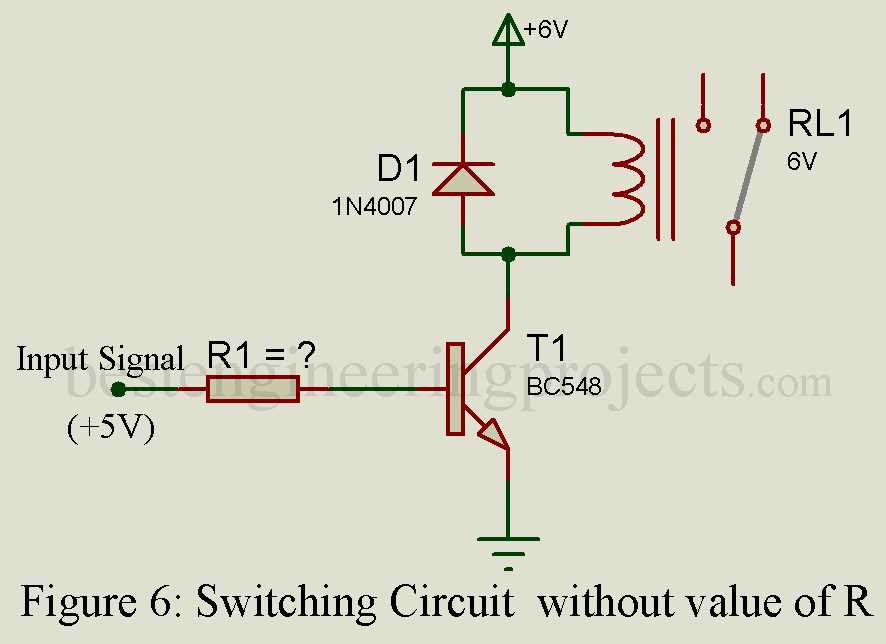

Ground the common terminal of the electromagnetic actuator to the chassis or a dedicated zero-voltage reference. Route the control signal–typically 3.3V to 12V logic–through a 2N2222 transistor or MOSFET (IRF520) to isolate the trigger source from coil current draw. For microcontroller-driven setups, insert a 10kΩ pull-down resistor at the base of the transistor to prevent floating inputs during power cycling.
Connect the load–whether an incandescent bulb, solenoid valve, or DC motor–directly to the switched terminals, ensuring polarity matches the actuator’s break-before-make operation. Add a snubber network (0.1µF + 100Ω in series) across contacts if switching inductive loads to extend lifecycle beyond 100,000 cycles. Test the setup with a multimeter in continuity mode before applying full voltage; contact bounce should settle within 20ms.
For fail-safe operation, integrate a thermal fuse (160°C) in series with the coil if ambient temperatures exceed 60°C. Avoid paralleling multiple coils on a single signal line–current limitations of most GPIO (under 20mA) will cause erratic engagement. Document the wiring paths with color-coded markers: red for switched power, black for ground, yellow for control signals.
Schematic Design for Electromagnetic Control Units
Always position the coil excitation path above the load connections in your layout to prevent accidental short circuits during high-voltage transitions. Use a flyback diode rated for at least 1.5× the coil’s operating voltage–common 1N4007 diodes fail under inductive loads exceeding 500 mA. For AC-driven applications, bypass the coil with a varistor (e.g., V275LA40A) to clip voltage spikes above 275V; standard resistors dissipate heat inefficiently under transient conditions.
Connect power rails with 20 AWG copper wire if current draw exceeds 5A–18 AWG wires introduce measurable resistance drops over 50cm distances. Include a 0.1μF ceramic capacitor across the coil terminals if PWM modulation exceeds 1kHz to suppress RF interference. For latching setups, separate the set/reset coils with antiparallel diodes to avoid flashover; diode orientation must oppose the coil’s induced back EMF during polarity reversal. Verify isolation gaps between input/output traces–minimum 4mm clearance prevents arcing at 230VAC. Test all connections with a 1MΩ insulation meter before applying mains voltage: hidden carbon tracks from solder flux cause occult faults weeks after deployment.
- For DC control: Place a 4.7μF electrolytic capacitor in parallel with the coil to smooth current ripples above 50Hz.
- For bi-stable units: Use dual 390Ω resistors in series to limit coil surge current; single resistors risk permanent magnetization.
- For heavy-duty loads: Integrate a snubber (100Ω + 0.1μF) across the contacts to suppress arc voltage spikes above 400V.
Basic Components and Symbols in an Electromagnetic Control Assembly
Begin by identifying the coil symbol–a vertical straight line with two parallel terminals–representing the control winding. Ensure the coil’s nominal voltage matches the system: 5V, 12V, or 24V DC are common, while 110V or 230V AC suit industrial setups. Misalignment risks overheating or failure. Label each terminal clearly (e.g., A1, A2) to prevent reverse polarity.
- Normally Open (NO) contact: Depicted as two disconnected lines; use for load activation upon energizing.
- Normally Closed (NC) contact: Shown as two lines with a diagonal slash; breaks current when the coil activates.
- Common (COM) terminal: A single line branching to NO/NC; connect the power source here.
Position the coil and contacts on schematic grids spaced at least 0.5-inch apart for readability. Represent power rails with thick horizontal lines; top for positive, bottom for ground. Add protective elements: a flyback diode across the coil for DC, or a varistor for AC, oriented cathode-to-positive to prevent voltage spikes.
Annotate each symbol with component ratings: coil resistance (Ω), contact current (A), and switching voltage (V). Example: “K1 – 12V DC, 80 Ω, 10A/250V AC”. Include spring-loaded indicators if the assembly supports manual override; these appear as a semicircle adjacent to contacts.
Step-by-Step Wiring Guide for a Single Pole Control Module
Identify the input power source–typically a 12V or 24V DC supply–and connect its positive terminal to the module’s coil terminal marked 85. Ensure the power wire is rated for at least 20% above the coil’s current draw, usually 50–150 milliamps. Ground the opposite coil terminal (86) directly to the chassis or a dedicated negative busbar, using a wire gauge matching the supply line to prevent voltage drop.
Connecting the Load Path
Attach the common contact (30) to the power source feeding the device–such as a motor, lamp, or solenoid–using a wire sized for the load’s full current. For example, a 10-amp load requires at least 16 AWG copper wire. Link the normally-open contact (87) to the load’s positive input. If using a normally-closed configuration, route the load through terminal 87a instead, verifying the module’s datasheet for pin assignments specific to your model.
Add a flyback diode (1N4007) across the coil terminals–cathode to 85, anode to 86–to suppress transient voltage spikes when de-energizing. For inductive loads, install a similar diode in reverse polarity across the load terminals. Secure all connections with solder or crimp connectors, then insulate with heat-shrink tubing rated for the operating voltage.
Test the assembly with a multimeter in continuity mode before powering up. Activate the control signal and confirm the contacts engage by measuring across 30 and 87; expect zero ohms when closed. If intermittent operation occurs, recheck wire gauges, diode polarity, and terminal tightness–loose connections generate heat and degrade performance within minutes.
Frequent Errors in Schematic Representations of Automated Control Devices
Incorrect polarity marking on coils leads to immediate misoperation. Label both ends with clear voltage designations–”+12V” and “GND” for DC or “L1” and “L2” for AC–matching the physical device. Omitting this invites reversed activation, damaging sensitive loads or causing unintended latching.
Misaligning contact forms wastes debugging time. Ensure SPST, SPDT, DPST, and DPDT variants are drawn exactly as specified, with each terminal distinctly numbered. A DPST drawn as SPDT forces engineers to trace connections manually, risking short circuits under high-current loads.
Ignoring transient suppression invites erratic triggering. Place a flyback diode directly across DC coils or a varistor for AC, oriented correctly to clamp inductive spikes. Missing components result in arcing, contact pitting, and premature failure within hundreds of cycles.
Overlapping lines obscure critical paths. Use orthogonal routing, keeping signal, power, and ground traces separated by at least 5mm on paper schematics. Crossovers should be perpendicular, never parallel, to prevent crosstalk in high-frequency or noisy environments.
Leaving load ratings unlabeled creates safety hazards. Specify maximum current and voltage for each contact set–typically 10A/250VAC for general-purpose types. A 5A contact switching a 15A motor will weld shut within seconds, necessitating costly replacements.
Failure to denote latching mechanisms misleads implementation. Use a split coil symbol for dual-winding types, and label “set” and “reset” terminals explicitly. Absent labels lead to incorrect wiring, stalling automated sequences in industrial controllers.
How to Calculate Coil Voltage and Current Requirements
Begin by identifying the electromechanical component’s specifications from its datasheet. Most manufacturers provide the nominal operating voltage (Vnom) and the coil resistance (Rcoil) in ohms. Use Ohm’s Law to determine the required current: I = Vnom / Rcoil. For example, a component rated at 12V with a 240Ω coil will draw 50mA (12V / 240Ω = 0.05A). Verify these values against the application’s power supply limitations–exceeding them risks overheating or failure.
Account for voltage drops in the control path, especially if using long wires, semiconductors (e.g., transistors), or resistors in series. A 1V drop in a 5V system reduces effective coil voltage to 4V, increasing current demand. To compensate, measure actual voltage at the coil terminals under load. Use the formula: Vactual = Vsupply – (I × Rdrop), where Rdrop includes trace resistance and component parasitics. For critical applications, add a 10-15% margin to accommodate tolerances.
| Component Type | Recommended Voltage Range (V) | Typical Coil Resistance (Ω) | Current per Volt (mA/V) |
|---|---|---|---|
| Miniature DIP | 3–48 | 50–1000 | 10–50 |
| Power PCB | 5–110 | 10–300 | 30–100 |
| High-Sensitivity | 1.5–24 | 200–2000 | 5–20 |
Ensure the driving source (e.g., GPIO, MOSFET) can deliver the calculated current without saturation. For pulse operation, check the component’s pull-in (Vpi) and drop-out (Vdo) voltages–typically 70-80% and 10-20% of nominal, respectively. Test under worst-case conditions (e.g., low temperature, degraded power supply) to confirm reliable actuation.
