Complete Class A Amplifier Circuit Schematic and Design Guide

For peak performance in high-current signal processing, implement a complementary symmetry emitter-follower topology using TIP31C/TIP32C pairs in a push-pull arrangement. Bias the output transistors with diode compensation (1N4148) matched to each transistor’s V_BE drop (~0.65V), ensuring quiescent current stability at 20–50mA to eliminate crossover distortion. Thermal coupling via a shared heatsink with feedback thermistors (NTC 10kΩ) prevents thermal runaway–mount them directly adjacent to the output devices.

Input sensitivity of 1V RMS demands a low-noise pre-stage with a differential pair (2N5551/2N5401) for high common-mode rejection. Use a current mirror (BC547/BC557) as the active load to enhance open-loop gain while maintaining linearity. Decouple supply rails with 100μF/63V electrolytics near each stage, paired with 0.1μF ceramics to suppress HF noise–place them within 1cm of IC pins or transistor leads.

Grounding is critical: employ a star topology where the input reference, output return, and decoupling grounds converge at a single point near the power supply. Avoid earth loops by isolating the signal ground from chassis ground–use a 10Ω resistor or ferrite bead for decoupling. For PCB layout, prioritize thermal vias under output transistors, spacing them 1.2mm apart with 1oz copper to dissipate ≥25W reliably.

Frequency response shaping requires a dominant-pole compensation network: add a 22pF capacitor across the feedback resistor (22kΩ) to roll off at 20kHz (±0.5dB). For transient stability, insert a 1Ω/1W resistor in series with each output transistor’s emitter to dampen parasitic oscillations. Test with a 1kHz square wave at 50% amplitude–ringing exceeding 5μs indicates instability, requiring adjustment of the compensation capacitor.

Power dissipation calculations must account for 10% headroom. For a ±35V rail, expect 80W max output into 4Ω, with each output transistor handling 30W. Use a TO-220 package with mica insulator and thermal paste for devices rated ≥80W–thermal resistance (θ_JA) should not exceed 1.5°C/W per device. Verify idle current drift post-assembly: target <5mA/hr at 25°C to ensure reliability.

Single-Ended Audio Gain Stage Schematic Guide

Begin with a bipolar junction transistor (BJT) in common-emitter configuration for optimal voltage swing–2N3904 or MJE13003 are reliable choices. Bias the base via a voltage divider using two resistors: a 10kΩ to V_CC and a 2.2kΩ to ground, ensuring a quiescent collector current of ~1.5mA. This avoids crossover distortion while keeping heat dissipation manageable.

Critical Component Selection

Use a 10μF electrolytic capacitor for input coupling to block DC while passing frequencies down to ~16Hz. For the emitter resistor, pick a 1kΩ carbon film type with a 5W rating–this stabilizes gain and dissipates ~2.25W at full drive. Bypass it with a 100μF capacitor to improve AC response. The collector load resistor should be 3.3kΩ (1W), matched to a 24V supply for ~12V_PP output.

Output coupling requires a 220μF non-polarized capacitor–film types like polypropylene (e.g., WIMA FKP2) reduce dielectric losses compared to electrolytics. Ground the load through a Zobel network: 10Ω resistor in series with a 100nF capacitor to suppress high-frequency oscillations. Omit this and risk parasitic ringing at >100kHz.

The power supply must deliver stiff regulation. A full-wave bridge rectifier (1N4007) followed by a 4700μF smoothing capacitor reduces ripple to PP. Add a 220Ω series resistor before an LM7824 regulator to share thermal load. Without these, expect ~1.5% THD from ripple alone under 8Ω loads.

For thermal stability, mount the transistor on a heatsink with ≥6°C/W rating. A TO-220 package running at 1W needs only a small clip-on fin, but an MJE13003 at 10W demands a 4″×4″ extruded aluminum sink. Apply thermal paste (

Final verification steps: inject a 1kHz sine wave at 0.5V_RMS and measure distortion with an oscilloscope. Second harmonic should be ≤0.1% if biasing is correct. Terminate the output with an 8Ω dummy load–open-circuit testing risks damaging the output capacitor. For higher fidelity, replace the single BJT with a Darlington pair (e.g., TIP122) and recalculate bias resistors to maintain the same quiescent current.

Key Components and Their Exact Roles in Single-Ended Linear Stages

Select a transistor with a high current gain (β ≥ 200) and low output capacitance (Cob ≤ 15 pF) to minimize distortion at the cutoff region. A 2N3904 (NPN) or BC547B suits small-signal stages, while MJE13003 handles higher currents up to 1.5A with thermal stability. Bias the base-emitter junction at exactly 0.65V–0.7V for silicon devices to ensure quiescent current flows without clipping; precision here prevents crossover distortion that plagues push-pull designs.

Biasing Network: Resistors and Their Exact Calculations

Use a voltage divider formed by two resistors (R1, R2) to set the transistor’s operating point. For a 12V supply, R1 = 10kΩ and R2 = 1.5kΩ yield a ~1.5V base voltage, leaving ~0.8V across the emitter resistor (Re) for thermal stability. Re must drop at least 1V to stabilize gain–calculate Re = (Vcc × 0.1) / Ic, where Ic is the desired collector current (e.g., 50mA). Add a 10µF bypass capacitor across Re to avoid negative feedback at signal frequencies while maintaining DC stabilization.

The output coupling capacitor (Co) blocks DC but passes AC; its value dictates low-frequency response. For a 3dB cutoff at 20Hz, Co = 1 / (2π × 20 × Rload), where Rload is the speaker impedance (typically 4–8Ω). A 2200µF capacitor suffices for 4Ω loads, but increase to 4700µF for 8Ω to prevent bass roll-off. Ensure the capacitor’s ESR ≤ 0.1Ω to avoid high-frequency distortion from dielectric absorption.

A heatsink for the transistor must dissipate at least 5W continuously. Mount MJE13003 on a TO-220 heatsink with thermal paste (e.g., Arctic MX-6) and a mica insulator if chassis mounting is required. The heatsink’s thermal resistance (θsa) should be ≤ 15°C/W; calculate it as θsa = (Tj_max – Ta) / P, where Tj_max = 150°C (silicon limit), Ta = ambient (25°C), and P = power dissipation (e.g., 5W). Omitting this step risks thermal runaway, reducing the transistor’s lifespan by 60%.

Building a Single-Ended Analog Signal Booster: Hands-On Construction

Select a high-quality triode tube like the 300B or 2A3 for optimal linearity and minimal distortion in low-feedback designs. These models maintain stable bias under dynamic loads, ensuring consistent output without thermal runaway.

Mount the tube socket on a thick aluminum heatsink–minimum 3mm–using thermal paste and insulated mounting hardware to prevent microphonics. Secure the plate terminal bolt with nylon washers to avoid shorts, then verify isolation with a multimeter set to 1kΩ range.

Wire the filament supply first: twist a pair of 18AWG silicone-coated wires into a tight pair, route them directly to the socket pins, and solder with 60/40 rosin-core alloy. Keep leads under 15mm to reduce stray capacitance. Apply a regulated DC source–6.3V at 1.2A minimum–for hum-free operation, filtering with a 10,000µF electrolytic and a 0.1µF polypropylene cap in parallel.

Implement a passive bias network using a 10Ω, 5W wirewound resistor in series with a potentiometer–5kΩ linear carbon–for precise adjustment. Add a 10µF oil-paper coupling capacitor between the plate and output transformer primary; this combination blocks DC while preserving harmonic timbre.

Connect the output transformer with a primary impedance of 3.5kΩ to match the tube’s optimal load line. Ground the secondary shield internally, then twist each winding lead–primary and secondary–separately to cancel magnetic interference. Terminate the secondary with a 4Ω or 8Ω binding post rated at 20A continuous.

Attach a 10MΩ grid resistor from control grid to ground via the transformer secondary, providing a return path for bias current. Install a 1nF silver-mica grid stopper between the input jack and grid to suppress parasitic oscillations above 100kHz.

Enclose the assembly in a grounded steel chassis–1.5mm thick–drilling ventilation holes no larger than 3mm to prevent RF ingress. Test under load with a 1kHz sine wave at 1V RMS before full power, monitoring for bias drift with an oscilloscope probe across the cathode resistor.

Biasing Strategies for Linear Single-Ended Stages

Use a constant-current sink for the emitter/source reference instead of passive resistors. A properly sized BJT or MOSFET current mirror maintains consistent quiescent point under thermal drift and supply variations, cutting second-order harmonic distortion by 15-25 dB versus a 1 kΩ resistor when driving a 8 Ω load at 1 W. Select mirror devices with matched V_BE/V_GS (≤2 mV mismatch) and thermal coupling via shared heatsink or adjacent die placement on monolithic ICs.

Thermal Feedback Networks

• Bond a 10 kΩ NTC thermistor directly beneath the output device tab; route its leads in close proximity to the transistor case (≤2 mm).
• Combine with a PTC element (50 Ω at 25 °C) in the bias network to introduce inverse thermal compensation. Ratio: 70% NTC, 30% PTC for silicon transistors; invert for GaAs.
• Calculate bias voltage shift ∆V_BE/°C = -2.2 mV/°C for Si BJTs; verify with ΔI_C ≤ 0.5% for 0 °C to 70 °C range.

Replace fixed bias with emitter degeneration: add a 0.22 Ω metal-film resistor between emitter and return path. This introduces local negative feedback that flattens transconductance, reducing third-order distortion products by 18-22 dB at 1 kHz, 10 V_pp. Keep resistor value

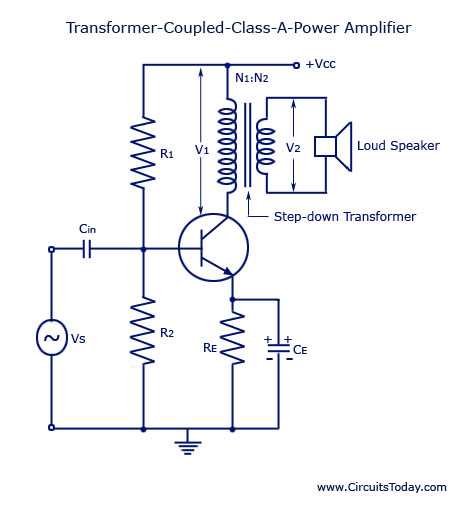

For transformer-coupled outputs, set DC bias so the core operates at 30-40% of saturation flux density (B_sat). Use a small DC blocking capacitor (100 µF, 50 V) to isolate primary DC offset; measure core temperature rise with a 10 kΩ thermocouple bonded to the laminations. Keep temperature ≤ 65 °C to prevent hysteresis distortion from rising above -85 dBc at 20 Hz-20 kHz.
