Step-by-Step Guide to Transforming Schematics into PCB Designs
Start with a clean netlist export–this step eliminates errors later. KiCad exports netlists directly to PCB Editor; Altium pairs schematics with Board Layout via ECO synchronization. Ignore manual net mapping; modern tools handle 98% of connections automatically, cutting trace routing time by 4–6 hours per project.
Group components logically before placement. Keep power regulators near input capacitors within 8mm–thermal resistance drops by 30% this way. Signal integrity rules dictate decoupling capacitors sit under 1.5mm from IC power pins; stray inductance exceeds 2nH beyond this distance, risking voltage spikes. Use design grids matching component pitch–mil (thou) for imperial parts, 0.05mm for metric–to prevent misalignment during fabrication.
Establish copper pours early. Ground planes reduce loop inductance to 0.1nH/cm, critical for 50MHz+ signals. Isolate analog sections using split planes; mixed-signal boards require impedance-matched traces–50Ω ±10% for single-ended lines, 100Ω ±10% for differential pairs. Vias under 0.5mm diameter add stray capacitance; use teardrops to reinforce drill holes in high-current paths.
Validate footprint pads against datasheets–not all vendors align footprints with IPC standards. Thermal pads on QFN packages demand solder mask-defined openings under 85% pad area; larger openings risk tombstoning. STEP models imported into 3D viewers highlight collisions early; recess components with >12mm height by ≤0.3mm to meet enclosure tolerances.
DRC rules prevent 80% of manufacturing defects. Copper-to-edge clearance ≥0.3mm avoids shorting during panel routing. Silkscreen text 1mm tall survives solder mask coating; smaller text bleeds during fabrication. Panelize designs using V-groove for straight breaks or mouse bites for irregular shapes–V-grooves cost 20% less per unit at volumes over 500.

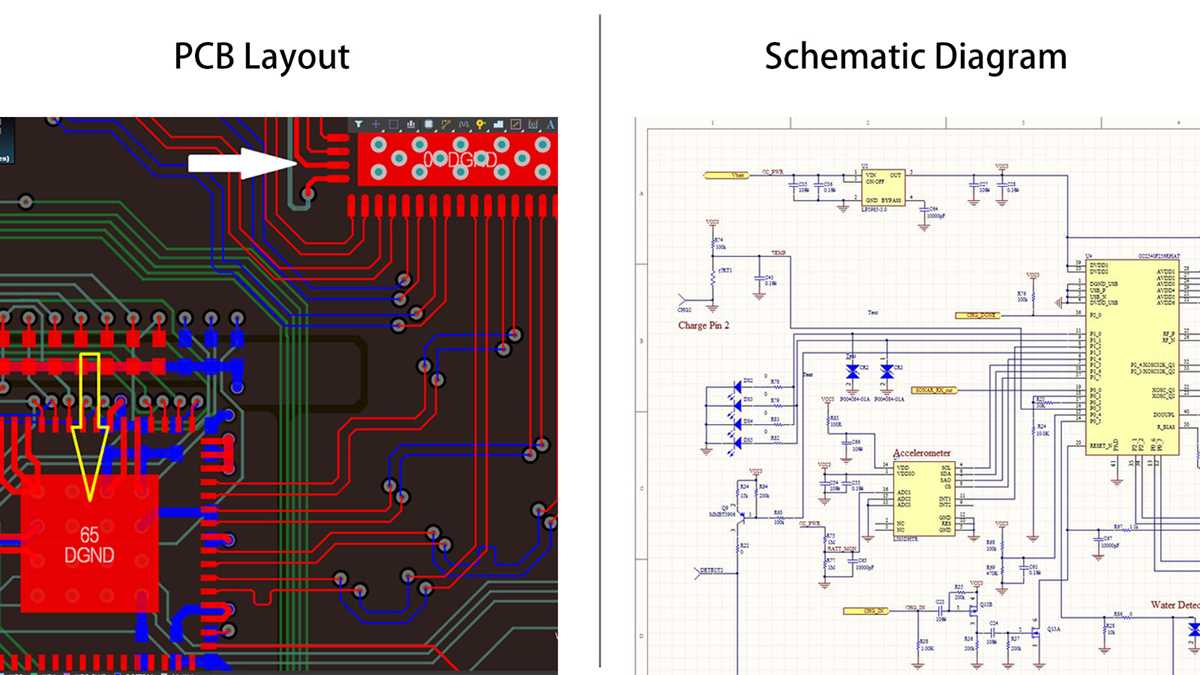

Translating Schematic Designs into Physical Board Arrangements
Begin by assigning each component a fixed footprint based on manufacturer datasheets. Resistors, capacitors, and ICs often require specific land patterns–verify pin spacing, pad sizes, and thermal reliefs. A 0805 resistor’s pad width should match the recommended 0.8mm × 1.4mm dimensions, while a TQFP-64 microcontroller demands exact pitch measurements down to 0.5mm. Deviation risks solder bridging or mechanical instability.
Group interconnected elements logically before routing traces. Place decoupling capacitors adjacent to IC power pins–ideally within 2mm–to minimize loop inductance. Analog signal paths benefit from isolation from high-speed digital lines; maintain a 3mm clearance or introduce ground pours as shielding. Linear regulators should sit near their load, reducing voltage drop across long copper paths.
Prioritize signal integrity by defining critical nets first. High-frequency traces require controlled impedance; use microstrip or stripline calculations for widths and spacing. A 50-ohm single-ended trace on FR-4 typically measures 0.15mm wide with 0.1mm spacing to ground planes. For differential pairs, adhere to the same length–tolerances below 5 mils–to prevent skew. Avoid right-angle bends; employ 45° miters to reduce reflections.
Select via types based on current and thermal demands. Through-hole vias suit most power connections, but thermal vias beneath heat-generating components like MOSFETs must have ≥0.3mm diameter with ≤0.6mm pitch. Blind or buried vias reduce layer transitions but increase fabrication costs–reserve them for dense BGA fan-outs where real estate is constrained. Always annular rings meet fabrication minimums (0.1mm larger than drill size).
Use ground planes aggressively to reduce noise and provide a stable reference. Dedicate an entire layer for solid ground fills, stitching them to other layers with multiple vias spaced ≤λ/20 apart (λ being the wavelength of the highest frequency signal). Star-point grounding prevents ground loops in mixed-signal designs–connect analog and digital grounds at a single point near the power source.
Route power rails wider than signal traces to handle current. A 1A supply line on 1oz copper should measure ≥1mm wide. For high-current paths (e.g., motor drivers), calculate width using the formula: W(mm) = I(A) / (k × ΔT(°C)^0.44), where k=0.024 for internal layers and k=0.048 for external. Add thermal reliefs to pads connected to planes to ease soldering.
Validate the design against fabrication rules upfront. Most manufacturers specify minimum trace widths (≥0.127mm), spacing (≥0.127mm), and hole sizes (≥0.2mm). Panelize small boards early–arrange multiples with ≥2mm edge clearance and fiducial marks (1mm diameter, ≥2mm from edges) for automated assembly. Export Gerber files in RS-274X format, including separate layers for silkscreen, solder mask, and paste stencil.
- Avoid sharp corners on copper pours; use rounded edges to reduce acid traps during etching.
- Label silkscreen text with ≥1mm height and ≥0.15mm line width for legibility.
- Add test points (≥1mm diameter) to critical nets for debugging.
- Use solder mask openings slightly smaller than pads (≥0.05mm) to prevent bridging.
- Check polarity indicators (e.g., diode stripes, IC notches) for correct orientation before finalizing.
Choosing and Prepping Schematic Elements for Board Fabrication
Prioritize component footprint verification before committing to placement. Use manufacturer datasheets–never trust generic library models. A 0402 resistor’s actual land pattern may differ by 0.1mm from the standard, enough to cause solder bridging during reflow. Cross-check pad dimensions, courtyard clearance, and silkscreen outlines against IPC-7351 standards or the vendor’s recommended footprint to prevent assembly errors.
Assign unique reference designators that encode function and hierarchy, not just sequential numbers. Prefix power regulators with “UR,” capacitors with “C” followed by voltage rating (“C10_50V”), and connectors by type (“J_USB”). This eliminates ambiguity during debugging and automates BOM sorting. Avoid alphanumeric codes longer than seven characters to keep silkscreen legible at 1:1 scale on 0.15mm stroke width.
Split multi-section symbols into individual gates or segments, each with dedicated pins. A single-gate NAND IC drawn as one monolithic block obscures signal flow and complicates trace routing. Disaggregating each gate keeps logic paths visible, reduces crossovers, and exposes unused sections for possible deletions or repurposing. Ensure pin swapping markers remain active to enable automated placement optimization without breaking electrical rules.
Validate electrical parameters beyond schematic capture–thermal, capacitance, and current ratings must align with physical constraints. A 2A MOSFET specified on paper may dissipate 1.5W, requiring a 30mm² copper pad and thermal vias spaced 1.5mm apart. Ignoring these properties risks thermal runaway; embed them directly into the symbol’s property fields or link to external spreadsheet calculators for live validation during design review.
Group decoupling capacitors directly beneath IC power pins, not in distant clusters. Position 0.1µF MLCCs within 2mm of VDD/GND pins using blind vias for shortest loop area; place bulk caps (10µF) on outer perimeter to avoid noise coupling. Maintain consistent orientation–positive terminal toward IC–to simplify pick-and-place programming and minimize tombstoning during soldering.
Replace generic transistor models with exact subfamily data whenever possible. A “2N2222” symbol obscures whether it’s a PN2222A (40V) or MMBT2222LT1 (300mW SOT-23), critical for trace clearance and pad size calculations. Embed SPICE parameters into symbol attributes so simulation tools immediately flag parameter mismatches without manual cross-reference.
Define keep-out zones for high-speed signals–DDR traces must avoid crossing split planes, USB differential pairs require 3W spacing from non-shielded traces. Use layer-specific directives in symbol footprints to enforce clearance rules during autorouting, preventing manual rework when accidental violations slip through DRC checks.
Defining Board Footprints and Placement Rules for Component Arrangement
Begin by assigning land patterns to each element using IPC-7351 standards for accuracy. For resistors (0402, 0603, 0805), ensure pad widths exceed the component terminal by 0.2–0.3 mm per side; for electrolytic capacitors (e.g., 10×10 mm), extend pads by 0.5 mm beyond the body diameter. Small-outline packages (SOIC-14) require 0.4 mm pad extensions beyond lead tips, while quad flat packs (QFP-44) need 0.6 mm clearance to avoid solder bridging.
Align polar devices–diodes, tantalum caps–with cathode markings facing the board’s edges or designated orientation arrows. Position LEDs with anodes toward power rails and cathodes toward ground traces unless thermal considerations dictate otherwise. High-power components (TO-220, DPAK) demand copper heatsinks: allocate 5–8x the device’s exposed pad area, connecting to internal ground planes via thermal vias (0.3 mm diameter, spaced ≤ 2 mm apart).
| Component Type | Pad Extension (mm) | Via Requirements |
|---|---|---|
| 0402 Resistor | 0.2–0.3 | None |
| SOIC-14 | 0.4 | 0.25 mm, ≤ 1.5 mm spacing |
| QFP-44 | 0.6 | 0.3 mm, ≤ 2 mm spacing |
| DPAK | 1.0 | 0.3 mm, 2–4 vias |

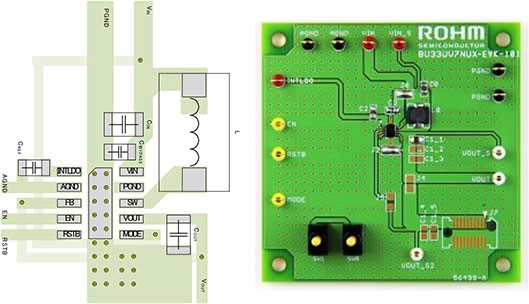

Group decoupling capacitors within 2–5 mm of IC power pins, prioritizing shortest possible trace routes to reduce inductance. Place bulk storage capacitors (tantalum, polymer) near voltage regulators, ensuring segmentation between analog and digital domains to prevent ground loops. For mixed-signal designs, separate analog ground pads from digital returns by ≥ 5 mm or use split planes connected at a single star point.

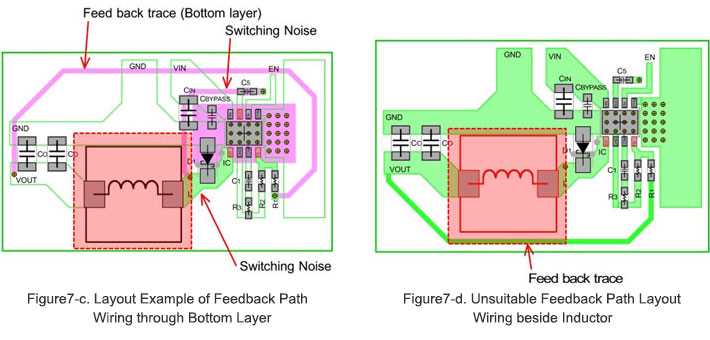

Avoid routing signal traces beneath inductors, transformers, or crystals; maintain ≥ 3 mm clearance to prevent EMI coupling. Oscillators should align with their load capacitors (typically 12–22 pF) within 5 mm of the crystal pins, with traces kept ≤ 5 mm long. High-speed connectors (USB, HDMI) require impedance-controlled pads–use 0.3 mm-wide traces spaced 0.2 mm apart for 90 Ω differential pairs, with ground stitching vias every ≤ 10 mm.
Thermal pads for BGAs mandate non-solder mask-defined (NSMD) lands to improve reliability. For 0.8 mm pitch BGAs, use 0.4 mm diameter pads with 0.3 mm solder mask openings; for 0.4 mm pitch, reduce pad diameter to 0.25 mm. Place fiducials (1 mm diameter, 0.5 mm mask opening) at ≥ 3 board corners for automated assembly–avoid mirroring or asymmetry to ensure pick-and-place accuracy.
Mechanical constraints dictate edge clearance for connectors: maintain ≥ 3 mm from board edges for through-hole components (e.g., USB Type-B) and ≥ 1.5 mm for surface-mount (e.g., micro-USB). Panelization tabs should align with ≥ 5 mm-wide keep-out zones, free of traces or components. For press-fit connectors, verify manufacturer-recommended hole tolerances (±0.05 mm) to prevent plating damage during insertion.
High-voltage components (≥ 100 V) require creepage/clearance spacing: 2.5 mm for 250 VAC, 4 mm for 400 VAC. Use slots or taller silkscreen barriers between adjacent high-potential pads. Test points should protrude ≥ 2 mm above surrounding components and use 1.2 mm diameter pads with 0.8 mm holes to accommodate probe tips–avoid placing them under taller elements like heat sinks.
Density-driven designs benefit from staggering tall components (e.g., electrolytic caps, inductors) to prevent shadowing during wave soldering. For double-sided assemblies, place heavier elements (> 5 g) on the primary side; lighter components (≤ 0.5 g) may mount on the secondary side. Verify automated optical inspection (AOI) tolerances: provide ≥ 0.5 mm spacing between adjacent component edges and ≥ 1 mm between component edges and board edges.
