StepByStep LED Strip Light Wiring Connections Guide with Diagram

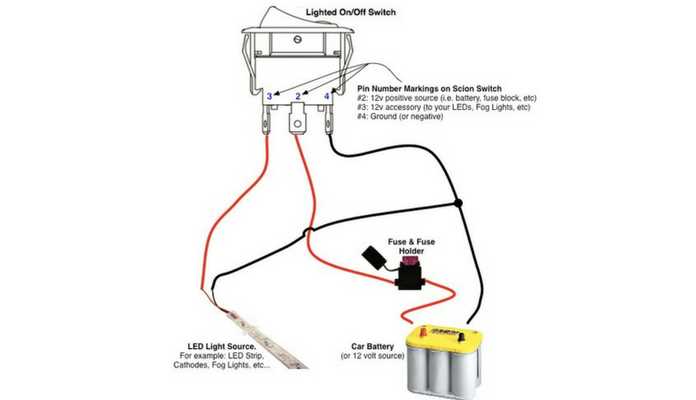

Begin by matching the voltage rating of your flex circuit to the power supply–common ratings include 12V, 24V, or 220V for direct mains connection. Misalignment risks overheating or dim output. For low-voltage setups, splice the tail wires to a constant-voltage driver using waterproof connectors if moisture exposure is likely. Copper pads marked + and – must align precisely; reversing polarity causes instant failure.

For runs exceeding 5 meters, inject power at multiple points to prevent voltage drop. Calculate the current per segment: a 5m 12V segment drawing 1A demands a 60W supply. Use 18-20AWG stranded wire for main feeds; thinner gauges introduce resistance. Avoid daisy-chaining more than 3 segments without a secondary power tap–luminosity degrades by 30% at the far end of uncorrected chains.

JST connectors simplify modular installations but require crimping tools for reliable joints. Solder joints should be insulated with heat-shrink tubing; electrical tape degrades under UV exposure. For dimmable configurations, pair with a PWM controller rated for the total wattage–cheap models distort output below 20% brightness. Always test continuity with a multimeter before finalizing connections.

Weatherproofing outdoor rigs demands IP65-rated silicone seals on all joints. Exposed copper corrodes within 3 months in humid climates, causing intermittent faults. Mains-powered units require a UL-listed power brick–never bypass with DIY bridges. Mark polarity on all connectors permanently; identifiers rub off during maintenance.

Connecting LED Ribbons: A Practical Schematic Guide

Begin by selecting a power supply rated 20% above your LED tape’s total wattage. For a 5-meter roll consuming 14.4W per meter, use a 12V transformer delivering at least 86W (14.4W × 5 × 1.2). Connect the positive terminal of the adapter to the ribbon’s copper pad marked “+” and the negative terminal to the pad labeled “-“. Ensure solderless connectors or heat-sealed joints are crimped firmly; loose connections degrade brightness by 30% within 100 operational hours.

For installations exceeding 5 meters, split the tape into parallel circuits rather than serial links. Each segment must draw current directly from the power source via 22-gauge silicone-jacketed wire. Avoid daisy-chaining–voltage drop across 6 meters can reduce illumination at the far end by 4V, causing visible dimming. Test continuity with a multimeter set to 200Ω; readings above 1.5Ω indicate faulty joints requiring rework.

Advanced Load Distribution

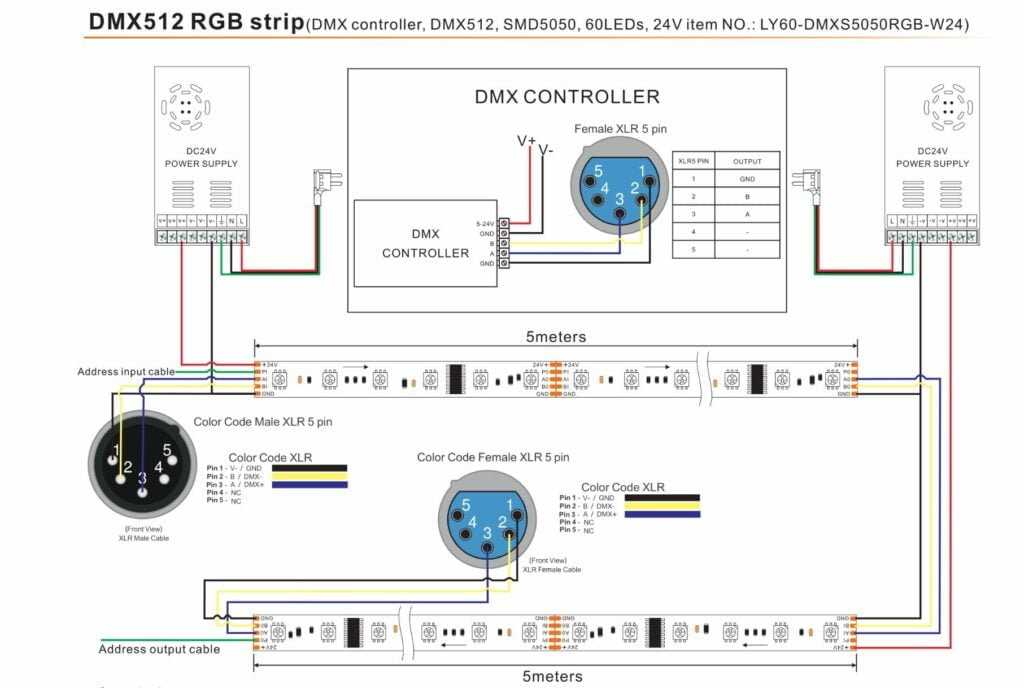

Use aluminum channels with diffusers for tapes above 24W per meter to prevent hotspots. Secure the conductive track inside the channel with adhesive dots spaced every 30cm–conventional adhesive fails at temperatures above 60°C. For color-changing RGB tapes, incorporate a compatible controller between the power source and tape; mismatched controllers (e.g., 12V controller with 24V tape) will trigger overcurrent protection within 45 seconds.

Label each circuit at both ends with heat-shrink tubing printed with current and voltage specs. Mark emergency disconnect points every 10 meters with red shrink sleeves. Store spare 470μF capacitors to counteract flicker at startup–install them parallel to the supply leads, observing polarity. For outdoor use, encase the first 50cm of cable in liquid-tight conduit rated IP67; standard PVC junctions fail within 18 months when exposed to UV radiation.

Selecting the Optimal Power Source for Your LED Tape Installation

Match the voltage of your chosen LED tape to the power supply–common options include 12V or 24V. Confirm compatibility by checking the product specifications; mismatches cause flickering, reduced brightness, or irreversible damage. Manufacturers often indicate voltage requirements on the tape’s adhesive backing or packaging.

Calculate wattage by multiplying the tape’s power consumption per meter by the total length. Add a 20% buffer to accommodate voltage drops over extended runs or connector losses. For example, a 5-meter roll consuming 14.4W per meter requires at least 86.4W (72W × 1.2). Always round up to the nearest standard power supply rating to avoid overloading.

Choose between constant voltage and constant current drivers based on the tape type. Standard RGB or single-color tapes use 12V/24V constant voltage supplies, while high-power LEDs (e.g., COB) may need constant current drivers. Verify the tape’s datasheet–constant voltage is standard for most consumer applications.

Opt for waterproof power supplies (IP65 or higher) for outdoor or moisture-prone areas. For indoor use, a non-IP-rated unit suffices but ensure adequate ventilation to prevent overheating. IP67-rated models are ideal for gardens, bathrooms, or under-cabinet installations where condensation occurs.

Efficiency and Certification Standards

Prioritize 80 PLUS Bronze (or higher) certified power supplies–they convert energy more efficiently, reducing heat and electricity costs. Look for UL, CE, or RoHS markings to confirm safety compliance. Uncertified units may fail prematurely or pose fire risks, especially under continuous load.

Select a unit with the correct output connectors for your tape’s input. Most 12V/24V supplies use barrel connectors (5.5mm × 2.1mm), while others may have screw terminals. Adapter cables exist for mismatches, but direct compatibility simplifies installation. For permanent setups, soldering or screw terminals provide a more secure connection than plug-and-play options.

For installations exceeding 15 meters, distribute power with multiple supplies or an amplifier to maintain consistent brightness. A single supply can power shorter lengths (under 10 meters) without noticeable dimming. Use thicker gauge wire (18AWG or lower) for longer runs to minimize voltage drop–calculators like the “LEDSupply Voltage Drop Tool” help determine requirements.

Step-by-Step Guide: Linking Multiple LED Segments in Series vs. Parallel

Always connect low-voltage LED ribbons in parallel for consistent brightness and reliability. Series connections cause voltage drops across each segment, reducing efficiency and leading to dimming or uneven illumination. Parallel setups distribute power evenly, ensuring each length operates at the same voltage.

Key Differences Between Series and Parallel Configurations

• Voltage Drop: Series circuits add voltage requirements per segment; a 12V setup with four 3V sections would need 12V total, but resistance causes losses. Parallel keeps 12V across each length.
• Current Distribution: Series forces identical current through all segments, risking overloading. Parallel allows current to split, accommodating varying lengths without stress.
• Failure Impact: A single break in series disconnects all downstream segments. Parallel isolates failures–one segment out doesn’t affect others.
• Power Supply Load: Series reduces current draw (beneficial for small setups), but parallel demands higher current capacity from the driver.

Calculate power requirements precisely: Multiply the wattage per meter (e.g., 14.4W/m) by the total length and add 20% buffer. For parallel, sum the current of each segment (Amps = Watts ÷ Volts). Exceeding the driver’s current rating risks overheating or damage.

Tools and Materials for Safe Installation

1. Driver: Match voltage (12V/24V) and wattage to total load. For 10 meters of 14.4W/m at 12V, use a 15A (180W) or higher driver.
2. Connectors: Use solder-free clamps or crimp connectors rated for 3A+ per circuit. Avoid conductive adhesives–they corrode under heat.
3. Wire Gauge: 18 AWG for runs under 5m, 16 AWG for longer. Thicker wire reduces voltage drop (≤3% loss maximum).
4. Heatshrink Tubing: Seal joints to prevent short circuits, especially in outdoor or high-humidity areas.
5. Multimeter: Verify voltage at the end of each run. For parallel, measure ≤0.5V drop from start to finish.

For series connections (use sparingly, e.g., short decorative runs):

• Join the end of the first segment’s positive (+) to the start of the next’s positive. Repeat for negatives (−).
• Ensure total voltage equals the driver’s output (e.g., four 3V segments need 12V).
• Limit to 3–4 segments maximum–voltage drop compounds with length.

For parallel connections (recommended for most applications):

1. Connect all positives (+) to the driver’s positive terminal via a single wire or distribution block. Repeat for negatives (−).
2. Use a bus bar or terminal strip for 3+ lengths to avoid cluttered solder joints.
3. If daisy-chaining, keep runs under 5m to minimize voltage drop. For longer installations, inject power every 5m by splitting the driver output into separate circuits.

Test each segment before finalizing connections. Power on the driver and check for uniform brightness. If flickering or dimming occurs, inspect joints for cold soldering or oxidation. For outdoor setups, apply dielectric grease to connectors to prevent moisture ingress.

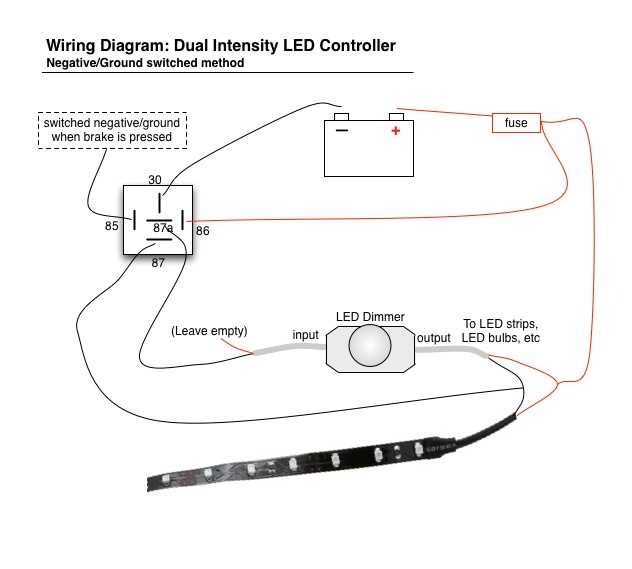

Use dedicated dimmers for parallel circuits: PWM dimmers (100Hz–1kHz) work at the driver input, while constant-current dimmers regulate per segment. Avoid rheostat dimmers–they waste power as heat. For addressable LEDs (e.g., WS2812B), use a microcontroller to manage data signals separately from power.

Proper Techniques for Trimming and Joining LED Segments Without Compromising Conductivity

Locate the designated cut lines–visible copper pads spaced every 25mm, 50mm, or 100mm depending on the series–marked by scissor icons or dashed lines. Use flush-cut snips with non-serrated jaws to slice perpendicular to the flexboard, ensuring a perfectly straight edge; angled cuts risk lifting adjacent traces or creating uneven contact surfaces. Remove residual adhesive and oxidation from the pads with a glass-fiber pen or fine-grit sanding sponge, then immediately apply rosin-based flux to prevent re-oxidation before soldering.

Precision Soldering Workflow for Reliable Joints

• Set the iron to 320°C–350°C, using a fine conical tip (≤1mm) for controlled heat delivery.
• Tin both surfaces–pad and wire–with a minimal solder bead (0.3mm–0.5mm) to prevent bridging.
• Align the pre-tinned wire flush against the pad, then apply heat for ≤2 seconds; prolonged contact degrades the polyimide substrate.
• Use 30AWG silicone-insulated wire for multi-color RGB segments; stranded variants increase flexibility without stressing joints.
• Encapsulate each joint with adhesive-lined heat-shrink tubing (minimum 3:1 shrink ratio) or UV-curable epoxy, ensuring complete moisture sealing.
• Test continuity with a multimeter (≤0.1Ω) before applying power; voltage drop >0.2V indicates poor adhesion or cold solder.

For sections exceeding 3m, inject power at both ends using 18AWG feeder cables; mid-span taps risk localized overheating if current exceeds 8A per segment. Avoid thermal paste or conductive gels–they accelerate trace corrosion under prolonged load.
