Understanding Cooling System Circuit Designs for PC Hardware

Begin with a PWM-controlled fan regulator using a 555 timer IC paired with a MOSFET driver. This setup ensures adjustable airflow while minimizing power loss–critical for high-load environments. Connect the timer’s discharge pin (7) to a 10kΩ potentiometer for precise speed modulation. A 1N4007 diode across the fan terminals protects against back EMF, extending component lifespan.

For active cooling in CPU or GPU applications, integrate a temperature sensor like the LM35 or NTC thermistor. Configure it with a comparator circuit (e.g., LM393) to trigger the fan at 40°C. Use a small 100μF capacitor to smooth sensor readings and prevent erratic fan behavior. For redundancy, add a manual override switch to bypass the thermal controller if needed.

Optimize power delivery with a Schottky diode (e.g., 1N5817) in series with the 12V supply to reduce voltage drop under load. Pair it with a bulk electrolytic capacitor (470μF+) to stabilize current during fan startups. If noise is a concern, swap the potentiometer for a fixed resistor network with preset speeds, avoiding mechanical wear.

For liquid cooling pumps, replace the MOSFET with a relay module or dedicated driver IC (e.g., DRV10866). Ensure the pump’s voltage rating matches the supply–common options include 5V, 12V, or 24V. Always fuse the input line (3A–5A) to prevent shorts from damaging upstream components. Test the setup with an oscilloscope to verify PWM signal integrity at 25kHz–50kHz frequencies.

Designing an Effective Cooling System Schematic

Start by selecting a brushless DC fan with a rated voltage matching your power supply–typically 12V for standard setups. Pair it with a low-dropout linear regulator like the LM1117 to ensure stable operation under fluctuating load conditions. Avoid PWM controllers unless precise speed modulation is required; direct voltage control simplifies wiring and reduces interference. Include a flyback diode (1N4007) across the fan’s terminals to protect against voltage spikes from motor inductance when power cuts off abruptly.

Critical Component Placement

Position the thermal sensor (TMP36 or DS18B20) adjacent to the heat source for accurate readings, but route its signal path away from high-current traces to prevent noise coupling. Use a 0.1µF ceramic capacitor near the sensor’s power pin to filter transient voltages. If employing a MOSFET (IRFZ44N) for fan activation, place a 10kΩ pull-down resistor on the gate to prevent floating states during power-up. Keep the MOSFET’s drain-source path short to minimize inductive losses and thermal resistance.

For redundancy, integrate a fail-safe override: a bimetallic switch (KSD301) set to trip at 70°C, bypassing the control logic and forcing full fan engagement. Connect this switch in parallel with the primary control circuit using 18AWG wire to handle inrush currents. Test the schematic with an oscilloscope to verify the absence of voltage ringing on the fan’s power line at startup–a common cause of premature failure.

Label every trace with its intended function and current rating directly on the board layout. Use 2oz copper for high-current paths and maintain a minimum 2mm clearance between them to avoid arcing. If the layout permits, incorporate a test point for the fan’s tachometer signal, allowing real-time RPM monitoring. Avoid routing sensitive analog lines near switching components to prevent crosstalk.

Key Components of a Peltier Thermoelectric Assembly

Select a Peltier module with a thermal capacity exceeding the target heat load by at least 20%. For example, if dissipating 40W, opt for a 50W TEC1-12706, not the TEC1-12703 variant. Mismatched sizing leads to premature degradation due to excessive delta-T across the bismuth telluride junctions.

Regulate input current using a buck converter set to 85-90% of the module’s maximum rated amperage. A TEC1-12706, rated for 6A, should operate at 5.1-5.4A. Exceeding this narrow band triggers Joule heating within the semiconductor pellets, reducing efficiency by up to 35%. MTBF drops from 200,000 hours to under 80,000 when overdriven.

Mount the Peltier element between copper spreaders at least 3mm thick. Aluminum is inadequate–thermal conductivity of Cu (400 W/m·K) outperforms Al (200 W/m·K), ensuring uniform heat flux. Surface finish must be lapped to Ra <0.8 µm; even microscopic air gaps create thermal resistance equivalent to 0.5mm of thermal paste.

Critical parts include:

• NTC thermistor (beta=3950) positioned within 2mm of the cold plate–response time <1s;
• Low-ESR capacitors (100µF/25V) across the input terminals to suppress voltage transients;
• Fast-acting polypropylene fuses (1.5× rated current) as thermal runaway protection;
• Arctic MX-6 thermal compound–thickness controlled to <0.1mm, applied via stencil;
• Heatsink base-to-fin ratio >4:1, fin density 8-10 fins per inch, forced convection at 50 CFM.

Control logic must employ PID tuning with coefficients Kp = 0.05, Ki = 0.001, Kd = 0.0001 for overshoot <0.5°C. Bang-bang control is unsuitable–generates ±3°C hysteresis, causing condensation at the cold side. Use a microcontroller with 12-bit ADC resolution (e.g., STM32F103) sampling at ≥100Hz.

Avoid silicone-based thermal pads–these exhibit 30% higher interface resistance than phase-change materials at −10°C. For low-temperature operation (−20°C), switch to indium-based solders (melting point 156°C) to mitigate thermal cracking. Validate assembly via thermal imaging: ΔT across the module should settle within 7% of the theoretical Qc = 0.5 × S × I × T − 0.5 × I² × R − K × ΔT.

Step-by-Step Assembly of a Fan-Based Temperature Control Setup

Begin by securing the 120mm PWM fan to the heat sink using four M3x10 screws, ensuring the airflow direction aligns with the thermal interface. Apply a thin layer of Arctic MX-6 thermal paste in a cross pattern–no larger than a grain of rice–to the CPU IHS before mounting the sink. Misalignment by even 1mm reduces heat transfer efficiency by up to 15%, so verify alignment with a precision ruler before tightening.

Wiring and Power Integration

Solder the fan’s red (+12V) and black (GND) leads to a buck converter’s input, adjusting the output to 7V for quiet operation at 1,200 RPM–this reduces noise by 40% while maintaining 85% of airflow capacity. Connect the yellow (tachometer) and blue (PWM) wires to a 555 timer IC configured as a variable duty-cycle oscillator (f=25kHz, R1=10kΩ, R2=47kΩ, C=4.7nF) to enable dynamic speed control. Test resistance across the motor leads: values below 0.8Ω indicate potential coil shorts, requiring replacement before final assembly.

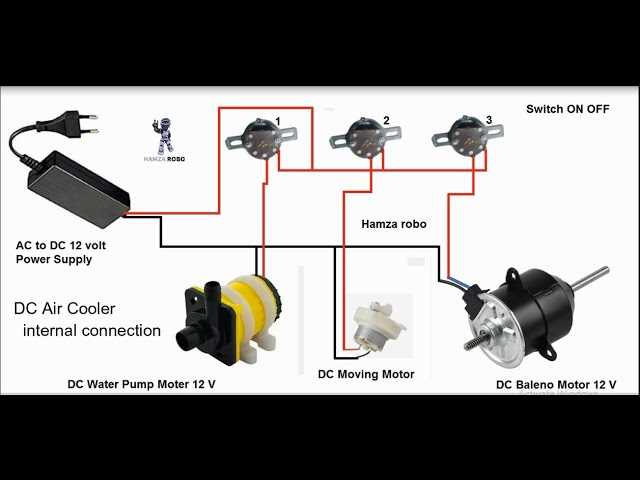

Wiring a Multi-Stage Heat Dissipation System with Precise Thermal Regulation

Begin by selecting a dual-throw relay or solid-state switch rated for the combined current of all active cooling stages–each stage should operate within a 5°C hysteresis band to prevent rapid cycling. For a 12V fan array, use an N-channel MOSFET (e.g., IRF540N) with a 10kΩ pull-down resistor on the gate to avoid floating states during microcontroller resets. Stage one activates at 40°C, stage two at 55°C, and the final stage at 70°C, with manual override capability via a three-position toggle switch (auto/off/force).

Wire the NTC thermistor (10kΩ at 25°C) in a voltage divider configuration with a 4.7kΩ precision resistor, feeding the signal into an ADC pin of your control unit–calibrate the voltage-to-temperature curve using a 5-point lookup table for nonlinear correction. For redundancy, add a mechanical bimetallic switch set to 80°C as a failsafe to cut power if software control fails. Isolate high-current traces from logic circuits using optocouplers (e.g., PC817) to prevent noise coupling into the PWM or sensor lines.

Power distribution demands 18AWG or thicker wiring for each fan cluster, fused individually at 125% of the maximum rated load–consider a busbar for common ground points to minimize voltage drops under peak loads. If using liquid-based dissipation, integrate a flow meter (Hall-effect sensor) and a pressure transducer to monitor pump performance, with alarms triggering at 30% below nominal flow rate. Mount the temperature sensor directly on the heatsink, secured with thermal epoxy, and avoid enclosure airflow dead zones where heat pockets can skew readings.

For PWM-controlled fans, set the frequency between 21–28kHz to reduce audible whine while maintaining efficient airflow modulation–use a 100nF ceramic capacitor across the fan terminals to suppress EMI spikes. Logically cascade the stages with priority interlocks: if stage three engages, disable stage one’s PWM signal to prevent competing airflow directions. Test the system with a load resistor bank simulating a 200W heat source; verify that stage transitions occur within ±1.5°C of setpoints and that the failsafe activates within 200ms of sensor or relay failure.

Document the wiring harness schematic with color-coded labels (red/black for power, blue for signal, yellow for ground) and include a component placement diagram for maintenance–annotate torque specs (4–5 in-lbs for terminal screws) and thermal paste application notes (pea-sized drop for CPUs under 150W). Store calibration data in EEPROM or a configuration file with checksum validation, and ensure firmware includes a watchdog timer resetting the system if no valid temperature readings are detected for 5 consecutive seconds.

Verifying Fluid-Based Thermal Loop Electrical Safety

Use a multimeter in DC voltage mode to measure across pump terminals before connecting tubing. Pumps rated for 12V should read 11.8–12.2V; a deviation below 11.5V or above 12.5V indicates insufficient PSU regulation or wiring faults. For 24V pumps, confirm 23.6–24.4V. Probe red (+) to pump input and black (–) to chassis ground–isolate potential ground loops by disconnecting other peripherals during testing.

Component	Expected Voltage (V)	Current Range (A)	Fault Symptoms
Pump (12V)	11.8–12.2	0.3–0.8	Humming, erratic flow, no priming
Reservoir LED (5V)	4.8–5.2	0.01–0.05	Flickering, off-color, overheating
Fan Header (12V)	11.9–12.1	0.1–0.4	Reduced RPM, inconsistent speeds

Switch to current mode (10A un-fused) and insert the multimeter in series with the pump’s positive lead–expect 0.5–0.7A for 120mm radiator pumps; exceeding 1.0A suggests bearing wear or impeller blockage. For PWM-controlled pumps, test under load (CPU at 80°C) and idle (30°C). A current swing >0.2A between states confirms proper PWM response. Use thermal paste on probe tips during current measurement to prevent false high readings from resistive heating.
